HashiCorp Certified: Vault Associate Certification

Compare and Configure Secrets Engines

Working with a Secrets Engine

Vault uses Secrets Engines to store, generate, and manage sensitive data. Before you can work with any engine, you need to enable it under a unique mount path. Vault ships with two engines enabled by default—cubbyhole and identity—which cannot be disabled without impacting core functionality.

Note

Vault’s built-in engines cubbyhole and identity are always enabled and cannot be removed.

All other engines must be enabled explicitly using the CLI, API, or UI (note: not every feature is available in the UI).

  1. CLI
  2. API
  3. UI

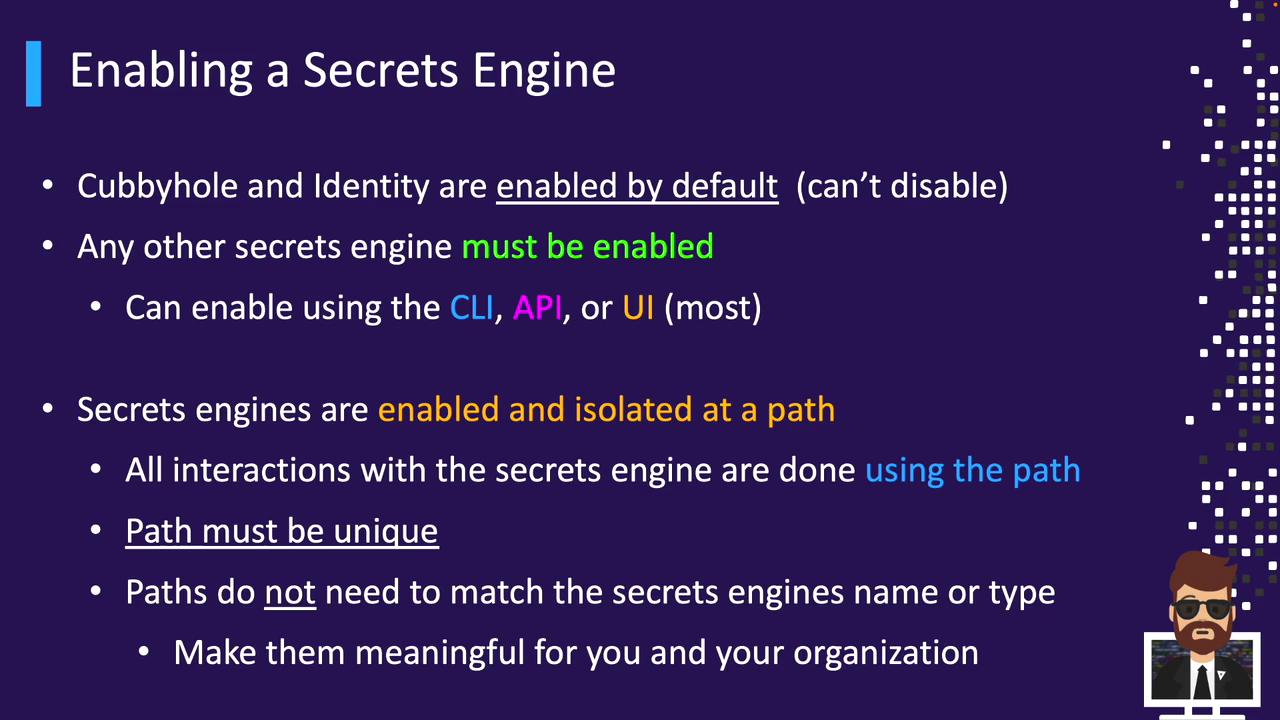

The image is a slide titled "Enabling a Secrets Engine," outlining steps and considerations for enabling secrets engines, including default settings, enabling methods, and path requirements. It features colorful text highlights and a small cartoon character in the corner.

Mounting a Secrets Engine

When you enable a Secrets Engine, you assign it a path that isolates all its operations—reads, writes, and configuration. Paths must be unique (avoid reserved prefixes like sys/ or auth/) but don’t have to match the engine’s type name.

Examples:

vault secrets enable -path=starbucks-kv kv-v2
vault secrets enable -path=aws-backups aws

Choose descriptive names that align with your team or use case.


Operator vs. Client Responsibilities

Operators (Vault administrators or privileged users) perform these steps for each engine:

  1. Enable the Secrets Engine at a chosen path
  2. Configure backend connectivity (e.g., AWS credentials, Kubernetes service account token)
  3. Create roles that define backend permissions
  4. Write Vault policies granting clients access to those roles

Clients (applications, developers, CI/CD pipelines) then:

  • Read credentials using their Vault token and attached policies
  • Renew leases before expiration (if allowed)
  • Renew their token (if allowed)

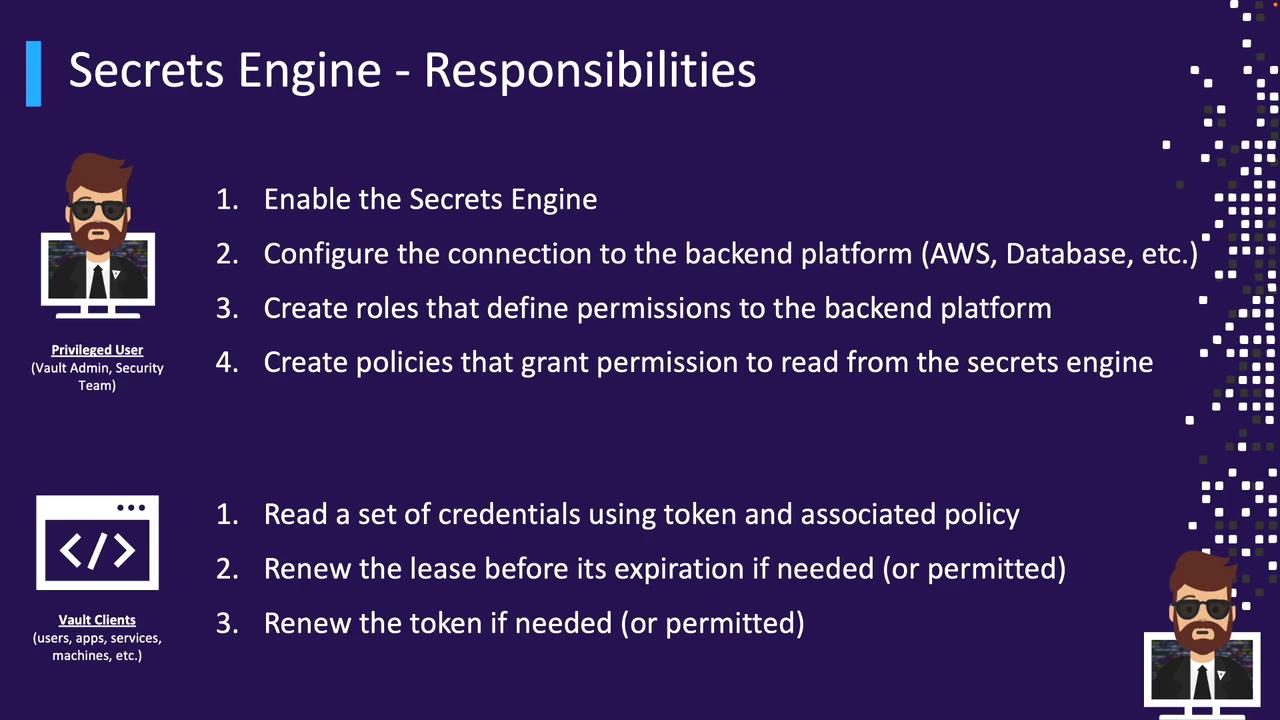

The image outlines the responsibilities of a Secrets Engine, detailing tasks for privileged users and vault clients. It includes steps for enabling the engine, configuring connections, creating roles and policies, and managing credentials and tokens.


Managing Secrets Engines with the CLI

Vault provides the vault secrets command group to administer engines:

CommandDescription
vault secrets enableEnable a new engine at a specified mount path
vault secrets disableDisable and remove an existing engine
vault secrets listList enabled engines with mount paths and metadata
vault secrets moveChange an engine’s mount path
vault secrets tuneAdjust engine parameters (e.g., default lease TTL)

Enabling and Disabling

Mounting an engine registers its configuration in storage. Disabling and then re-enabling the same path resets its settings:

$ vault secrets enable aws
Success! Enabled the aws secrets engine at: aws/

$ vault secrets disable aws
Success! Disabled the aws secrets engine at: aws/

$ vault secrets enable aws
Success! Enabled the aws secrets engine at: aws/

Warning

Disabling a Secrets Engine removes all configuration data under that mount. Re-enabling creates a fresh configuration.

Tuning Engine Parameters

Configure defaults such as lease TTLs:

$ vault secrets tune \
  -default-lease-ttl=72h \
  -max-lease-ttl=744h \
  pki/
Success! Tuned the secrets engine at: pki/

Listing Engines

$ vault secrets list
Path                Type      Accessor              Description
----                ----      --------              -----------
aws/                aws       aws_dafa7adc          n/a
azure/              aws       aws_la214ff6          n/a
bryan/              kv        kv_28b1ceaa           n/a
cloud-team-kv/      kv        kv_fa270a3f           n/a
cubbyhole/          cubbyhole cubbyhole_88c8e2e3    per-token private secret storage
dev-team-kv/        kv        kv_55c319c4           n/a
identity/           identity  identity_e60e93cb     identity store
kv-v2/              kv        kv_eea3206c           n/a
sys/                system    system_66b0d8ee       system endpoints used for control, policy and diagnostics
transit/            transit   transit_7b8038ca      n/a
  • Mount paths don’t have to match engine types (e.g., azure/ above is an AWS engine)
  • Use -detailed for extended metadata, especially for KV v2

Example: Enabling KV v2

vault secrets enable \
  -path=cloud-kv \
  -description="Static Secrets for Cloud Team" \
  kv-v2
  • -path=cloud-kv sets a custom mount point (defaults to engine name)
  • -description adds context in listings
  • kv-v2 specifies the engine version

Enabling via the UI

  1. Navigate to SecretsEnable new engine in the top-right corner.
  2. Select the Secrets Engine type you need (note: not all appear here).

The image shows a user interface for enabling a secrets engine, with options for different types of engines like Generic, Cloud, and Infra. It includes a playful note saying "Choose Your Weapon (I mean, Secrets Engine)" on a purple background.

  1. Fill in Path, Description, and any engine-specific settings (e.g., TTLs, replication, seal wrap).

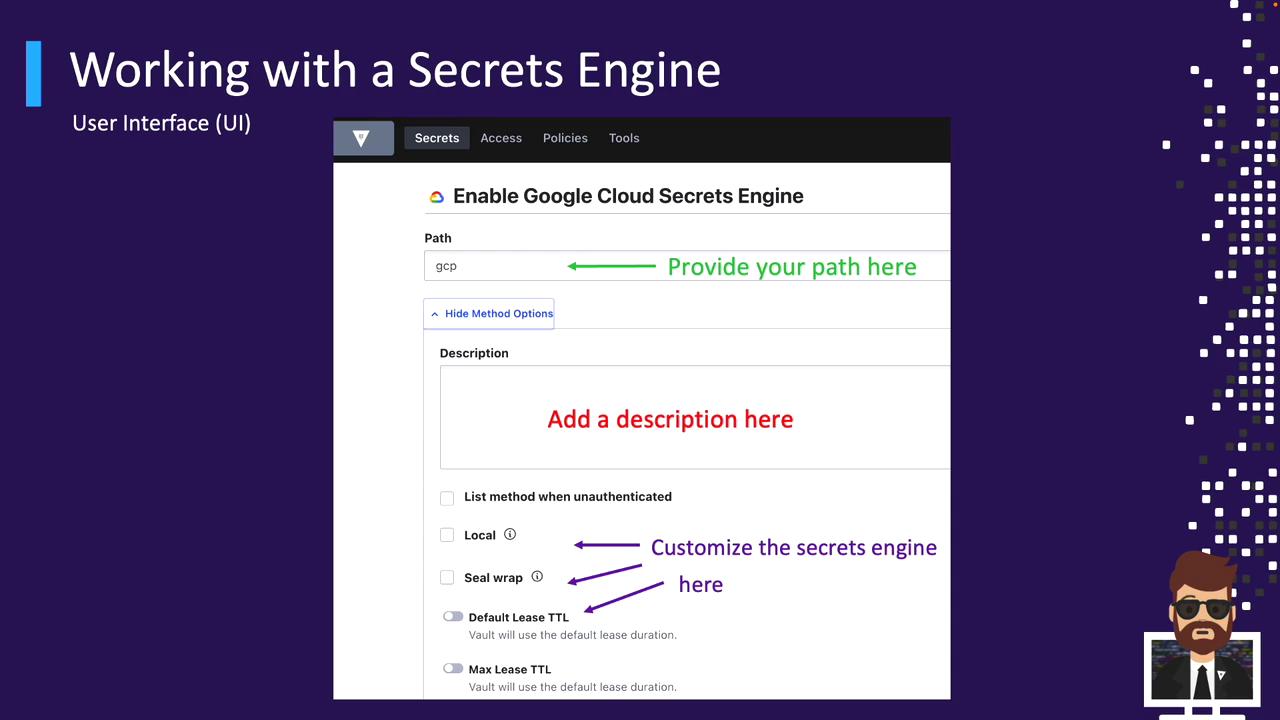

The image shows a user interface for enabling the Google Cloud Secrets Engine, with fields for path and description, and options for customization. It includes annotations for guidance on where to input information.


Next Steps

In upcoming sections, we'll explore popular Secrets Engines in depth—demonstrating how to:

  • Enable and configure each engine
  • Define roles and generate dynamic credentials
  • Consume and rotate secrets in applications

Stay tuned for hands-on tutorials!
