In this guide, we’ll explore how HashiCorp Vault operates by comparing it to a hotel. This analogy comes from the first chapter of the Running HashiCorp Vault in Production book. Think of Vault as Hotel Atlantis on Paradise Island, Bahamas, which has multiple entrances:

Main guest entrance
Pool or beach access
Employee parking
Conference wing entrance

Similarly, Vault provides several interfaces to interact with its service.

Vault Interfaces: API, UI, and CLI

Vault offers three primary access methods—each like a different hotel door:

Interface	Use Case	Hotel Entrance Analogy
API	Machine-to-machine integrations	Back‐of‐house employee entrance
UI	Human interaction via browser	Hotel lobby
CLI	Scripts and interactive use	Side door for staff or guests

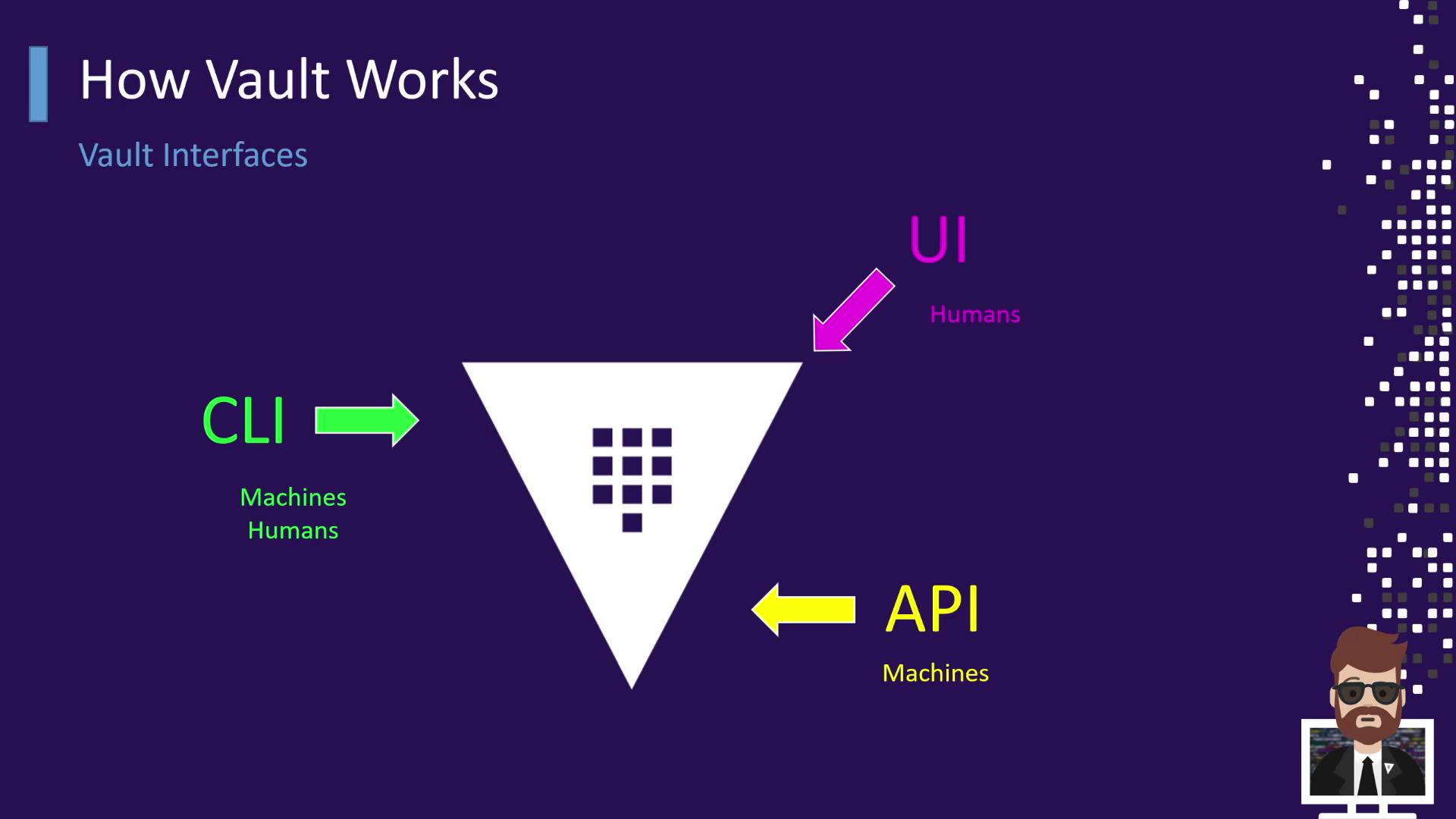

The image illustrates how Vault works, showing interfaces like CLI, UI, and API, with arrows indicating their interaction with Vault.

The image illustrates how Vault works, showing interfaces like CLI for machines and humans, UI for humans, and API for machines.

Authentication and Token Issuance

When you arrive at the hotel, you first stop at reception. The receptionist verifies your ID and issues a keycard. In Vault, this keycard is equivalent to a token:

Identification → Present an ID at reception
Verification → Receptionist confirms your identity
Key Issued → You receive a card granting access to your room and amenities
TTL → The keycard is valid only for your stay (e.g., three days)

The image illustrates a hotel reception scene with a receptionist handing a room key to a guest, alongside icons representing hotel amenities like a room, gym, VIP lounge, and spa. It also includes a key card with instructions and a note that it is valid for three days.

When authenticating with Vault:

Auth Method	Description
Username & Password	Traditional user login
AppRole	Machine login using Role ID + Secret ID
TLS Certificate	Client certificate-based authentication
Cloud IAM Credentials	IAM-based auth for AWS, GCP, Azure, etc.

You authenticate via one of the methods above.
Vault validates your credentials.
Vault issues a token with a configurable TTL (e.g., 4 hours, 12 hours).
This token grants specific capabilities (read, write, delete, list) on designated Vault paths.

Note

Tokens in Vault can be renewed before they expire, extending their TTL without re-authentication.

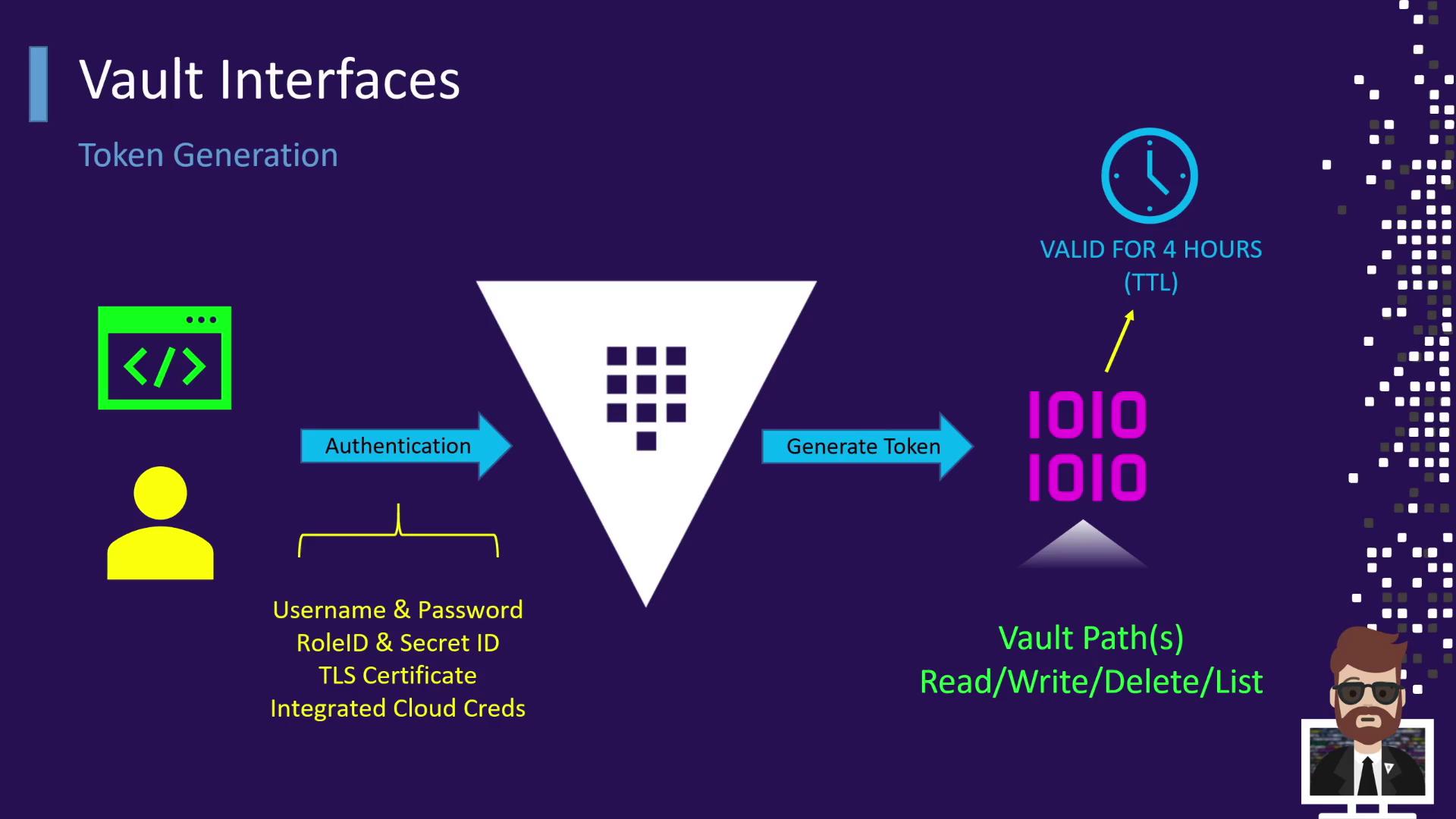

The image illustrates a process of token generation in vault interfaces, showing authentication methods and token validity, with a focus on security credentials and access permissions.

Retrieving Secrets with a Token

Once you have a valid token, you can reuse it—just like swiping your hotel keycard at the gym or spa without returning to reception:

An application or user presents the token to Vault.
Vault checks that the token:
- Is not expired
- Has permission for the requested path (e.g., kv-apps-secret)
If authorized, Vault returns the requested data.

Attempting to access a forbidden area (like swiping a non-VIP card at the VIP lounge) results in a denial.

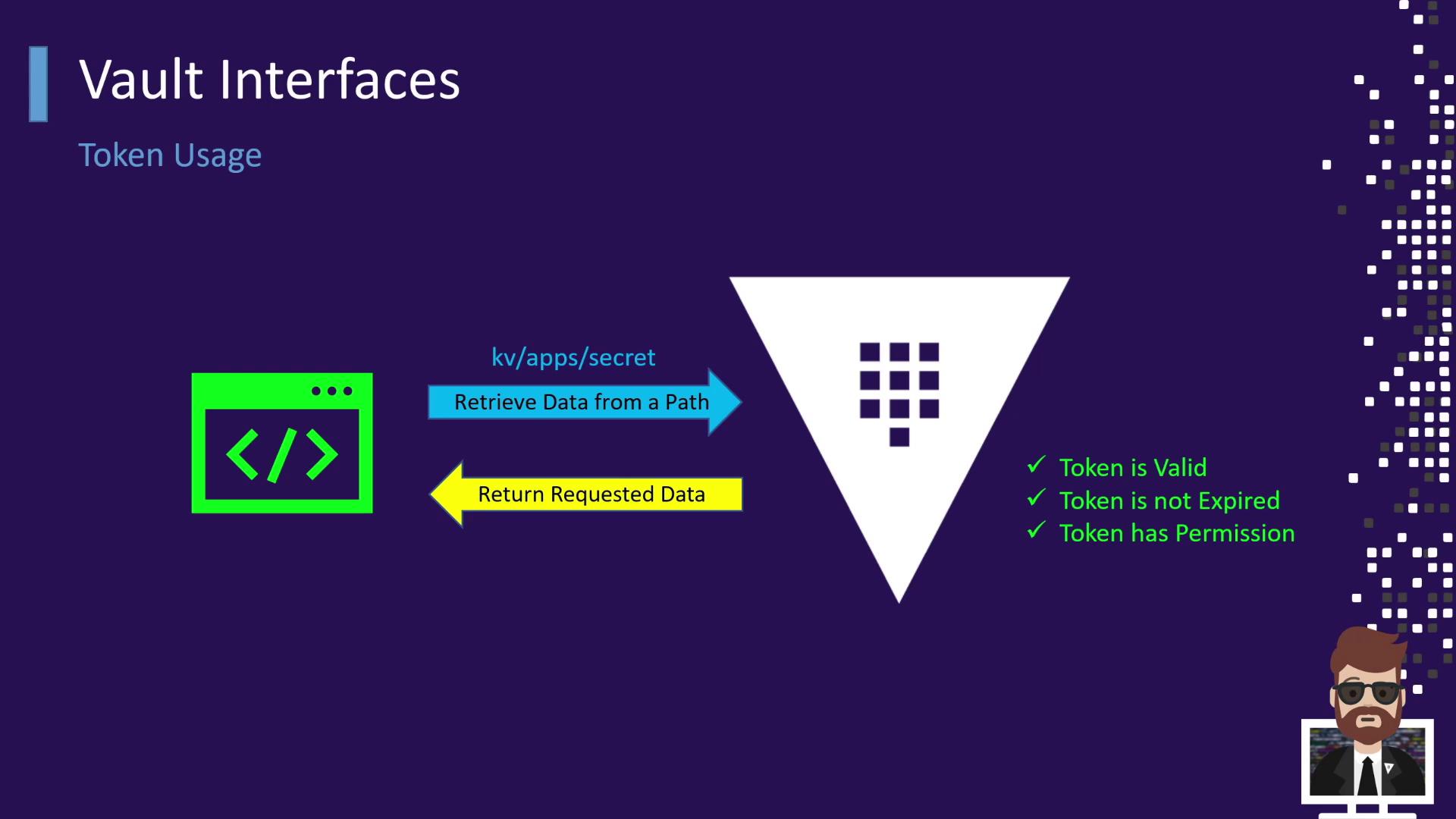

The image illustrates the process of using a token to retrieve data from a path in a vault interface, highlighting token validity, expiration, and permission. It includes a diagram with arrows indicating data retrieval and return, and a character icon.

Warning

Always monitor token expiration and rotate or revoke tokens promptly to maintain strong security posture.

This “authenticate once → receive a token → reuse the token” pattern applies to all Vault operations—whether you’re retrieving static secrets, generating dynamic credentials, or using any secrets engine.
