Vault Agent Templating

Learn how HashiCorp Vault Agent’s templating feature enables legacy applications to consume Vault secrets from a local file—no direct API calls required.

The Challenge with Legacy Applications

Many legacy apps cannot call Vault’s HTTP API. Even if Vault Agent auto-authenticates and fetches a token, the application can’t use it without direct Vault access. To bridge this gap, Vault Agent can render secrets into a local file that the application reads like any other configuration.

What Is Consul Template?

Vault Agent’s templating builds on Consul Template, a standalone utility that:

• Renders data from Vault or Consul into files
• Manages automatic secrets retrieval and renewal
• Operates without a running Consul cluster when used with Vault

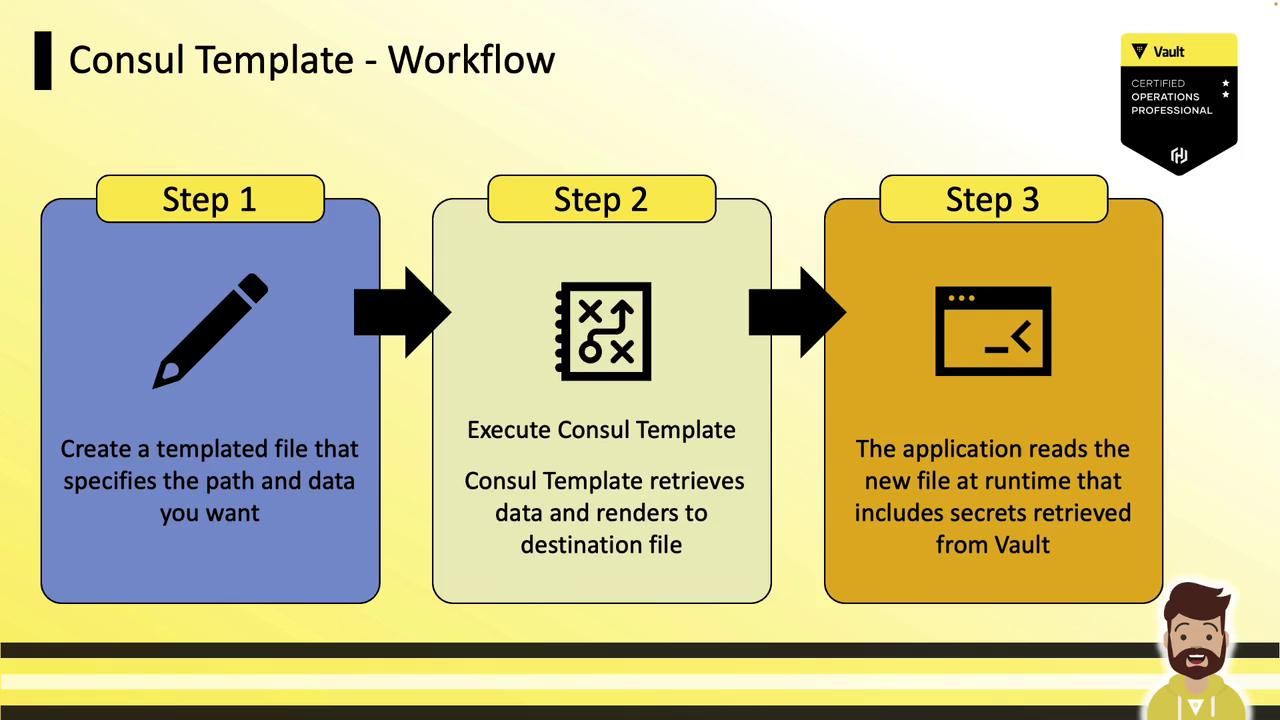

How Consul Template Works

Consul Template follows a simple three-step workflow:

1. Template Definition
   Create a template file specifying Vault paths and placeholders.
2. Rendering
   Run Consul Template; it fetches secrets and writes them to the destination file.
3. Application Consumption
   The app reads the rendered file at runtime as a static config.

Example Template (config.tmpl)

production:
  adapter: postgresql
  encoding: unicode
  database: orders
  host: postgres.hcvop.com
  {{ with secret "database/creds/readonly" }}
  username: "{{ .Data.username }}"
  password: "{{ .Data.password }}"
  {{ end }}

• secret "database/creds/readonly" points to the Vault secret path.
• .Data.username and .Data.password extract the JSON fields returned by Vault.

After rendering, config.yml contains:

production:
  adapter: postgresql
  encoding: unicode
  database: orders
  host: postgres.hcvop.com
  username: "readonly-username"
  password: "readonly-password"

The application simply reads config.yml for its credentials.

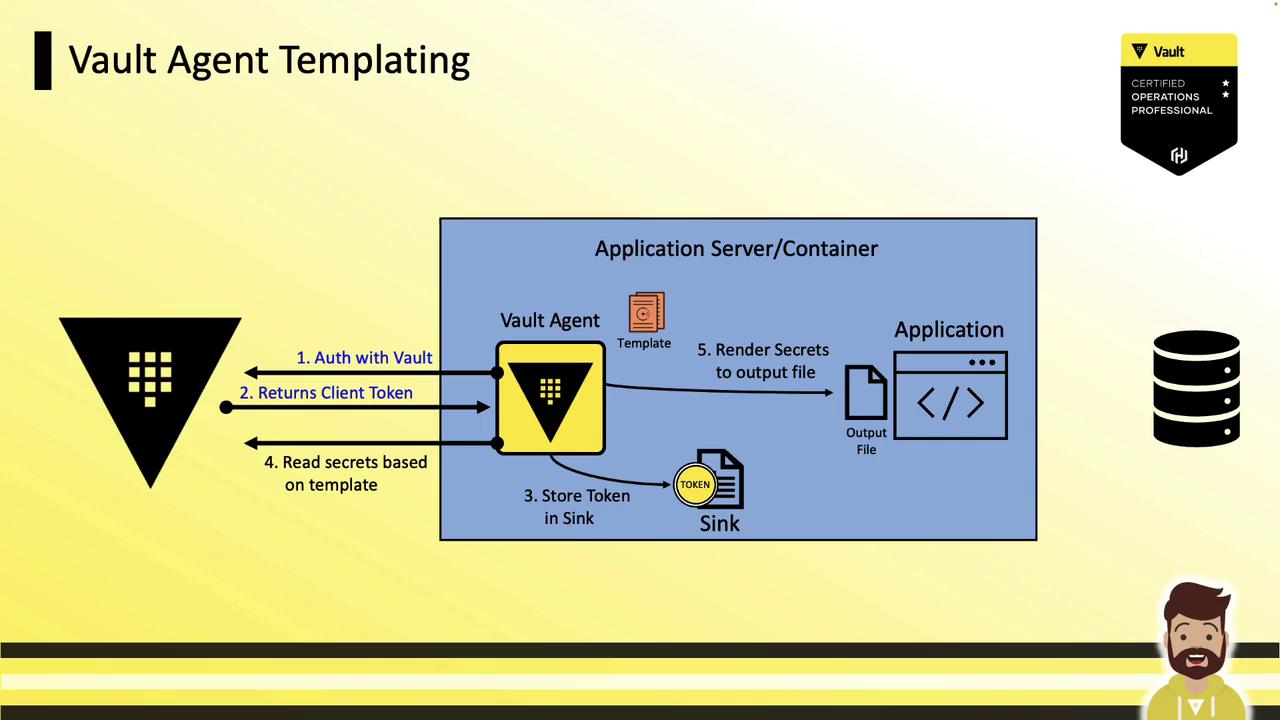

Vault Agent Templating Overview

Vault Agent now embeds Consul Template functionality—no separate binary needed. It handles both auto-auth and templating in one process:

1. Auto Auth
   Vault Agent authenticates (e.g., AppRole, Kubernetes) and writes the token to a sink.
2. Templating
   It reads secrets via the template and renders them to a local file.
3. Application
   The app reads the rendered file and connects to external services using up-to-date credentials.

Comparing Consul Template vs. Vault Agent Templating

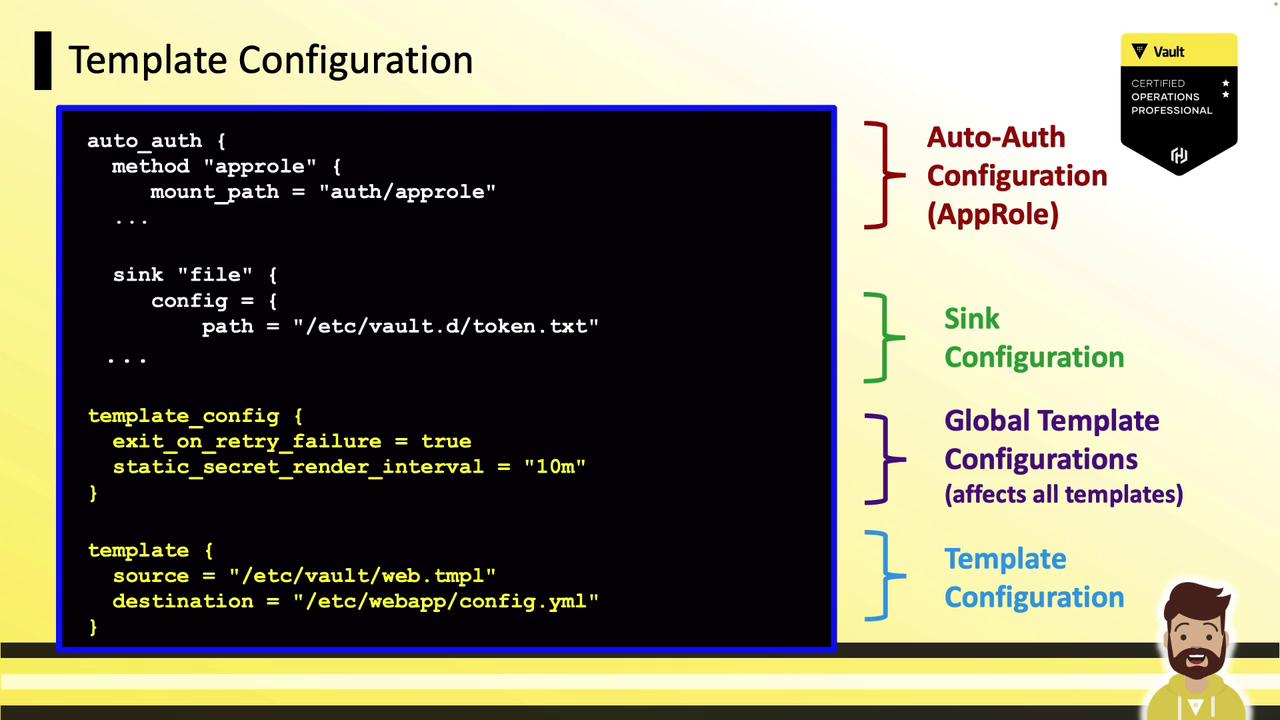

Example Vault Agent Configuration

Use this HCL snippet to enable templating in Vault Agent:

auto_auth {
  method "approle" {
    mount_path = "auth/approle"
    # AppRole role_id & secret_id will be supplied here
  }

  sink "file" {
    config = {
      path = "/etc/vault.d/token.txt"
      mode = 0640
    }
  }
}

template_config {
  exit_on_retry_failure         = true    # Exit if rendering fails permanently
  static_secret_render_interval = "10m"   # Refresh KV secrets every 10 minutes
}

template {
  source      = "/etc/vault/web.tmpl"
  destination = "/etc/webapp/config.yml"
  perms       = "0640"
}

The template file (/etc/vault/web.tmpl) can mirror the earlier Consul Template example.

With this setup, you can run legacy or unmodified applications without any Vault-specific code changes—they simply read secrets from a local file.
