In this guide, we'll configure Vault Agent Templating to allow legacy applications to consume Vault secrets via local files without modifying application code.

The Challenge

Legacy applications often cannot call the Vault HTTP API directly, so they lack a mechanism to fetch secrets using a Vault token. By delegating authentication and token management to Vault Agent, we can render secrets into files that such applications read like standard configuration.

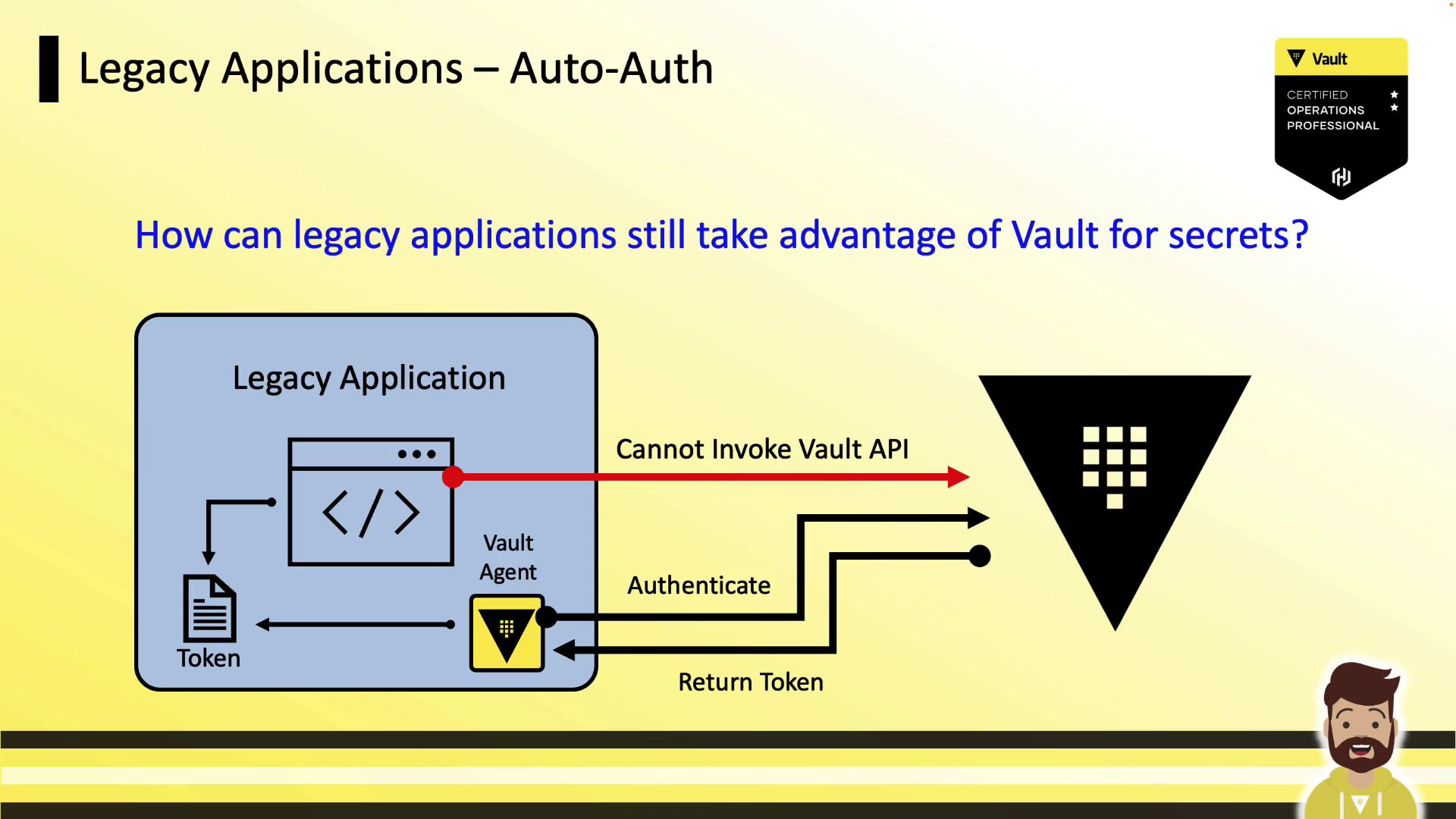

The image illustrates how legacy applications can use Vault for secrets management, showing a flow where a Vault Agent handles authentication and token retrieval.

Consul Template Overview

Vault Agent Templating leverages the Consul Template engine. Despite its name, Consul Template can fetch and renew secrets directly from Vault.

Consul Template is a standalone binary that:

Retrieves secrets from Vault (or data from Consul).
Manages token acquisition and renewal.
Renders secrets to a file based on a provided template.
Requires a valid Vault token to operate.

The image is a slide about Consul Template, describing it as a standalone application that renders data from Consul or Vault onto the target file system, and noting that it retrieves secrets from Vault.

Consul Template Workflow

Step	Description
1. Create template	Define a file with Vault paths and data keys (e.g., `{{ with secret "database/creds/readonly" }}`)
2. Run Consul Template	Fetch secrets and render to the destination file
3. Application reads file	Legacy app uses the rendered file without calling Vault

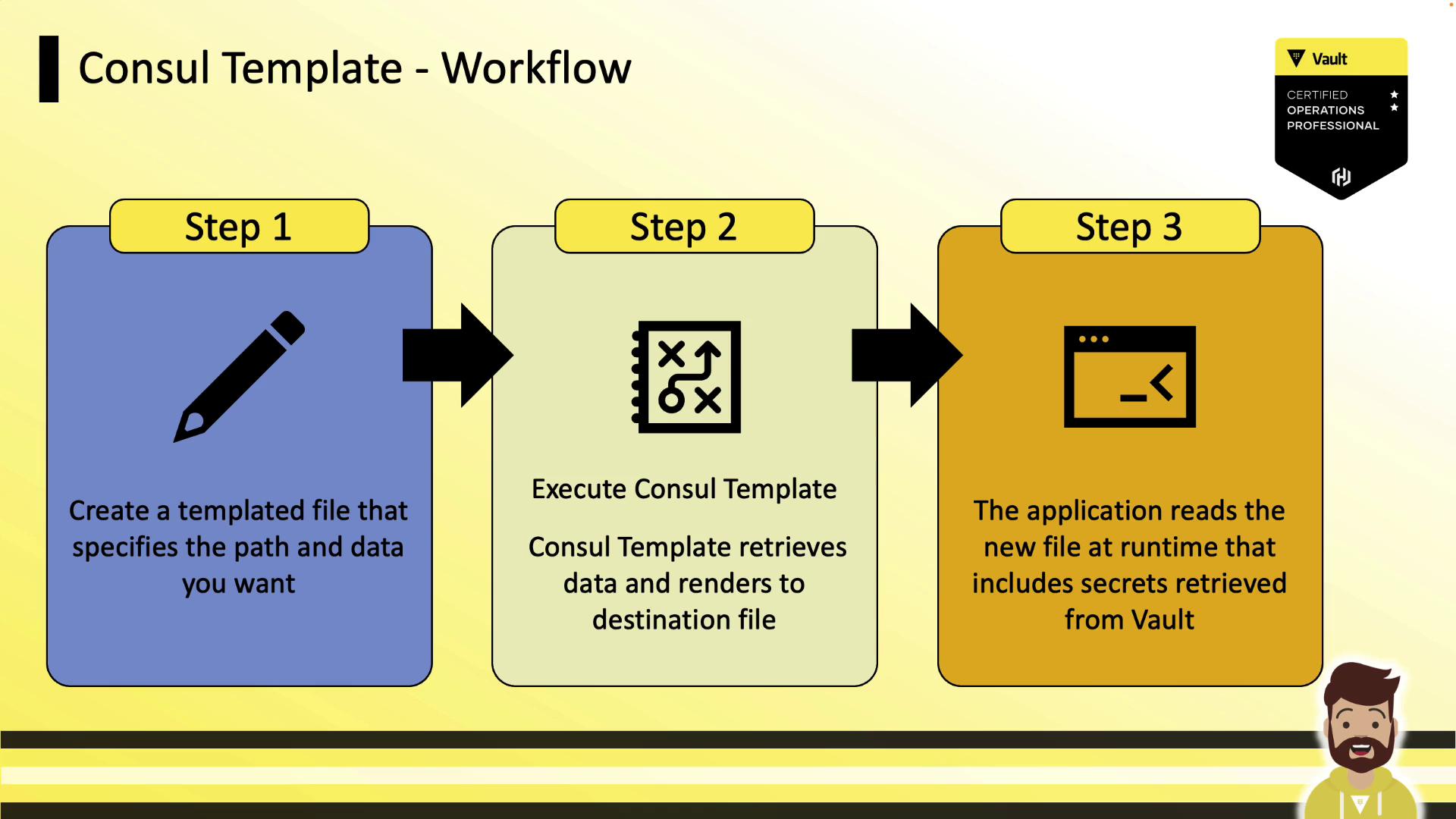

The image illustrates a three-step workflow for using a Consul Template, detailing the creation of a templated file, execution of the template to retrieve data, and application runtime reading of the file with secrets from Vault.

Example: Template Input (`web.tmpl`) and Rendered Output

Input (web.tmpl):

production:
  adapter: postgresql
  encoding: unicode
  database: orders
  host: postgres.hcvop.com
  {{ with secret "database/creds/readonly" }}
  username: "{{ .Data.username }}"
  password: "{{ .Data.password }}"
  {{ end }}

Output (config.yml):

production:
  adapter: postgresql
  encoding: unicode
  database: orders
  host: postgres.hcvop.com
  username: "v-vault-readonly-fm3dfm20sm2s"
  password: "fjk39fk49fks02k_3ks02mdz1s1"

Vault Agent Templating

Vault Agent integrates the Consul Template engine directly, removing the need for a separate binary. It uses Auto Auth to authenticate and then renders secrets via templates.

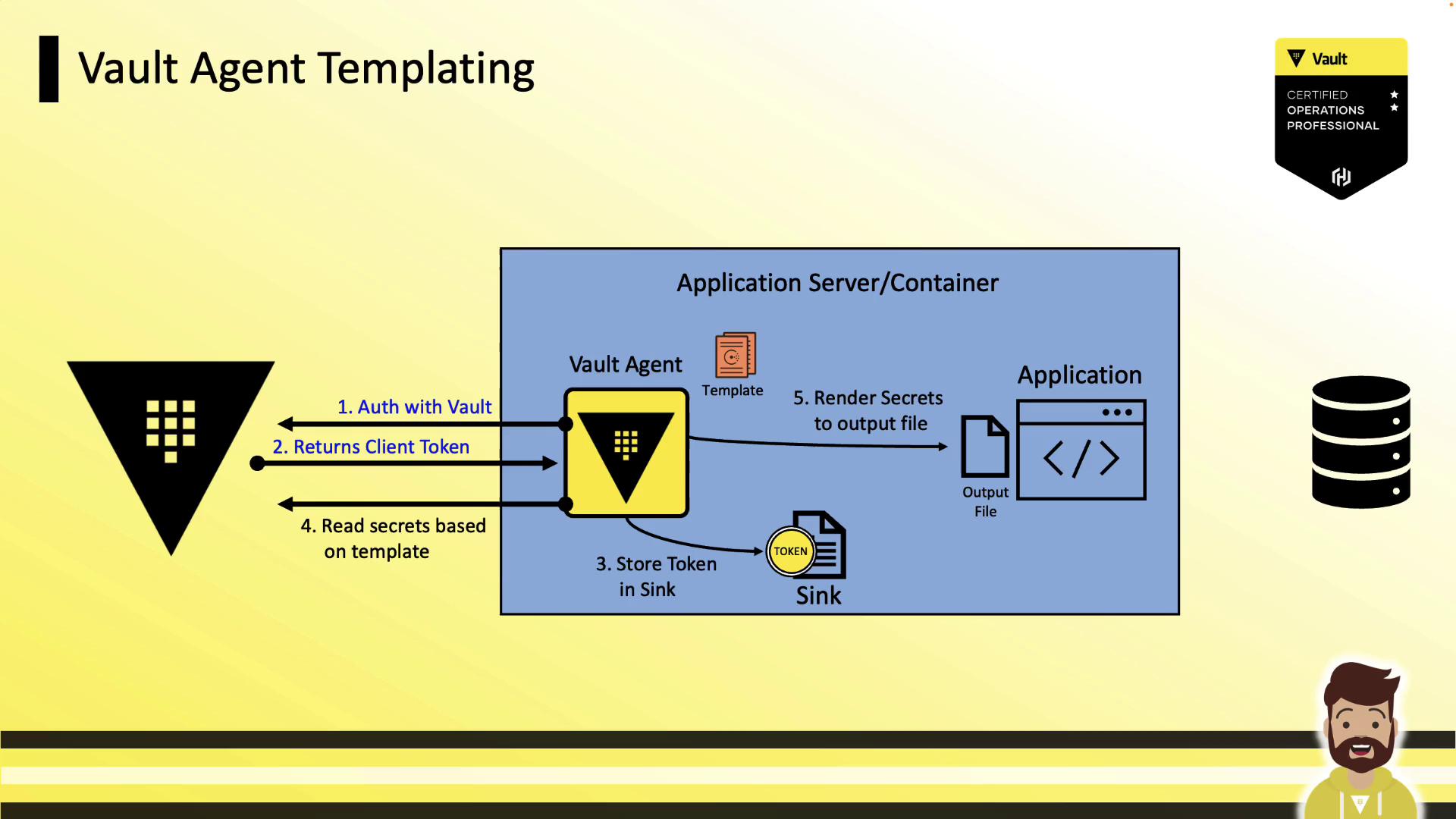

The image illustrates the process of Vault Agent Templating, showing how an application server/container interacts with a Vault Agent to authenticate, retrieve a client token, read secrets, and render them to an output file. It includes labeled steps and icons representing the components involved.

Templating Workflow

Authentication
Vault Agent uses Auto Auth (AppRole, Kubernetes, AWS, etc.) to authenticate and writes the token to a sink.
Templating
The embedded Consul Template engine reads the template and fetches secrets from Vault.
Rendering
Secrets are written to the specified destination file.
Application Access
The legacy application reads the rendered file as its configuration.

Note

Vault Agent Templating supports multiple template blocks. Each block can point to a different source and destination file.

Configuration Example

Below is a minimal vault.hcl enabling Auto Auth and templating:

auto_auth {
  method "approle" {
    mount_path = "auth/approle"
    role_name  = "my-role"
  }
  sink "file" {
    config = {
      path = "/etc/vault.d/token.txt"
    }
  }
}

template_config {
  exit_on_retry_failure         = true
  static_secret_render_interval = "10m"
}

template {
  source      = "/etc/vault/web.tmpl"
  destination = "/etc/webapp/config.yml"
}

Configuration Block	Purpose	Example Setting
auto_auth	Defines authentication method and token sink	`method "approle" { ... }`
template_config	Global templating options (retry, intervals)	`exit_on_retry_failure = true`
template	Template source and output destination	`source = "/etc/vault/web.tmpl"`

Warning

The exit_on_retry_failure flag will terminate Vault Agent if templating consistently fails. Use with caution in production environments.

With this setup, unmodified legacy applications can seamlessly consume dynamic Vault-managed secrets via local configuration files.
