HashiCorp Documentation Review

In this guide, you’ll learn how to navigate the official HashiCorp Vault documentation and API references effectively for the Vault Certified Operations Professional exam. You will have access to the Vault Documentation and the Vault API Reference during the test—exactly as shown on screen. This article highlights the key sections, best practices, and example stanzas you’ll need.

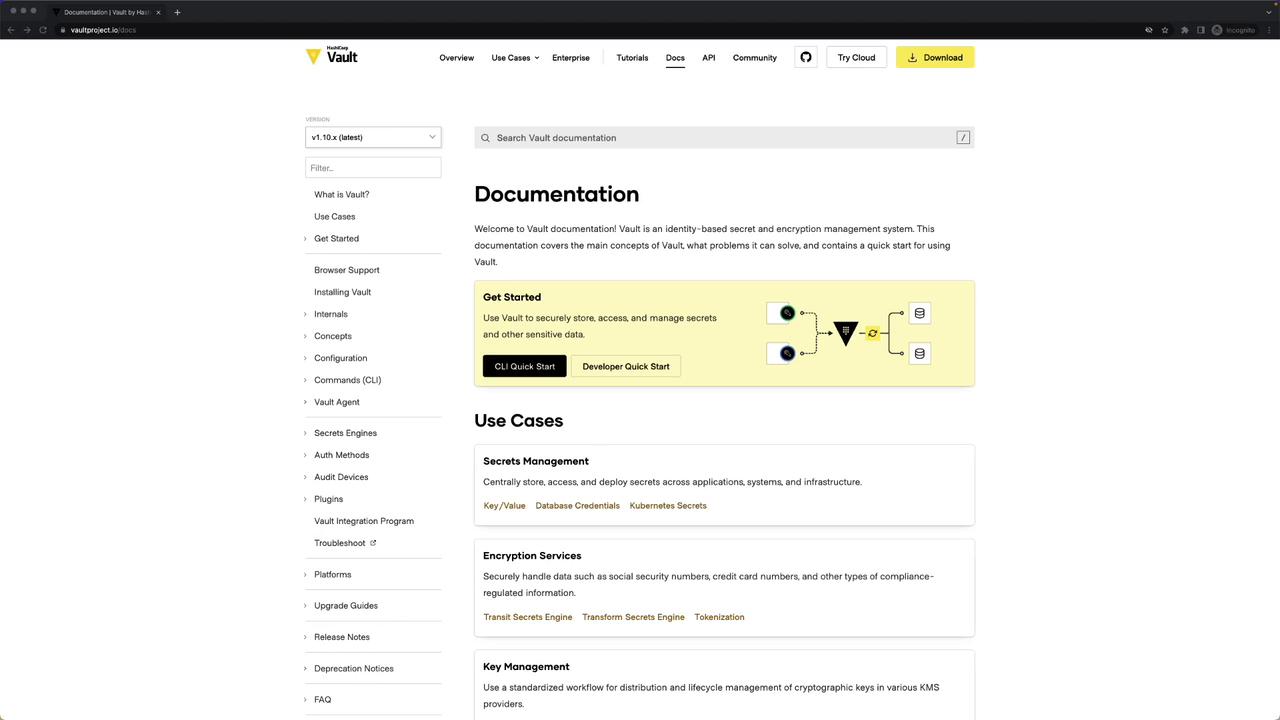

Documentation Structure Overview

The left-hand navigation pane organizes Vault content into high-level concepts and detailed references. Use this table to focus your study on exam-relevant topics:

1. Configuration

Vault’s Configuration section covers everything in your server’s HCL file—listeners, seal backends, storage, UI, telemetry, and more.

1.1 Listener Configuration

Vault supports a single listener type: TCP.
Key parameters:

• address
• cluster_address
• tls_disable
• tls_cert_file
• tls_key_file

listener "tcp" {
  address         = "0.0.0.0:8200"
  cluster_address = "0.0.0.0:8201"
  tls_disable     = true
  tls_cert_file   = "/etc/vault/server.crt"
  tls_key_file    = "/etc/vault/server.key"
}

1.2 Seal Configuration

Choose a seal backend to protect the master key. Examples:

seal "aws_kms" {
  region     = "us-east-1"
  access_key = "AKIAIOSFODNN7EXAMPLE"
  secret_key = "xutxfEHTKZM6DN9Pr1fI0CEXAMPLE"
  key_id     = "1g9c8b4c-4d97-816d-6ec6example"
  endpoint   = "https://example.vpce.us-east-1.vpce.amazonaws.com"
}

seal "azurekeyvault" {
  tenant_id     = "e646479d-96b3-4747-be42-51dedaef1e46"
  client_id     = "b343637c-1649-47b7-8152-3e568f81426c"
  client_secret = "PUDUS3"
  key_name      = "vault-key"
}

seal "pkcs11" {
  # PKCS#11 parameters...
}

seal "ocikms" {
  key_id              = "ocid1.kmskey.oc1..exampleuniqueID"
  crypto_endpoint     = "https://kms.us-ashburn-1.oci.oraclecloud.com"
  management_endpoint = "https://kms.us-ashburn-1.oci.oraclecloud.com"
  auth_type_api_key   = "true"
}

1.3 Storage Backend

Example: Integrated Raft storage for HA.

storage "raft" {
  path         = "/path/to/raft/data"
  node_id      = "raft_node_1"
  cluster_addr = "https://127.0.0.1:8201"
}
ui = true

Additional configuration blocks for telemetry, service registration, etc., are available in the docs.

2. CLI Commands

Vault’s Commands reference documents every subcommand. Common ones include:

vault status
vault version
vault operator seal
vault operator unseal
vault operator rotate

Explore vault operator for Raft snapshots, key rotation, and more.

3. Vault Agent

Vault Agent automates authentication, token caching, template rendering, and secret synchronization.

Auto-Auth with AppRole

pid_file = "/tmp/agent.pid"

vault {
  address = "https://127.0.0.1:8200"
}

auto_auth {
  method = "approle"
  config = {
    role_id_file_path                   = "roleid"
    secret_id_file_path                 = "secretid"
    remove_secret_id_file_after_reading = true
  }
}

sink "file" {
  wrap_ttl = "30m"
  config   = { path = "wrapped.txt" }
}

sink "file" {
  config = { path = "unwrapped.txt" }
}

cache {
  use_auto_auth_token = true
}

listener "tcp" {
  address     = "127.0.0.1:8201"
  tls_disable = true
}

template {
  source      = "/etc/vault/template.ctmpl"
  destination = "/etc/vault/rendered.txt"
}

See the Vault docs for Azure, AWS, Kubernetes, and other auto-auth methods.

4. Secrets Engines

Enable and configure Secrets Engines to manage credentials dynamically:

4.1 Database Engine (MySQL)

vault secrets enable database

vault write database/config/my-mysql-database \
    plugin_name=mysql-database-plugin \
    connection_url="{{username}}:{{password}}@tcp(127.0.0.1:3306)/" \
    allowed_roles="my-role" \
    username="vaultuser" \
    password="vaultpass"

vault write database/roles/my-role \
    db_name="my-mysql-database" \
    creation_statements="CREATE USER '{{name}}'@'%' IDENTIFIED BY '{{password}}'; GRANT SELECT ON *.* TO '{{name}}';" \
    default_ttl="24h" \
    max_ttl="24h"

4.2 Database Engine (PostgreSQL)

vault write database/config/my-postgresql-database \
    plugin_name=postgresql-database-plugin \
    connection_url="postgresql://{{username}}:{{password}}@localhost:5432/" \
    allowed_roles="my-role" \
    username="vaultuser" \
    password="vaultpass"

vault write database/roles/my-role \
    db_name="my-postgresql-database" \
    creation_statements="CREATE ROLE \"{{name}}\" WITH LOGIN PASSWORD '{{password}}' VALID UNTIL '{{time}}'; GRANT SELECT ON ALL TABLES IN SCHEMA public TO \"{{name}}\";" \
    revocation_statements="DROP ROLE \"{{name}}\";" \
    max_ttl="1h"

4.3 AWS Engine

vault secrets enable aws

vault write aws/config/root \
    access_key="AKIAIW3MSV4ZOTFT7TNLNA" \
    secret_key="wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY" \
    region="us-east-1"

vault write aws/roles/my-role \
    credential_type="iam_user" \
    policy_document='{
      "Version": "2012-10-17",
      "Statement": [{"Effect":"Allow","Action":"ec2:*","Resource":"*"}]
    }'

vault write aws/sts/deploy \
    role_arns="arn:aws:iam::123456789012:role/RoleNameToAssume" \
    credential_type="assumed_role"

For full parameter listings, see the AWS Engine API docs.

5. Authentication Methods

Enable and configure Auth Methods for user and machine identities.

5.1 AppRole Example

vault auth enable approle

vault write auth/approle/role/my-role \
    secret_id_ttl="10m" \
    token_num_uses=10 \
    token_ttl="2h" \
    token_max_ttl="30m" \
    secret_id_num_uses=40

vault read auth/approle/role/my-role/role-id

vault write -f auth/approle/role/my-role/secret-id

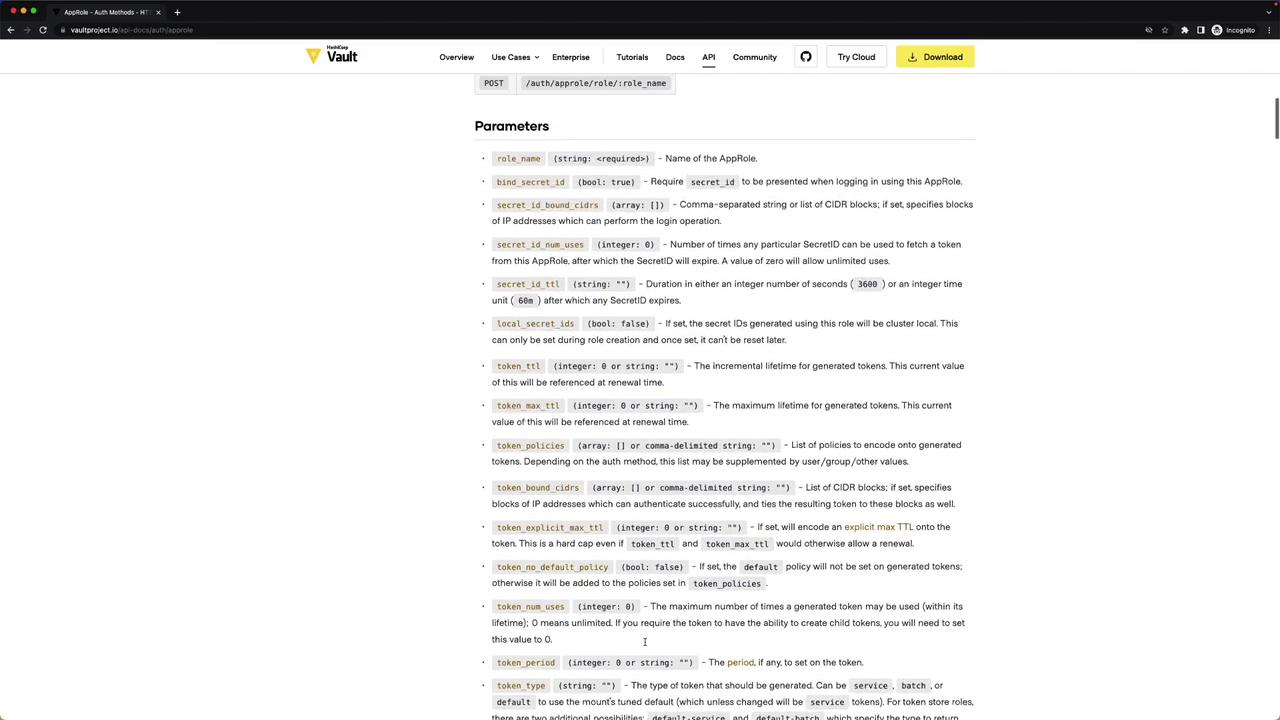

Consult the AppRole API documentation for additional fields and examples.

6. Audit Devices

Vault’s Audit Devices record all API requests and responses. Examples:

vault audit enable file file_path="/var/log/vault_audit.log"
vault audit enable syslog tag="vault"
vault audit list

Use syslog or socket backends for centralized logging in production.

7. API Documentation

If a parameter or endpoint isn’t in the primary docs, click the API tab at the top of each section to access the full reference. This includes:

• Secrets Engines
• Auth Methods
• System Backend
• Audit and Metrics

By mastering these sections—Configuration, CLI, Vault Agent, Secrets Engines, Auth Methods, Audit Devices, and the API reference—you’ll be able to quickly find examples and parameter details during your Vault Professional exam. Good luck!
