Demo Identity Secrets Engine

In this guide, you’ll learn how to leverage the HashiCorp Vault Identity Secrets Engine to:

• Create a user with the userpass auth method
• Define entities and entity aliases
• Observe how combined policies affect access
• (Optionally) Manage entities via the Vault UI

Before you begin, make sure a Vault server is running and you have a root token.

1. Review Existing Policies

List current policies to confirm what’s available:

vault policy list

Expected output:

default
engineering
kv-policy
manager
root

We will use kv-policy and manager in this demo.

Policy Permissions Overview

2. Create a Userpass User

Define a new user bryan with the kv-policy attached:

vault write auth/userpass/users/bryan \
    password=bryan \
    policies=kv-policy

You should see:

Success! Data written to: auth/userpass/users/bryan

Verify the policy:

vault policy read kv-policy

path "kv/data/automation" {
  capabilities = ["read"]
}

And inspect the manager policy:

vault policy read manager

path "kv/data/operations/**" {
  capabilities = ["read"]
}

3. Authenticate as bryan and Test Access

Log in with the new user:

vault login -method=userpass username=bryan
Password (will be hidden):

Successful login shows:

token_policies       ["default" "kv-policy"]

Test Allowed Access

vault kv get kv/automation

=== Secret Path ===
kv/data/automation

 ======= Metadata =======
 Key     Value
 version 1

 ======= Data =======
 Key           Value
 certification hcvop

Test Denied Access

vault kv get kv/operations/admin

Error reading kv/data/operations/admin: 403 Permission denied

4. Obtain the Userpass Mount Accessor

Re-authenticate as root and list auth methods to retrieve the mount_accessor:

vault auth list

Path       Type       Accessor
----       ----       --------
token      token      auth_token_9e81d3bb
userpass/  userpass   auth_userpass_0479382c

Note the auth_userpass_0479382c value for the next step.

5. Create an Entity and Entity Alias

1. Create an entity named “Bryan Krausen” with the manager policy:

   vault write identity/entity \
       name="Bryan Krausen" \
       policies=manager


   Key   Value
   ---   -----
   id    7a0f656b-8c8e-d6fd-83da-1d5650d85c38
   name  Bryan Krausen


2. Link the user to that entity via an alias:

   vault write identity/entity-alias \
       name="bryan" \
       canonical_id="7a0f656b-8c8e-d6fd-83da-1d5650d85c38" \
       mount_accessor="auth_userpass_0479382c"


   Key            Value
   ---            -----
   canonical_id   7a0f656b-8c8e-d6fd-83da-1d5650d85c38
   id             7a2a8c47-d65b-44a5-c0b5-8a45a9ddb588


6. Verify Combined Policies

Log back in as bryan:

vault login -method=userpass username=bryan
Password (will be hidden):

Now your token includes three policies:

policies            ["default" "kv-policy" "manager"]
identity_policies   ["manager"]

Test Enhanced Access

• Automation secret (via kv-policy):

  vault kv get kv/automation


• Operations secret (via manager policy):

  vault kv get kv/operations/admin


  === Secret Path ===
  kv/data/operations/admin

  ===== Data =====
  Key    Value
  ---    -----
  creds  lj3ofdj2posl2


You can repeat this process to add additional aliases (e.g., GitHub, OIDC) to grant the same manager policy across auth methods.

7. Using the Vault UI

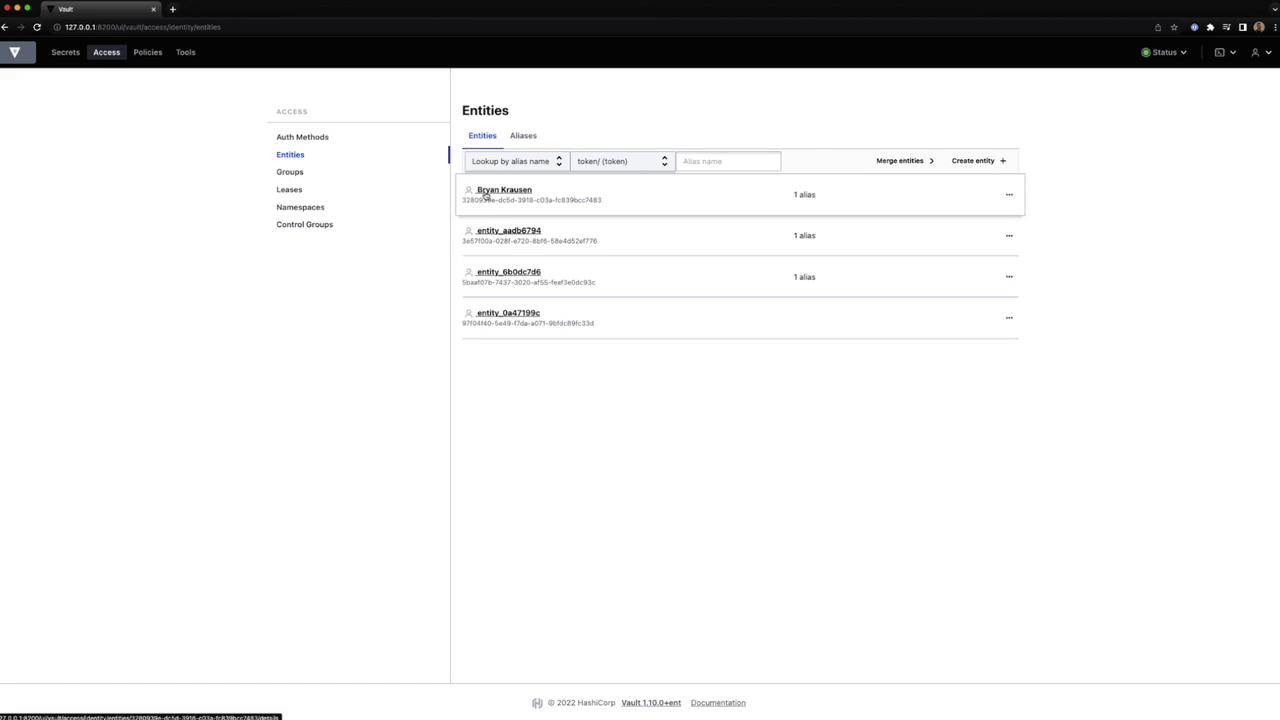

1. In the Vault UI, navigate to Access → Entities.
2. Create or delete entities, view details, and manage aliases.

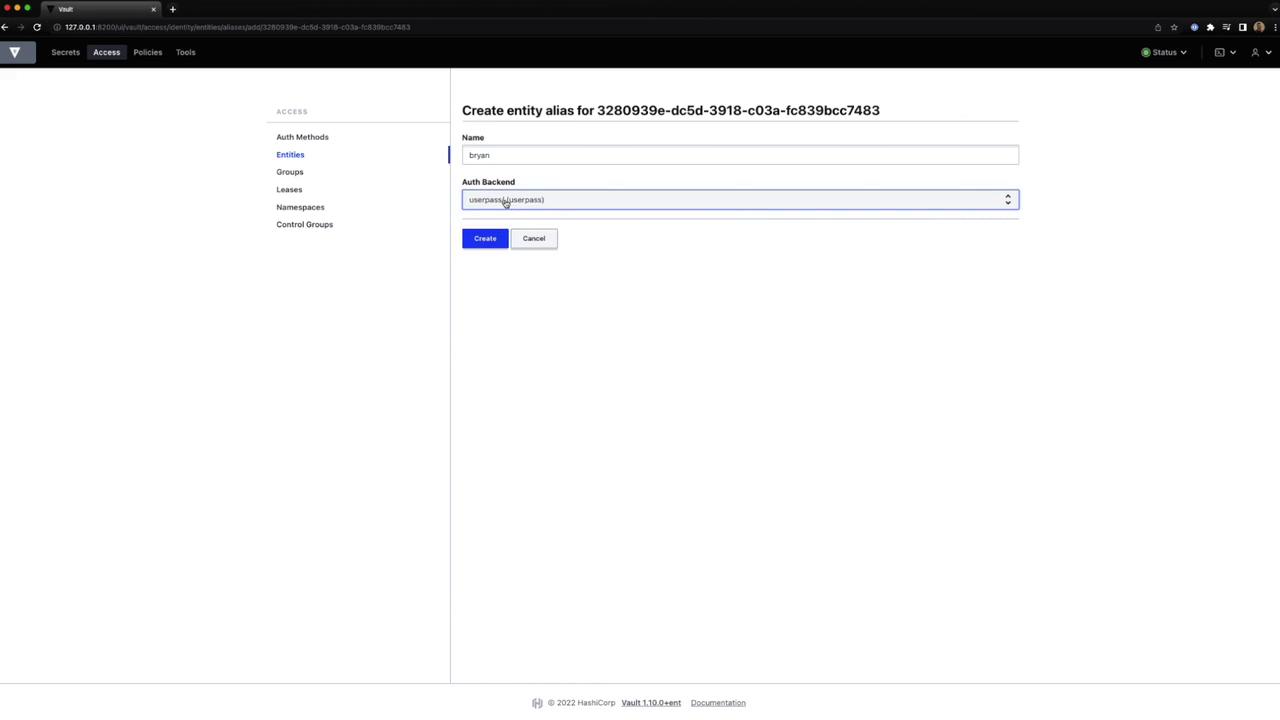

3. To add an alias, choose Create Entity Alias:

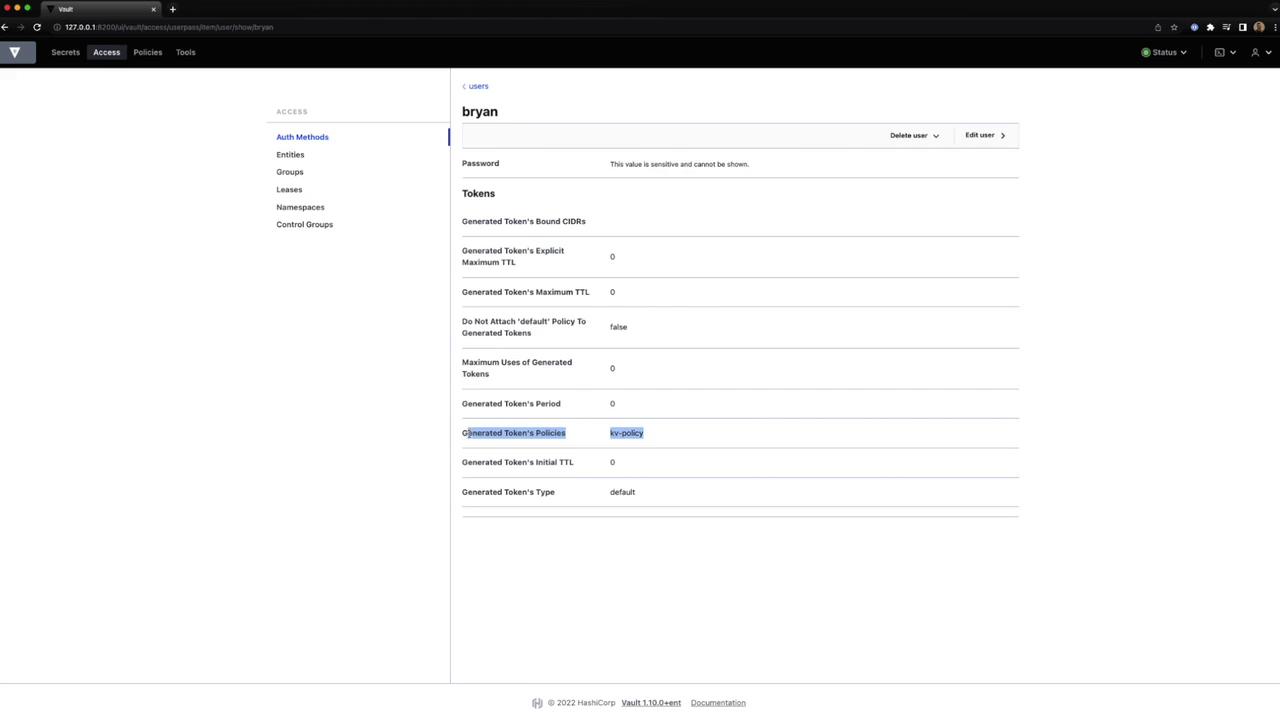

4. Inspect token settings and policies:

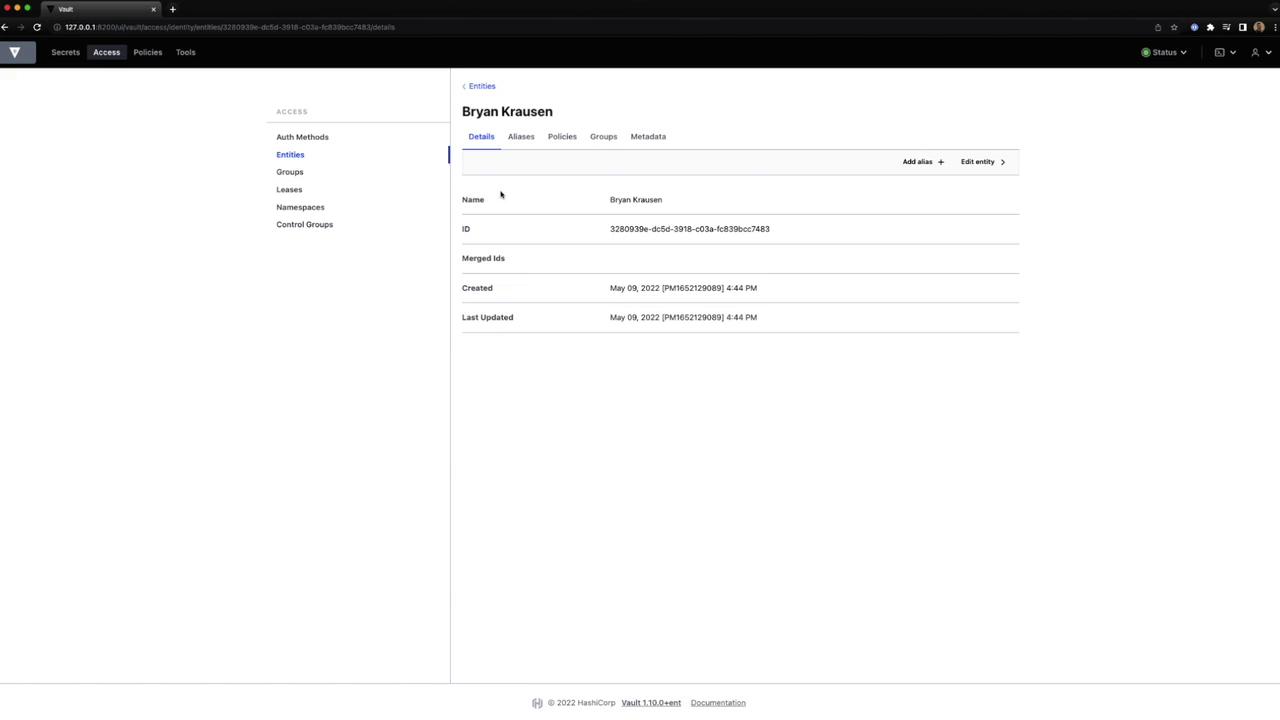

5. View or merge entities as needed:

Links and References

• Vault Identity Secrets Engine
• Userpass Auth Method
• Vault CLI Commands
