HashiCorp Certified: Vault Operations Professional 2022

Create a working Vault server configuration given a scenario

Rekey Vault and Rotate Encryption Keys

In this final lesson, you’ll learn how to rekey Vault (regenerate unseal or recovery key shares) and rotate the encryption key that secures data-at-rest. Both operations are essential Vault administration tasks that help maintain security, comply with policies, and ensure high availability.

Rekey Vault

Rekeying creates a brand-new set of unseal or recovery key shares and lets you adjust how many shares exist and how many are required to reconstruct the master key. This operation is performed online—Vault continues to serve requests throughout.

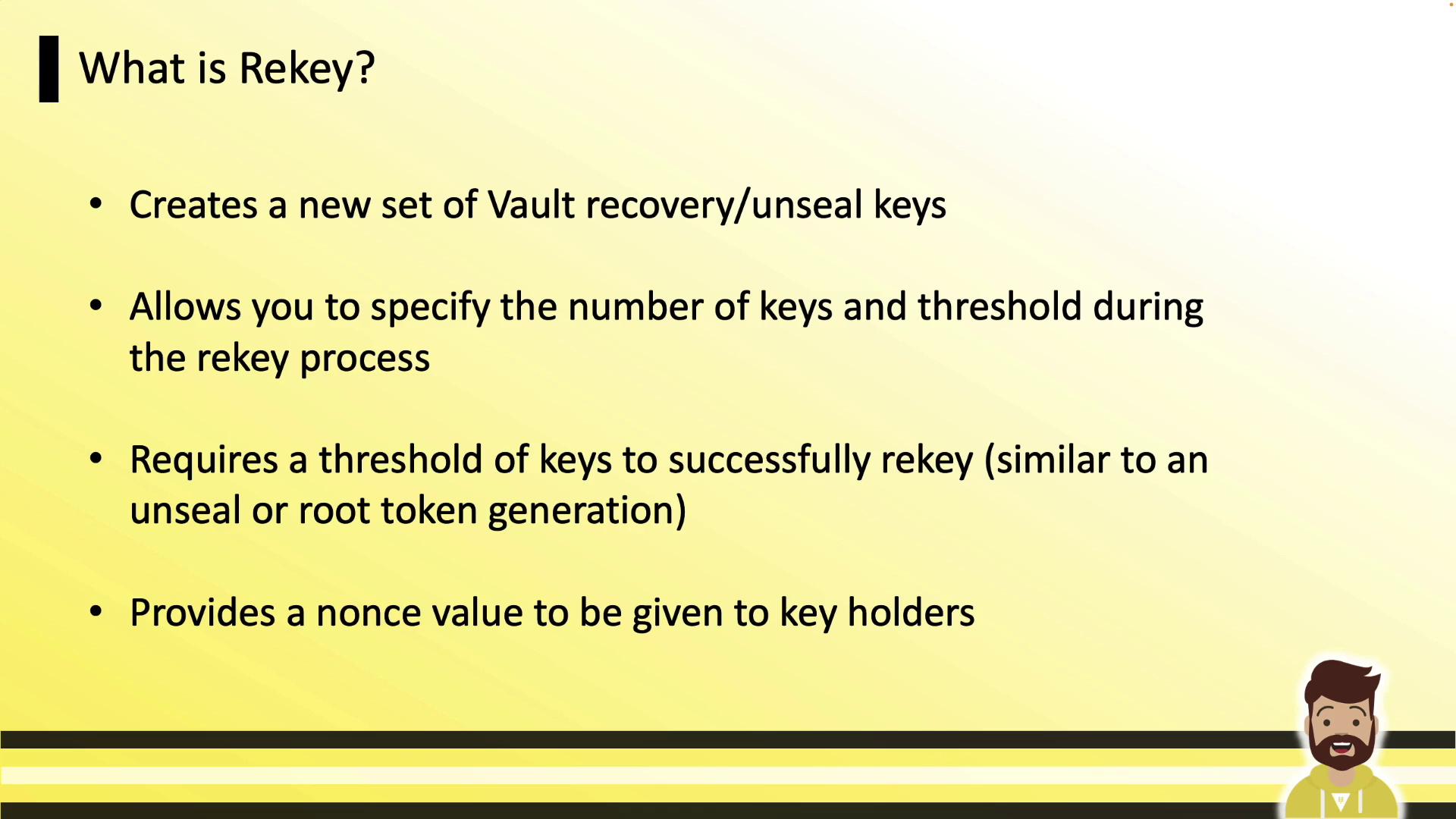

The image explains the concept of "Rekey" in a Vault system, highlighting its functions such as creating new recovery keys, specifying key numbers and thresholds, requiring a key threshold for rekeying, and providing a nonce value for key holders.

By default, Vault initializes with 5 shares and a threshold of 3. Rekeying can, for example, increase this to 10 shares with a threshold of 7, or reduce it to 1 share with a threshold of 1—giving you full control over key distribution and recovery.

Why Rekey Vault?

Rekeying is commonly required when:

  • Lost or inaccessible key shares need replacement (e.g., lost PGP private key).
  • Employees or key holders leave the organization.
  • Your security policy mandates periodic rotation of master key shares.

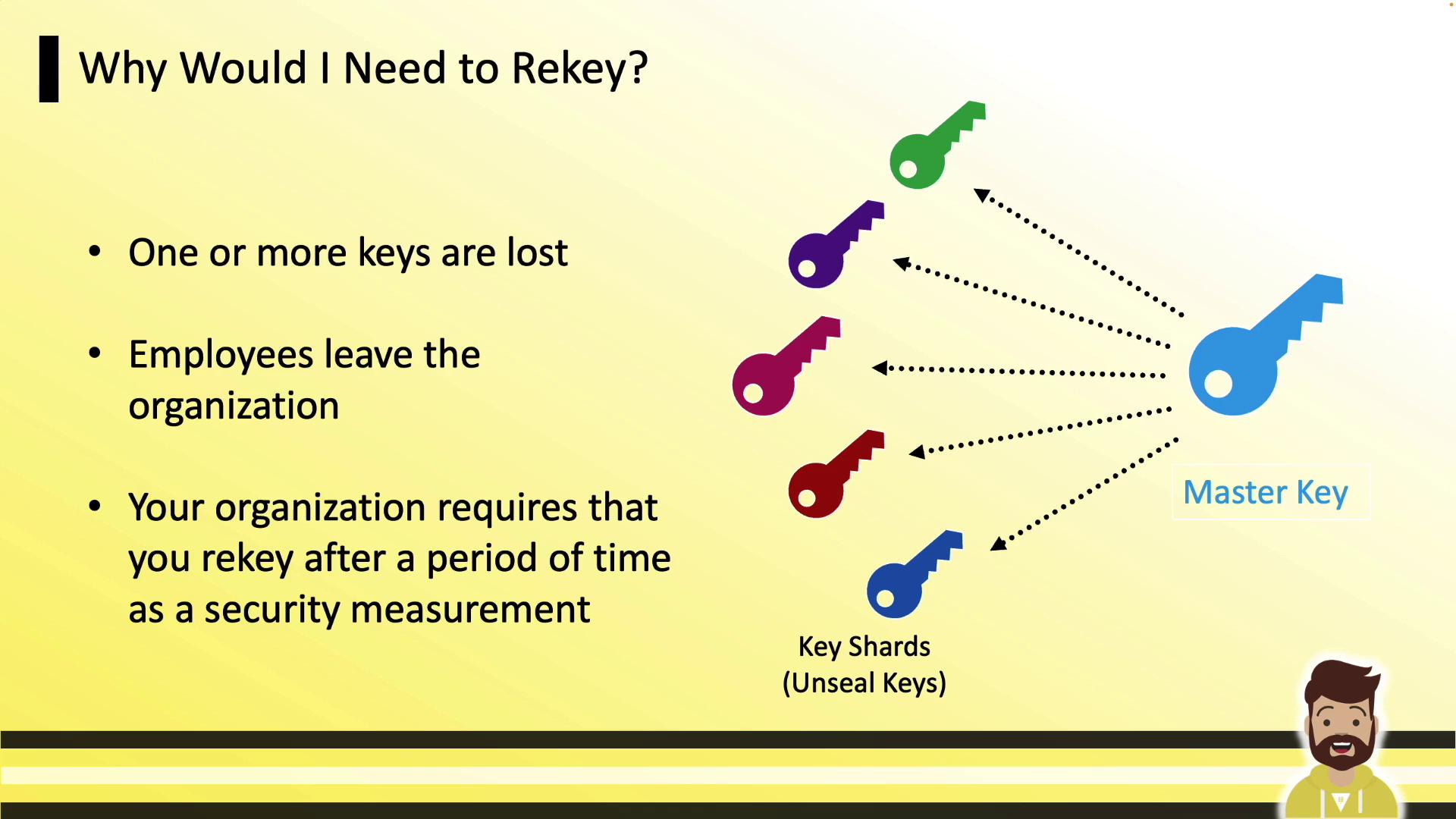

The image explains reasons for rekeying, such as lost keys, employee departures, and organizational security policies, using a diagram of key shards leading to a master key.

Rekey Command

Use the vault operator rekey command to start a rekey. You can include -key-shares and -key-threshold to change those values.

Initialize a rekey for recovery keys (auto-unseal defaults to unseal keys):

vault operator rekey -init -target=recovery

Example output:

WARNING! If you lose the keys after they are returned, there is no recovery...
Key                Value
---                -----
Nonce              6e2fb7b0-b9f6-12a8-d94c-a36a7b26c67c
Started            true
Rekey Progress     0/3
New Shares         5
New Threshold      3

Distribute the nonce to key holders. Each holder submits their key share with:

vault operator rekey -target=recovery

Progress output:

Rekey operation nonce: 6e2fb7b0-b9f6-12a8-d94c-a36a7b26c67c
Unseal Key (will be hidden):
Key                Value
---                -----
Nonce              6e2fb7b0-b9f6-12a8-d94c-a36a7b26c67c
Rekey Progress     1/3

Repeat until the threshold is met. On the final submission, Vault prints the new key shares:

vault operator rekey -target=recovery
Key 1: DwCpPnsbvUMqBtXJcAewCHgYr4b+5C56036mWDpX7d7r
Key 2: roNCdtdoK+Z7crwZvprYsrXm7ZkIzj7lwm6gq8LkP
Key 3: 5BYFqW/PT1TXtFmzXft10XwqIt6v/gQjWF8srMbx7Luo
Key 4: eD6gKkcdM5TmsnSSk5kOogI5KksdH2GzvguyBFungPS
Key 5: HtFsHfCvYsICEeTguouhqr4K9ehXAoJm8ktxdT0EJl

Vault rekeyed with 5 key shares and a key threshold of 3. Please securely distribute the key shares printed above. When Vault is re-sealed, restarted, or stopped, you must supply at least 3 of these keys to unseal it before it can start servicing requests.

Note

In Vault Enterprise with replication enabled, always run the rekey on the primary cluster. Replicas will automatically receive the updated key shares.

Production Impact

Rekey is non-disruptive. Vault continues handling API calls and UI requests throughout the process, ensuring zero downtime.

Rekey vs. Key Rotation

These two operations are often confused. The diagram below clarifies their roles:

The image illustrates the difference between "Rekey" and "Key Rotation," showing a process involving unseal/recovery keys leading to a master key, and an encryption key protected by a master key.

OperationPurpose
RekeyRotate unseal/recovery key shares and regenerate the master key.
Key RotationRotate the data-at-rest encryption key, retaining old keys for decryption without user intervention.

Rotate Encryption Key

Key rotation updates Vault’s internal encryption key used for data-at-rest. Vault transparently retains old key versions so existing data remains decryptable.

The image explains key rotation, highlighting that it involves changing the encryption key used for data protection without requiring user access, and allows old data to be decrypted with the previous key. It includes a visual of an encryption key and a "Rotate" button.

Execute the following command:

vault operator rotate

Sample output:

Success! Rotated key

Key Term            2
Install Time        2022-12-25 15:47:00 UTC
Encryption Count    6

Permissions Required

To rotate the encryption key, your policy must grant:

PathCapabilities
sys/rotateupdate, sudo
sys/key-statusread

Warning

Omitting sys/key-status read permission causes the CLI to report a permission error when displaying key status, even though the rotation itself succeeds.


Explore these resources for deeper insights into Vault key management. Good luck practicing these operations in your live environment!
