HashiCorp Certified: Vault Operations Professional 2022

Create a working Vault server configuration given a scenario

Userpass Auth Method

The Userpass authentication method enables Vault clients to log in using a username and password stored in Vault itself. Since it doesn’t depend on an external identity provider, Userpass is perfect for quick labs, testing environments, and simple use cases where you need basic credential management without added complexity.

Warning

Userpass does not enforce password complexity, expiration, or rotation by default. For production workloads, consider integrating Vault with external identity providers or LDAP.

How It Works

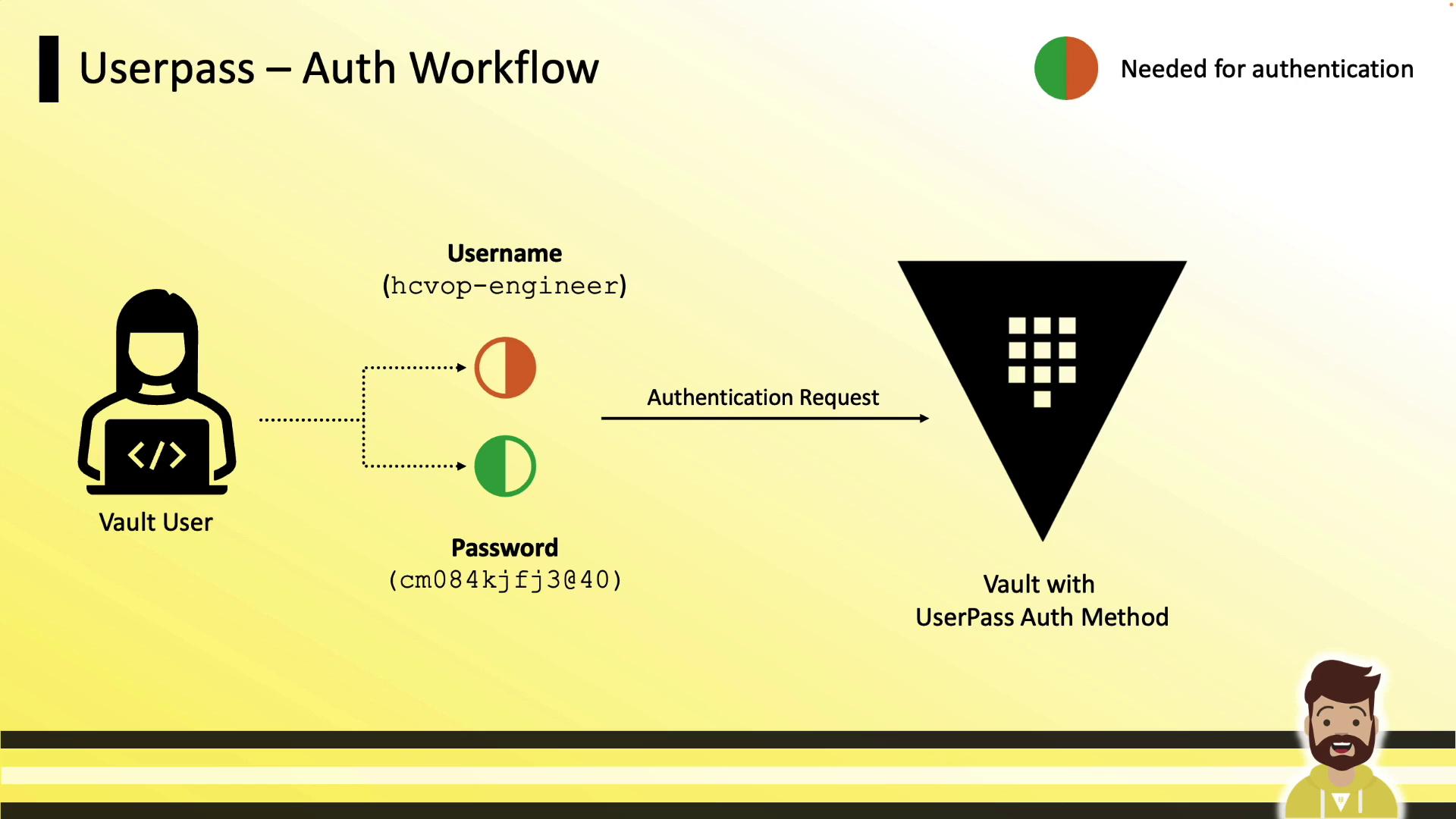

The image illustrates a "Userpass – Auth Workflow," showing a Vault user sending an authentication request with a username and password to a vault using the UserPass authentication method.

  1. User provides username (e.g., hcvop-engineer) and password.
  2. Vault validates credentials and issues a token.
  3. The token is used to interact with Vault’s API and secrets engines.

Configuration Workflow

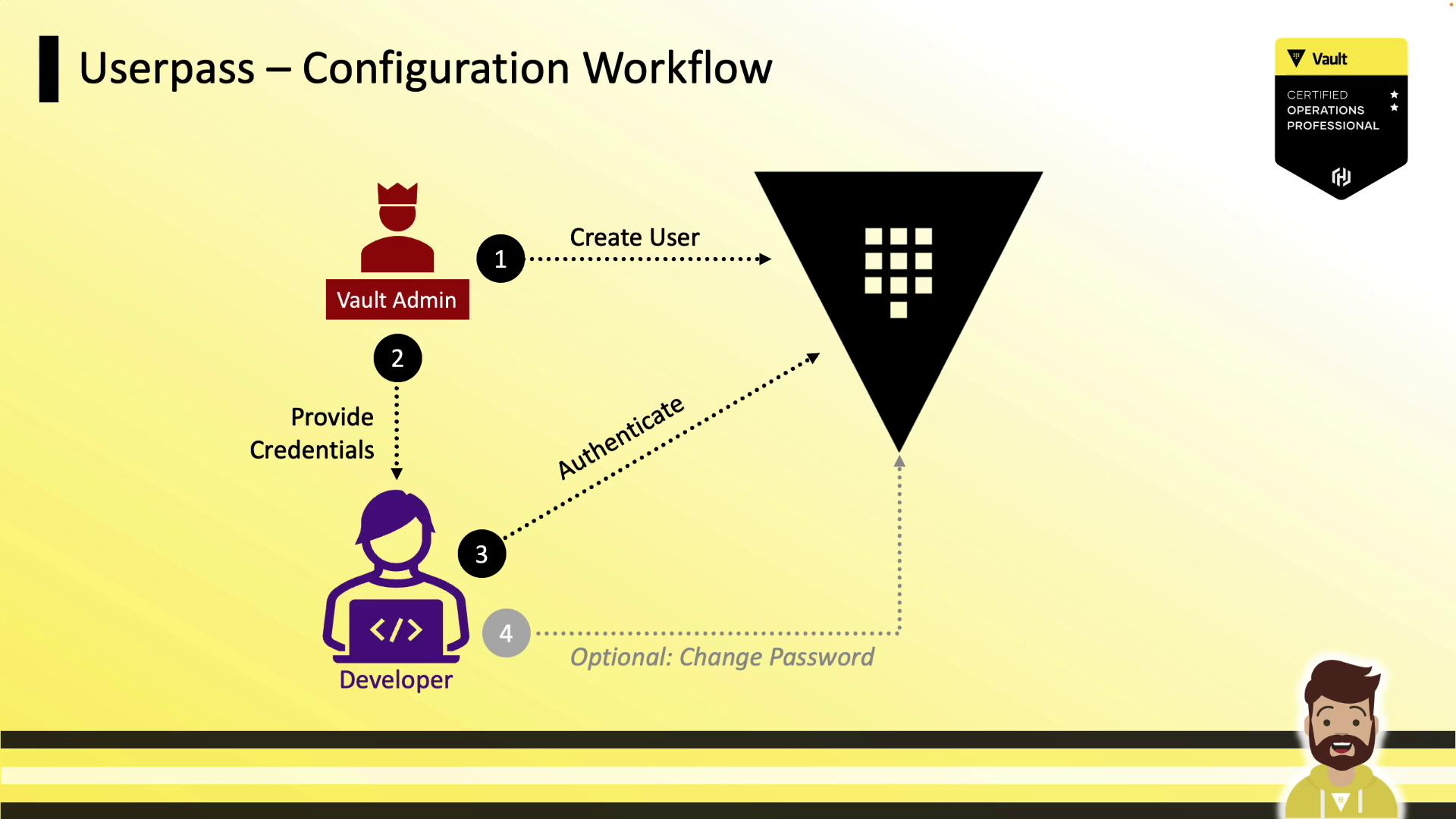

The image illustrates a "Userpass – Configuration Workflow" showing the steps for a Vault Admin to create a user, provide credentials, and authenticate, with an optional password change for a developer.

  1. Vault Admin enables the userpass auth method.
  2. Admin creates a user with policies and token settings.
  3. Admin hands off credentials to the Developer.
  4. Developer logs in and obtains a token.
  5. Developer may update their password if allowed by policy.

Enabling Userpass

# Enable at default path (userpass/)
vault auth enable userpass

# Or enable at custom path (e.g., vault-local/)
vault auth enable -path=vault-local userpass

Creating a User

Run vault write against the auth/userpass/users/<username> path:

vault write auth/userpass/users/hcvop-engineer \
    password=cm084kjfj340 \
    policies=engineering-policy \
    token_ttl=15m \
    token_max_ttl=8h
ParameterDescriptionExample
passwordInitial user passwordcm084kjfj340
policiesComma-separated Vault policiesengineering-policy
token_ttlTime-to-live for issued tokens15m
token_max_ttlMaximum time-to-live before renewal is disallowed8h

Note

You can assign multiple policies (e.g., default,engineering-policy) or fine-tune token parameters per user.

Additional Token Configuration Options

OptionDescriptionExample
token_typeToken type (default or batch)token_type=batch
token_num_usesMaximum number of uses for a tokentoken_num_uses=5
token_bound_cidrsCIDR list restricting token usagetoken_bound_cidrs="10.1.16.0/16"
token_periodDuration for periodic tokenstoken_period=1h

Include these flags in the same vault write command when creating or updating a user.

Reading User Settings

Retrieve user configuration:

vault read auth/userpass/users/hcvop-engineer

Sample output:

Key                       Value
---                       -----
policies                  [engineering-policy]
token_bound_cidrs         []
token_explicit_max_ttl    0s
token_max_ttl             8h
token_ttl                 15m
token_type                default

Modifying User Configuration

To update a single attribute, re-run vault write with the changed flag:

vault write auth/userpass/users/hcvop-engineer token_type=batch

Only the specified setting (token_type) is updated; other attributes remain intact.

Authenticating with Userpass

vault login -method=userpass username=hcvop-engineer
# Prompts for password (hidden)

Successful authentication returns:

  • Token
  • Duration (TTL)
  • Renewable flag
  • Attached policies

Your CLI automatically caches the token for subsequent commands.

Password Rotation

Grant users the ability to update their own password by adding this to their policy:

path "auth/userpass/users/{{identity.entity.aliases.userpass.username}}/password" {
  capabilities = ["update"]
}

Then users can run:

vault write auth/userpass/users/hcvop-engineer/password password=xmeij9dk20je

This enables self-service rotation without exposing credentials to admins.

Best Practices and Considerations

  • Regularly revoke or delete user entries when access is no longer required.
  • Implement an external password policy (complexity, expiry) via automation or scripts.
  • For enterprise use, prefer OIDC, LDAP, or Kerberos auth methods to centralize identity management.
