HashiCorp Certified: Vault Operations Professional 2022

Create a working Vault server configuration given a scenario

Vault Tokens Auth Method

Vault’s token authentication is the default and core method for accessing Vault. Almost every Vault operation (aside from health checks and auth endpoints) requires a valid token. Since all auth methods eventually issue tokens, mastering tokens is essential for secure and efficient Vault usage.

Note

Tokens are written to Vault’s storage backend and cannot be disabled. Each token carries one or more policies, determining its permissions. By default, every token inherits the default policy.

Token Types Comparison

Vault supports multiple token types. Below is a comparison of the two primary types:

Token TypePrefixPersistenceRenewableTypical Use Case
Service TokenhvsStored on diskYesLong-lived sessions, child token creation
Batch TokenhvbEphemeralNoHigh-volume operations, DR replication sales

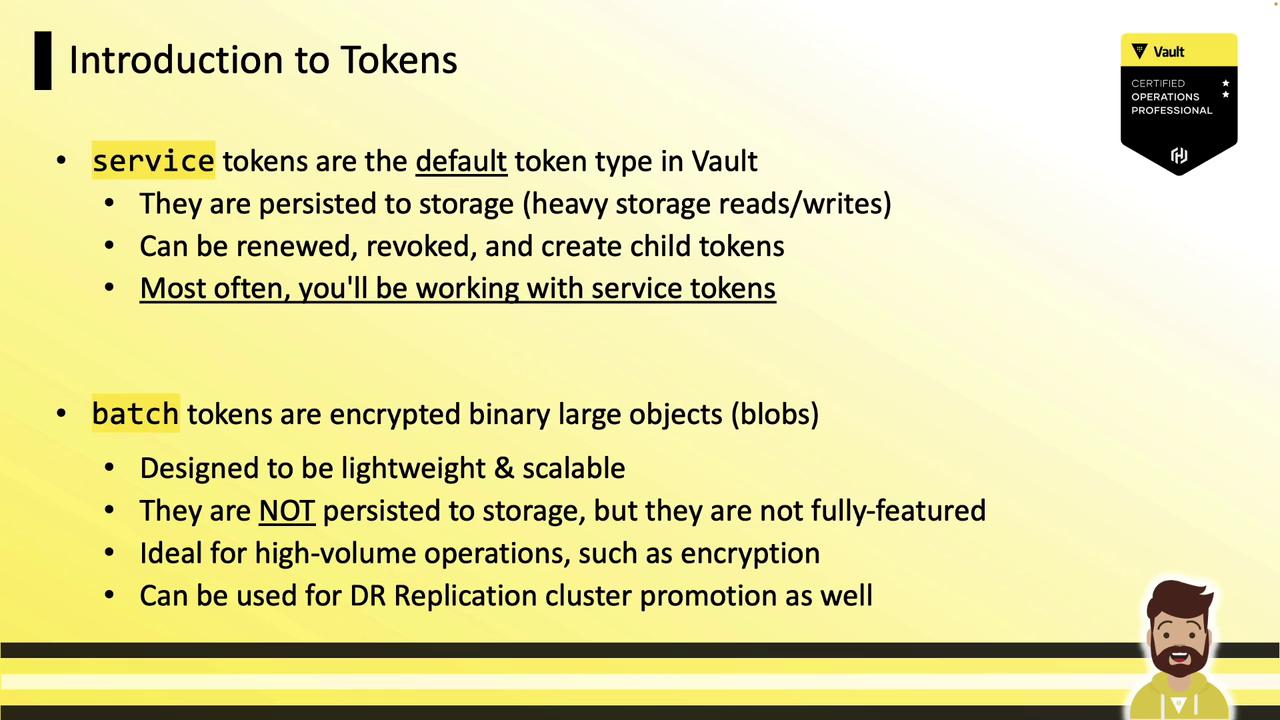

The image is a slide titled "Introduction to Tokens," explaining the differences between service tokens and batch tokens in Vault, highlighting their features and use cases.

For more details, see the Vault Token Auth Method documentation.


Creating Tokens

Vault lets you tailor tokens for different scenarios: periodic, use-limited, or orphan. Below are examples for each.

Periodic Tokens

Periodic tokens have no maximum TTL and can be renewed indefinitely at a fixed interval.

vault token create \
  -policy="hcvop" \
  -period="24h"

Example output:

Key                Value
---                -----
token              hvs.CAESINq3yTGLYZofP7iZBStz3zAktvOHfWBigN
token_accessor     fy9Jjse9SRTLIYLufysE6qP0
token_duration     24h
token_renewable    true
token_policies     ["default" "hcvop"]
policies           ["default" "hcvop"]

Use Case

Ideal for long-running applications that can renew instead of rotating tokens frequently.

Use-Limited Tokens

Use-limited tokens expire after a specified number of uses or when the TTL is reached.

vault token create \
  -policy="hcvop" \
  -use-limit=2

Orphan Tokens

Orphan tokens have no parent relationship. They remain valid even if the creator token is revoked.

vault token create \
  -policy="hcvop" \
  -orphan

Configuring Auth Methods for Token Types

You can configure other auth backends (e.g., AppRole) to issue specific token types:

# Enable AppRole
vault auth enable approle

# Create a role that issues batch tokens
vault write auth/approle/role/hcvop \
  policies="engineering" \
  token_type="batch" \
  token_ttl="60s"

# Create a role that issues periodic tokens
vault write auth/approle/role/hcvop \
  policies="hcvop" \
  period="72h"
  • token_type="batch" → batch tokens
  • period="72h" → periodic tokens

Authenticating with a Token

UI

  1. Choose the Token auth method.
  2. Paste your token and click Sign In.

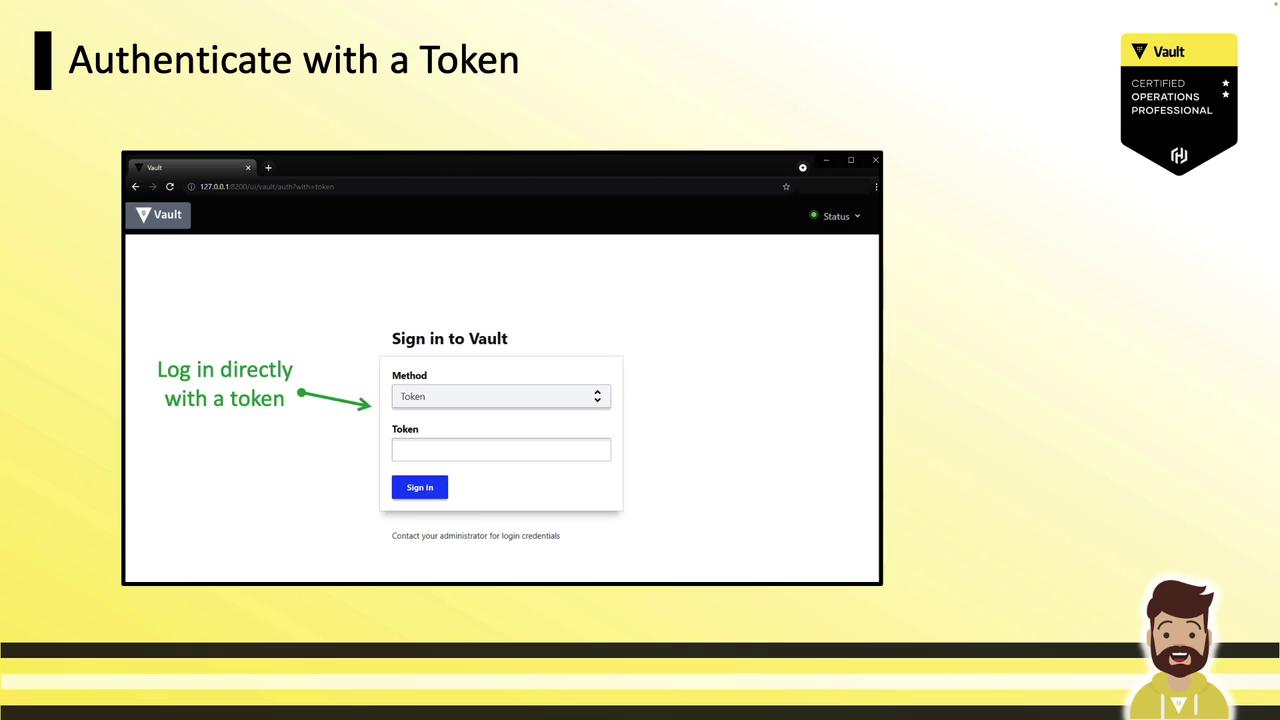

The image shows a login interface for "Vault" where users can authenticate using a token. It includes instructions to log in directly with a token and features a certification badge and a cartoon character.

After signing in, select Copy Token from the user menu:

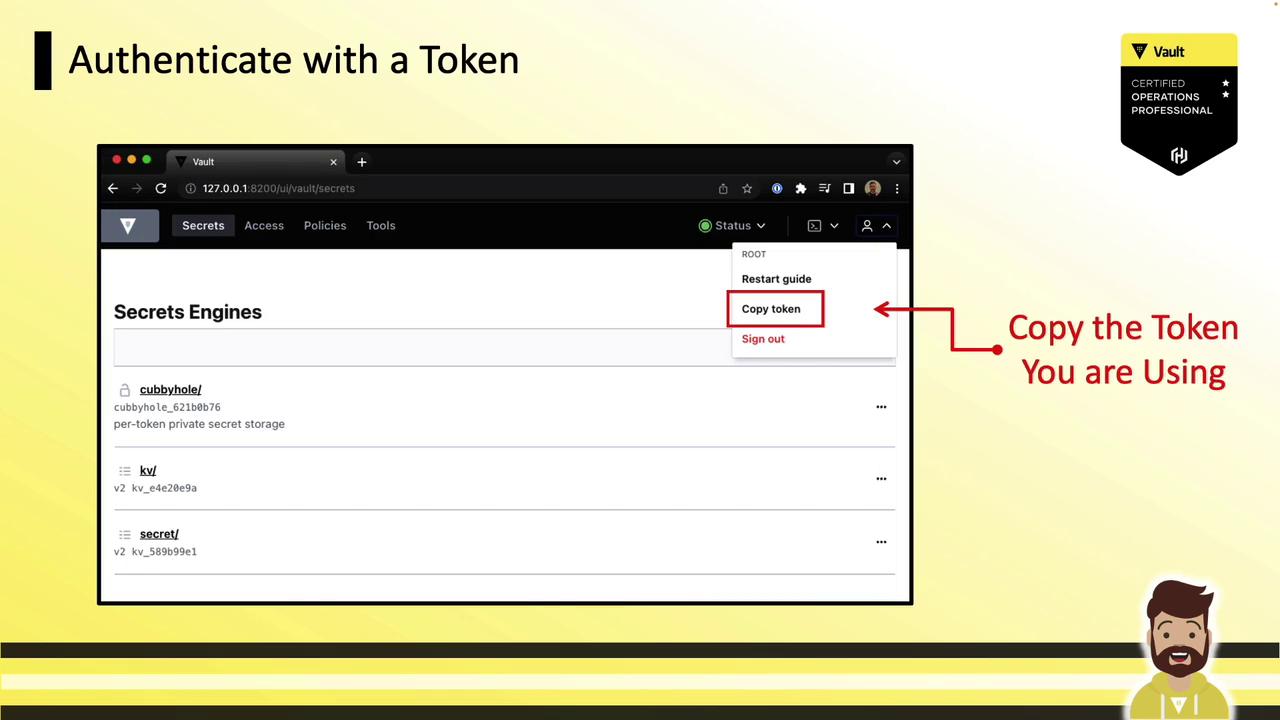

The image shows a screenshot of a Vault interface with a dropdown menu highlighting the "Copy token" option. It includes instructions to "Copy the Token You are Using" and features a Vault certification badge.

API

Include the token in the X-Vault-Token header or as a Bearer token:

curl --header "X-Vault-Token: hvs.cDIPyitdJKSm46ydTXJOsaQR" \
     --request POST \
     --data '{"apikey":"3230sc$832d"}' \
     https://vault.example.com:8200/v1/secret/data/apikey/splunk

curl --header "Authorization: Bearer hvs.cDIPyitdJKSm46ydTXJOsaQR" \
     --request GET \
     https://vault.example.com:8200/v1/secret/data/apikey/splunk

CLI

Interactive login (token entry hidden from history):

vault login
# Token (will be hidden): <enter your token>

Or pass the token directly (it will appear in your shell history):

vault login hvs.cDIPyitdJKSm46ydTXJOsaQR

Security Warning

Avoid embedding long-lived tokens in scripts or logs. Use short-lived, renewable tokens and dynamic secrets where possible.


Revoking Tokens

Revoke any token, including root, with:

vault token revoke hvs.cDIPyitdJKSm46ydTXJOsaQR

Tokens are Vault’s fundamental authentication mechanism. You now know how to choose the right token type, create periodic/use-limited/orphan tokens, configure auth backends for specific token issuance, and authenticate or revoke tokens. For further reading, explore the Vault Authentication Methods guide.
