Lab Solution Automating Terraform Cloud

Automate your Terraform Cloud workflows—workspaces, variables, team access, and more—by codifying everything you’d normally click through in the Terraform Cloud UI. In this lab, we’ll use the official hashicorp/tfe provider to:

• Initialize the TFC provider
• Query and inspect existing workspaces
• Create new workspaces
• Manage workspace variables
• Specify Terraform versions
• Dynamically generate multiple workspaces
• Assign team permissions
• Clean up resources

Prerequisites

1. Terraform CLI v1.x installed
2. A Terraform Cloud account
3. A Terraform API token with appropriate permissions

Set your Terraform Cloud API token in the shell:

export TFE_TOKEN=YOUR_TERRAFORM_CLOUD_TOKEN

1. Initialize the Terraform Cloud Provider

Create a directory named workspace_automation and inside it, add a main.tf file:

terraform {
  required_providers {
    tfe = {
      source  = "hashicorp/tfe"
      version = "~> 0.31"
    }
  }
}

provider "tfe" {
  token = var.tfe_token
}

variable "tfe_token" {
  type        = string
  description = "Terraform Cloud API token"
}

variable "organization" {
  type        = string
  description = "Terraform Cloud organization name"
}

variable "workspace_name" {
  type        = string
  description = "Existing workspace name to query"
}

Initialize the provider:

terraform init

2. Query an Existing Workspace

Add a data source block to main.tf to fetch a workspace by name:

data "tfe_workspace" "existing" {
  name         = var.workspace_name
  organization = var.organization
}

output "workspace_id" {
  value = data.tfe_workspace.existing.id
}

output "workspace_terraform_version" {
  value = data.tfe_workspace.existing.terraform_version
}

Apply the configuration:

terraform apply \
  -var "organization=YOUR-ORG" \
  -var "workspace_name=devops-aws-myapp-dev"

Sample output:

data.tfe_workspace.existing: Reading...
data.tfe_workspace.existing: Read complete after 2s [id=ws-pj5yrEcvvrdxjYji]

Outputs:
  workspace_id                = "ws-pj5yrEcvvrdxjYji"
  workspace_terraform_version = "1.2.7"

Inspect the state:

terraform state list
terraform state show data.tfe_workspace.existing

3. Create a New Workspace

Extend main.tf with a resource block to provision a workspace:

variable "workspace_name_new" {
  type        = string
  description = "Name of the new workspace to create"
}

resource "tfe_workspace" "new" {
  name         = var.workspace_name_new
  organization = var.organization
}

output "workspace_new_id" {
  value = tfe_workspace.new.id
}

output "workspace_new_terraform_version" {
  value = tfe_workspace.new.terraform_version
}

Format and apply:

terraform fmt
terraform apply \
  -var "organization=YOUR-ORG" \
  -var "workspace_name=devops-aws-myapp-dev" \
  -var "workspace_name_new=webserver-aws-stage"

Preview plan:

# tfe_workspace.new will be created
resource "tfe_workspace" "new" {
  name              = "webserver-aws-stage"
  organization      = "YOUR-ORG"
  terraform_version = (known after apply)
}
Plan: 1 to add, 0 to change, 0 to destroy.

After successful apply, verify the new workspace in Terraform Cloud.

4. Manage Workspace Variables

Use tfe_variable resources to define standard, sensitive, and HCL variables:

resource "tfe_variable" "standard" {
  key          = "variable_name"
  value        = "variable_value"
  category     = "terraform"
  workspace_id = tfe_workspace.new.id
  description  = "A standard variable"
}

resource "tfe_variable" "sensitive" {
  key          = "my_variable_sensitive"
  value        = "my_sensitive_value"
  category     = "terraform"
  workspace_id = tfe_workspace.new.id
  sensitive    = true
}

resource "tfe_variable" "hcl" {
  key          = "my_variable_hcl"
  value        = "[hcl_variable_value]"
  category     = "terraform"
  workspace_id = tfe_workspace.new.id
  description  = "An HCL variable example"
}

Apply the changes:

terraform apply \
  -var "organization=YOUR-ORG" \
  -var "workspace_name_new=webserver-aws-stage"

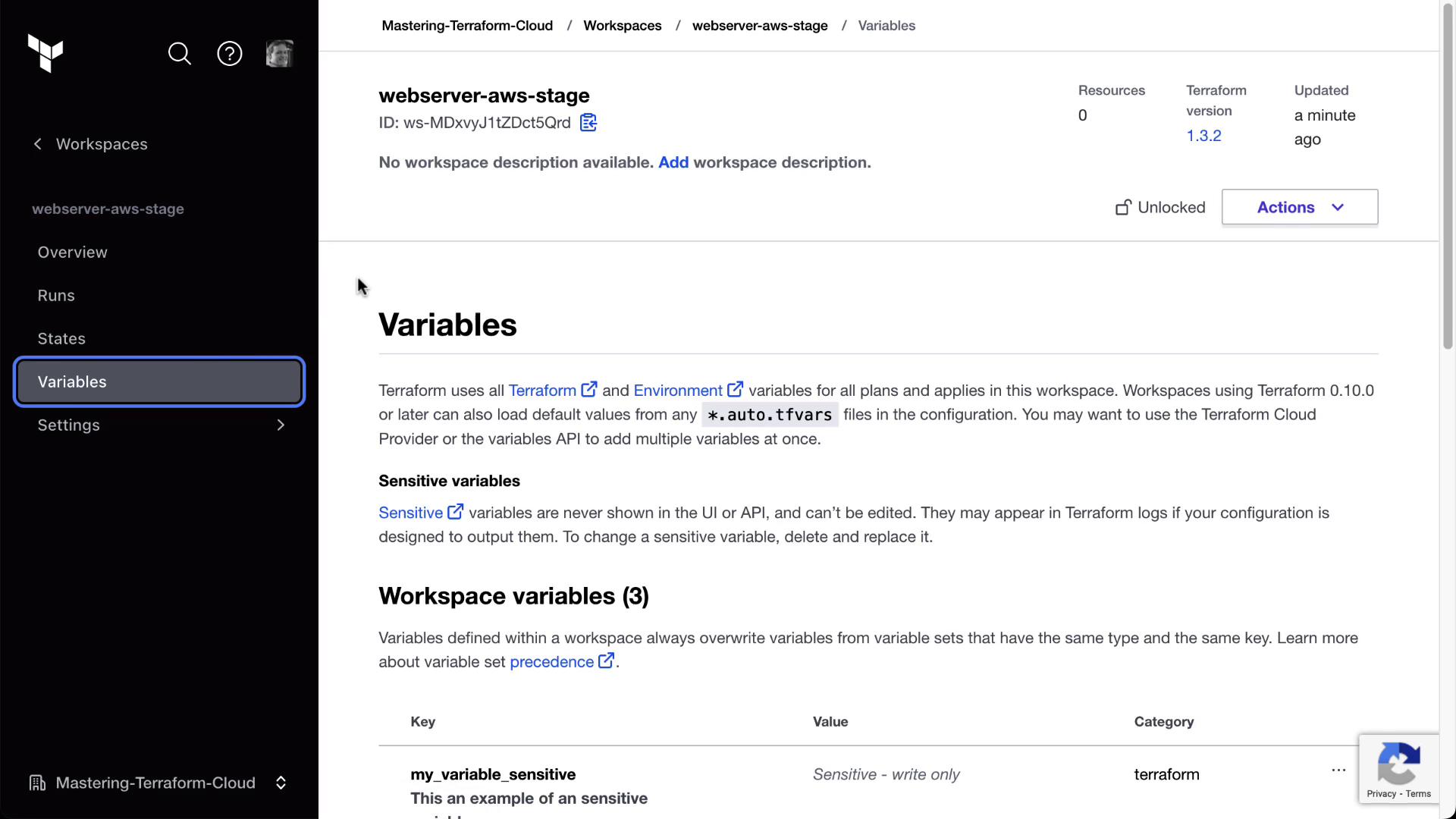

Confirm in the Terraform Cloud UI under Variables that all variables appear correctly.

5. Specify Terraform Version per Workspace

Control the Terraform version used by the workspace:

variable "tf_version" {
  type    = string
  default = "1.2.7"
}

resource "tfe_workspace" "new" {
  name              = var.workspace_name_new
  organization      = var.organization
  terraform_version = var.tf_version
}

Reapply:

terraform apply \
  -var "organization=YOUR-ORG" \
  -var "workspace_name_new=webserver-aws-stage"

Verify the Terraform version update in the workspace settings.

6. Dynamically Create Multiple Workspaces

Define apps and environments, then loop to create all combinations:

variable "apps" {
  description = "Map of applications with Terraform versions"
  type        = map(object({ terraform_version = string }))
  default     = {
    appA = { terraform_version = "1.2.7" }
    appB = { terraform_version = "1.2.8" }
  }
}

variable "environments" {
  description = "List of environments"
  type        = list(string)
  default     = ["sandbox", "development", "production"]
}

locals {
  app_envs = flatten([
    for app_key, app in var.apps : [
      for env in var.environments : {
        name              = "${app_key}-${env}"
        terraform_version = app.terraform_version
      }
    ]
  ])
}

resource "tfe_workspace" "all" {
  for_each          = { for env in local.app_envs : env.name => env }
  name              = each.value.name
  organization      = var.organization
  terraform_version = each.value.terraform_version
}

Apply all at once:

terraform apply -var "organization=YOUR-ORG"

You’ll see six workspaces created (appA/appB × sandbox/development/production).

7. Assign Team Access to Workspaces

Ensure your TFC plan supports Teams & Governance. Create a teams.tf:

data "tfe_team" "classmates" {
  name         = "classmates"
  organization = var.organization
}

data "tfe_workspace_ids" "all" {
  names        = ["*"]
  organization = var.organization
}

resource "tfe_team_access" "classmates_all" {
  for_each     = toset(data.tfe_workspace_ids.all.ids)
  access       = "read"
  team_id      = data.tfe_team.classmates.id
  workspace_id = each.value
}

Apply:

terraform apply -var "organization=YOUR-ORG"

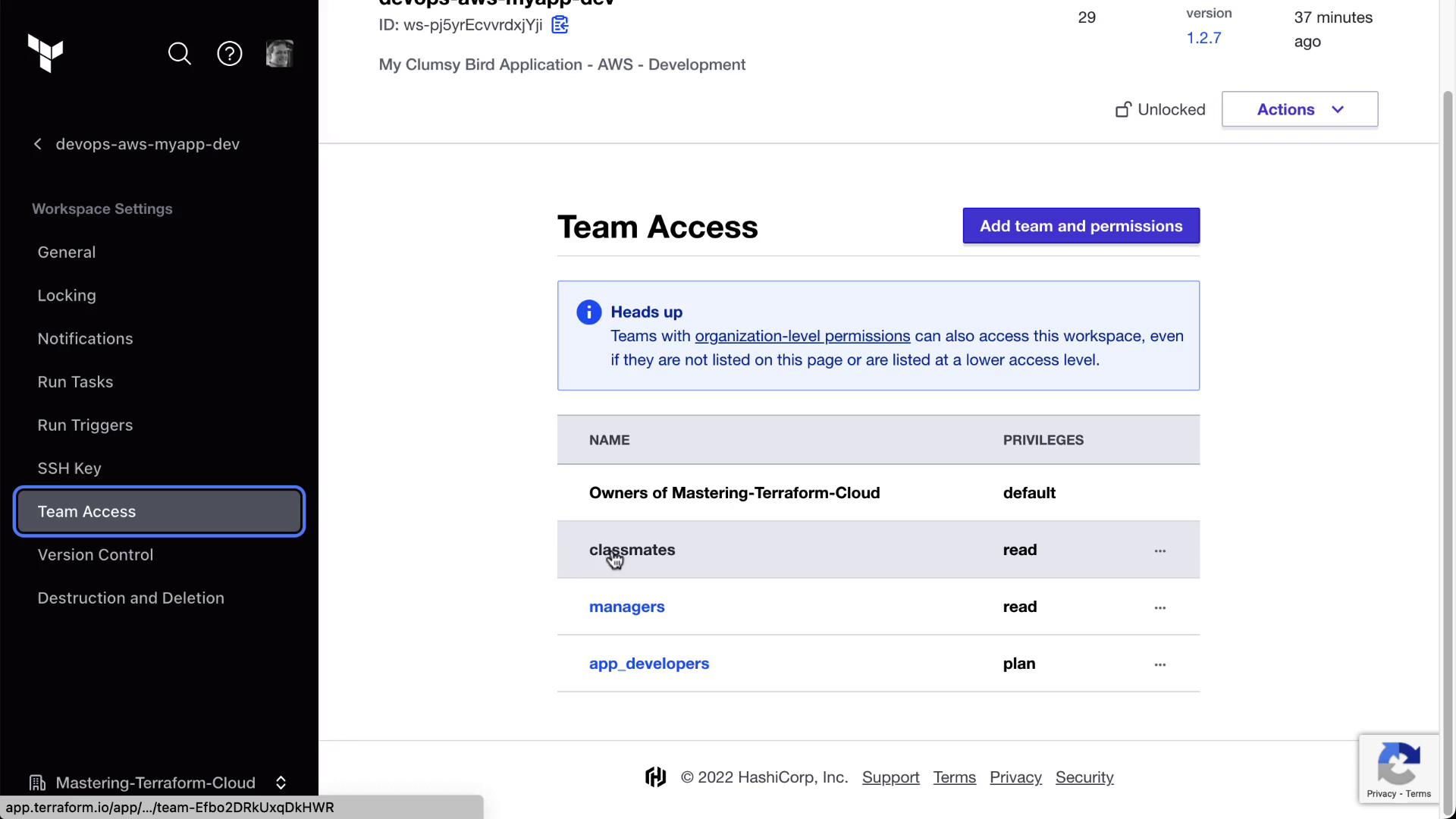

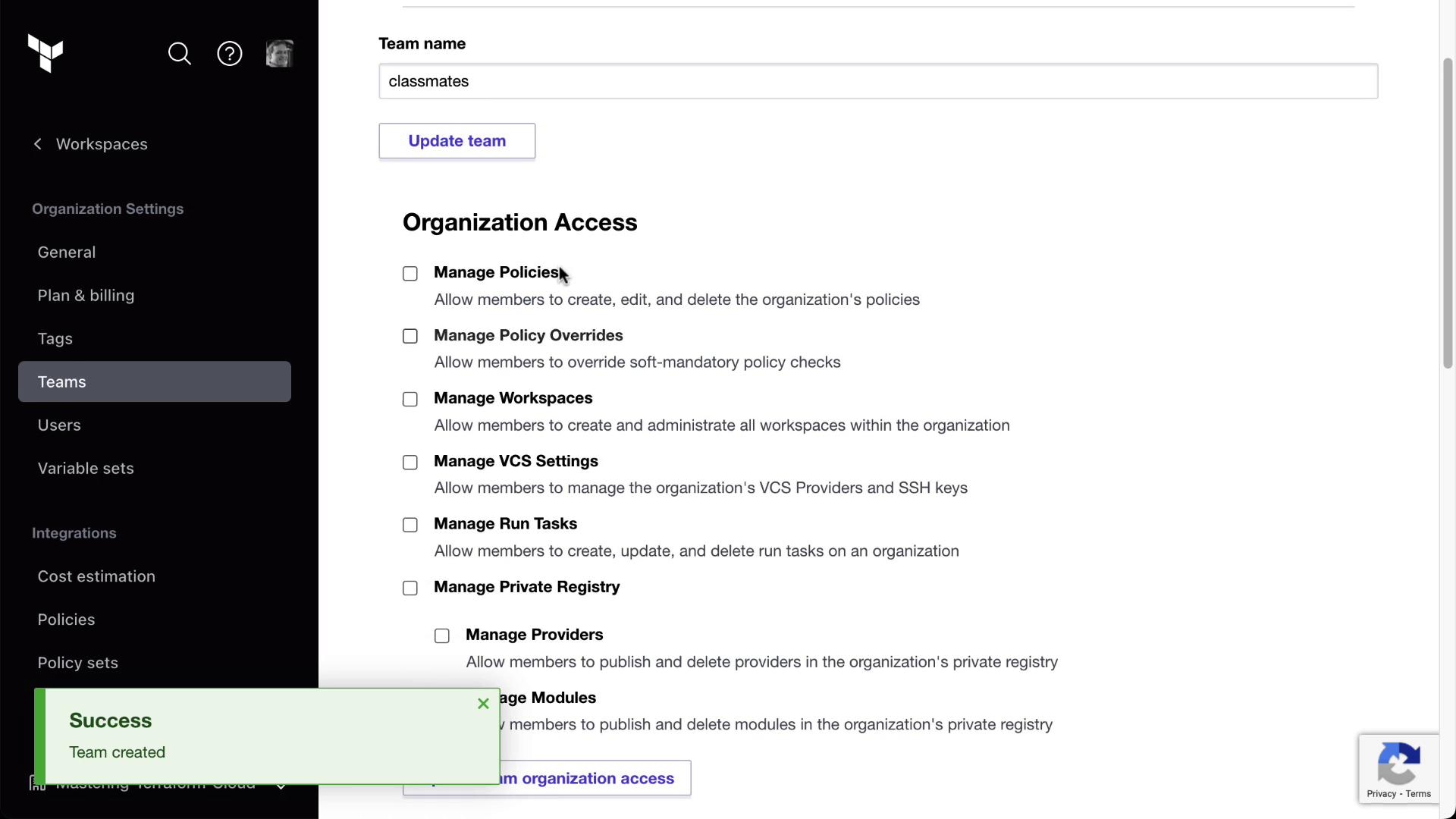

Verify in the Terraform Cloud UI under Organization → Teams → classmates and in each workspace’s Team Access page.

Browse to any workspace’s Team Access settings to confirm the “classmates” team has read privileges.

8. Cleanup

When you’re done, destroy all created resources:

terraform destroy \
  -var "organization=YOUR-ORG" \
  -var "workspace_name=devops-aws-myapp-dev" \
  -var "workspace_name_new=webserver-aws-stage"

Resource Overview

Links and References

• Terraform Cloud Provider Documentation: https://registry.terraform.io/providers/hashicorp/tfe/latest
• Terraform Cloud UI Guide: https://www.terraform.io/cloud-docs
• Terraform CLI Docs: https://www.terraform.io/cli
• Terraform Cloud API: https://www.terraform.io/cloud-docs/api
