Certificate Management

This article details the certificate management process used in Istio to secure communications within a service mesh. It explains how certificates and private keys are generated, exchanged, and rotated to ensure secure traffic flow between services.

Secure Communication and Identity Verification

When a service starts, it must authenticate itself to the mesh control plane before it can begin serving traffic securely. The following steps outline the process:

1. The Istio agent creates a private key and generates a Certificate Signing Request (CSR).
2. The CSR, along with the agent’s credentials, is transmitted to the Istio control plane (istiod).
3. The built-in certificate authority (CA) within istiod validates the credentials included in the CSR.
4. Upon successful validation, the CA signs the CSR and issues a certificate.
5. The Istio agent forwards the signed certificate and its private key to Envoy.
6. The agent continuously monitors the workload certificate to track its expiration.
7. The process is periodically repeated to enable smooth certificate and key rotation.

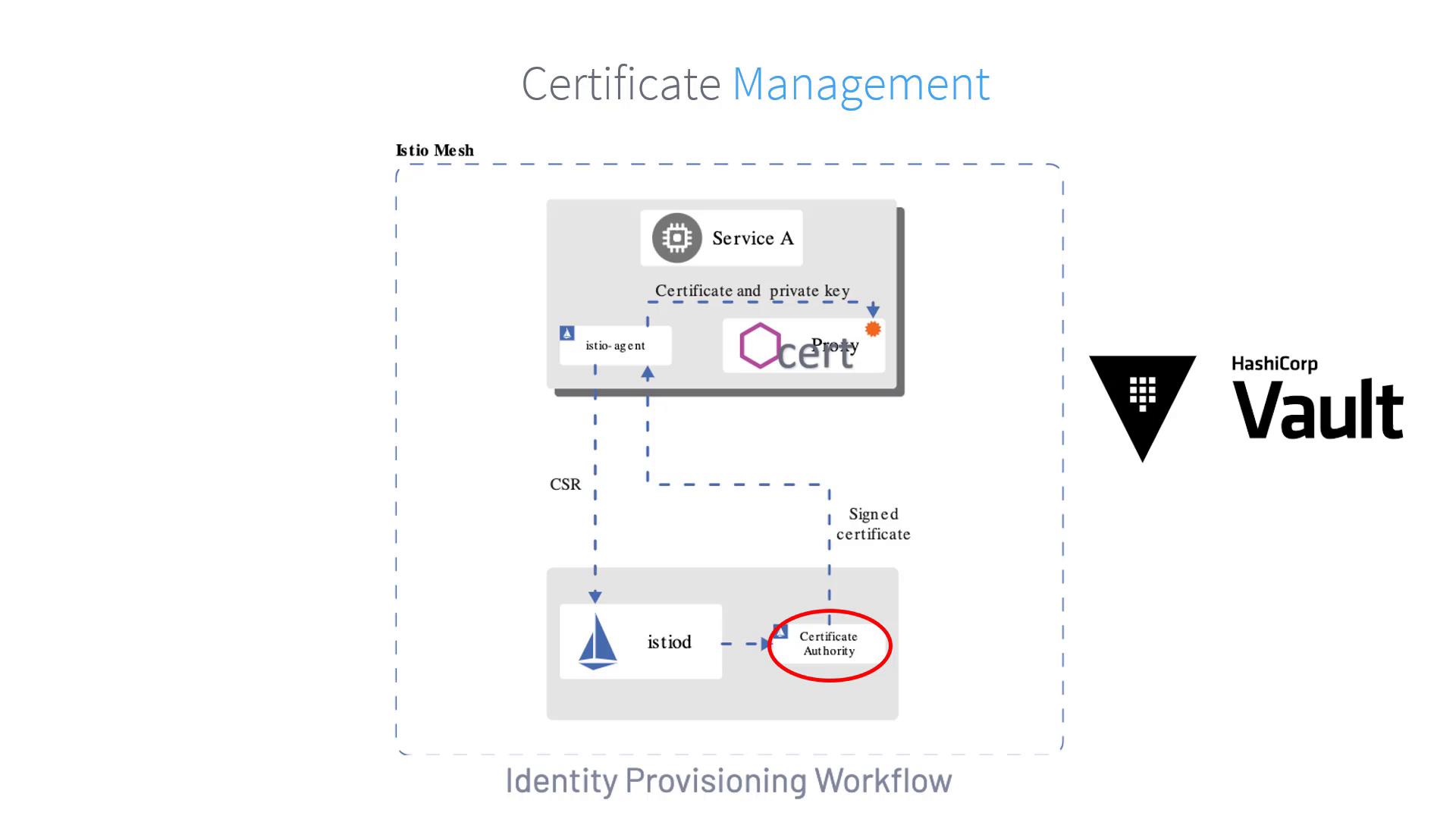

Certificate Management Workflow Diagram

This diagram visually represents each step of the certificate management process:

• The istio-agent generates and sends the CSR.
• The istiod validates and signs the certificate.
• The signed certificate and private key are then supplied to Envoy.
• Continuous certificate monitoring and periodic rotation ensure ongoing security.

By following this structured process, Istio ensures secure and reliable certificate management, which is critical for maintaining robust security standards within modern distributed architectures.

For more detailed concepts and best practices, refer to the Istio Documentation and other relevant resources on service mesh security.
