Hello World Pipeline

In this guide, you'll learn how to set up your first Jenkins pipeline—a simple "Hello World" example that demonstrates the essential steps to create and run a pipeline. As you progress, more intricate pipelines will be covered, but we’ll start with the basics.

Accessing Jenkins

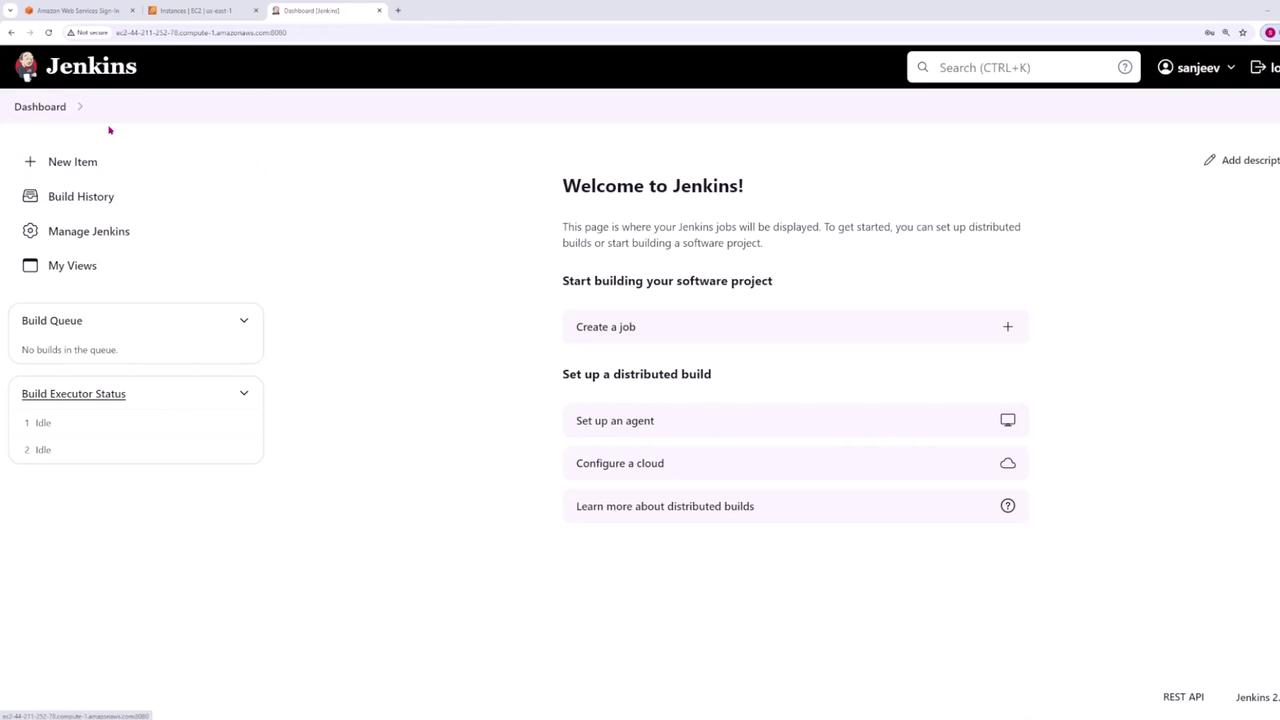

Begin by opening your Jenkins instance. If you haven’t set it up before, navigate to your Jenkins IP address on port 8080. Follow the setup instructions to configure your username and other settings. Once completed, you should see a dashboard similar to the image below:

Creating a New Pipeline

1. Click on New Item.
2. Provide a name for your pipeline; for this example, name it Hello World Pipeline.
3. Select the Pipeline option and then click OK.

Pipeline Configuration

Scroll down to the pipeline configuration section. You will see an interface similar to the following:

Here, you have two options for defining your pipeline:

1. Create the pipeline script directly in Jenkins.
2. Load the pipeline script from source control (e.g., via a Jenkinsfile in your repository).

For this tutorial, we will use a pipeline script written directly in Jenkins.

Sample Pipeline Script

Review the following pipeline script:

pipeline {
    agent any
    stages {
        stage('hello') {
            steps {
                echo 'hello world'
            }
        }
    }
}

Script Breakdown

• pipeline block: Encloses all instructions for the pipeline.
• agent any: Directs Jenkins to run the pipeline on any available agent. (An agent is a machine connected to the Jenkins controller for executing pipelines.)
• stages block: Groups the pipeline’s tasks into logical units (e.g., build, test, deploy).
• hello stage: Contains a steps block where the echo 'hello world' command prints "hello world" to the console output.

Saving and Running the Pipeline

Once you have entered the pipeline script:

1. Click Save.
2. To execute your pipeline, click the Build Now button.

This triggers a build that will be numbered "1". To inspect the detailed execution:

• Click on the build number.
• Select Console Output to review the steps performed by Jenkins.

You should see output similar to the example below:

Started by user sanjeev
[Pipeline] Start of Pipeline
[Pipeline] node
Running on Jenkins in /var/lib/jenkins/workspace/HelloWorldPipeline
[Pipeline] {
[Pipeline] stage
[Pipeline] { (Hello)
hello world
[Pipeline] }
[Pipeline] // stage
[Pipeline] }
[Pipeline] // node
[Pipeline] End of Pipeline
Finished: SUCCESS

This output confirms that the hello stage executed successfully and printed "hello world" as expected.

Build Interface Overview

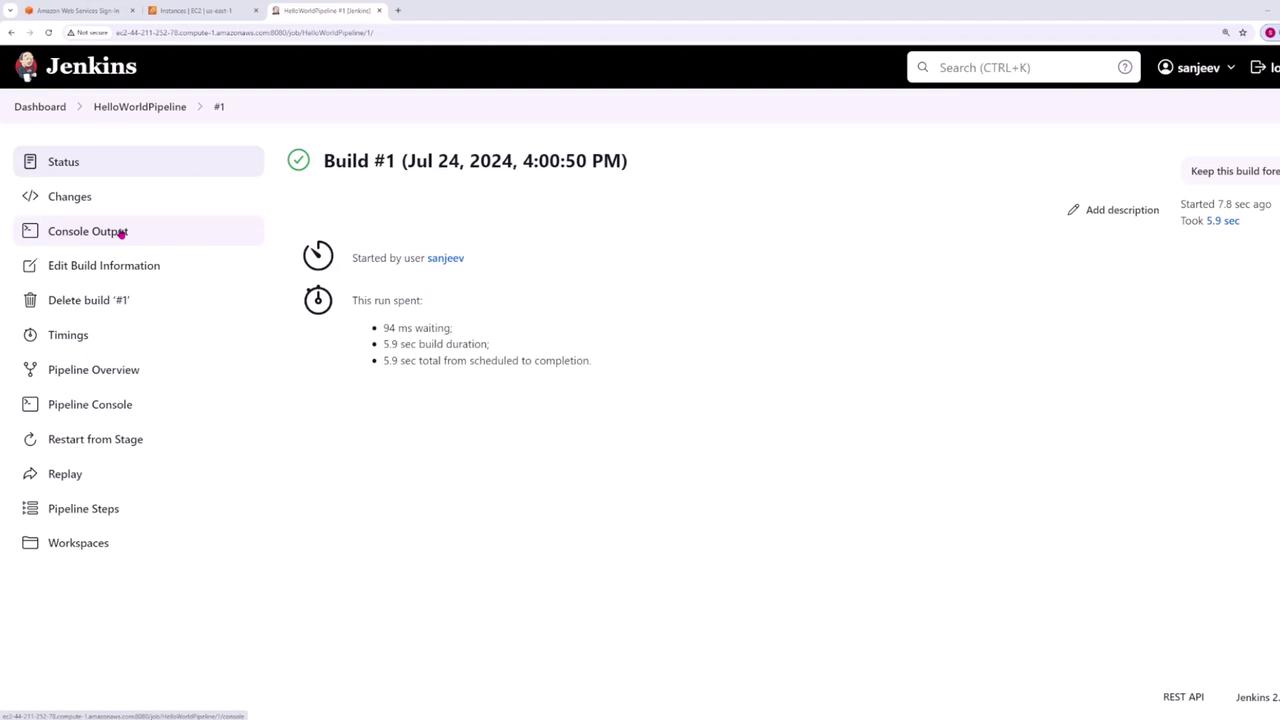

After running your pipeline, you will encounter an interface that displays build details such as the start time, user who initiated the build, and duration metrics. Check out the build interface below:

Enjoy building your pipelines and happy coding!
