Deployments Rolling Updates and Rollbacks

Welcome to this comprehensive guide on managing deployments in Kubernetes. In this article, you'll learn how to perform rolling updates, roll back changes, and effectively manage deployment revisions.

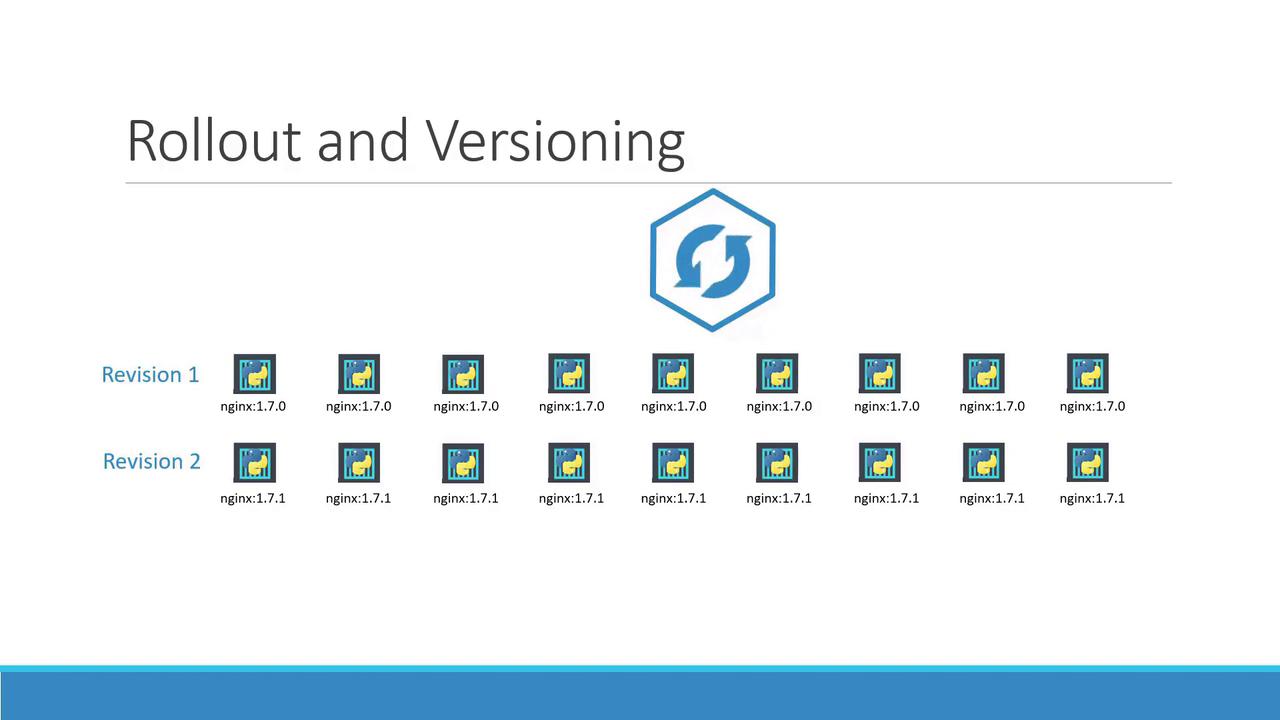

When you create a deployment, Kubernetes automatically triggers a rollout, establishing your initial deployment revision (revision one). Later, when you upgrade your application (for example, by updating the container image version), a new rollout is triggered and a new deployment revision (revision two) is created.

This revision history lets you track changes and enables you to roll back to a previous version if necessary.

You can monitor the status of a rollout by running:

kubectl rollout status deployment/myapp-deployment

The output might be similar to:

Waiting for rollout to finish: 0 of 10 updated replicas are available...
Waiting for rollout to finish: 1 of 10 updated replicas are available...
...
Waiting for rollout to finish: 9 of 10 updated replicas are available...
deployment "myapp-deployment" successfully rolled out

To view the deployment's revision history, use:

kubectl rollout history deployment/myapp-deployment

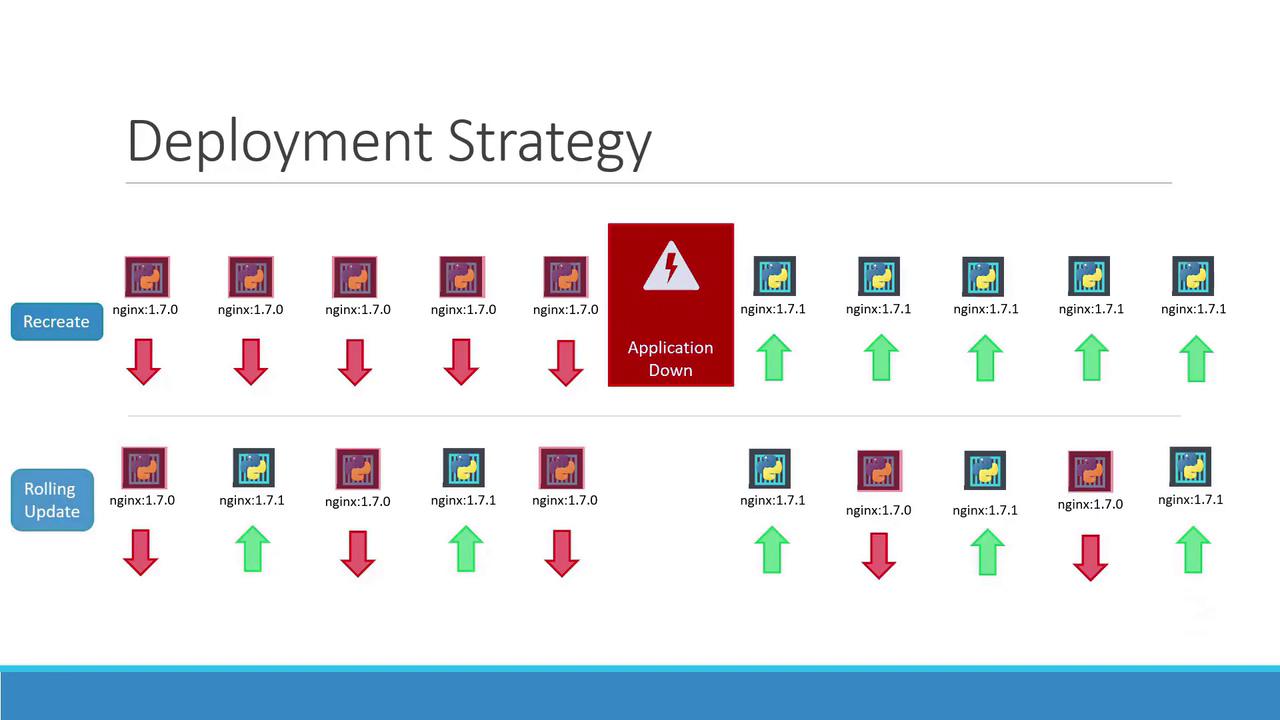

Deployment Strategies

There are two primary deployment strategies to consider when updating your application:

1. Recreate Strategy:
   In this approach, all existing replicas are terminated before new ones are created. Although this creates a completely fresh environment, it results in downtime due to the gap between terminating the old pods and starting the new ones.

2. Rolling Update Strategy:
   This strategy updates instances incrementally. Kubernetes gradually terminates old pods while simultaneously starting new ones, ensuring continuous application availability. Rolling updates are applied by default unless a different strategy is specified during deployment creation.

Updating a Deployment

There are several ways to update a deployment, such as changing your container image, modifying labels, or adjusting the replica count. If you maintain a deployment configuration file, you can modify it directly. For example:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: myapp-deployment
  labels:
    app: myapp
    type: front-end
spec:
  replicas: 3
  selector:
    matchLabels:
      type: front-end
  template:
    metadata:
      name: myapp-pod
      labels:
        app: myapp
        type: front-end
    spec:
      containers:
      - name: nginx-container
        image: nginx:1.7.1

After updating the file, apply the changes using:

kubectl apply -f deployment-definition.yml

This command initiates a new rollout and creates a new deployment revision.

Alternatively, update the container image directly with:

kubectl set image deployment/myapp-deployment nginx-container=nginx:1.9.1

Examining Deployment Details

To inspect detailed information about a deployment—including its strategy—run:

kubectl describe deployment myapp-deployment

When using the recreate strategy, you will see that the old replica set is scaled down to zero before the new replica set is scaled up. For example:

Namespace:               default
CreationTimestamp:       Sat, 03 Mar 2018 17:01:55 +0800
Labels:                  app=myapp
                         type=front-end
Annotations:             deployment.kubernetes.io/revision: 2
                         kubernetes.io/change-cause: kubectl apply --filename=deployment-definition.yml
Replicas:                5 updated | 5 total | 5 available | 0 unavailable
StrategyType:            Recreate
MinReadySeconds:         0
Containers:
  nginx-container:
    Image:               nginx:1.7.1
    Port:                <none>
Conditions:
  Type           Status  Reason
  Available      True    MinimumReplicasAvailable
  Progressing    True    NewReplicaSetAvailable
OldReplicaSets:         <none>
NewReplicaSet:          myapp-deployment-5c47d6ccc (5/5 replicas created)
Events:
  Type    Reason              Age   From                   Message
  Normal  ScalingReplicaSet   11m   deployment-controller  Scaled up replica set myapp-deployment-6795844b58 to 5
  Normal  ScalingReplicaSet   1m    deployment-controller  Scaled down replica set myapp-deployment-5c47d6ccc to 0

For rolling updates, the output shows a gradual transition:

Namespace:               default
CreationTimestamp:       Sat, 03 Mar 2018 17:16:53 +0800
Labels:                  app=myapp
                         type=front-end
Annotations:             deployment.kubernetes.io/revision: 2
                         kubernetes.io/change-cause: kubectl apply --filename=deployment-definition.yml
Replicas:                5 desired | 1 updated | 4 available | 2 unavailable
StrategyType:            RollingUpdate
Pod Template:
  Labels:                app=myapp
                         type=front-end
Containers:
  nginx-container:
    Image:               nginx:1.7.1
    Port:                <none>
Conditions:
  Type           Status  Reason
  Available      True    MinimumReplicasAvailable
  Progressing    True    ReplicaSetUpdated
OldReplicaSets:         myapp-deployment-676749c58c (1/1 replicas created)
NewReplicaSet:          myapp-deployment-7d57dbbd8d (5/5 replicas created)
Events:
  Type    Reason              Age   From                   Message
  Normal  ScalingReplicaSet   11m   deployment-controller  Scaled up replica set myapp-deployment-676749c58c to 5
  Normal  ScalingReplicaSet   15s   deployment-controller  Scaled down replica set myapp-deployment-7d57dbbd8d to 2
  Normal  ScalingReplicaSet   56s   deployment-controller  Scaled down replica set myapp-deployment-676749c58c to 5

These examples clearly illustrate the differences between the recreate and rolling update strategies.

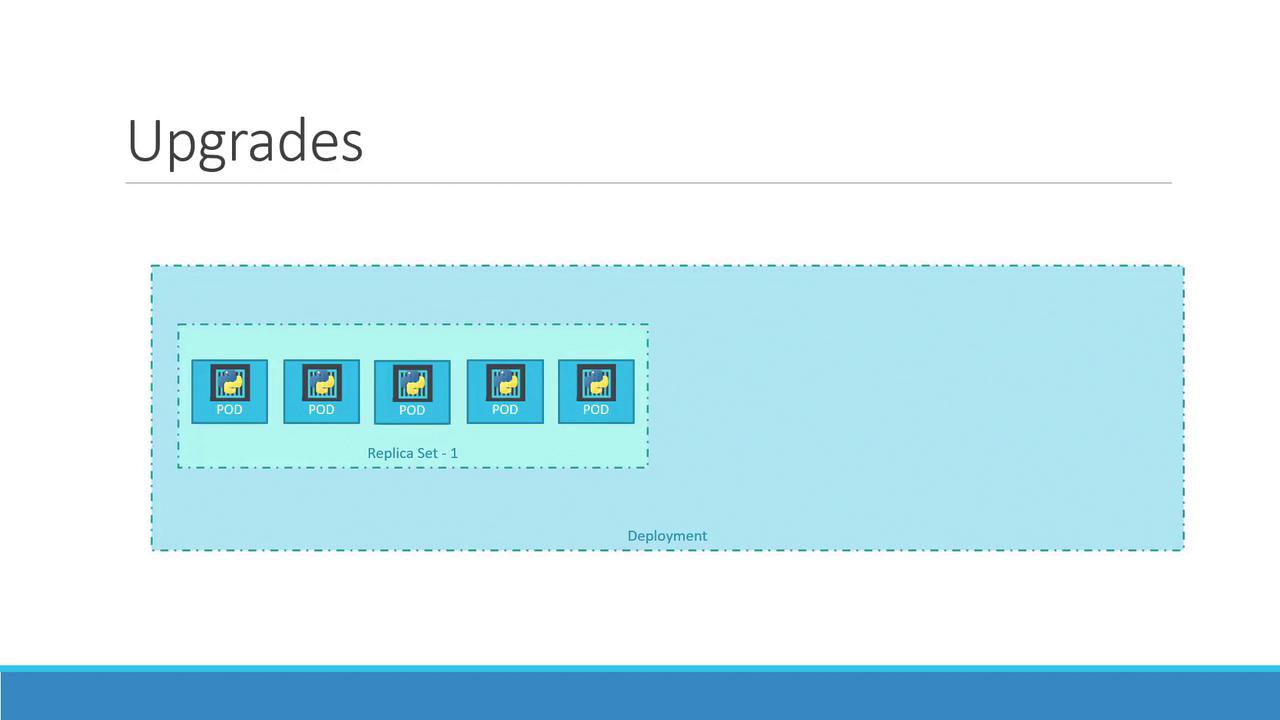

How Upgrades Work Under the Hood

When a deployment is initially created (for example, deploying five replicas), Kubernetes automatically creates a replica set that spawns the required pods. During an upgrade, a new replica set is generated for the updated containers while the pods from the previous replica set are gradually terminated according to the rolling update strategy.

You can verify the changes by listing the replica sets:

kubectl get replica sets

Before the upgrade, the old replica set displays the active pods, and after updating, you will see the new replica set with updated pod counts.

Rolling Back an Update

If you encounter issues with a new release, Kubernetes allows you to roll back to a previous deployment revision. To perform a rollback, simply execute:

kubectl rollout undo deployment/myapp-deployment

The output will confirm the rollback:

deployment "myapp-deployment" rolled back

Before executing the rollback, the new replica set might show all pods (for instance, five replicas) while the old replica set shows none. After the rollback, these counts are reversed.

Summary of Essential Commands

Below is a summary table of commands that are crucial for managing your deployments:

These commands empower you to create, update, monitor, and roll back deployments efficiently, ensuring minimal downtime and a smooth upgrade process.

For further insights, consider reviewing the Kubernetes Documentation.
