Solution RBAC

In this lesson, we’ll dive into Kubernetes Role-Based Access Control (RBAC) to manage permissions for users and services. We’ll cover:

1. Inspecting API server authorization modes
2. Counting existing Roles
3. Examining the built-in kube-proxy Role
4. Reviewing RoleBindings for kube-proxy
5. Verifying dev-user permissions
6. Granting Pod permissions to dev-user
7. Fixing Pod permissions in the blue namespace
8. Granting Deployment permissions in the blue namespace

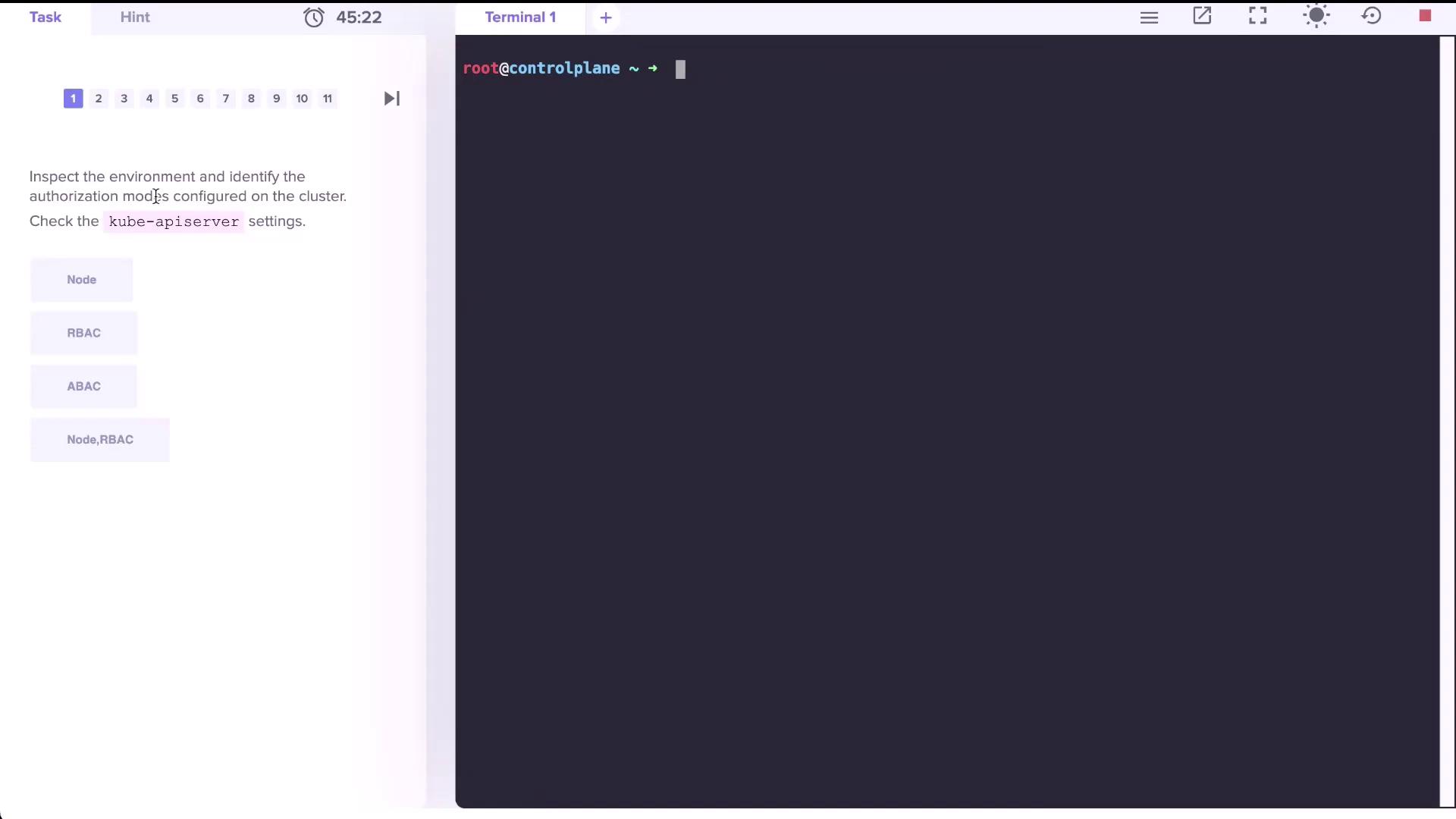

1. Inspect API Server Authorization Modes

To confirm that RBAC is enabled, inspect the API server manifest:

kubectl -n kube-system get pod kube-apiserver -o yaml

Look for the --authorization-mode flag:

- --authorization-mode=Node,RBAC

Alternatively, on the control-plane node:

ps aux | grep kube-apiserver

... --authorization-mode=Node,RBAC ...

2. Count Existing Roles

List Roles in the default namespace:

kubectl get roles -n default

No resources found in default namespace.

Count all Roles across namespaces:

kubectl get roles --all-namespaces --no-headers | wc -l

12

3. Examine the kube-proxy Role

View the kube-proxy Role in kube-system:

kubectl describe role kube-proxy -n kube-system

True/False:

• True: It can get the ConfigMap named kube-proxy.
• False: It cannot delete or update the ConfigMap.
• False: It cannot list or watch ConfigMaps.

4. Identify the Subject of the kube-proxy RoleBinding

List RoleBindings in kube-system:

kubectl get rolebindings -n kube-system

NAME          ROLE
kube-proxy    Role/kube-proxy

Describe the kube-proxy RoleBinding:

kubectl describe rolebinding kube-proxy -n kube-system

5. Verify dev-user Permissions

After adding dev-user to your kubeconfig:

kubectl config view

Attempt to list Pods in default:

kubectl get pods --as dev-user

Error from server (Forbidden): pods is forbidden: User "dev-user" cannot list resource "pods" in API group "" in the namespace "default"

6. Grant Pod Permissions to dev-user

6.1 Create the developer Role

kubectl create role developer \
  --verb=list,create,delete \
  --resource=pods \
  -n default

Verify:

kubectl describe role developer -n default

6.2 Bind dev-user to the Role

kubectl create rolebinding dev-user-binding \
  --role=developer \
  --user=dev-user \
  -n default

Confirm:

kubectl describe rolebinding dev-user-binding -n default

Now dev-user can list Pods:

kubectl get pods --as dev-user -n default

7. Fix Permissions for a Pod in the blue Namespace

1. Inspect existing Roles and RoleBindings:

   kubectl get roles,rolebindings -n blue


2. Describe the developer Role:

   kubectl describe role developer -n blue


3. Edit the Role to match the actual Pod name:

   kubectl edit role developer -n blue


   Update to:

   rules:
   - apiGroups: ['']
     resources:
     - pods
     resourceNames:
     - dark-blue-app
     verbs:
     - get
     - watch
     - create
     - delete


4. Verify access:

   kubectl get pod dark-blue-app -n blue --as dev-user


8. Grant Deployment Permissions in the blue Namespace

1. Edit the developer Role again:

   kubectl edit role developer -n blue


2. Add a rule for deployments in the apps API group:

   rules:
   - apiGroups: ['']
     resources:
     - pods
     resourceNames:
     - dark-blue-app
     verbs:
     - get
     - watch
     - create
     - delete
   - apiGroups: ['apps']
     resources:
     - deployments
     verbs:
     - get
     - watch
     - create
     - delete


3. Verify:

   kubectl describe role developer -n blue


4. Create a Deployment as dev-user:

   kubectl create deployment nginx \
     --image=nginx \
     -n blue \
     --as dev-user
