Kubernetes and Cloud Native Security Associate (KCSA)

Kubernetes Threat Model

Attacker on the Network

In this guide, we explore how a network-level adversary can launch Denial of Service (DoS) attacks against a Kubernetes cluster. The following sections map out key attack vectors targeting compute resources, control-plane services, and pod networking, along with actionable mitigation strategies.

Exhausting Compute Resources

An attacker may overload worker nodes and kubelets to reduce cluster capacity:

  • Flood kubelet endpoints (/healthz, /metrics) or corrupt critical node files, causing nodes to report NotReady.
  • Block kubelet health checks, forcing the scheduler to mark nodes as unschedulable.
  • Trigger runaway CPU or memory consumption via malicious Pods to deplete node resources.

Note

Resource exhaustion not only disrupts workloads but can also trigger automatic node replacement if cluster autoscaling is enabled.

Disrupting the Control Plane

Targeting core control-plane components can bring the entire cluster down. Common targets include etcd, the API server, the scheduler, and the controller manager.

ComponentPortsImpact of Attack
etcd2379, 2380Break quorum, corrupt cluster state, block peer sync
API Server6443 (TLS), 8080Deny API calls from kubectl and internal controllers
Scheduler10251, 10259Prevent new Pods from being assigned to nodes
Controller Manager10252, 10257Halt replica loops, scaling, and other control tasks

Warning

Disrupting the API server or etcd can cause a full outage. Always secure these ports and validate firewall rules to avoid accidental lockouts.

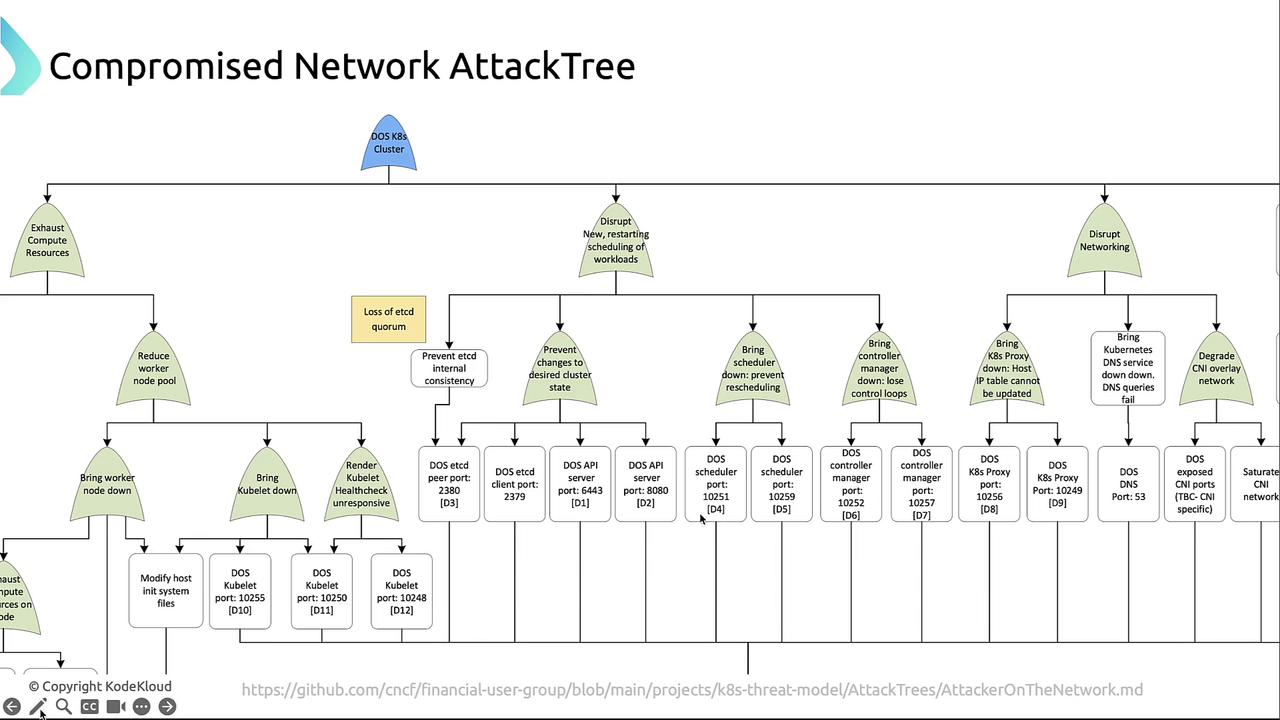

The image is a diagram of a "Compromised Network Attack Tree" showing various methods to disrupt a Kubernetes (K8s) cluster, including exhausting compute resources and disrupting networking.

Disrupting Networking

Network-level denial-of-service can interfere with both internal communication and external access:

Networking ComponentPortsAttack Effects
kube-proxy10256, 10249Freeze Service-to-Pod traffic
DNS53Block DNS resolution, causing service failures
CNI Overlay Network(varies)Flood overlays, slow or sever Pod-to-Pod traffic
PXE / Network Boot(varies)Prevent new nodes from joining the cluster

Mitigations

Firewall Configuration

Restrict access to critical control-plane endpoints by allowing only trusted IP ranges:

  • Limit the API server ports (6443, 8080) to your control-plane bastion hosts.
  • Block all unused Kubernetes ports at the network perimeter.
  • Use cloud-native firewalls (e.g., AWS Security Groups, GCP Firewall Rules) for dynamic management.

Securing Nodes

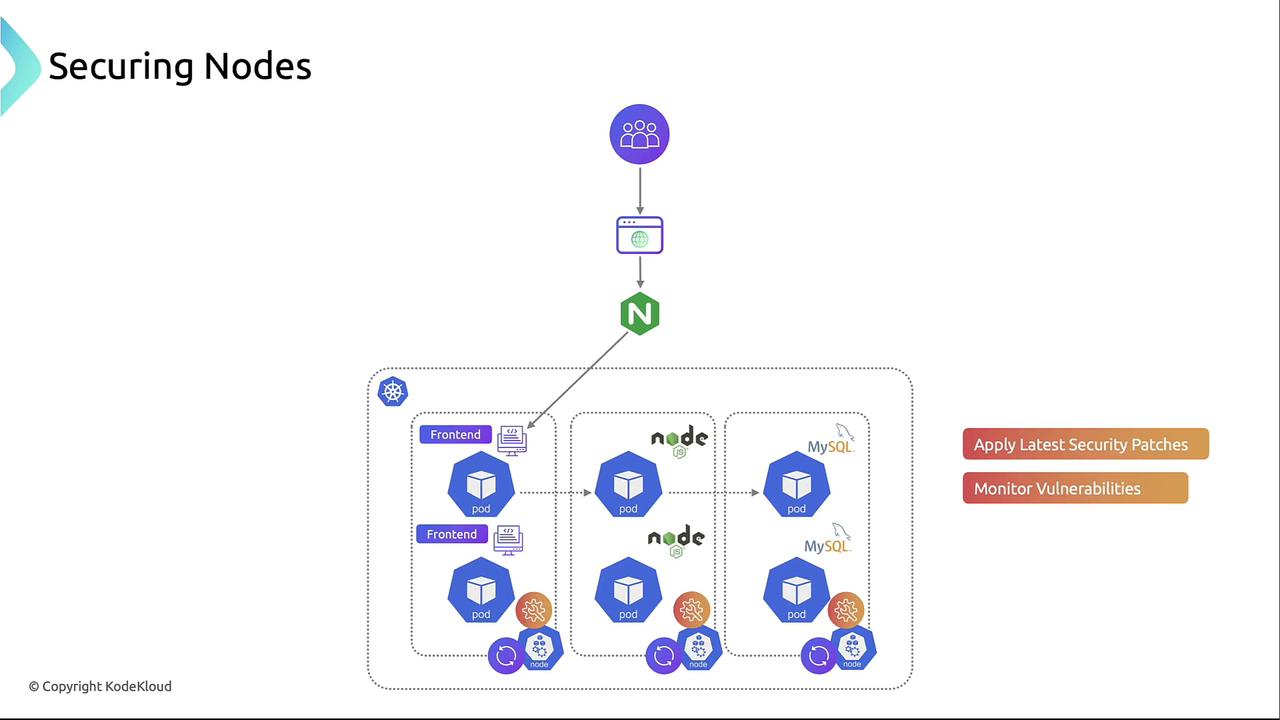

The image is a diagram illustrating a Kubernetes setup for securing nodes, showing a flow from users through Nginx to frontend, Node.js, and MySQL pods. It emphasizes applying security patches and monitoring vulnerabilities.

  • Keep the host OS and Kubernetes components patched to the latest stable versions.
  • Apply CIS Benchmarks or Node Hardening Guides for best practices.
  • Monitor runtime vulnerabilities with tools like Falco or Sysdig Secure.

Network Policies

Implement Kubernetes NetworkPolicy objects to enforce pod-level traffic controls:

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-frontend-to-backend
  namespace: frontend
spec:
  podSelector: {}
  policyTypes:
  - Egress
  egress:
  - to:
    - namespaceSelector:
        matchLabels:
          name: backend
      podSelector: {}

Note

Define both Ingress and Egress policies to ensure complete traffic segmentation between namespaces and Pods.

Strong Authentication and Authorization

  • Enforce multi-factor authentication (MFA) for all control-plane access: API server, etcd, and SSH.
  • Leverage Kubernetes Role-Based Access Control (RBAC) to grant least-privilege permissions.
  • Rotate service account tokens and certificates regularly.

Monitoring and Logging

Use Prometheus and Alertmanager to catch abnormal API usage and network spikes:

apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
  name: network-alert-rules
  namespace: default
spec:
  groups:
  - name: network-alerts
    rules:
    - alert: HighAPIRequests
      expr: sum(rate(apiserver_request_total[5m])) by (client) > 100
      labels:
        severity: warning
      annotations:
        summary: "High rate of API server requests detected"
        description: "Client {{ $labels.client }} exceeds 100 requests/sec average over 5m."
    - alert: HighNetworkTraffic
      expr: |
        sum(
          rate(container_network_receive_bytes_total[5m]) +
          rate(container_network_transmit_bytes_total[5m])
        ) by (pod) > 10000000
      for: 5m
      labels:
        severity: critical
      annotations:
        summary: "High network traffic detected for pod {{ $labels.pod }}"
        description: "Potential DoS or data exfiltration from pod {{ $labels.pod }}."

Summary

Network-level attackers can cripple both the compute plane and control plane of your Kubernetes cluster. To defend effectively:

  1. Enforce strict firewall rules around control-plane ports.
  2. Keep nodes and cluster components up to date.
  3. Apply NetworkPolicy for granular traffic control.
  4. Use MFA and RBAC to secure API access.
  5. Monitor API calls and network metrics to detect and respond rapidly.
