Observability Using Falco to Detect Threats

Now that Falco is installed on your cluster nodes, you can detect and alert on suspicious behavior. This guide walks you through verifying the installation, testing Falco with an nginx pod, and writing custom rules.

Prerequisites

• A running Kubernetes cluster
• Falco installed on each node (via systemd or DaemonSet)
• kubectl configured to communicate with your cluster

1. Verifying Falco Installation

First, ensure Falco is active on each node.

If you installed Falco directly on the host:

sudo systemctl status falco

You should see output similar to:

● falco.service - Falco: Container Native Runtime Security
   Loaded: loaded (/usr/lib/systemd/system/falco.service; enabled; vendor preset: enabled)
   Active: active (running) since Tue 2021-04-13 20:42:45 UTC; 1min 2s ago
     Docs: https://falco.org/docs/
 Main PID: 17994 (falco)
    Tasks: 6 (limit: 4678)
   CGroup: /system.slice/falco.service
           └─17994 /usr/bin/falco --pidfile=/var/run/falco.pid -c /etc/falco/falco.yaml

2. Deploying and Testing with nginx

1. Deploy an nginx pod

   kubectl run nginx --image=nginx


   Expected response:

   pod/nginx created


2. Check pod status and its node

   kubectl get pods -o wide


3. Stream Falco logs
   In a separate terminal, SSH into the node running the nginx pod:

   ssh user@<node-ip>
   sudo journalctl -fu falco


4. Trigger an alert
   Back in your first terminal, open a shell inside the nginx container:

   kubectl exec -ti nginx -- bash


   Inside the container, read a sensitive file:

   cat /etc/shadow


Falco will immediately log alerts for the shell spawn and file access events.

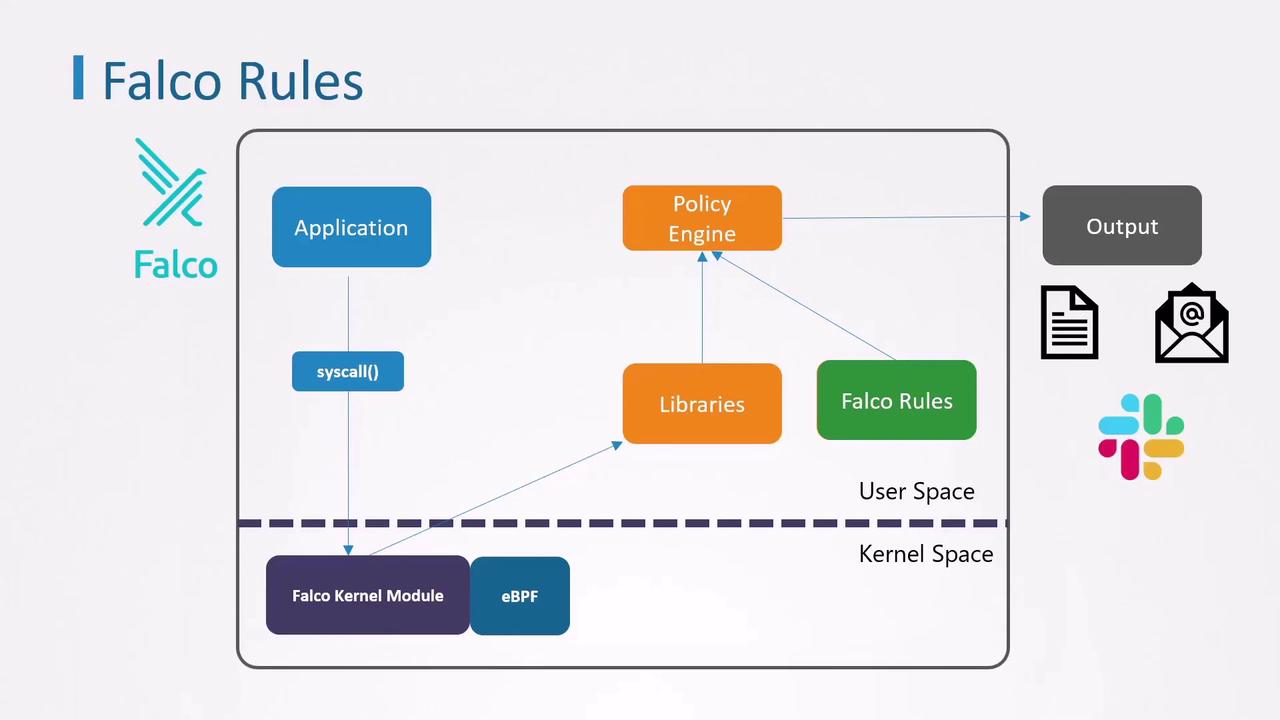

3. Falco Architecture

This diagram shows:

• Applications generate system calls
• Falco’s kernel module/eBPF captures events
• Libraries forward events to the policy engine
• Rules define alert conditions
• Outputs include stdout, alerts, notifications

4. Falco Rules Overview

Falco rules are defined in a YAML file. Each file can include:

• rules: Alert definitions
• lists: Named collections of values
• macros: Reusable filter expressions

4.1 Anatomy of a Rule

Every rule requires these five keys:

- rule:      # Unique rule name
  desc:      # Human-readable description
  condition: # Boolean expression against event fields
  output:    # Alert message template
  priority:  # Severity (e.g., DEBUG, INFO, WARNING, CRITICAL)

Example
Built-in rule that detects a shell inside a container:

- rule: OpenShellInContainer
  desc: Alert when a shell (e.g., bash) is spawned inside a container
  condition: container.id != host and proc.name = bash
  output: Shell opened in container (user=%user.name container=%container.id)
  priority: WARNING

5. Creating a Custom Rule

Let’s write a simple rule to catch any shell launched in a container:

- rule: DetectShellInsideContainer
  desc: Alert if a shell such as bash is opened inside any container
  condition: container.id != host and proc.name = bash
  output: Bash shell opened (user=%user.name container=%container.id)
  priority: WARNING

6. Sysdig Filters Reference

Falco evaluates these filters against each captured system event.

7. Extending Detection with Lists

To monitor multiple shell types, define a list:

- list: linux_shells
  items: [bash, zsh, ksh, sh, csh]

Update the rule to reference the list:

- rule: DetectShellInsideContainer
  desc: Alert if any common shell is opened inside a container
  condition: container.id != host and proc.name in (linux_shells)
  output: Shell opened (user=%user.name container=%container.id proc=%proc.name)
  priority: WARNING

- list: linux_shells
  items: [bash, zsh, ksh, sh, csh]

8. Simplifying with Macros

Falco’s built-in macro container is shorthand for container.id != host. Use it to make rules more concise:

- rule: DetectShellInsideContainer
  desc: Alert if any common shell is opened inside a container
  condition: container and proc.name in (linux_shells)
  output: Shell opened (user=%user.name container=%container.id proc=%proc.name)
  priority: WARNING

- list: linux_shells
  items: [bash, zsh, ksh, sh, csh]

For a complete list of macros and filters, see the Falco documentation.
