Introduction to LCEL

Overview of LCEL

Welcome back! In this lesson, we’ll dive into the LangChain Expression Language (LCEL)—a declarative, domain-specific language that makes it easy to compose, visualize, and maintain LangChain pipelines using a simple pipe (|) operator.

LCEL treats each LangChain component (prompts, LLMs, retrievers, parsers, etc.) as a stage in a logical pipeline. The output of one stage seamlessly becomes the input of the next, resulting in clean, modular code that’s straightforward to extend and debug.

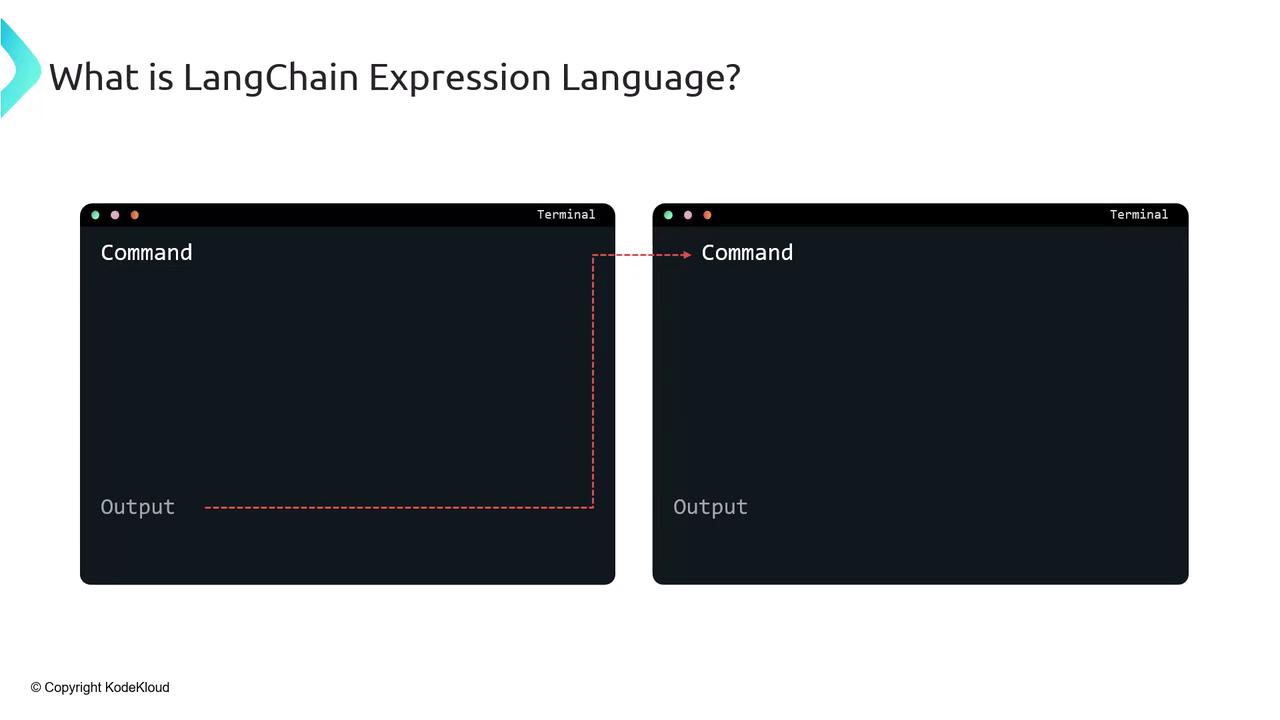

The image shows two terminal windows labeled "Command" and "Output," connected by a dashed line, with the title "What is LangChain Expression Language?"

Every component in LangChain implements a clear input → processing → output contract. When you wire these components with |, LCEL builds an executable graph under the hood:

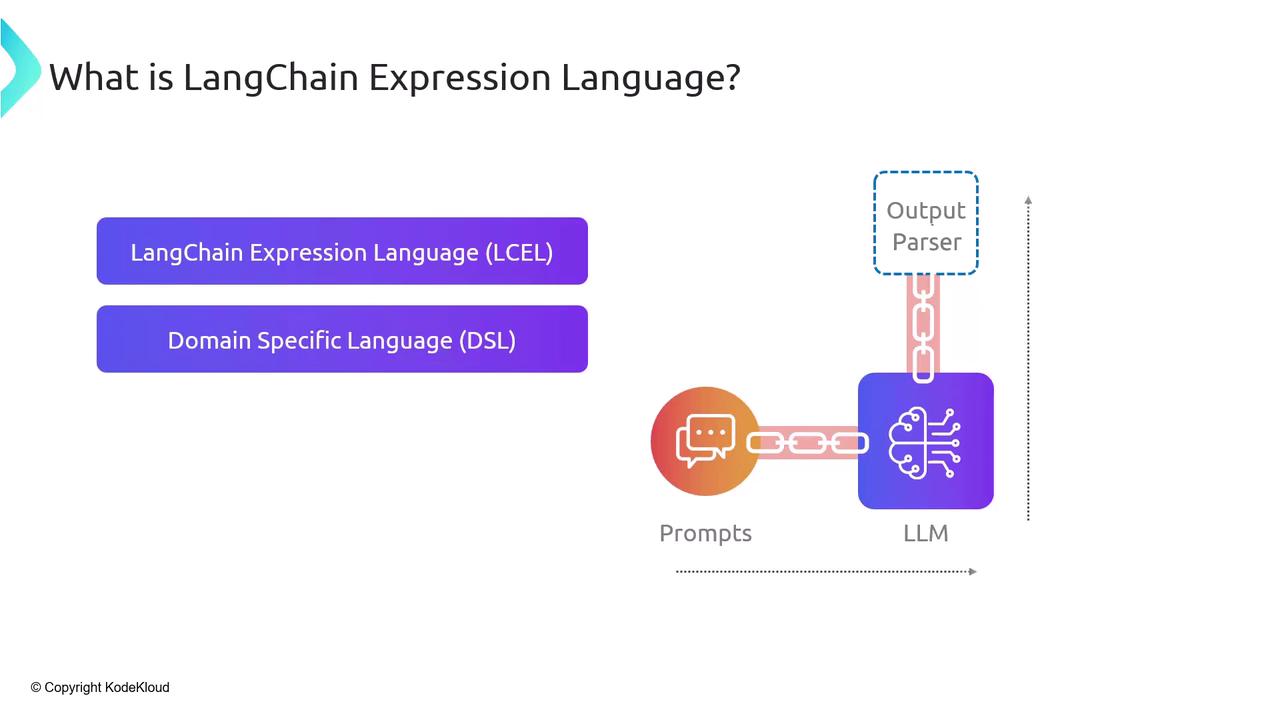

The image explains the LangChain Expression Language (LCEL) and Domain Specific Language (DSL), showing a flow from prompts to an LLM and then to an output parser.

This approach offers:

  • Modularity: Swap, reorder, or reuse stages without rewriting the entire chain
  • Readability: A visual, left-to-right flow similar to shell pipelines
  • Extensibility: Integrate custom Runnable components, retrievers, or parsers

At the core of LCEL is the Runnable base class. By subclassing Runnable[InputType, OutputType], you define how a component:

  1. Receives input
  2. Processes its logic (e.g., calls an LLM or parses text)
  3. Emits output

Implementing Runnable ensures your custom components plug into LCEL pipelines without extra boilerplate.

The image is a graphic illustrating the concept of LangChain Expression Language, featuring a terminal window labeled "Runnable" surrounded by colorful icons of gears and cubes.

Note

Define your component by extending Runnable and overriding the invoke method:

from langchain.core.runnable import Runnable

class MyCustomProcessor(Runnable[str, str]):
    def invoke(self, input_text: str) -> str:
        # transform input_text and return result
        return input_text.upper()

LCEL is production-ready and powers systems with hundreds of chained components running reliably at scale.

If you’ve used Unix or Linux, you know how | passes the output of one command to another:

$ cat file.txt | grep "error" | wc -l
  • cat file.txt streams the file content
  • grep "error" filters for “error” lines
  • wc -l counts matching lines

You can achieve the same clarity in LCEL:

from langchain import PromptTemplate, OpenAI, RegexParser

prompt = PromptTemplate("Q: {question}\nA:")
llm = OpenAI(model="gpt-4")
parser = RegexParser(pattern=r"^.*$")

chain = prompt | llm | parser
result = chain.invoke({"question": "Tell me about the Godfather movie"})
print(result)
  1. Prompt formats the question
  2. LLM generates the answer
  3. Parser extracts the relevant output

Warning

Long, monolithic pipelines can be hard to debug. Break complex workflows into smaller sub-chains and reassemble them for clarity.

ComponentRoleExample
PromptTemplate for input formattingPromptTemplate("Q: {text}")
LLMLanguage model invocationOpenAI(model="gpt-4")
RetrieverExternal data lookup (e.g., docs)PDFRetriever(file_path="report.pdf")
OutputParserStructured output extractionRegexParser(pattern=r"Answer: (.*)")
CustomRunnableUser-defined processing logicMyCustomProcessor()

LCEL also supports meta-chains—where one chain’s output feeds another chain. This unlocks powerful workflows, such as multi-step reasoning or data enrichment pipelines.

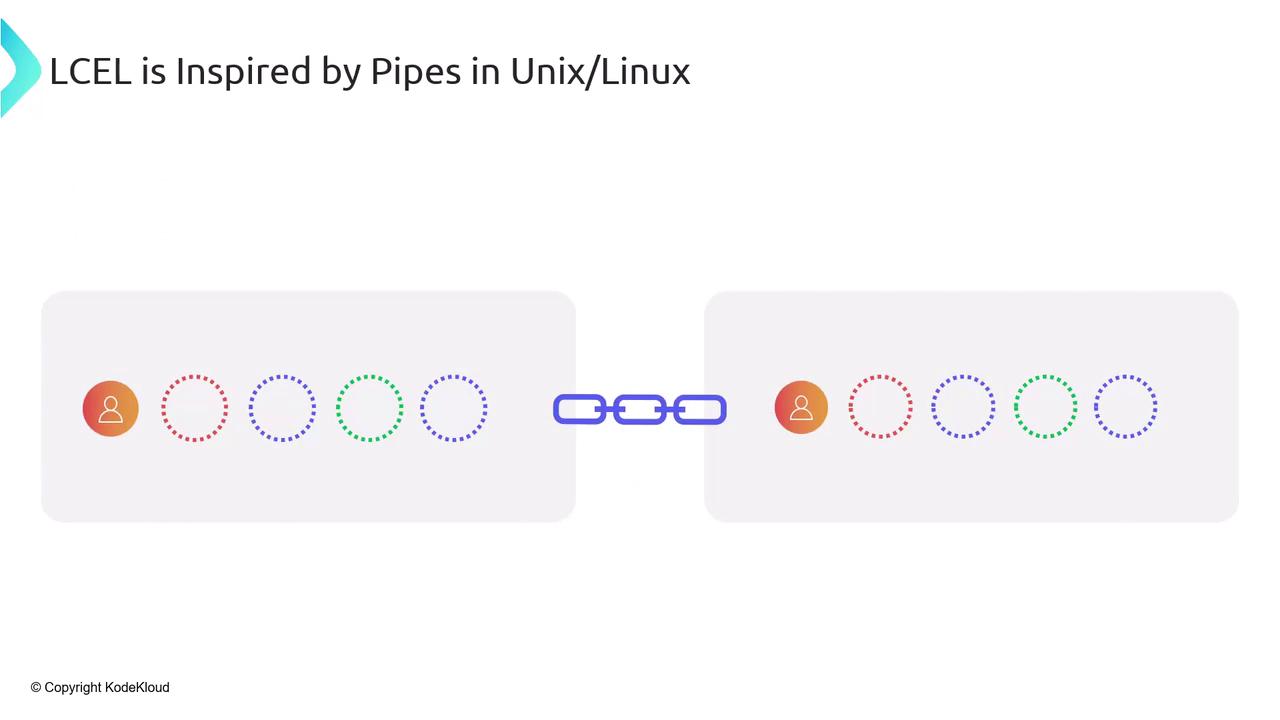

The image illustrates a concept inspired by pipes in Unix/Linux, showing two sets of colored circles connected by a chain link.

Most of our upcoming demos and labs will leverage LCEL to build expressive, maintainable LangChain applications. To deepen your understanding:

Let’s switch to the demo and see LCEL in action!
