Linux Professional Institute LPIC-1 Exam 101

System Architecture

Determine and Configure Hardware Settings

Modern hardware requires proper configuration before and after installing an operating system. In this guide, you’ll learn how to configure firmware settings (BIOS/UEFI), detect hardware in Linux, inspect devices on PCI and USB buses, manage kernel modules, and explore kernel information in /proc and /sys.

1. Firmware Configuration: BIOS vs UEFI

Computers use firmware interfaces to initialize hardware and start the boot process. Legacy systems rely on BIOS (Basic Input/Output System), while most modern machines use UEFI (Unified Extensible Firmware Interface).

FeatureBIOSUEFI
InitializationLegacy MBR bootGPT support, faster boot
Configuration interfaceText-based menuGraphical menu, mouse support
Firmware updatesManufacturer-specific flasher toolsBuilt-in update utilities
Hardware testing & configBasic POST (Power-On Self-Test)Extended diagnostics, secure boot, variable storage

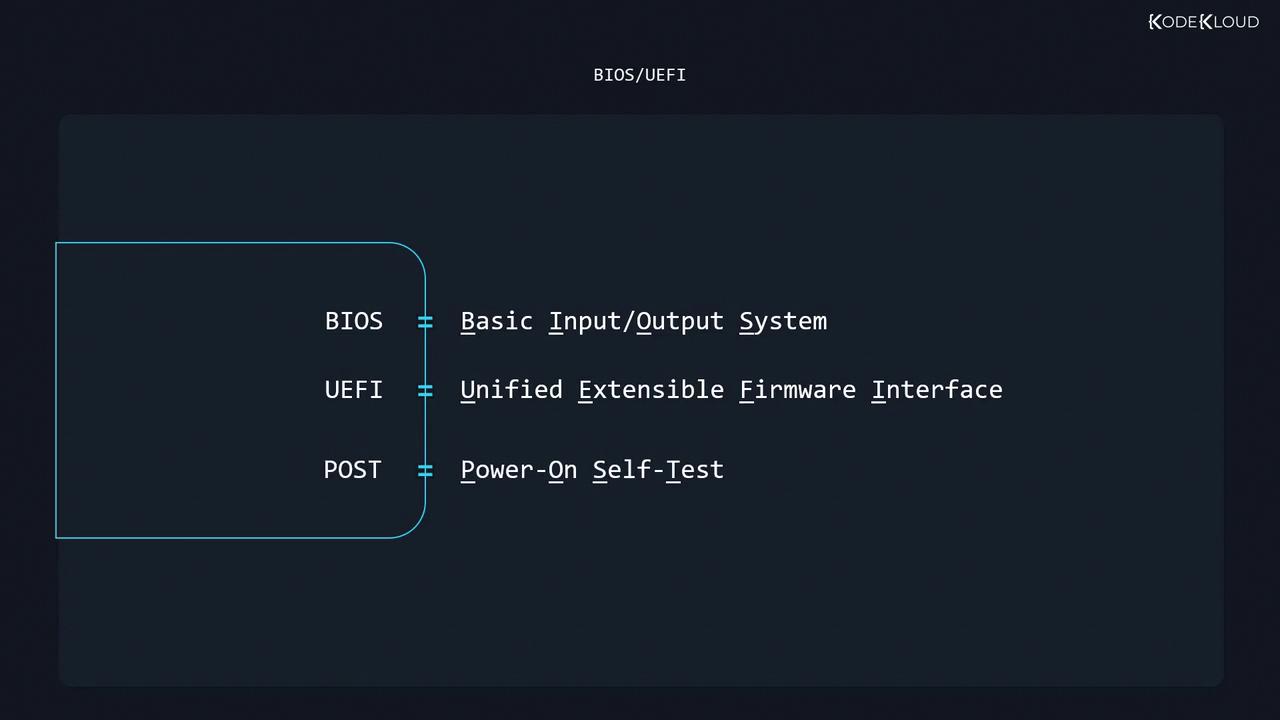

The image is a diagram explaining the acronyms BIOS, UEFI, and POST, with their full forms: Basic Input/Output System, Unified Extensible Firmware Interface, and Power-On Self-Test.

During POST, your firmware checks CPU, memory, and motherboard health. To enter the setup utility, press the key shown on-screen (often F2, Delete, or F12). Inside you can:

  • Set the hardware clock’s date and time
  • Enable/disable onboard peripherals (LAN, audio)
  • Configure RAM error protection (ECC)
  • Adjust IRQ and DMA channels
  • Define boot device priority
  • Enable performance features (XMP, virtualization)
  • Disable unused hardware for security or power saving

Warning

Changing firmware settings can affect system stability. Always document original values before modifying.

2. Detecting Hardware in Linux

Once Linux boots, it discovers and initializes hardware. Missing devices usually indicate a faulty component or port; detected but non-functional devices often need the correct kernel module (driver).
Here are the primary inspection tools:

ToolPurposeExample
lspciList PCI/PCIe devicessudo lspci
lsusbList USB devicessudo lsusb
lsmodShow loaded kernel moduleslsmod
modinfoDisplay module detailsmodinfo snd

2.1 Inspecting PCI Devices with lspci

The lspci utility enumerates PCI/PCIe devices:

sudo lspci

Sample output:

00:00.0 Host bridge: Intel Corporation 440FX - 82441FX PMC [Natoma] (rev 02)
00:03.0 Ethernet controller: Intel Corporation 82540EM Gigabit Ethernet Controller (rev 02)
00:0c.0 USB controller: Intel Corporation 7 Series/C210 Series Chipset Family USB xHCI

To get verbose details for a specific device (e.g., 00:03.0):

sudo lspci -s 00:03.0 -v

Show only kernel driver info:

sudo lspci -s 00:03.0 -k

2.2 Inspecting USB Devices with lsusb

List all USB devices:

sudo lsusb

For a tree-view with drivers and speeds:

sudo lsusb -t

Query a specific device by bus and device number:

sudo lsusb -s 01:20

3. Managing Kernel Modules

Kernel modules enable Linux to communicate with hardware.

# List loaded modules
lsmod

# Filter for sound-related modules
lsmod | fgrep -i snd

Unload (remove) a module:

sudo modprobe -r snd_hda_intel

Warning

Unloading critical modules (e.g., storage or network drivers) can render your system unbootable. Proceed with caution.

View detailed information about a module:

modinfo snd

List only parameters:

modinfo snd -p

3.1 Persistent Module Configuration

To apply module parameters at boot or blacklist unwanted modules, use files in /etc/modprobe.d/:

Config FilePurpose
/etc/modprobe.d/<module>.confSet parameters for a module
/etc/modprobe.d/blacklist.confPrevent modules from loading
/etc/modprobe.confLegacy configuration file

Example: blacklisting the snd driver:

blacklist snd

4. Kernel Information Files (/proc and /sys)

Linux exposes hardware and process information via two virtual filesystems:

  • /proc: Process and kernel data (e.g., /proc/cpuinfo)
  • /sys: Device and driver attributes (e.g., /sys/class/net)

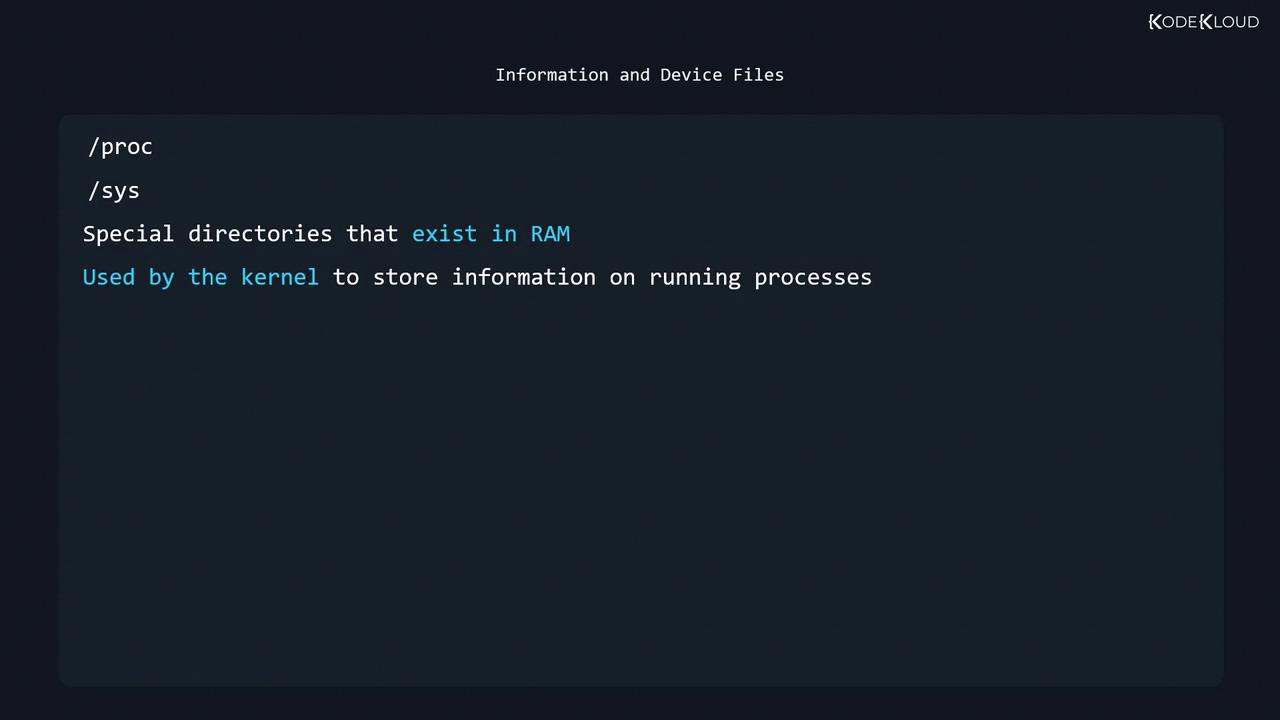

The image is a slide titled "Information and Device Files," describing the `/proc` and `/sys` directories as special directories in RAM used by the kernel to store information on running processes.

Note

Since /proc and /sys reside in volatile memory, their contents reset on reboot.


Continue to the quiz to test your understanding of Linux hardware configuration and inspection.
