Demo Config Maps

In this lesson, we will explore the structure and implementation of a ConfigMap using a sample CartsDB Deployment. The walkthrough includes definitions, integration steps, troubleshooting, and resolution using command-line operations and UI feedback from the OpenShift console.

ConfigMap Definition

Begin by reviewing the following ConfigMap definition. In this example, a ConfigMap named cartsdb-config is created, containing key-value pairs that specify configuration values for our database connection:

apiVersion: v1
kind: ConfigMap
metadata:
  name: cartsdb-config
data:
  MONGODB_USER: "sock-user"
  MONGODB_DATABASE: "data"

The data section holds simple key-value pairs. Here, MONGODB_USER is set to "sock-user" and MONGODB_DATABASE is set to "data". This ConfigMap will later be referenced in our Deployment to provide environment variables.

Integrating the ConfigMap in a Deployment

Consider the standard Deployment configuration for CartsDB. The most crucial part is how the ConfigMap values are injected into container environment variables using the valueFrom directive with configMapKeyRef.

First, here is the base Deployment configuration:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: carts-db
  labels:
    name: carts-db
spec:
  replicas: 1
  selector:
    matchLabels:
      name: carts-db
  template:
    metadata:
      labels:
        name: carts-db
    spec:
      containers:
        - name: carts-db
          image: centos/mongodb-34-centos7
          ports:

Now, in the container specification, the environment variables are populated as shown below:

spec:
  containers:
    - name: carts-db
      image: centos/mongodb-34-centos7
      ports:
        - name: mongo
          containerPort: 27017
      env:
        - name: MONGODB_USER
          valueFrom:
            configMapKeyRef:
              name: cartsdb-config
              key: MONGODB_USER
        - name: MONGODB_PASSWORD
          value: password
        - name: MONGODB_DATABASE
          valueFrom:
            configMapKeyRef:
              name: cartsdb-config
              key: MONGODB_DATABASE
        - name: MONGODB_ADMIN_PASSWORD
          valueFrom:
            configMapKeyRef:
              name: cartsdb-config
              key: MONGODB_ADMIN_PASSWORD

Before deploying the Deployment, confirm that the ConfigMap is successfully applied in the cluster.

Deploying the ConfigMap and Deployment

To simulate deploying without the necessary ConfigMap, apply the following command to create the ConfigMap:

oc apply -f carts-config-map.yaml

Afterwards, the Deployment can be defined similarly as follows:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: carts-db
  labels:
    name: carts-db
spec:
  replicas: 1
  selector:
    matchLabels:
      name: carts-db
  template:
    metadata:
      labels:
        name: carts-db
    spec:
      containers:
        - name: carts-db
          image: my-carts-db-image
          ports:
            - containerPort: 5432

Apply the Deployment using:

oc apply -f <deployment-file>.yaml

After deploying, refresh the cluster view. You might observe that although the Deployment is running, the Pod displays a status of CreateContainerConfigError. Investigating the events will reveal an error indicating a missing ConfigMap, such as "ConfigMap carts-db-config-9 not found."

Troubleshooting and Resolution

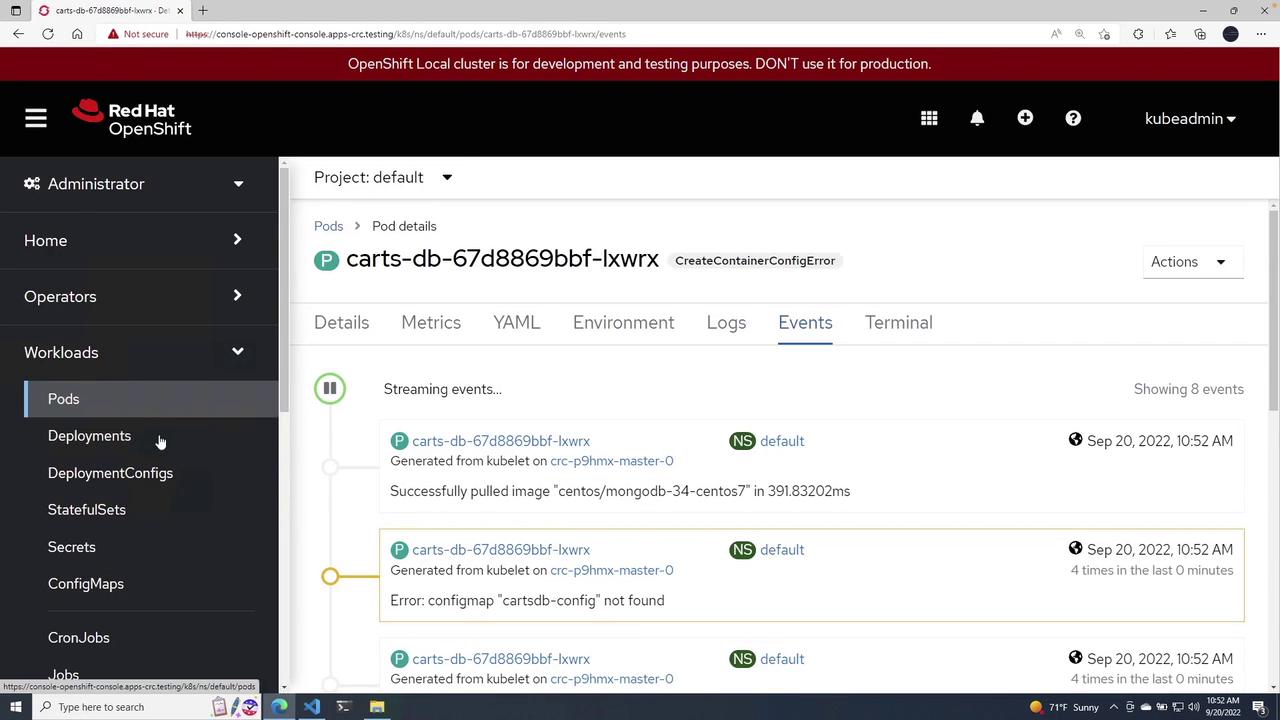

If you encounter errors related to the ConfigMap, inspect your Deployment file in VS Code and review the OpenShift console for additional error details. An example screenshot from the OpenShift console illustrating the error is shown below:

To resolve the misconfiguration, delete the problematic Deployment using:

oc delete -f cartsconfigmap.yml

The console output may include warnings such as:

An example output after deletion:

PS C:\Users\mike\Desktop> oc delete -f .\cartsconfigmap.yml
deployment.apps "carts-db" deleted

After correcting configuration issues, redeploy the ConfigMap:

oc apply -f carts-config-map.yaml

The Deployment will then be recreated successfully, and a Pod will start running as it finds the required ConfigMap.

Verifying the Configuration in the Pod

After the Pod is running, inspect its YAML to confirm that the ConfigMap references are present. An extract of the Pod's configuration might look like:

[{
    "name": "openshift-sdn",
    "interface": "eth0",
    "ips": [
        "10.217.0.183"
    ],
    "default": true,
    "dns": {}
}]
resourceVersion: "83802"
name: carts-db-67d8869bbf-nk974
id: ce589273-9e0a-4639-8866-e277bca35641

In this snippet, along with other metadata, you can verify that the ConfigMap values have been successfully injected into the Pod environment.

Conclusion

This demonstration showcased how to use a ConfigMap to inject environment variables into a Kubernetes Deployment. For further reading and advanced deployment techniques, check out the following resources:

• Kubernetes Documentation
• OpenShift Documentation

By confirming that the ConfigMap is properly deployed before applying the Deployment, you can avoid runtime configuration errors and ensure a smooth deployment process.
