Demo Network Policies

In this lesson, we explore a Kubernetes network policy configuration that controls inbound connectivity between deployments. We focus on a real-world example where the Cards deployment is allowed to access the Cards database by leveraging Kubernetes labels.

NetworkPolicy Configuration

The network policy is defined using YAML and specifies the following details:

• API version and resource kind (NetworkPolicy)
• A pod selector that identifies target pods
• Ingress rules that allow traffic only from pods with a specific label

In this example, the policy named "access-cartsdb" selects pods labeled name: carts-db and permits ingress traffic solely from pods that have the label cartsdbaccess: "true".

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: access-cartsdb
spec:
  podSelector:
    matchLabels:
      name: carts-db
  ingress:
  - from:
    - podSelector:
        matchLabels:
          cartsdbaccess: "true"

Deployment Configuration in Cards.yaml

Next, we examine the Cards deployment YAML. Notice that on line 16, the pod template is tagged with the new label cartsdbaccess: "true". This label ensures that the Cards deployment is permitted to connect to the Cards DB as allowed by our network policy.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: carts
  labels:
    name: carts
spec:
  replicas: 1
  selector:
    matchLabels:
      name: carts
  template:
    metadata:
      labels:
        name: carts
        cartsdbaccess: "true"
    spec:
      containers:
      - name: carts
        image: weaveworksdemos/carts:0.4.8

When the deployment is applied, the pod receives the cartsdbaccess: "true" label, enabling it to communicate with the Cards DB pod as defined in the network policy.

Steps to Apply the Configuration

1. Apply the Cards Deployment

Run the following command to apply the Cards deployment:

PS C:\Users\mike\Desktop> oc apply -f carts.yaml
Warning: spec.template.spec.nodeSelector[beta.kubernetes.io/os]: deprecated since v1.14; use "kubernetes.io/os" instead
Warning: would violate PodSecurity "restricted:latest": allowPrivilegeEscalation != false (container "carts" must set securityContext.allowPrivilegeEscalation=false), unrestricted capabilities (container "carts" must set securityContext.capabilities.drop=["ALL"]), runAsNonRoot != true (pod or container "carts" must set securityContext.runAsNonRoot=true), seccompProfile (pod or container "carts" must set securityContext.seccompProfile.type to "RuntimeDefault" or "Localhost")
deployment.apps/carts created

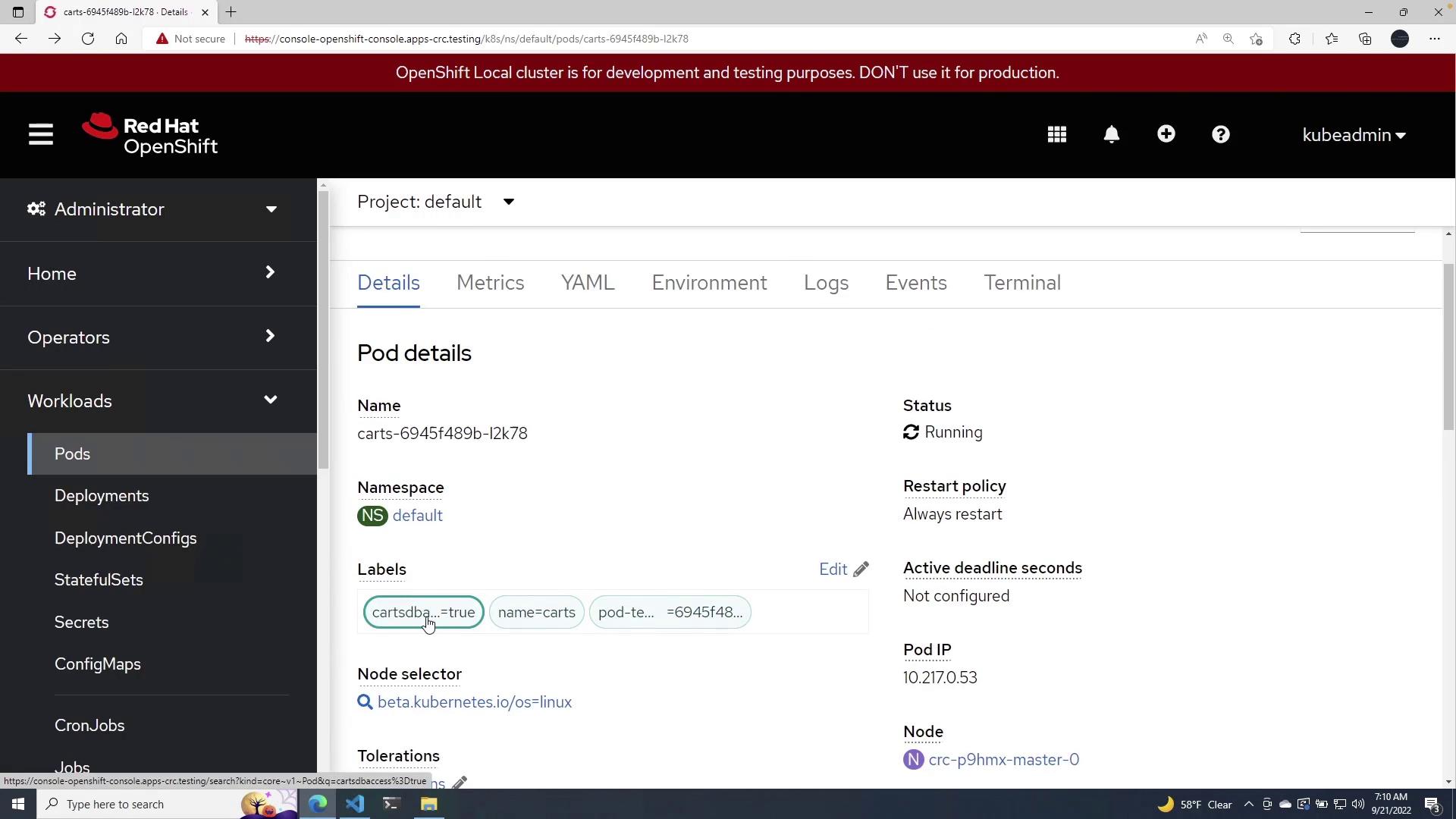

After applying the deployment, verify that the Cards pod is running and includes the necessary label for DB access:

2. Apply the Network Policy

Next, apply the network policy using the command below:

PS C:\Users\mike\Desktop> oc apply -f ./networkpolicy.yaml
networkpolicy.networking.k8s.io/access-cartsdb created

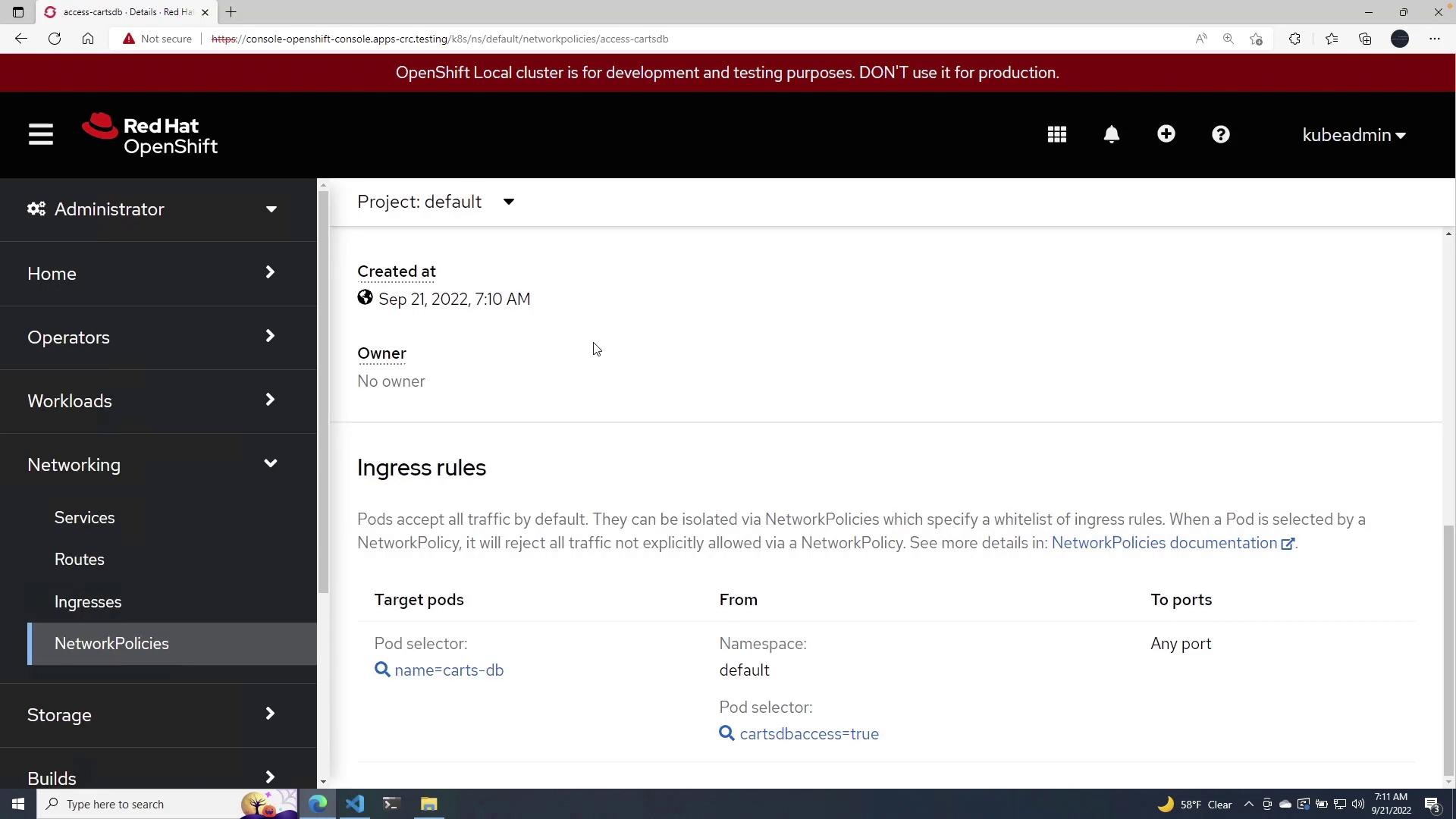

After this, navigate to the networking section in the OpenShift portal. You will see the network policy active with the defined pod selectors and ingress rules:

Key Concepts

Below is a table summarizing the key components of this configuration:

This lesson demonstrates how network policies combined with proper pod labeling can secure and control network traffic within a Kubernetes environment. For further reading, explore the following resources:

• Kubernetes Networking
• OpenShift Documentation
