Dynamic Blocks and Splat Expressions

In this guide, we’ll explore how to streamline repetitive Terraform configurations in OpenTofu using dynamic blocks and splat expressions. You’ll learn to replace verbose nested blocks with a DRY, scalable approach, and extract attributes efficiently from generated resources.

Looping with `count` and `for_each`

Traditionally, you can create multiple resources by using the count or for_each arguments:

resource "aws_instance" "backend" {
  ami           = var.ami
  instance_type = var.instance_type
  count         = length(var.backend_servers)

  tags = {
    Name = var.backend_servers[count.index]
  }
}

variable "ami" {
  default = "ami-06178cf087598769c"
}

variable "instance_type" {
  default = "m5.large"
}

variable "backend_servers" {
  type    = list(string)
  default = ["server1", "server2"]
}

Here, two EC2 instances (server1 and server2) are instantiated by leveraging count.

Building a VPC, Subnet, and Security Group

Let’s set up:

A new VPC
A private subnet
A security group allowing SSH (port 22) and HTTP (port 8080)

A VPC provides an isolated network (10.0.0.0/16), and the subnet uses 10.0.2.0/24. The security group acts as a virtual firewall.

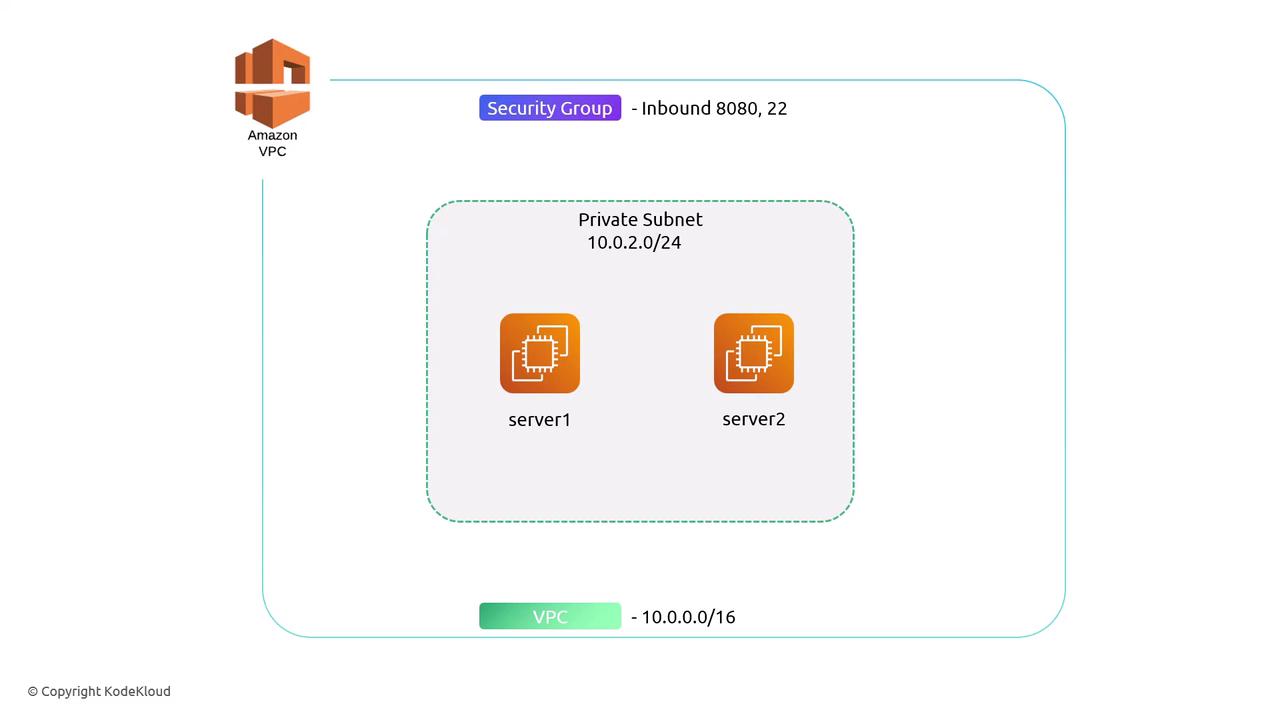

The image is a diagram of an Amazon VPC setup, showing a private subnet with two servers (server1 and server2) and a security group allowing inbound traffic on ports 8080 and 22.

First, declare the VPC and subnet:

resource "aws_vpc" "backend_vpc" {
  cidr_block = "10.0.0.0/16"

  tags = {
    Name = "backend-vpc"
  }
}

resource "aws_subnet" "private_subnet" {
  vpc_id     = aws_vpc.backend_vpc.id
  cidr_block = "10.0.2.0/24"

  tags = {
    Name = "private-subnet"
  }
}

Next, define a security group with two hard-coded ingress blocks:

resource "aws_security_group" "backend_sg" {
  name   = "backend-sg"
  vpc_id = aws_vpc.backend_vpc.id

  ingress {
    from_port   = 22
    to_port     = 22
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  ingress {
    from_port   = 8080
    to_port     = 8080
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
}

Adding more ports would require additional nested ingress blocks, quickly becoming repetitive.

Simplifying with Dynamic Blocks

With a dynamic block, you can loop over a list of ports and generate as many ingress entries as needed.

Declare an input variable for ports:

variable "ingress_ports" {
  type    = list(number)
  default = [22, 8080]
}

Replace the static blocks with one dynamic block:

resource "aws_security_group" "backend_sg" {
  name   = "backend-sg"
  vpc_id = aws_vpc.backend_vpc.id

  dynamic "ingress" {
    for_each = var.ingress_ports
    content {
      from_port   = ingress.value
      to_port     = ingress.value
      protocol    = "tcp"
      cidr_blocks = ["0.0.0.0/0"]
    }
  }
}

Custom Iterator Name

You can rename the default iterator (ingress) to anything meaningful.
Example:

dynamic "ingress" {
  iterator = port
  for_each = var.ingress_ports
  content {
    from_port   = port.value
    to_port     = port.value
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }
}

Splat Expressions

After generating multiple ingress rules, you might want to output all to_port values at once. Use a splat expression:

output "to_ports" {
  value = aws_security_group.backend_sg.ingress[*].to_port
}

Splat Expression Caveat

Be aware that splat expressions return a list. If your security group has no ingress rules, you’ll get an empty list rather than a single value.

Compare Approaches

Approach	Description	Pros
Static Blocks	Individual `ingress` blocks for each port	Simple for few ports
Dynamic Blocks	One block looping over `var.ingress_ports`	DRY, maintainable
Splat Expressions	Extracts list of attributes from resources	Concise outputs

Apply and Inspect

Execute your plan:

$ tofu apply --auto-approve
aws_vpc.backend_vpc: Creating...
aws_vpc.backend_vpc: Creation complete after 0s [id=vpc-593470c0]
aws_subnet.private_subnet: Creating...
aws_security_group.backend_sg: Creating...
aws_subnet.private_subnet: Creation complete after 1s [id=subnet-fdd6b762]
aws_security_group.backend_sg: Creation complete after 1s [id=sg-a5aa3b711157d4a2b]
Apply complete! Resources: 3 added, 0 changed, 0 destroyed.

Retrieve the generated ports:

$ tofu output
to_ports = [
  22,
  8080,
]

By leveraging dynamic blocks and splat expressions, your OpenTofu configurations become more expressive, concise, and easier to maintain.
