Python API Development with FastAPI

Advanced FastAPI

Router Prefix And Tags

In FastAPI, simplifying route definitions using router prefixes and tags not only reduces code redundancy but also improves the clarity of your automatically generated API documentation. In this guide, we explain how to implement router prefixes and tags to group endpoints logically, making your API more maintainable and easier to understand.

Defining Routes Without a Prefix

Consider the following example where routes are defined without a common prefix. Both GET and POST operations use the "/posts" path:

@router.get("/posts", response_model=List[schemas.Post])
def get_posts(db: Session = Depends(get_db)):
    # cursor.execute("""SELECT * FROM posts """)
    # posts = cursor.fetchall()
    posts = db.query(models.Post).all()
    return posts

@router.post("/posts", status_code=status.HTTP_201_CREATED, response_model=schemas.Post)
def create_posts(post: schemas.PostCreate, db: Session = Depends(get_db)):
    # cursor.execute("""INSERT INTO posts (title, content, published) VALUES (%s, %s, %s) RETURNING *""", (post.title, post.content, post.published))
    pass

Example log entries for these routes:

INFO:     127.0.0.1:55409 - "POST /posts HTTP/1.1" 201 Created
INFO:     127.0.0.1:55410 - "GET /posts/2 HTTP/1.1" 404 Not Found
INFO:     127.0.0.1:55411 - "GET /posts/1 HTTP/1.1" 200 OK
INFO:     127.0.0.1:55412 - "DELETE /posts/1 HTTP/1.1" 204 No Content
INFO:     127.0.0.1:55413 - "POST /users HTTP/1.1" 201 Created
INFO:     127.0.0.1:55414 - "GET /users/1 HTTP/1.1" 200 OK

For operations that target a specific post (such as GET, DELETE, or PUT), the URL path generally includes the post's ID. Consider this snippet for deleting a post:

post = db.query(models.Post).filter(models.Post.id == id)

if post.first() is None:
    raise HTTPException(status_code=status.HTTP_404_NOT_FOUND,
                        detail=f"post with id: {id} does not exist")

post.delete(synchronize_session=False)
db.commit()

return Response(status_code=status.HTTP_204_NO_CONTENT)

@router.put("/posts/{id}", response_model=schemas.Post)
def update_post(id: int, updated_post: schemas.PostCreate, db: Session = Depends(get_db)):
    ...

And the corresponding log entries might look like this:

INFO: 127.0.0.1:55409 - "POST /posts HTTP/1.1" 201 Created
INFO: 127.0.0.1:55410 - "GET /posts/2 HTTP/1.1" 404 Not Found
INFO: 127.0.0.1:55411 - "GET /posts/1 HTTP/1.1" 200 OK
INFO: 127.0.0.1:55412 - "DELETE /posts/3 HTTP/1.1" 204 No Content
INFO: 127.0.0.1:55413 - "PUT /users/1 HTTP/1.1" 200 OK
INFO: 127.0.0.1:55414 - "GET /users/1 HTTP/1.1" 200 OK

Note

For simple APIs, repeating route strings might not seem problematic. However, as applications grow in complexity, consolidating routes with common prefixes minimizes errors and simplifies maintenance.

Simplifying with Router Prefix

FastAPI enables you to define a common prefix once for all routes within a router. Instead of hardcoding "/posts" in each route, you can specify it when creating the APIRouter. This approach cleans up the code significantly.

Here's an updated version of the posts routes using a prefix:

from ..database import get_db

router = APIRouter(
    prefix="/posts"
)

@router.get("/", response_model=List[schemas.Post])
def get_posts(db: Session = Depends(get_db)):
    # cursor.execute("""SELECT * FROM posts """)
    # posts = cursor.fetchall()
    posts = db.query(models.Post).all()
    return posts

@router.post("/", status_code=status.HTTP_201_CREATED, response_model=schemas.Post)
def create_posts(post: schemas.PostCreate, db: Session = Depends(get_db)):
    # cursor.execute("""INSERT INTO posts (title, content, published) VALUES (%s, %s, %s) RETURNING *""", (post.title, post.content, post.published))
    ...

The log entries for these operations now update accordingly:

INFO:     127.0.0.1:15409 - "POST /posts HTTP/1.1" 201 Created
INFO:     127.0.0.1:15409 - "GET /posts/2 HTTP/1.1" 404 Not Found
INFO:     127.0.0.1:15409 - "GET /posts/1 HTTP/1.1" 200 OK
INFO:     127.0.0.1:15409 - "DELETE /posts/1 HTTP/1.1" 204 No Content
INFO:     127.0.0.1:15409 - "GET /users HTTP/1.1" 201 Created
INFO:     127.0.0.1:15409 - "GET /users/1 HTTP/1.1" 200 OK

When targeting a specific post (for example, /posts/{id}), only the relative path needs to be specified:

new_post = models.Post(**post.dict())
db.add(new_post)
db.commit()
db.refresh(new_post)

return new_post

@router.get("/{id}", response_model=schemas.Post)
def get_post(id: int, db: Session = Depends(get_db)):
    # cursor.execute("""SELECT * from posts WHERE id = %s """, (str(id),))
    post = db.query(models.Post).filter(models.Post.id == id).first()

    if not post:
        raise HTTPException(status_code=status.HTTP_404_NOT_FOUND,
                            detail=f"post with id: {id} was not found")

    return post

And the resulting logs:

INFO:     127.0.0.1:55409 - "POST /posts HTTP/1.1" 201 Created
INFO:     127.0.0.1:55410 - "GET /posts/2 HTTP/1.1" 404 Not Found
INFO:     127.0.0.1:55411 - "GET /posts/1 HTTP/1.1" 200 OK
INFO:     127.0.0.1:55412 - "DELETE /posts/3 HTTP/1.1" 204 No Content
INFO:     127.0.0.1:55413 - "PUT /users/1 HTTP/1.1" 200 OK
INFO:     127.0.0.1:55414 - "GET /users/1 HTTP/1.1" 200 OK

Using a router prefix improves code clarity and maintainability, as any changes to the prefix are made in a single location.

Organizing routes into logical groups is essential for scaling your API. For instance, you can group user-related endpoints under a /users prefix while applying a tag to clearly separate them in your documentation.

Below is an example of a users router with a defined prefix and tag:

from fastapi import FastAPI, Response, status, HTTPException, Depends, APIRouter
from sqlalchemy.orm import Session
from .. import models, schemas, utils
from ..database import get_db

router = APIRouter(
    prefix="/users",
    tags=["Users"]
)

@router.post("/", status_code=status.HTTP_201_CREATED, response_model=schemas.UserOut)
def create_user(user: schemas.UserCreate, db: Session = Depends(get_db)):
    # Hash the password from user.password
    hashed_password = utils.hash(user.password)
    user.password = hashed_password

    new_user = models.User(**user.dict())
    ...

Example log entries for user operations:

INFO:     127.0.0.1:15409 - "POST /posts/1 HTTP/1.1" 201 Created
INFO:     127.0.0.1:15409 - "GET /posts/2 HTTP/1.1" 404 Not Found
INFO:     127.0.0.1:15409 - "GET /posts/3 HTTP/1.1" 200 OK
INFO:     127.0.0.1:15410 - "DELETE /posts/3 HTTP/1.1" 204 No Content
INFO:     127.0.0.1:15410 - "PUT /users HTTP/1.1" 201 Created
INFO:     127.0.0.1:15412 - "GET /users/1 HTTP/1.1" 200 OK

Testing and Verifying the Implementation

After refining your routes with prefixes and tags, test your endpoints to ensure everything works as expected. For example, a GET request to /posts should return a list of posts:

[
    {
        "title": "new sqlalchemy post",
        "content": "some random content",
        "published": true,
        "id": 4,
        "created_at": "2021-08-22T19:29:55.725772-04:00"
    },
    {
        "title": "welcome to funland",
        "content": "so much fun",
        "published": true
    }
]

Similarly, creating a new user with a unique email should yield a proper response:

{
    "id": 1,
    "email": "[email protected]",
    "created_at": "2021-08-22T11:36:27.366223-04:00"
}

Leveraging Automatic Documentation with Swagger UI

One of FastAPI's most powerful features is its automatic generation of interactive API documentation with Swagger UI. Navigate to /docs in your browser to explore and test your endpoints. Organizing routes with prefixes and tags further enhances the documentation by grouping related endpoints together.

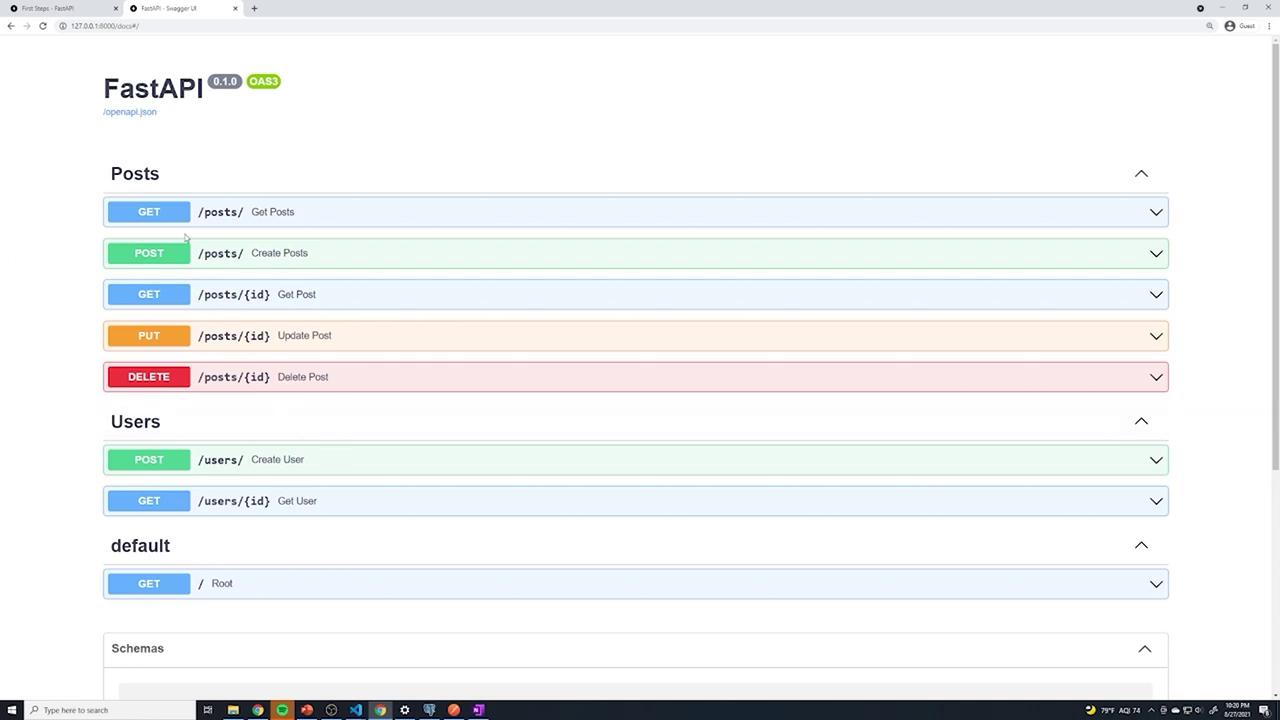

The image shows a FastAPI Swagger UI interface displaying various API endpoints for managing posts and users, including GET, POST, PUT, and DELETE methods.

Note

The Swagger UI documentation is generated dynamically by FastAPI. While a static image provides a visual reference, the interactive docs offer comprehensive details about every endpoint.

Final Version Example

Below is a concise example of the final posts router implementation with a prefix and tag:

from fastapi import FastAPI, Response, status, HTTPException, Depends, APIRouter
from sqlalchemy.orm import Session
from typing import List
from .. import models, schemas
from ..database import get_db

router = APIRouter(
    prefix="/posts",
    tags=["Posts"]
)

@router.get("/", response_model=List[schemas.Post])
def get_posts(db: Session = Depends(get_db)):
    # cursor.execute("""SELECT * FROM posts """)
    # posts = cursor.fetchall()
    posts = db.query(models.Post).all()
    return posts

And sample logs for these endpoints:

INFO:     Application startup complete.
INFO:     127.0.0.1:55871 - "GET /posts HTTP/1.1" 307 Temporary Redirect
INFO:     127.0.0.1:55871 - "GET /posts/1 HTTP/1.1" 200 OK
INFO:     127.0.0.1:55871 - "POST /posts HTTP/1.1" 307 Temporary Redirect
INFO:     127.0.0.1:55871 - "GET /users HTTP/1.1" 201 Created
INFO:     127.0.0.1:55871 - "GET /users/1 HTTP/1.1" 200 OK

In summary, using router prefixes and tags in FastAPI streamlines your code, reduces redundancy, and enhances the automatic documentation. This results in an API that is easier to maintain and more intuitive for both users and developers.
