Connecting to VMs

In this lesson, you'll learn how to connect to the virtual machines (VMs) created in the previous lesson using different methods. We will cover accessing VMs via public IP addresses, jumpboxes, and Azure Bastion. Each method has its own benefits and security considerations.

Connecting Using Public IP Address and Jumpbox

One common method to access a virtual machine is by using its public IP address. With a public IP, you can:

• Use an SSH client (for Linux)
• Use an RDP client (for Windows)

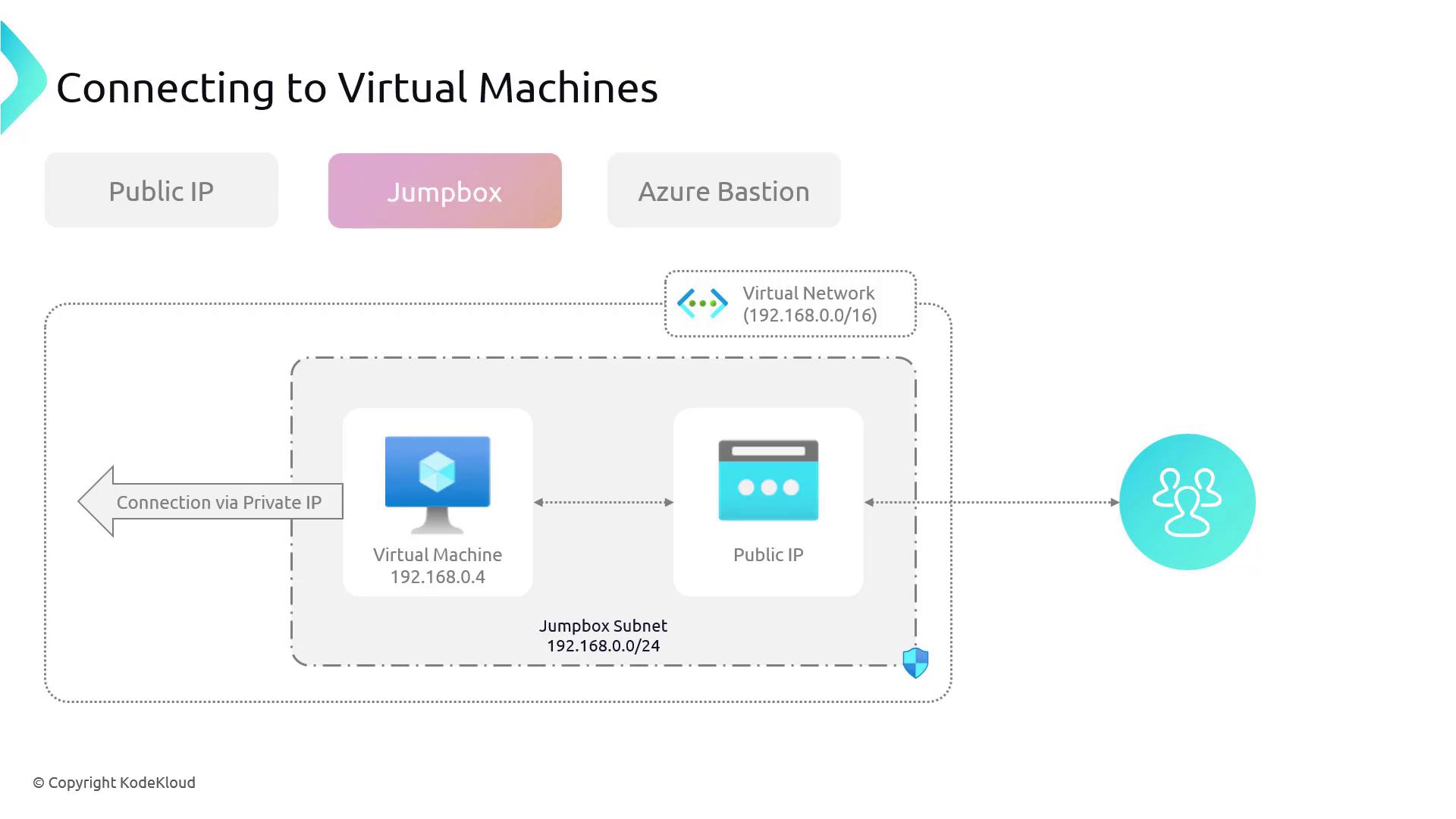

Another secure option is to connect via a jumpbox. A jumpbox is a machine with a public IP address placed within a dedicated subnet, while your workloads run in a different, private subnet within the same virtual network. By connecting to the jumpbox, you can then access other machines securely on the private network.

Connecting with Azure Bastion

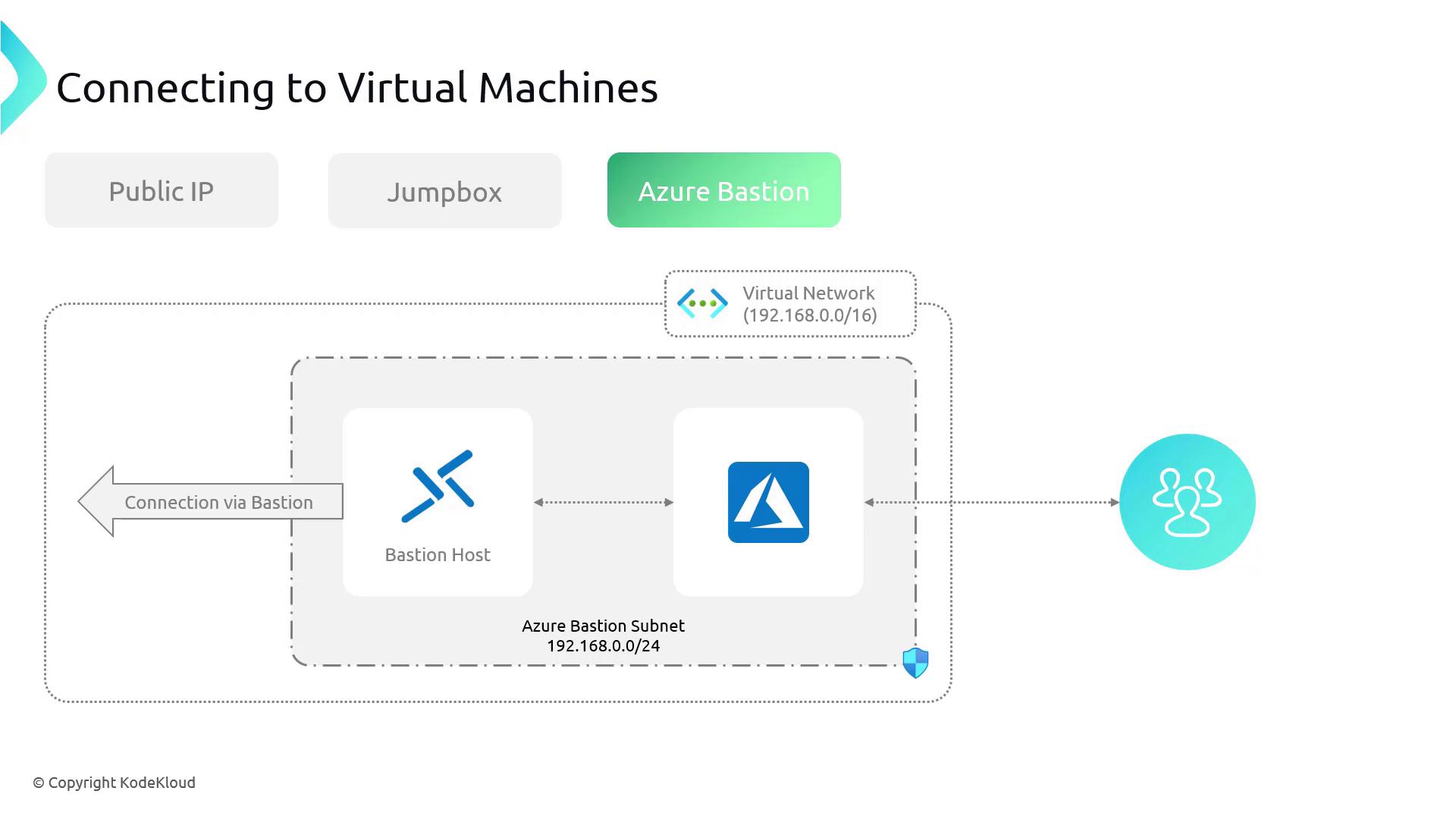

Azure Bastion is a managed service that simplifies VM connectivity by allowing secure, direct browser-based access to your VMs. This method eliminates the need to deploy and manage jumpbox VMs, download special clients, or expose any ports directly to the internet.

Overview of Connection Methods

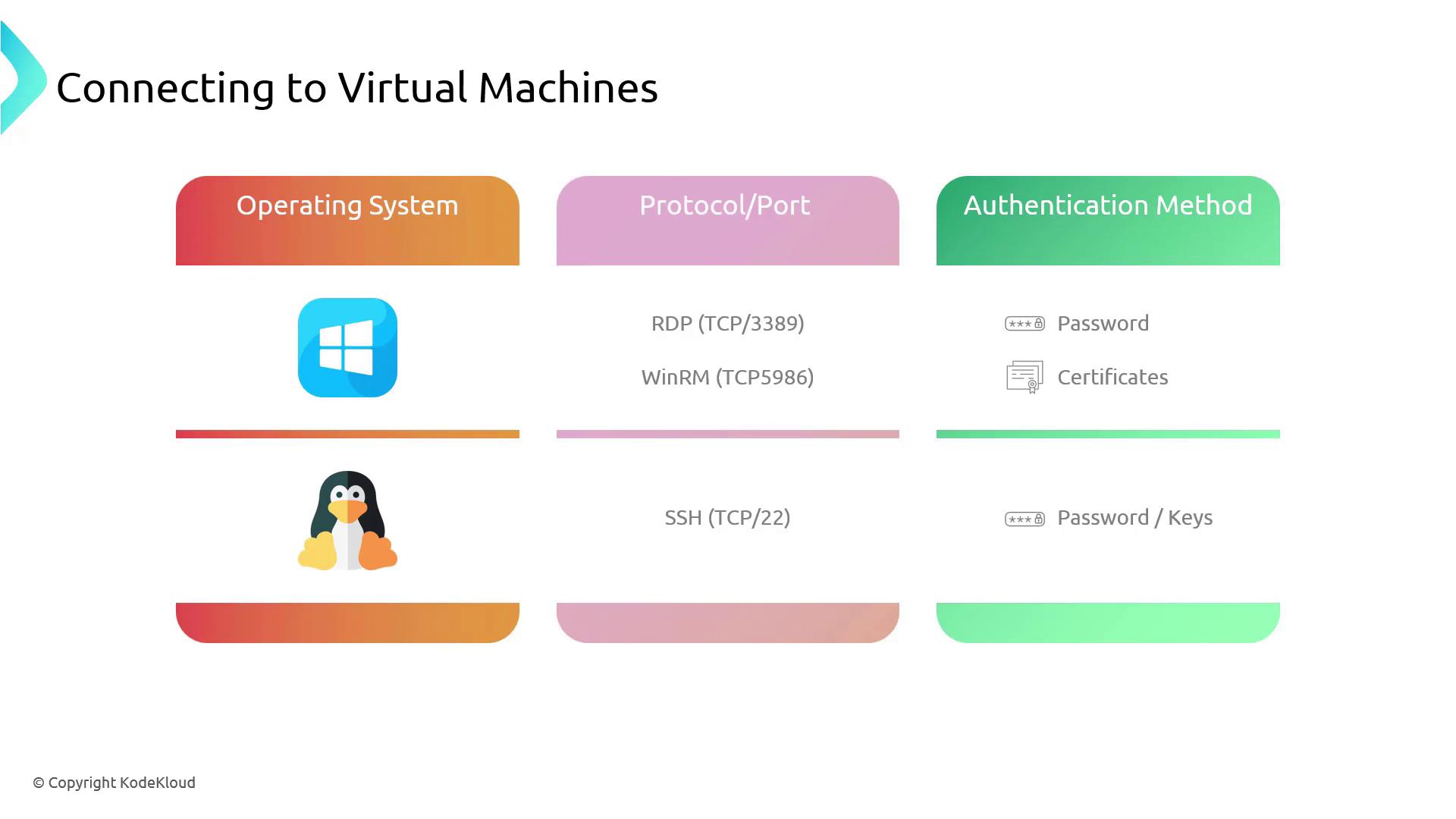

Below is an overview of available connection methods based on the operating system, protocol, and authentication:

• Windows:

  • RDP: Uses TCP port 3389. Authenticate with a password.
  • WinRM: Utilizes PowerShell for remote management over TCP port 5986 (requires certificate configuration).

• Linux:

  • SSH: Utilizes TCP port 22. Supports authentication via passwords or SSH key pairs.

Connecting via SSH

To connect to a Linux VM using its public IP address, open your terminal and run:

ssh [email protected]

When you run the command, you will be prompted to verify the host authenticity and enter the password:

The authenticity of host '20.124.250.11 (20.124.250.11)' can't be established.
ED25519 key fingerprint is SHA256:WF3fDk9RW5FBHx6A619YVajH2O27TNQGyGPdCZZU.
This key is not known by any other names.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '20.124.250.11' (ED25519) to the list of known hosts.
[email protected]'s password:

Once authenticated, you are connected to the VM using its public IP address. Alternatively, you can reconnect using the jumpbox that was set up earlier.

Below is a sample output of system information from one of our VMs to confirm connectivity via the jumpbox:

System information as of Sun Dec 10 18:11:58 UTC 2023
System load:  0.0                Processes:              100
Usage of /:   1.1% of 28.9GB     Users logged in:        0
Memory usage: 31%                IPv4 address for eth0: 10.0.0.4
Swap usage:   0%

Expanded Security Maintenance for Applications is not enabled.

0 updates can be applied immediately.

Enable ESM Apps to receive additional future security updates.
See https://ubuntu.com/esm or run: sudo pro status

The programs included with the Ubuntu system are free software;
the exact distribution terms for each program are described in
individual files in /usr/share/doc/*/copyright.

Ubuntu comes with ABSOLUTELY NO WARRANTY, to the extent permitted by
applicable law.
kodeKLOUD@az-vm-01:~$

Deploying VMs for Azure Bastion

Now, let’s explore how to use Azure Bastion. The following PowerShell script creates two VMs—one Linux and one Windows—both with private IP addresses. These VMs are ideal for secure access via Bastion.

#Create Windows VM
New-AzVm `
    -ResourceGroupName $rg `
    -Name 'win-ra-vm' `
    -Location $region `
    -Image 'MicrosoftWindowsServer:WindowsServer:2022-datacenter-azure-edition:latest' `
    -VirtualNetworkName 'vnet-remoteaccess' `
    -SubnetName 'windows' `
    -SecurityGroupName 'windows-nsg' `
    -Credential $credential

#Create Linux VM
New-AzVm `
    -ResourceGroupName $rg `
    -Name 'linux-ra-vm' `
    -Location $region `
    -Image 'Ubuntu2204' `
    -VirtualNetworkName 'vnet-remoteaccess' `
    -SubnetName 'linux' `
    -SecurityGroupName 'linux-nsg' `
    -Credential $credential `
    -Size $VMSize

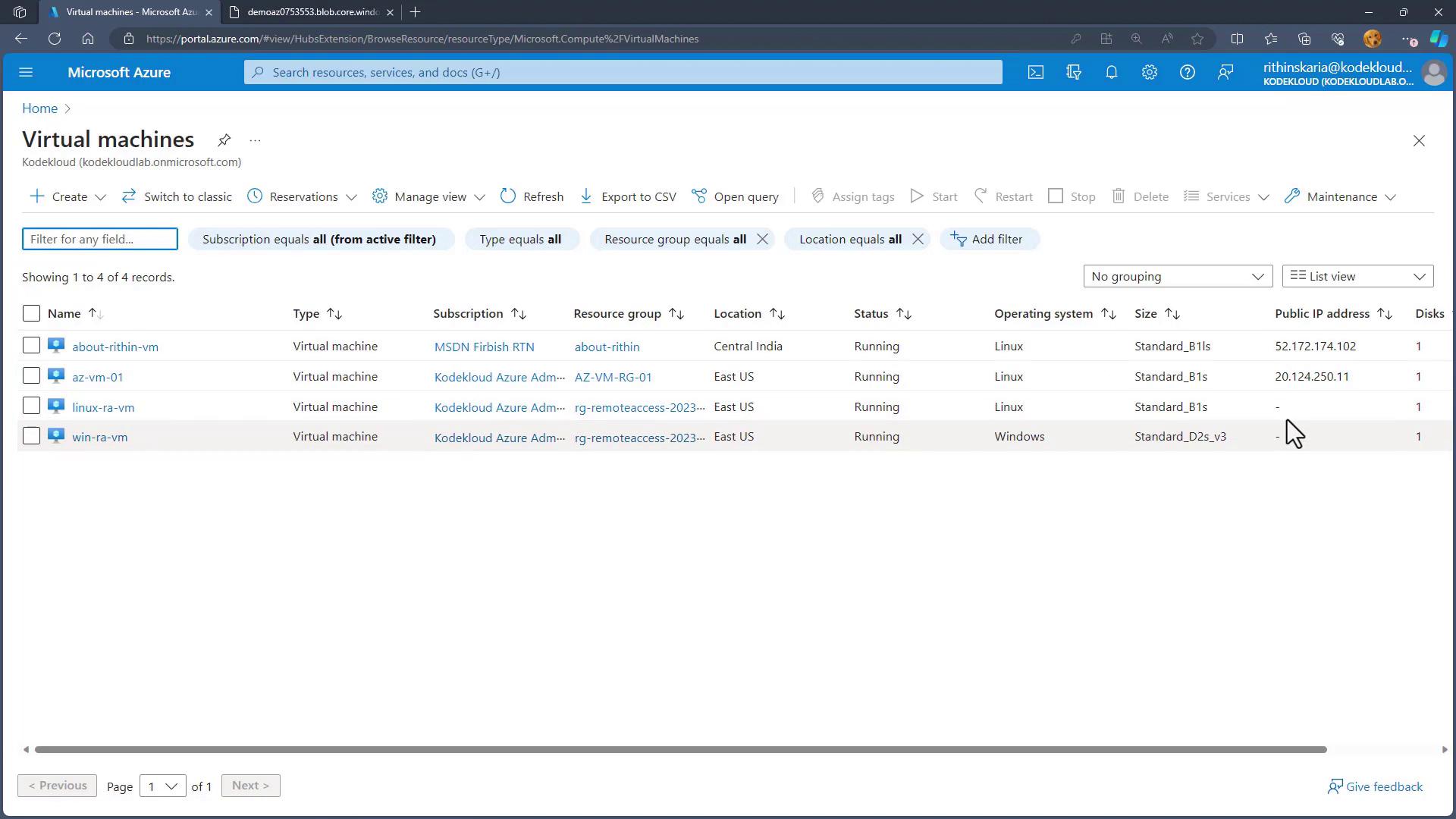

After the script completes, verify that the VMs appear in the virtual machines list. Since these VMs do not have public IP addresses, they are perfectly suited for private access using Azure Bastion.

Configuring Azure Bastion

Follow these steps to set up a Bastion host:

1. Navigate to the Bastion resource in the Azure portal.

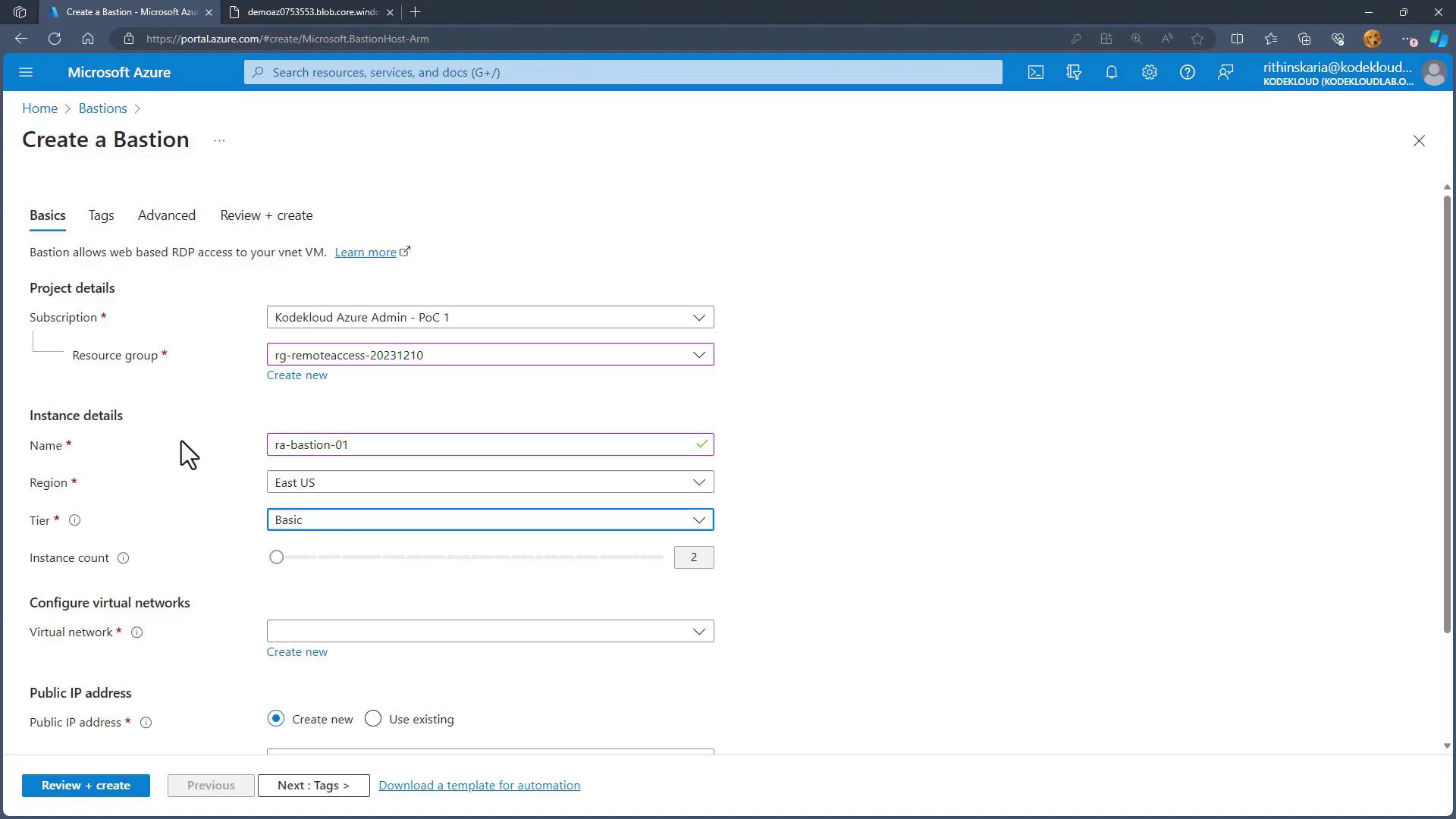

2. Create a new Bastion host with the settings below:
   • Resource Group: Remote Access
   • Name: RABastion01
   • Region: East US
   • Tier: Basic (to minimize costs)
3. Choose the virtual network (vnet-remoteaccess) and ensure Bastion has a dedicated subnet named "AzureBastionSubnet" by clicking on "Manage subnet configuration."
4. Create a new public IP address.
5. Click "Review and Create" to deploy Bastion.

Once the Bastion host is deployed, you can connect to your VMs privately through your browser.

Connecting to the Linux VM via Azure Bastion

1. Open the Azure portal and navigate to the Linux VM.
2. Click on "Connect" and select "Connect via Bastion."
3. Enter your username and password, then click "Connect."

A new browser tab will open with an SSH session to the Linux VM. You can run commands as usual. For example, update the package list:

kodekloud@linux-ra-vm:~$ sudo -s
root@linux-ra-vm:/home/kodekloud# apt update
Get:1 http://azure.archive.ubuntu.com/ubuntu jammy InRelease [119 kB]
Get:2 http://azure.archive.ubuntu.com/ubuntu jammy-backports InRelease [109 kB]
Get:3 http://azure.archive.ubuntu.com/ubuntu jammy-security InRelease [110 kB]
...

Connecting to the Windows VM via Azure Bastion

1. In the Azure portal, navigate to the Windows VM.
2. Click on "Connect" and choose "Connect via Bastion."
3. Enter the required credentials and click "Connect."

This will open an RDP session in your browser with the Windows login screen. Once you sign in, you can securely manage the Windows VM.

Next Steps

In the next lesson, we will explore how to configure high availability for your virtual machines. By following these best practices, you'll enhance the security and efficiency of your remote access setup.
