Demo Deployments Update and Rollback

In this guide, we demonstrate how to update and rollback Kubernetes deployments through practical examples. You will learn how to create a deployment, verify rollout progress, update container images, and safely rollback to previous revisions when necessary.

Previously, a deployment named "myapp-deployment" was defined in a YAML file located in the project’s deployment directory. Initially, this deployment ran three replicas of an NGINX container. In our updated configuration, the deployment now uses six replicas.

Creating the Deployment

Start by creating the updated deployment with the following YAML definition:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: myapp-deployment
  labels:
    tier: frontend
spec:
  selector:
    matchLabels:
      app: myapp
  replicas: 6
  template:
    metadata:
      name: nginx-2
      labels:
        app: myapp
    spec:
      containers:
        - name: nginx
          image: nginx

Before you create the deployment, confirm that there are no existing objects in your cluster:

admin@ubuntu-server deployments # vi deployment.yaml
admin@ubuntu-server deployments # kubectl get pods
No resources found in default namespace.
admin@ubuntu-server deployments #

Create the deployment using the -f option:

admin@ubuntu-server deployments # kubectl create -f deployment.yaml
deployment.apps/myapp-deployment created
admin@ubuntu-server deployments #

Monitor the rollout progress with:

kubectl rollout status deployment.apps/myapp-deployment
deployment "myapp-deployment" successfully rolled out

Verifying Rollout Progress with Replicas

Immediately after creation, you can check the rollout status. As the six replicas are deployed sequentially, the output may display incremental progress:

admin@ubuntu-server deployments $ kubectl delete deployment myapp-deployment
deployment.apps "myapp-deployment" deleted
admin@ubuntu-server deployments $ kubectl create -f deployment.yaml
deployment.apps/myapp-deployment created
admin@ubuntu-server deployments $ kubectl rollout status deployment.apps/myapp-deployment
Waiting for deployment "myapp-deployment" rollout to finish: 0 of 6 updated replicas are available...
Waiting for deployment "myapp-deployment" rollout to finish: 1 of 6 updated replicas are available...
Waiting for deployment "myapp-deployment" rollout to finish: 2 of 6 updated replicas are available...
Waiting for deployment "myapp-deployment" rollout to finish: 3 of 6 updated replicas are available...
Waiting for deployment "myapp-deployment" rollout to finish: 4 of 6 updated replicas are available...
Waiting for deployment "myapp-deployment" rollout to finish: 5 of 6 updated replicas are available...
deployment "myapp-deployment" successfully rolled out

Each message indicates the number of updated replicas that have become available. When all six pods are running, the deployment is considered successful.

Viewing Rollout History

After the deployment, you can review the history of your deployment revisions:

kubectl rollout history deployment.apps/myapp-deployment

Initially, the output might look like this:

REVISION   CHANGE-CAUSE
1          kubectl create --filename=deployment.yaml --record=true

To track changes, delete the deployment, wait for the pods to terminate, and then recreate it with the --record flag:

kubectl delete deployment myapp-deployment
kubectl get pods
kubectl create -f deployment.yaml --record
deployment.apps/myapp-deployment created
kubectl rollout status deployment.apps/myapp-deployment

Running the history command again will now display a recorded change cause.

Updating the Deployment Image

Step 1: Inspect the Deployment

First, view the details of the existing deployment:

kubectl describe deployment myapp-deployment

You will see that the deployment runs six replicas using the "nginx" image.

Step 2: Update the Image

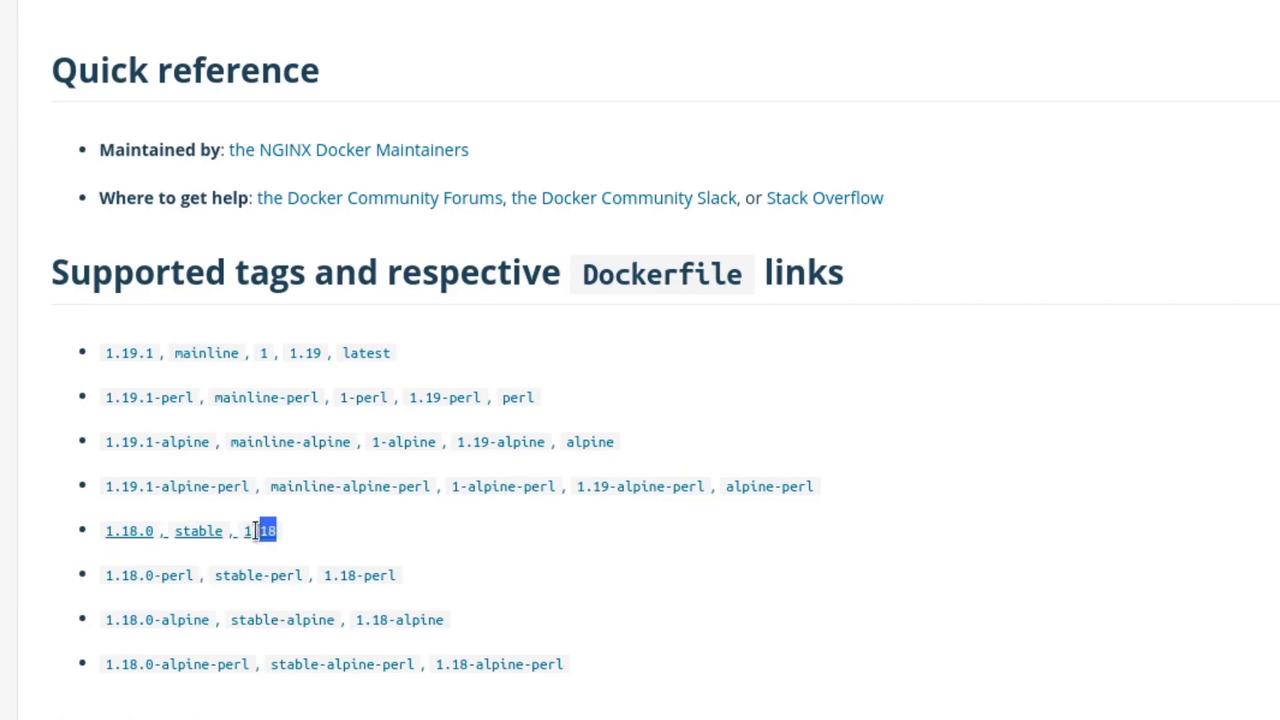

To update the image with a specific version, edit the deployment using:

kubectl edit deployment myapp-deployment --record

Within the editor, change the container image from:

- image: nginx

to

- image: nginx:1.18

The complete snippet after the update should resemble:

maxUnavailable: 25%
type: RollingUpdate
template:
  metadata:
    creationTimestamp: null
    labels:
      app: myapp
      name: nginx-2
  spec:
    containers:
    - image: nginx:1.18
      imagePullPolicy: Always
      name: nginx
      resources: {}
      terminationMessagePath: /dev/termination-log
      terminationMessagePolicy: File
    dnsPolicy: ClusterFirst
    restartPolicy: Always
    schedulerName: default-scheduler
    securityContext: {}
    terminationGracePeriodSeconds: 30

Save and exit using :wq. Kubernetes will gradually roll out this update. You can track the update progress with:

kubectl rollout status deployment.apps/myapp-deployment

After the new pods are created and the old ones terminated, verify the update by describing the deployment again:

kubectl describe deployment myapp-deployment

The image should now appear as "nginx:1.18".

Updating the Image with kubectl set image

To switch to a different image variant, you can use the kubectl set image command. For example, to update to "nginx:1.18-perl", execute:

kubectl set image deployment myapp-deployment nginx=nginx:1.18-perl --record

Monitor the rollout status with:

kubectl rollout status deployment/myapp-deployment

Example output:

Waiting for deployment "myapp-deployment" rollout to finish: 2 old replicas are pending termination...
Waiting for deployment "myapp-deployment" rollout to finish: 5 of 6 updated replicas are available...
deployment "myapp-deployment" successfully rolled out

Review the revision history to confirm the update:

kubectl rollout history deployment/myapp-deployment

An example output might be:

REVISION  CHANGE-CAUSE
1         kubectl create --filename=deployment.yaml --record=true
2         kubectl edit deployment myapp-deployment --record=true
3         kubectl set image deployment myapp-deployment nginx=nginx:1.18-perl --record=true

Rolling Back a Deployment

In the event that the new image ("nginx:1.18-perl") introduces issues, you can rollback to a previous revision. For example, to rollback to revision 2:

kubectl rollout undo deployment myapp-deployment

After rolling back, inspect the deployment details:

kubectl describe deployment myapp-deployment

You should confirm that the image has reverted to "nginx:1.18". A new revision reflecting the rollback will appear in the history.

Simulating a Failed Update

To simulate a failed rollout, update the deployment with a non-existent image. Modify the YAML as shown below:

maxUnavailable: 25%
type: RollingUpdate
template:
  metadata:
    creationTimestamp: null
    labels:
      app: myapp
      name: nginx-2
  spec:
    containers:
      - image: nginx:1.18-does-not-exist
        imagePullPolicy: Always
        name: nginx
        resources: {}
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
    dnsPolicy: ClusterFirst
    restartPolicy: Always
    schedulerName: default-scheduler
    securityContext: {}
    terminationGracePeriodSeconds: 30

After saving your changes, check the rollout status:

kubectl rollout status deployment/myapp-deployment

You might see messages like:

Waiting for deployment "myapp-deployment" rollout to finish: 3 out of 6 new replicas have been updated...

At this point, Kubernetes will fail to pull the invalid image, and new pods will show an error state (e.g., ErrImagePull) while the previously running pods continue to serve traffic.

Inspect the deployment and pod statuses using:

kubectl get deployment myapp-deployment

Example output:

NAME                READY   UP-TO-DATE   AVAILABLE   AGE
myapp-deployment    5/6     3            5           8m15s

And list the pods with:

kubectl get pods

Example output:

NAME                                           READY   STATUS         RESTARTS   AGE
myapp-deployment-789c649f95-9xs8q                1/1     Running        0          5m28s
myapp-deployment-789c649f95-dkfm4                 1/1     Running        0          5m30s
myapp-deployment-789c649f95-qtngw                 1/1     Running        0          5m31s
myapp-deployment-789c649f95-rktrd                 1/1     Running        0          5m31s
myapp-deployment-789c649f95-xj95f                 1/1     Running        0          5m27s
myapp-deployment-84cfd5697c-5f7tg                 0/1     ErrImagePull   0          69s
myapp-deployment-84cfd5697c-wtsjz                 0/1     ErrImagePull   0          69s
myapp-deployment-84cfd5697c-xjgmp                 0/1     ErrImagePull   0          69s

The pods experiencing ErrImagePull indicate that the non-existent image is causing the failed update, while the old pods continue to handle traffic.

Review the updated revision history with:

kubectl rollout history deployment/myapp-deployment

A sample output could be:

REVISION    CHANGE-CAUSE
1           kubectl create --filename=deployment.yaml --record=true
3           kubectl set image deployment myapp-deployment nginx=nginx:1.18-perl --record=true
4           kubectl edit deployment myapp-deployment --record=true
5           kubectl edit deployment myapp-deployment --record=true

Undoing the Faulty Update

To recover from the failed update, rollback to the previous stable revision (e.g., from revision 5 to revision 4) by running:

kubectl rollout undo deployment/myapp-deployment

Monitor the rollout status after the rollback:

kubectl rollout status deployment/myapp-deployment

Finally, verify that the deployment now uses the correct image ("nginx:1.18"):

kubectl get pods

And check the deployment details:

kubectl describe deployment myapp-deployment

All six pods should be running the stable image with the faulty pods replaced.

Final Notes

Kubernetes deployments employ a rolling update strategy designed to ensure continuous application availability during updates. New replicas are only promoted when they are confirmed healthy, reducing downtime and mitigating risks even when faulty updates occur.

This concludes our demonstration on handling updates and rollbacks in Kubernetes deployments. In upcoming segments, we will explore advanced deployment patterns and troubleshooting techniques for more complex scenarios.
