AWS RDS Replication Types Introduction

Welcome back! In this article, we explore the various replication types offered by Amazon RDS within the domains of Reliability and Business Continuity. We cover multiple database engines, including Aurora (compatible with MySQL and PostgreSQL), MariaDB, Microsoft SQL Server, Oracle, and DB2 (available from 2025). Amazon RDS provides a fully managed PaaS environment that automates tasks such as database setup, patching, backup, and scaling—reducing the operational overhead of managing these databases.

Understanding RDS Replication

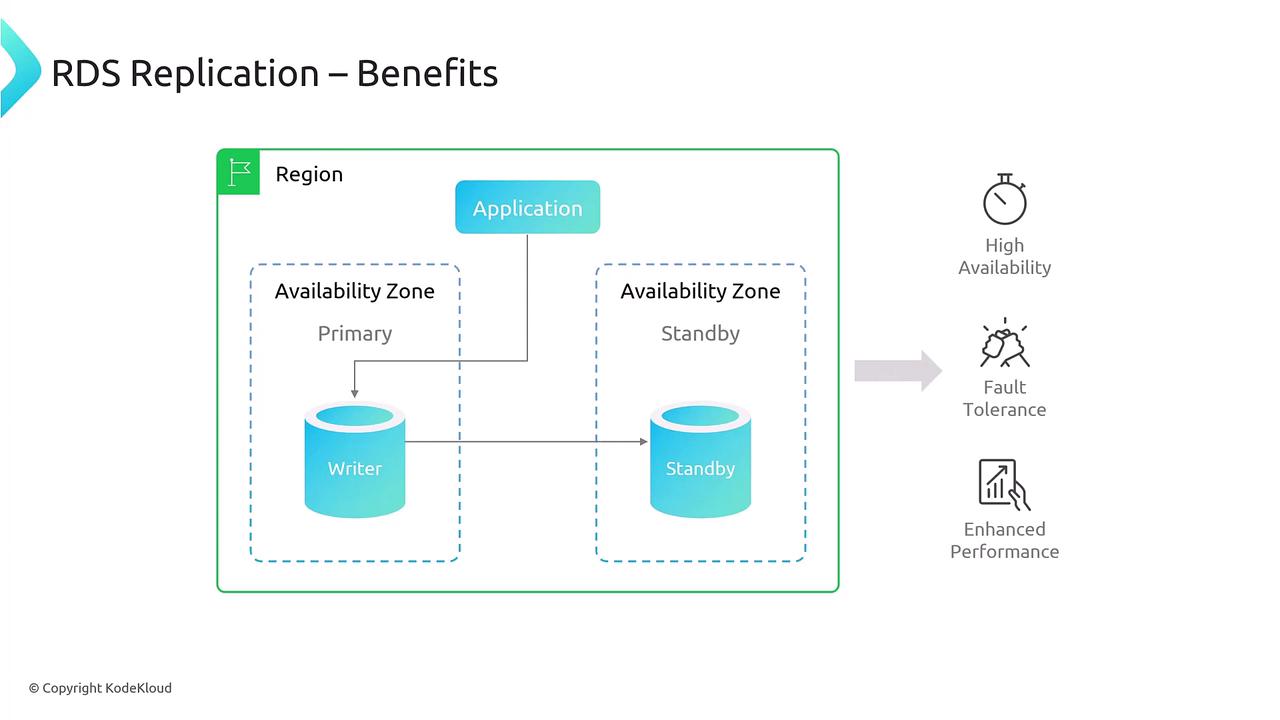

Amazon RDS utilizes replication techniques to ensure high availability and business continuity. In a multi-AZ deployment, a primary writer instance handles all write operations and synchronously replicates every change to a standby instance within the same region using a two-phase commit process. The application only receives acknowledgment once both the primary and the standby persist the data.

This synchronous replication is critical within a multi-AZ deployment, which typically includes one primary and one standby instance. The standby is kept in sync but is not accessible for read operations, as accessing it could delay the replication process and impact performance. By contrast, a multi-AZ cluster deployment includes two standby instances, one of which can serve read operations. This configuration enables active-active failover and enhances read performance.

In the event of a failure, the standby is automatically promoted to primary, ensuring uninterrupted operations for both reads and writes.

Replication Types in RDS

Amazon RDS supports several replication configurations:

• Multi-AZ Deployments: Synchronous replication offering enhanced high availability.
• Read Replicas: Asynchronous replication designed to scale read operations.
• Cross-Region Replication: Asynchronous replication that replicates data to a geographically distant region for disaster recovery.

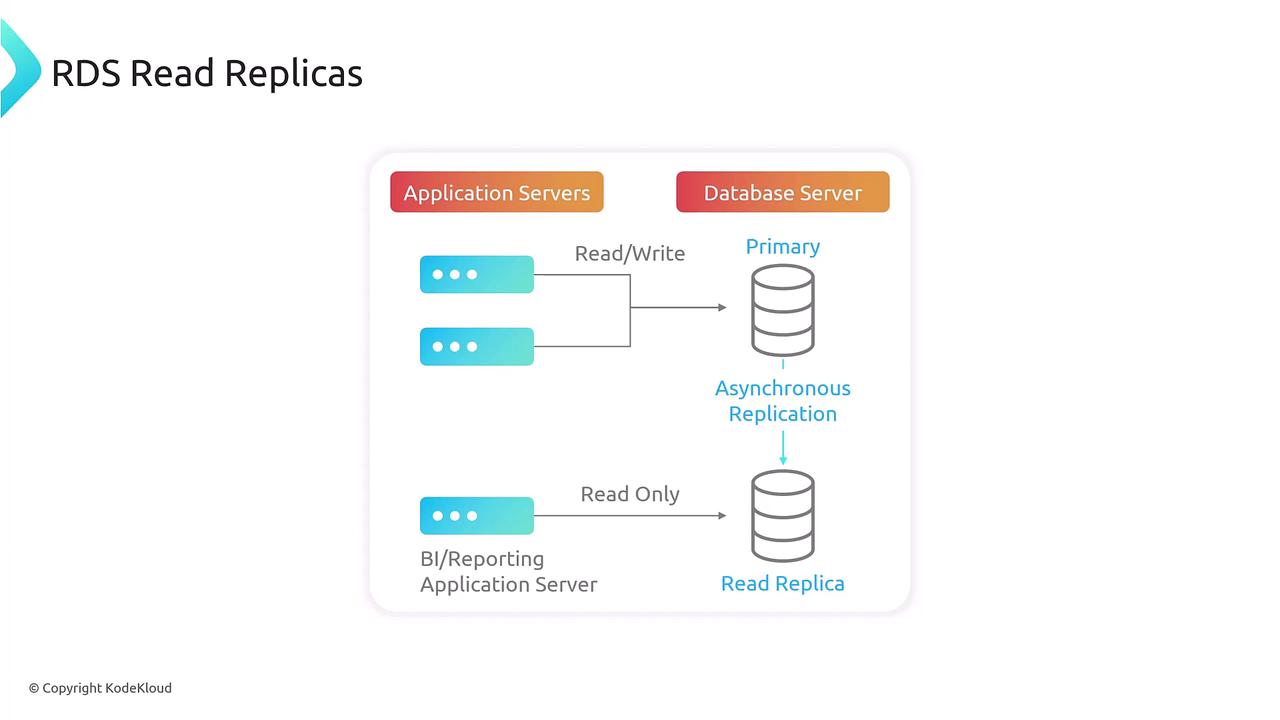

Read Replicas

Read replicas allow you to distribute read traffic by asynchronously replicating data from the primary instance to one or more read-only replicas. Because the replication is asynchronous, there may be a slight delay—known as replication lag—between updates on the primary and their appearance on the replica. This configuration is ideal for workload offloading, such as business intelligence or reporting. Additionally, read replicas can be deployed in the same or different availability zones and can even span across regions. You also have the option to break the replication link and promote a read replica to a standalone primary if needed.

Multi-AZ Deployments

Multi-AZ deployments enhance availability and fault tolerance through synchronous replication. There are two primary configurations:

1. Instance Deployment: Features one primary instance and one standby instance. The standby remains inaccessible for read operations but can be promoted automatically during failover.

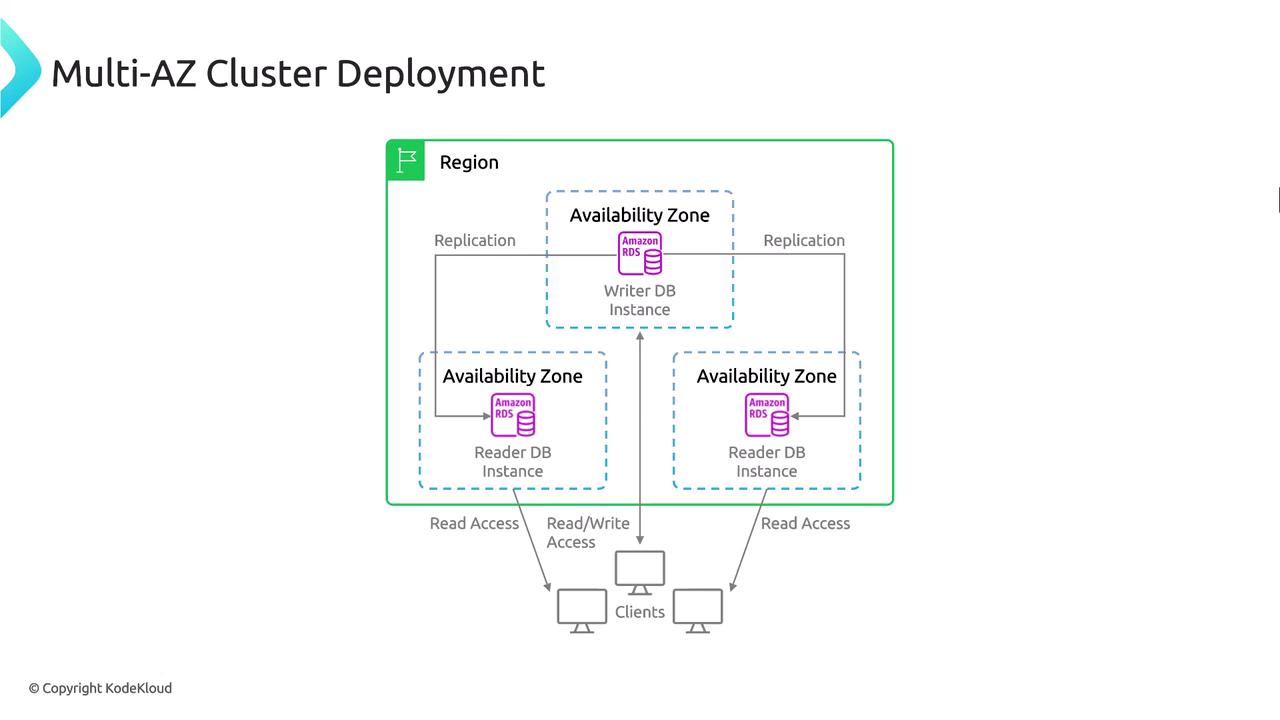

2. Cluster Deployment: Consists of one primary instance and two standby instances. In this setup, one standby instance can serve read operations, providing improved scaling along with high availability. Note that additional instances might increase overall costs.

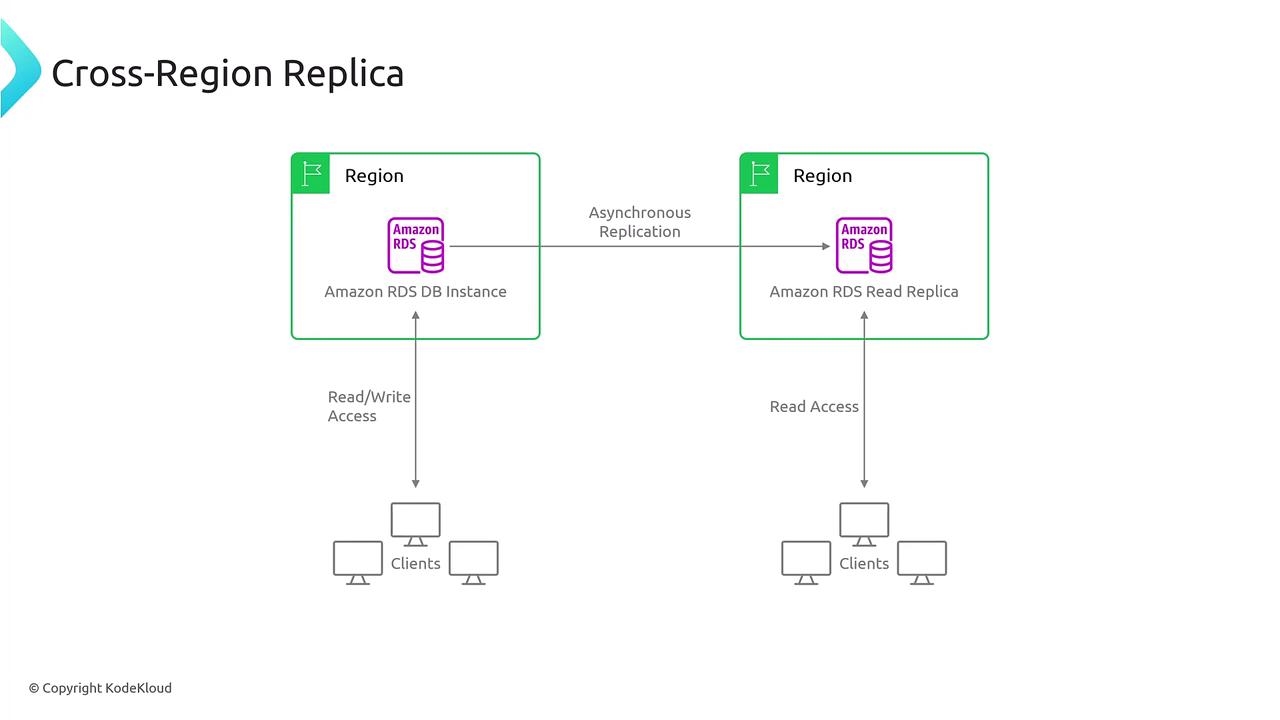

Cross-Region Replication

Cross-region replication maintains a near real-time copy of your data in a remote, geographically distant region. It employs asynchronous replication, which may result in slight delays (replication lag) between the primary and the replica. This replication type is particularly useful for disaster recovery and ensuring data availability across multiple regions. Although failover in a cross-region setup is usually manual (with some exceptions in Aurora), it significantly strengthens your disaster recovery strategy.

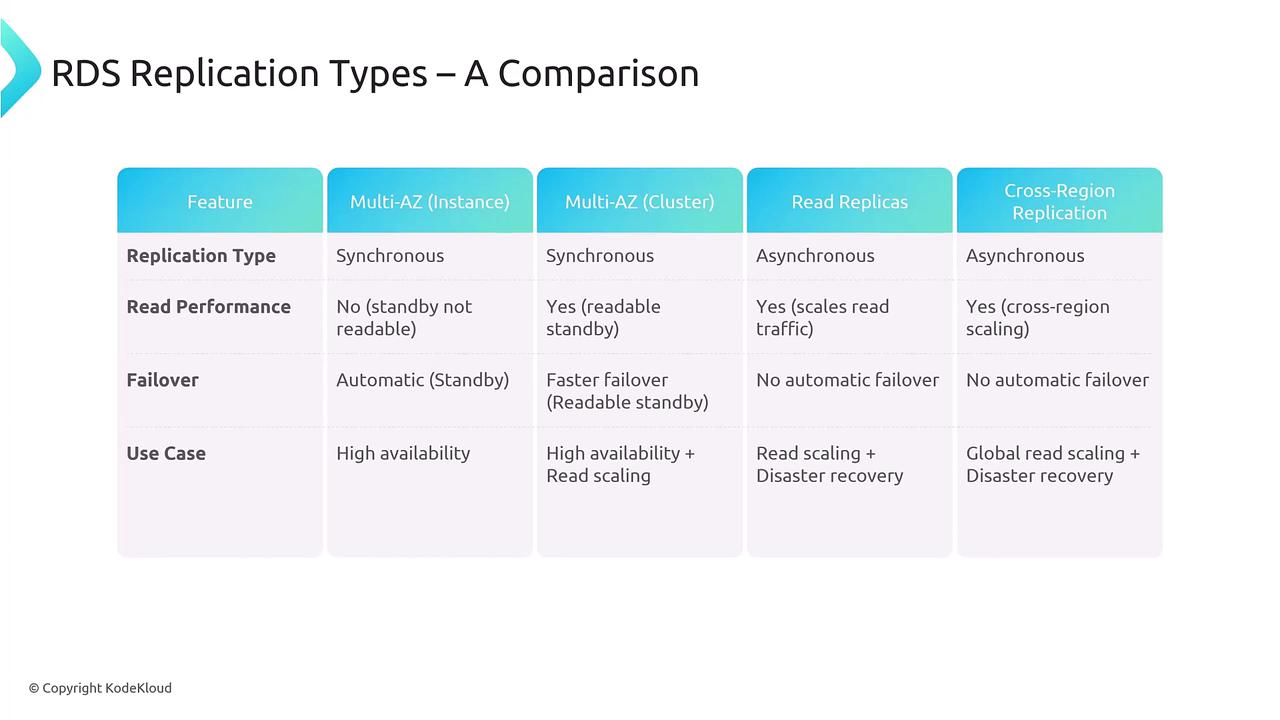

Comparing RDS Replication Types

Below is a summary of the key differences between the replication types:

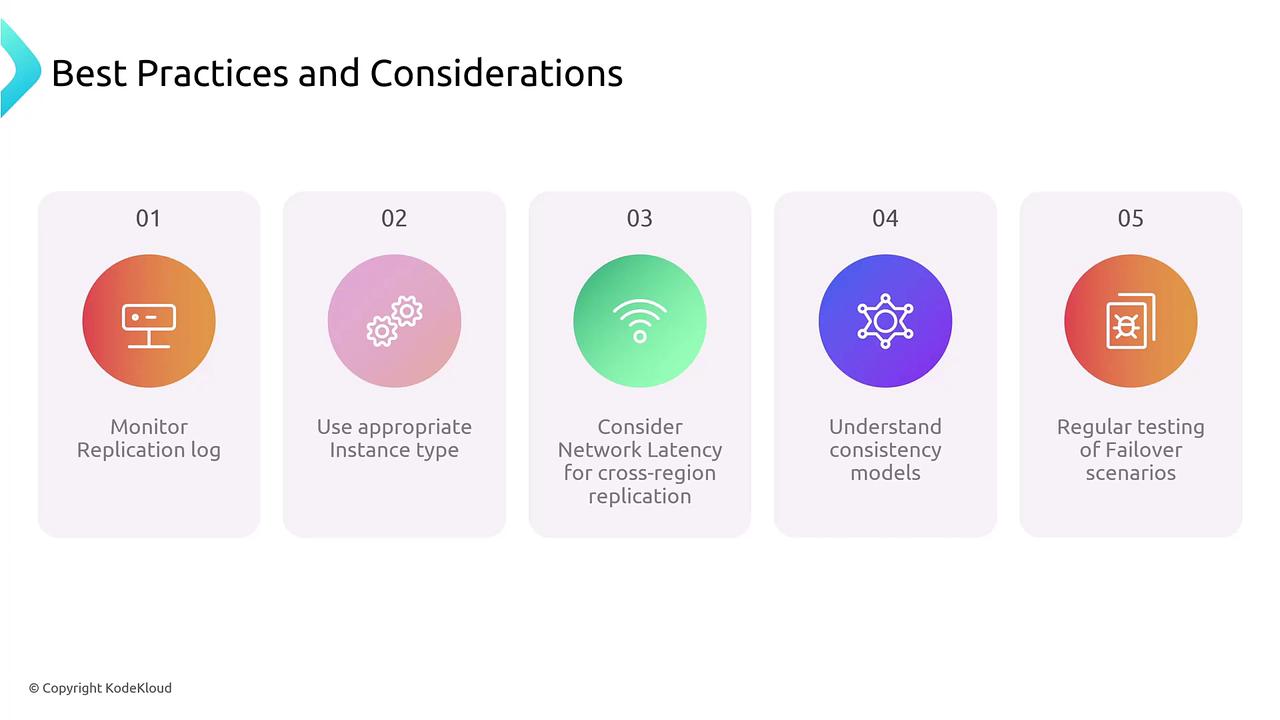

Best Practices for RDS Replication

To ensure optimal performance and reliability, follow these best practices:

1. Monitor your replication logs and CloudWatch metrics to keep replication lag within acceptable limits.
2. Select an appropriate RDS instance size based on your workload requirements.
3. Consider network latency’s impact if you implement cross-region replication.
4. Understand the consistency model—be aware that asynchronous replication may introduce lag affecting read consistency.
5. Regularly test both manual and automatic failover scenarios to validate your disaster recovery plan.
6. Use RDS Proxy to simplify and streamline failover processes, especially in multi-AZ deployments.

Conclusion

Amazon RDS offers a range of replication strategies tailored to enhance availability, scalability, and disaster recovery. By understanding the nuances between synchronous replication for multi-AZ deployments and asynchronous replication for read replicas and cross-region setups, you can design a resilient and highly available database architecture that meets your business needs.

We hope this article has clarified the differences among the replication types available in RDS and highlighted their practical benefits. Happy learning, and stay tuned for our next article!
