Understanding Caching and Caching Strategies

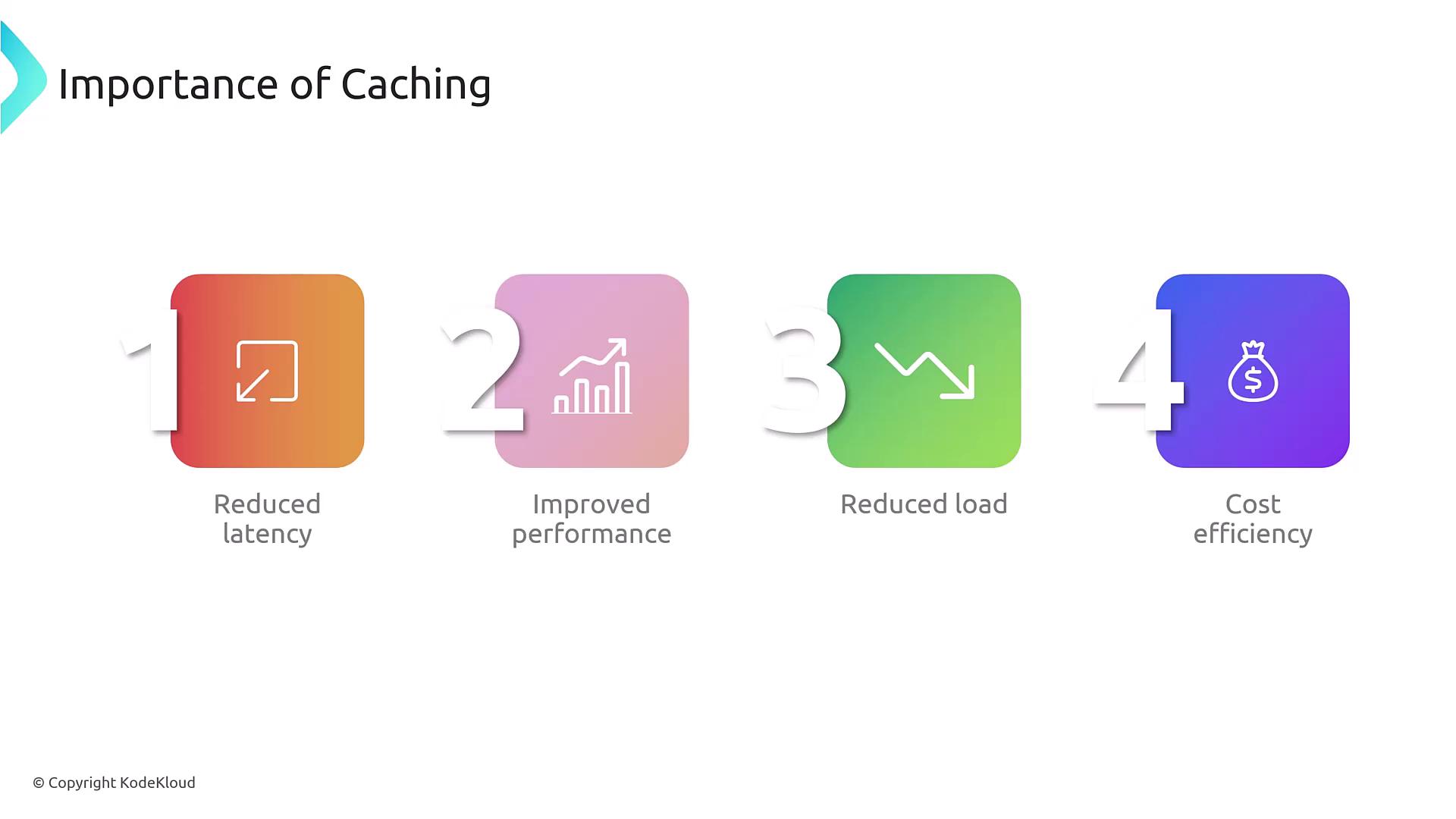

Welcome to this comprehensive lesson on caching—a key technique that significantly enhances application performance and scalability by reducing latency and offloading repeated, expensive database queries.

Caching works by storing frequently accessed data in an in-memory database instead of continuously querying the primary database. This approach speeds up data retrieval, reduces resource consumption, and minimizes the load on your main database.

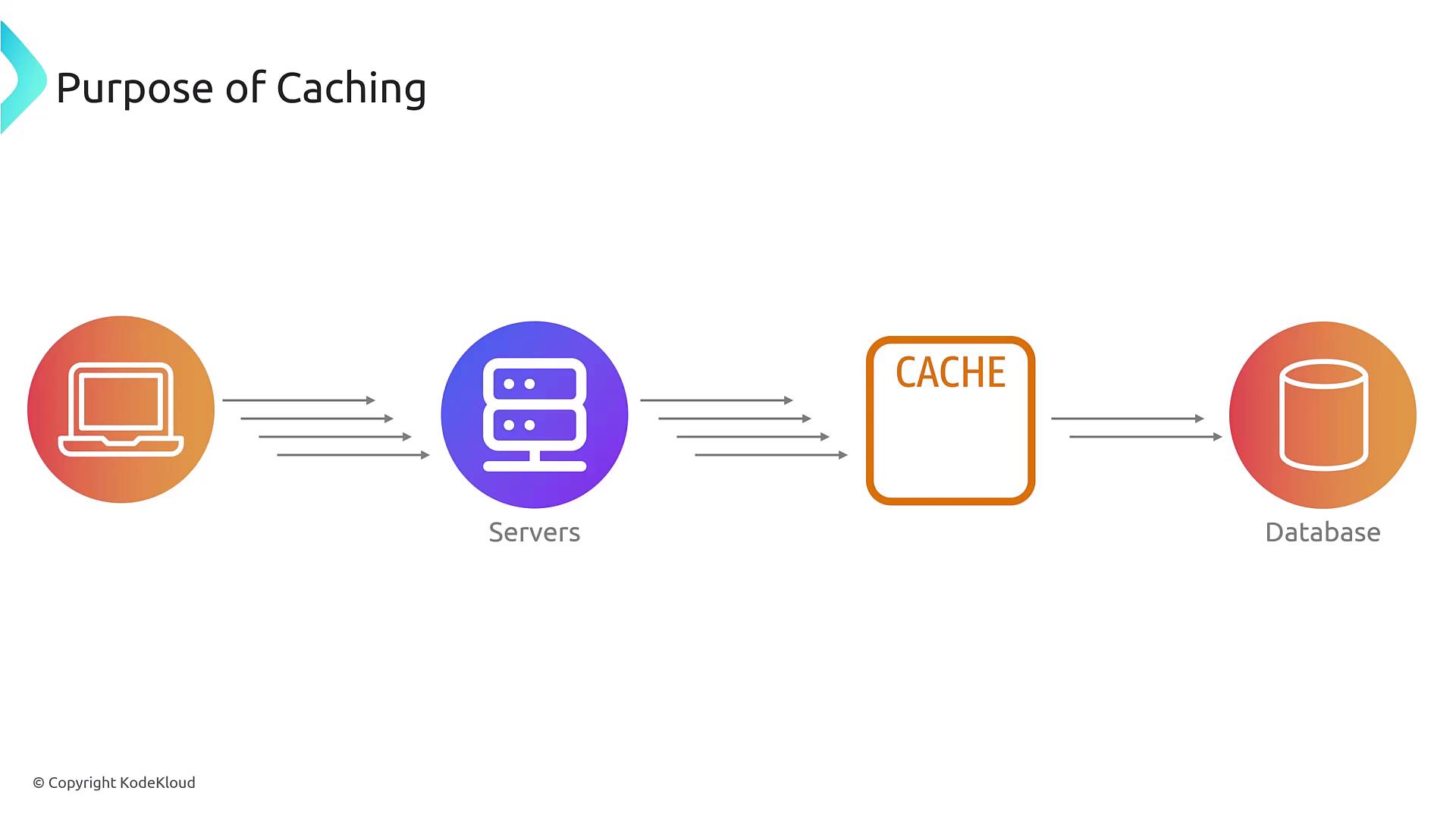

In the diagram above, the cache resides between your application servers and your database, storing static or infrequently changed data such as historical data or daily averages (e.g., average stock prices from previous days). This in-memory retrieval mechanism effectively reduces latency and improves overall performance. Thanks to its superior speed, an in-memory database can perform better than a read replica of a traditional database.

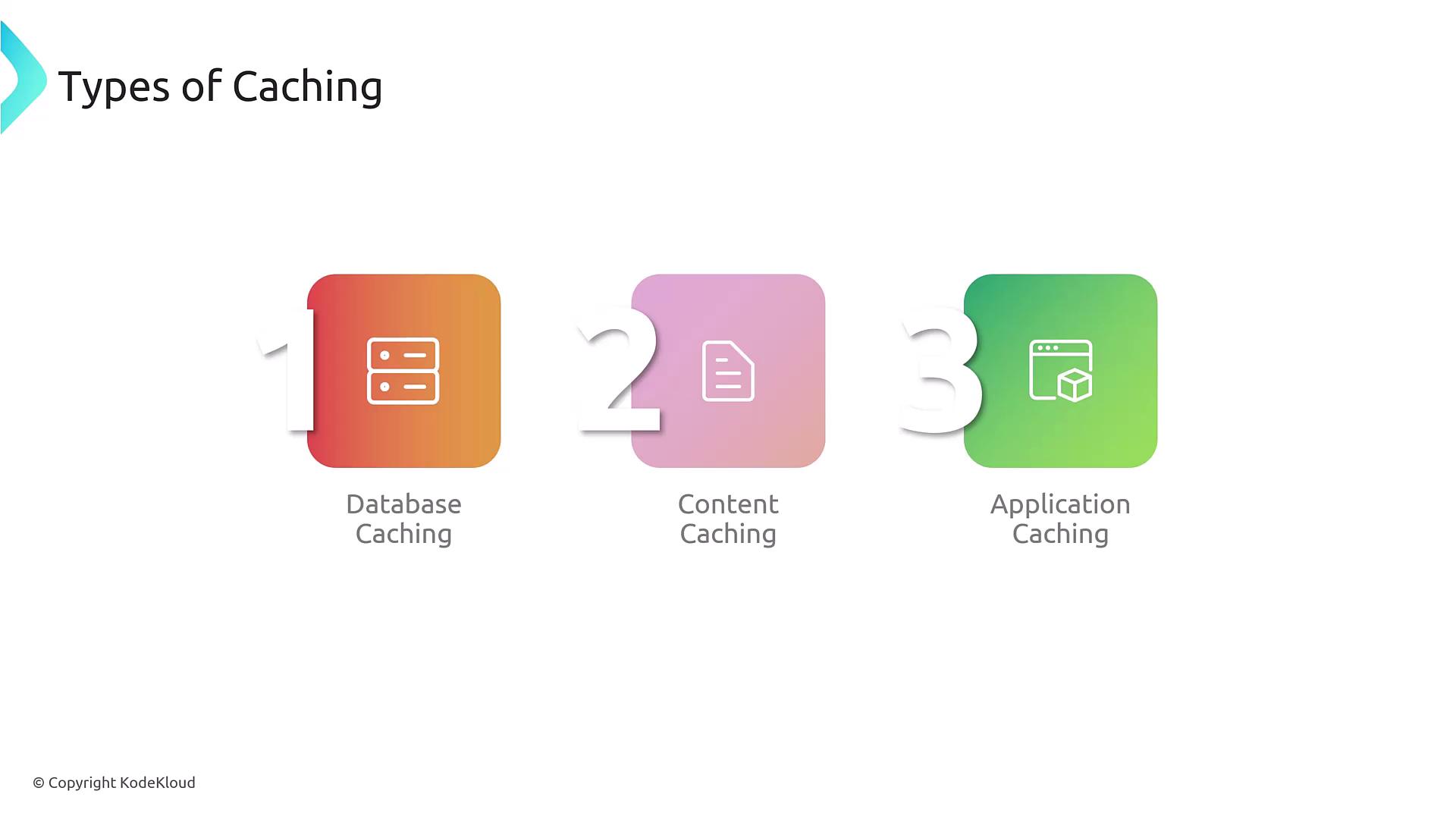

Types of Caching

There are several types of caching used in modern applications:

1. Database Caching: Stores frequent database queries.
2. Content Caching: Saves web pages, images, videos, and PDF files.
3. Application Caching: Caches application-level data, such as session information or API responses.

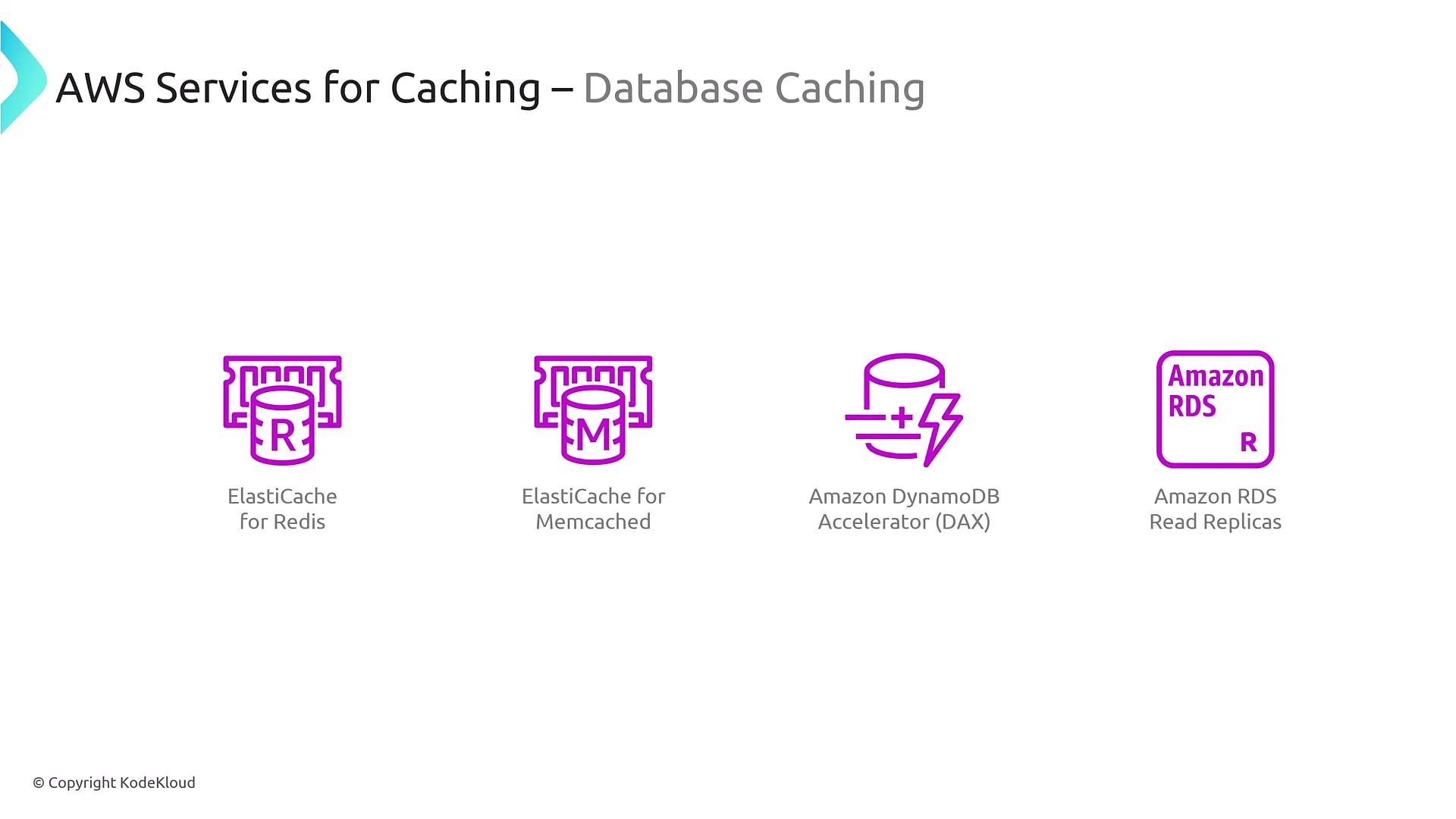

Even when underlying data might change, caching remains beneficial when accessed by many users. Services supporting database caching include:

• ElastiCache: Available with Redis or Memcached flavors.
• Amazon DynamoDB Accelerator (DAX): Provides microsecond response times for DynamoDB.
• RDS Read Replicas: Though not in-memory, they offer a form of caching. However, Redis typically delivers faster performance.

For networking, services such as CloudFront cache web pages and files closer to end users, while Route 53 caches DNS query responses. Additionally, Amazon's ElastiCache can be used to create an in-memory file cache for S3 or NFS (e.g., EFS), accelerating file retrieval.

Application caching is equally essential. For example, session data can be stored in DynamoDB, AWS Lambda leverages in-memory caching for warm instances, and API Gateway offers an attached cache for API responses—especially read responses.

Caching Strategies

When implementing caching for databases, consider the following commonly used strategies:

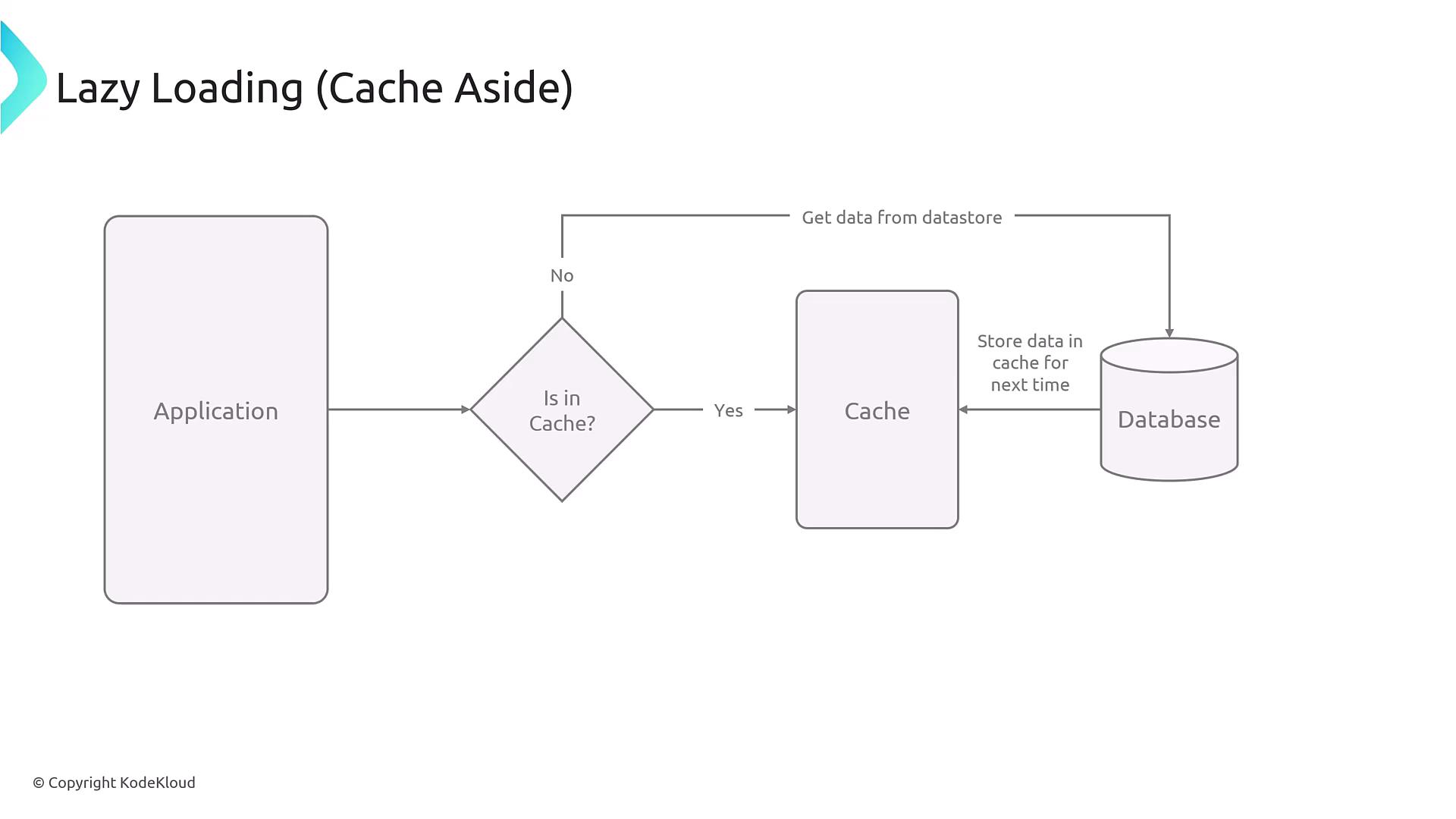

1. Lazy Loading (Cache Aside)

Lazy loading, also known as cache aside, involves loading data into the cache only after a cache miss occurs. In practice, the application first queries the cache. If the data is absent, it then fetches from the database, returns the data to the user, and saves a copy in the cache for future requests.

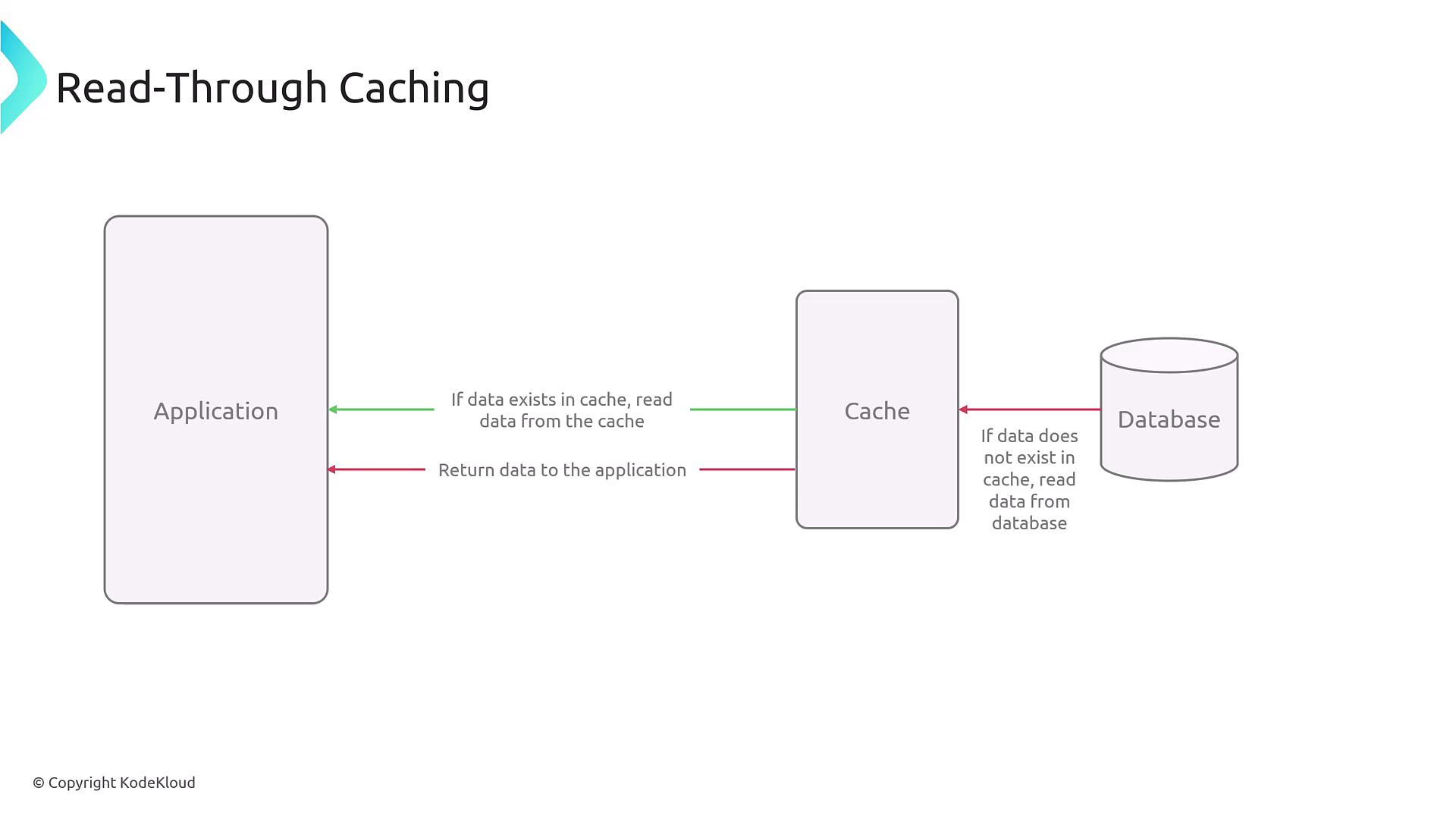

2. Read-Through Caching

In read-through caching, the application requests data through the cache interface. If the cache does not contain the data, the cache itself retrieves the data from the database before returning it. Although this model simplifies the application logic by centralizing data access, it is less commonly enabled by default in many in-memory databases without extra configuration.

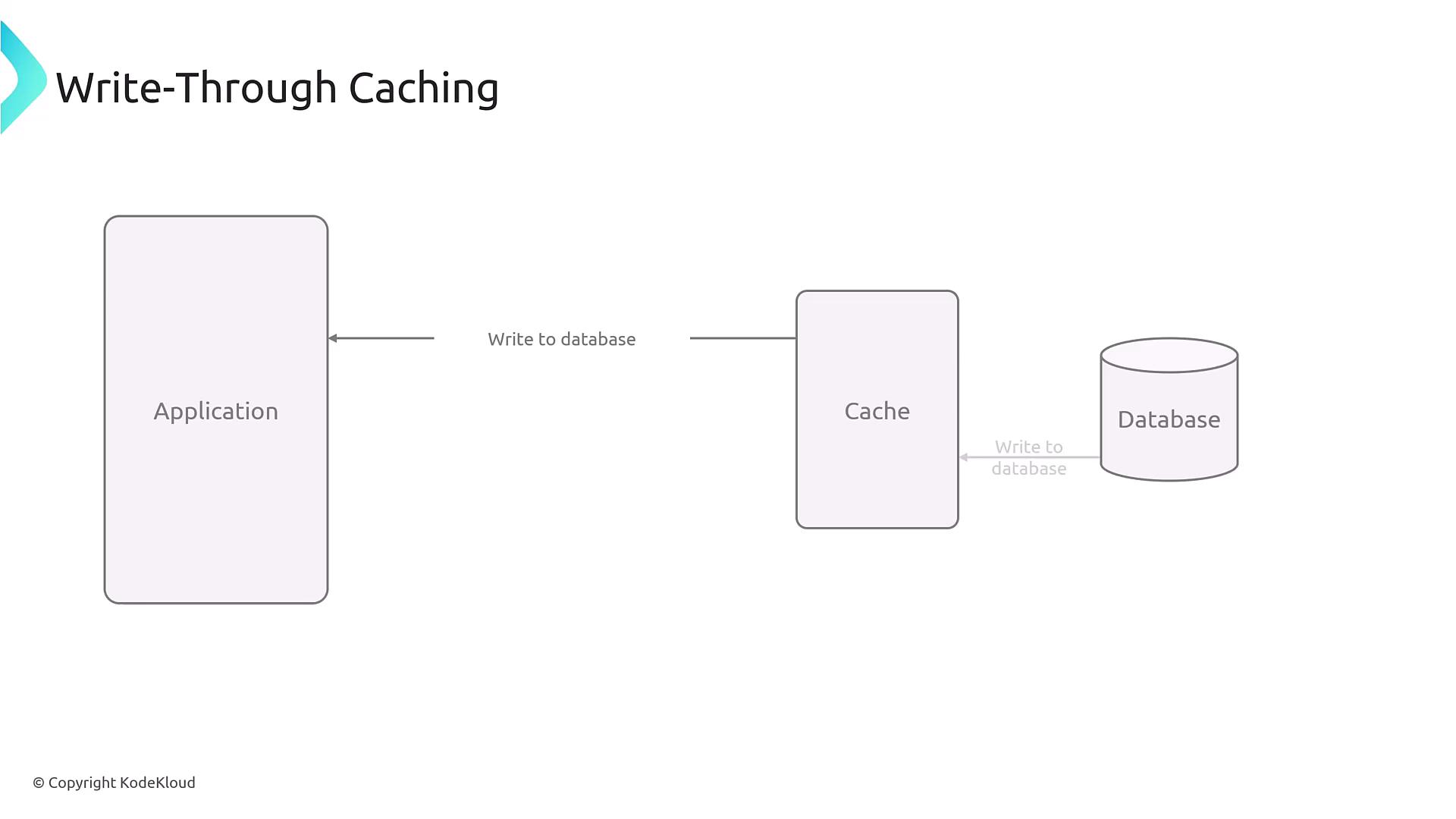

3. Write-Through Caching

Write-through caching updates both the cache and the database simultaneously whenever the application writes data. This method ensures data consistency and minimizes the risk of serving outdated information.

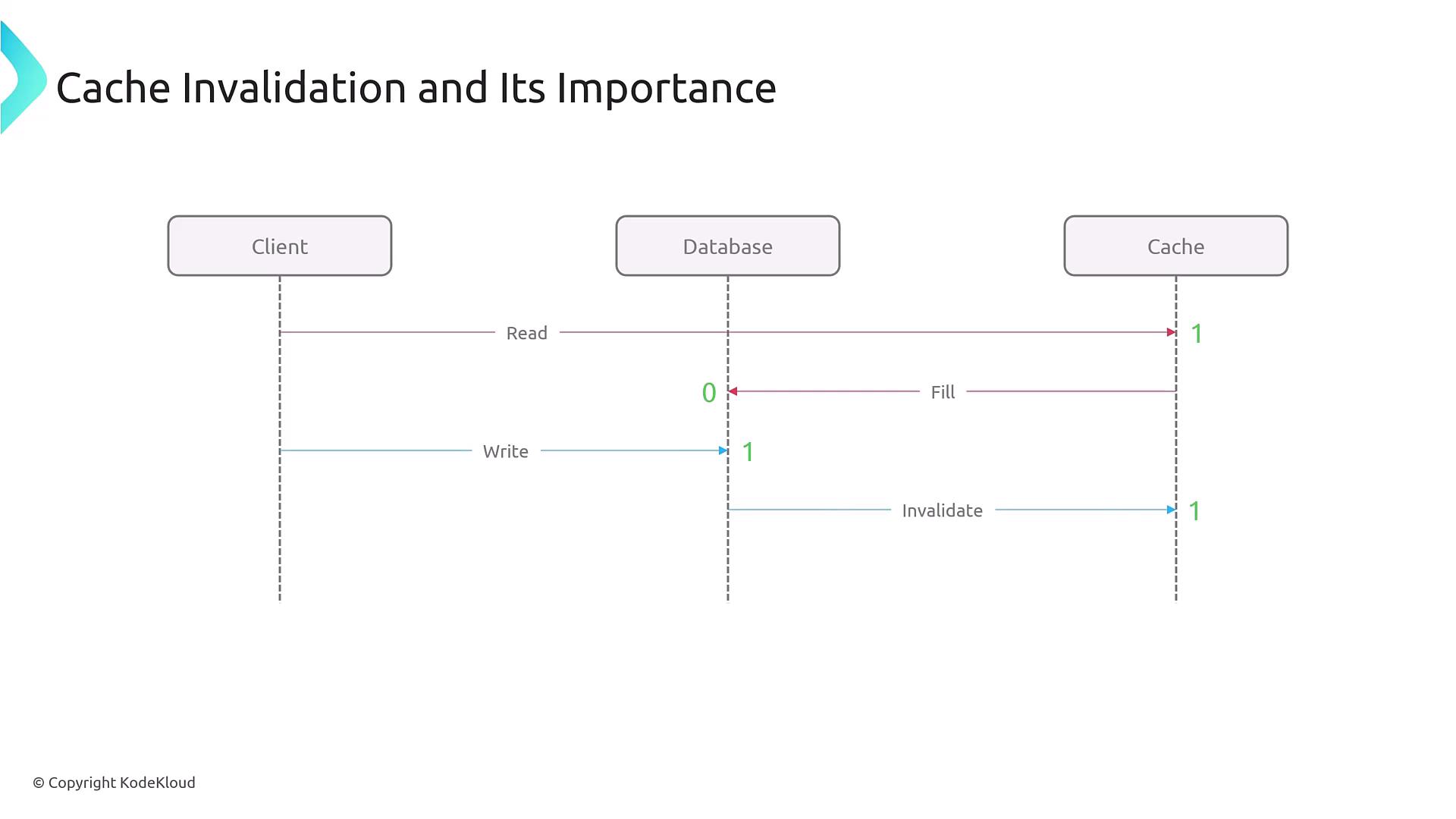

Cache Invalidation

Keeping the cached data fresh is critical for application accuracy and performance. Cache invalidation involves updating or removing stale cache entries. When outdated data is detected, the application may either compare it with the database or trigger a specific business logic to refresh the cache.

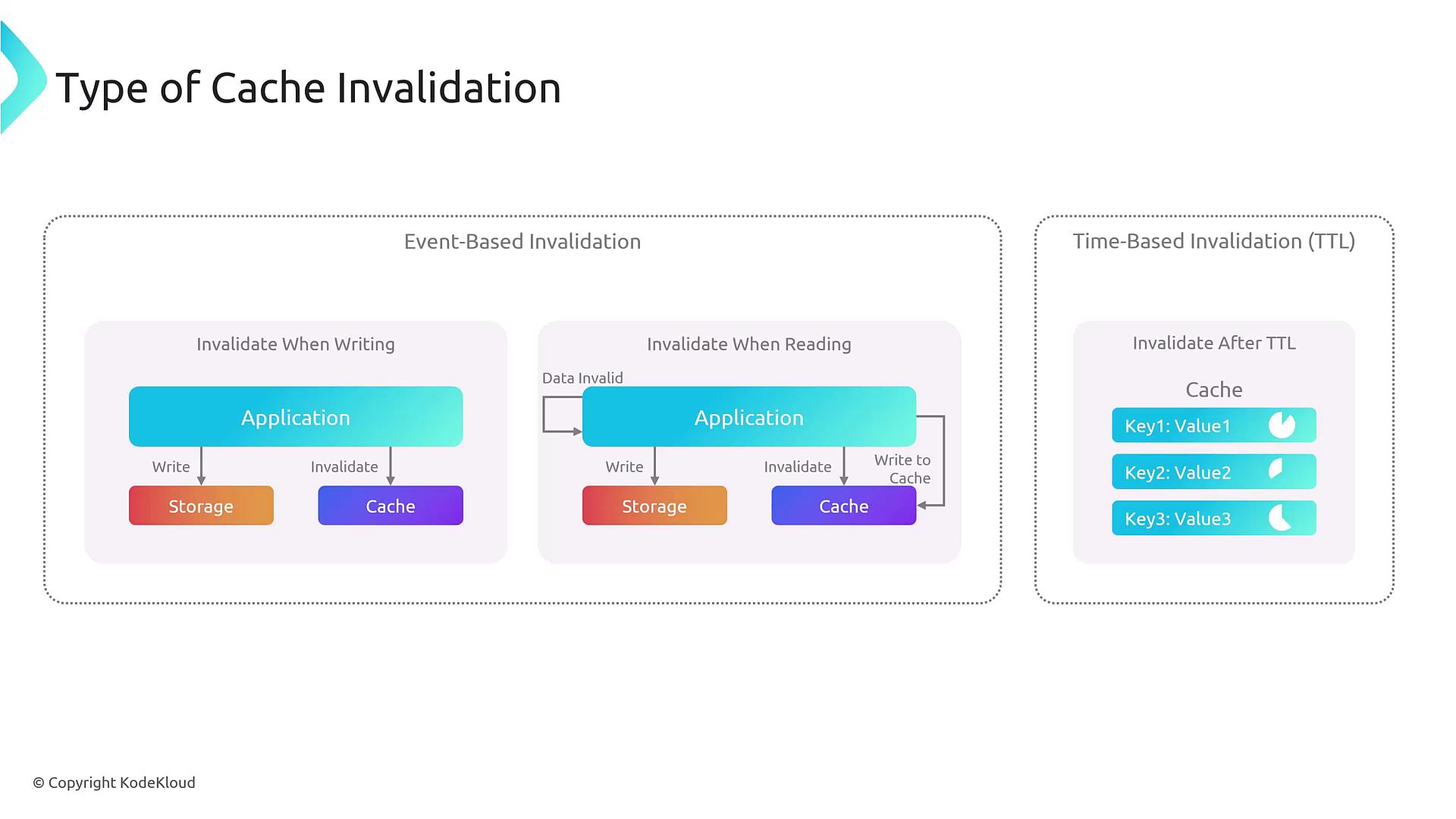

There are two common strategies for cache invalidation:

• Event-Based Invalidation: Directly invalidates cache entries immediately after a database update.
• Time-Based Invalidation: Uses a predetermined Time-To-Live (TTL) for cached data, after which the data is removed and refreshed on subsequent requests.

Cache Eviction

Cache eviction is the process of determining which data should be removed when the cache reaches its capacity. For example, if your cache has a capacity of 4GB, eviction policies help decide which cached items to discard to make space for new data. Popular eviction strategies include:

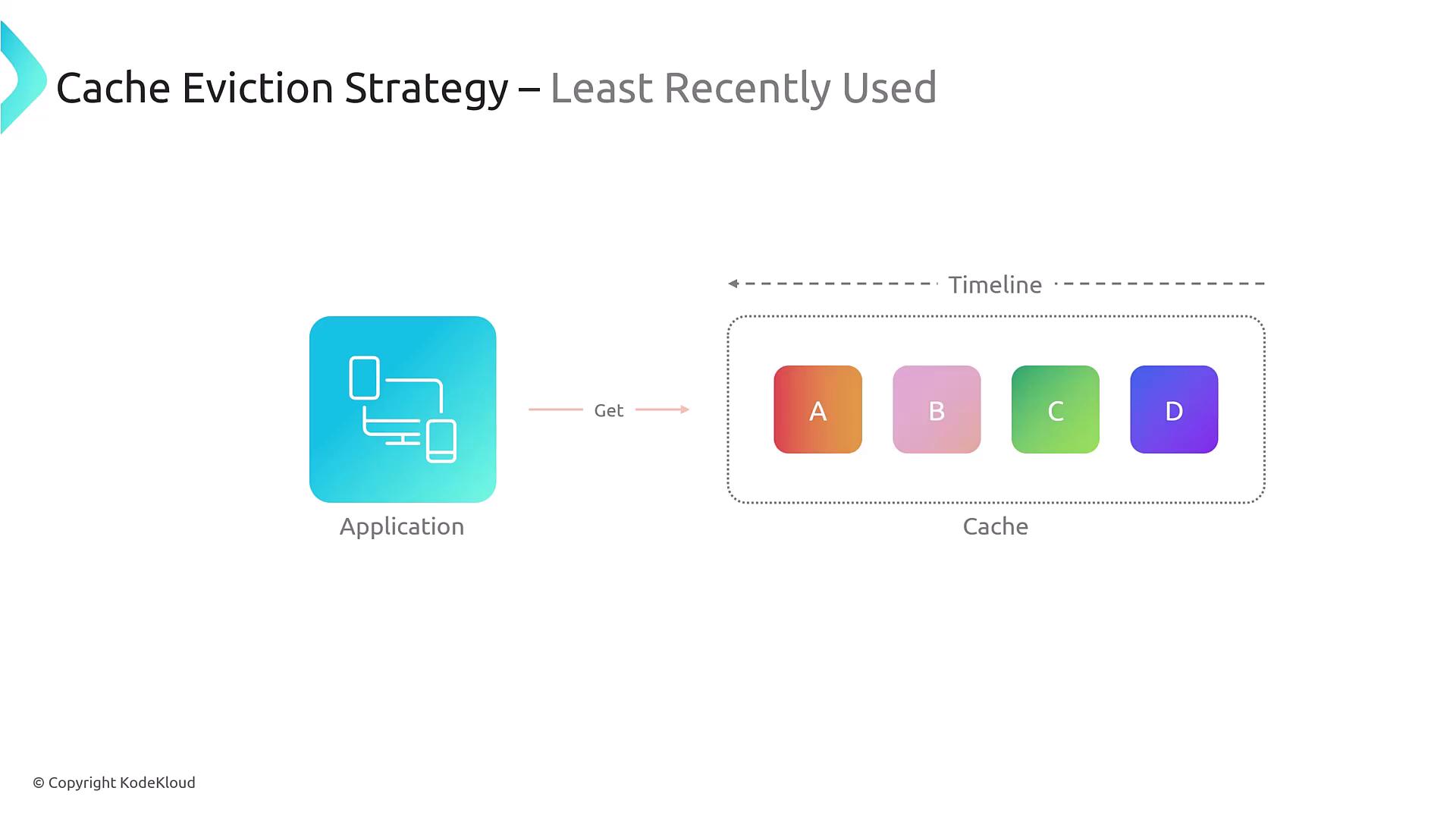

• Least Recently Used (LRU): Evicts items that have not been accessed for the longest time.

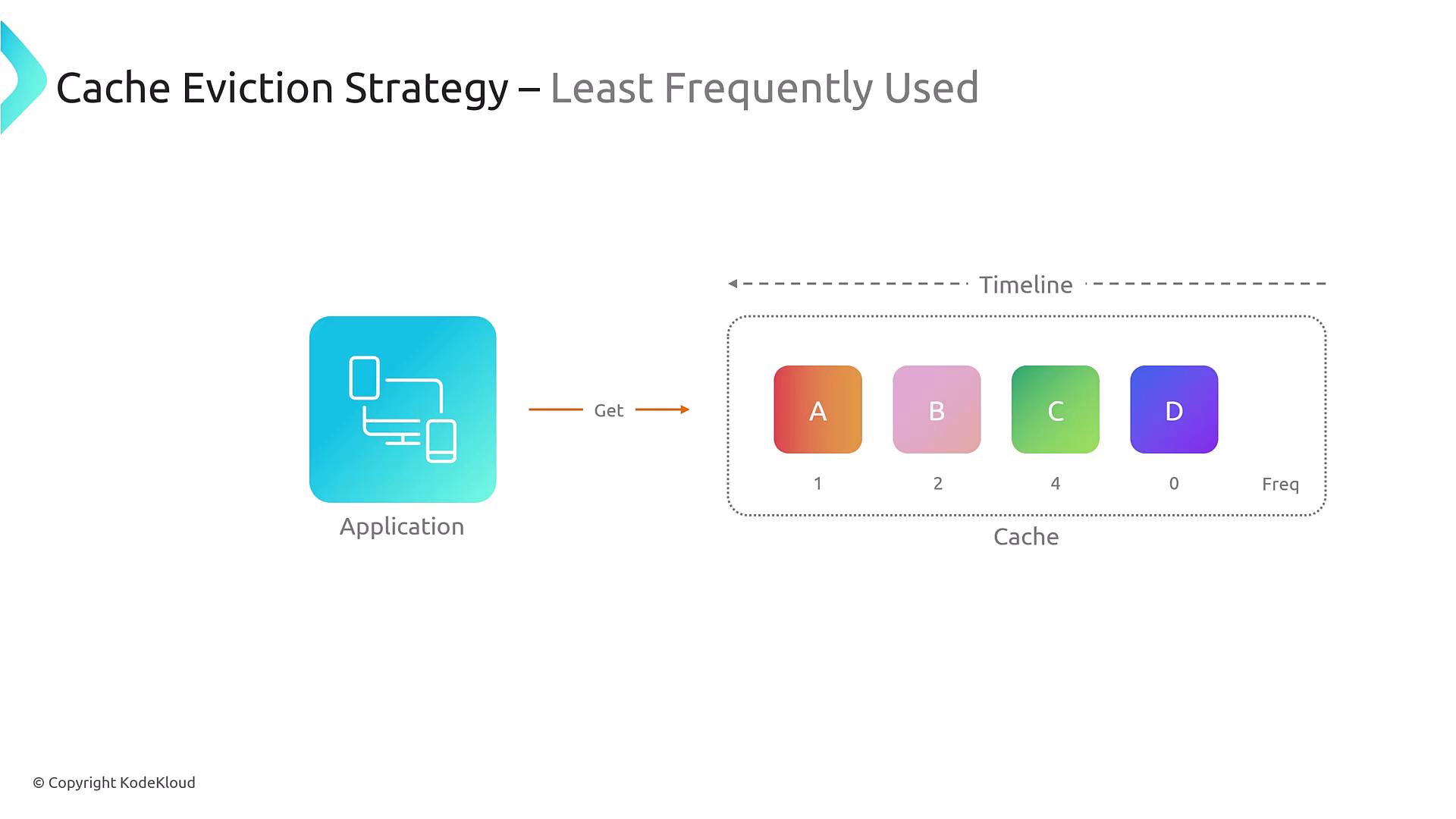

• Least Frequently Used (LFU): Removes items that have the fewest accesses.
• First In, First Out (FIFO): Discards the oldest items in the cache to free up space.

For instance, if an application frequently accesses item B while item C is the least recently used, then item C might be evicted first.

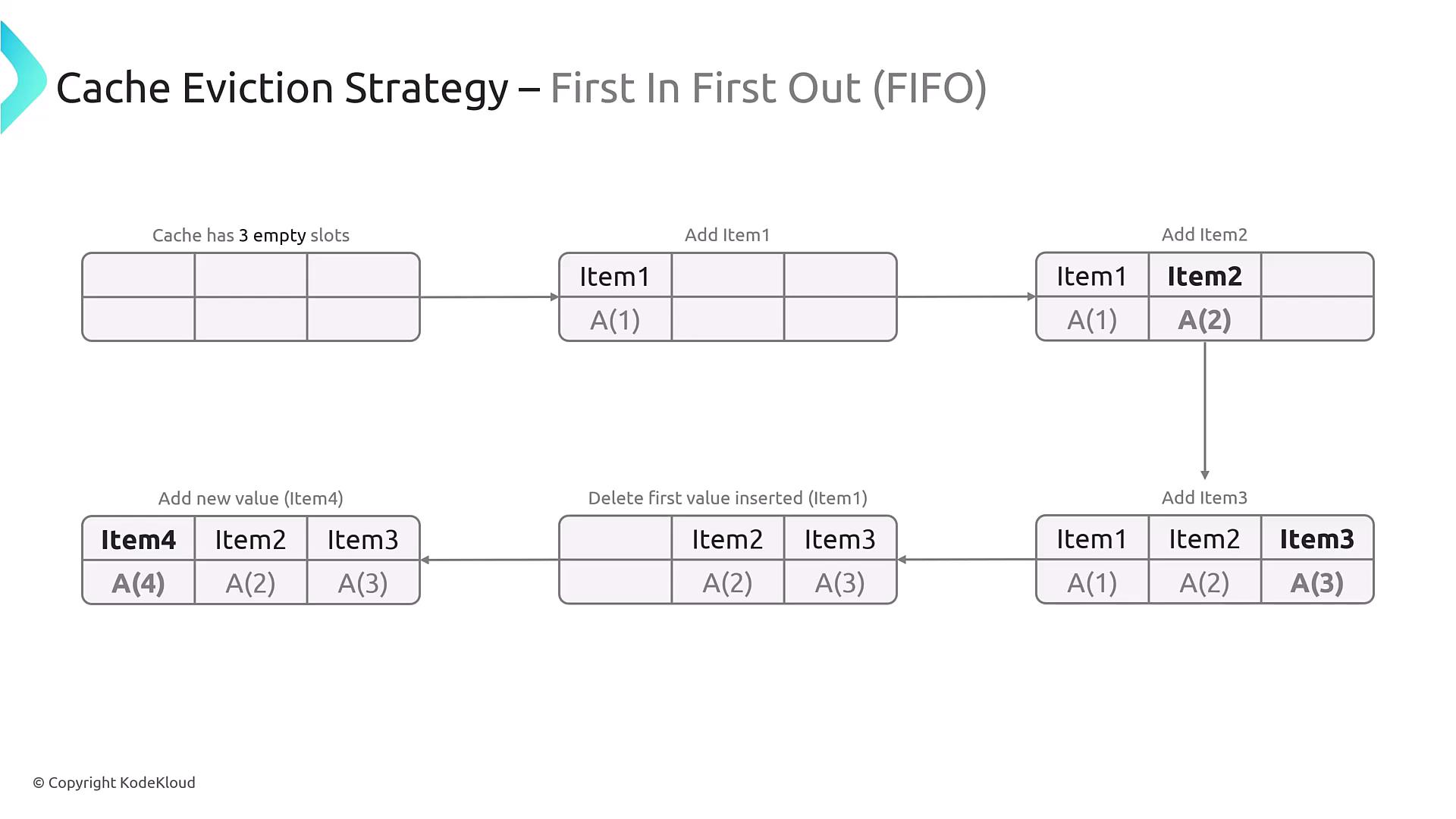

In a FIFO approach, once the cache is full, the item that was stored first is the one that gets removed when a new item is inserted.

Conclusion

Caching and its associated strategies—lazy loading, read-through, write-through, cache invalidation, and cache eviction—are essential for building responsive and scalable applications. By understanding and applying the proper caching mechanisms, you can improve performance, reduce latency, and ensure your application scales efficiently under load.

Thank you for reading this lesson on caching and caching strategies. For further insights on caching and related cloud services, consider exploring the AWS documentation and caching best practices.

Happy caching!
