Common Misconfigurations and Troubleshooting VPC Issues

Welcome to this comprehensive guide on troubleshooting common misconfigurations in Virtual Private Clouds (VPCs). In this lesson, we’ll explore key components such as VPCs, subnets, internet gateways, routing tables, IP addressing, firewalls, Network Access Control Lists (NACLs), and security groups. We’ll also review potential pitfalls with NAT gateways and VPC endpoints. Follow along as we break down each issue step by step.

1. Routing Issues

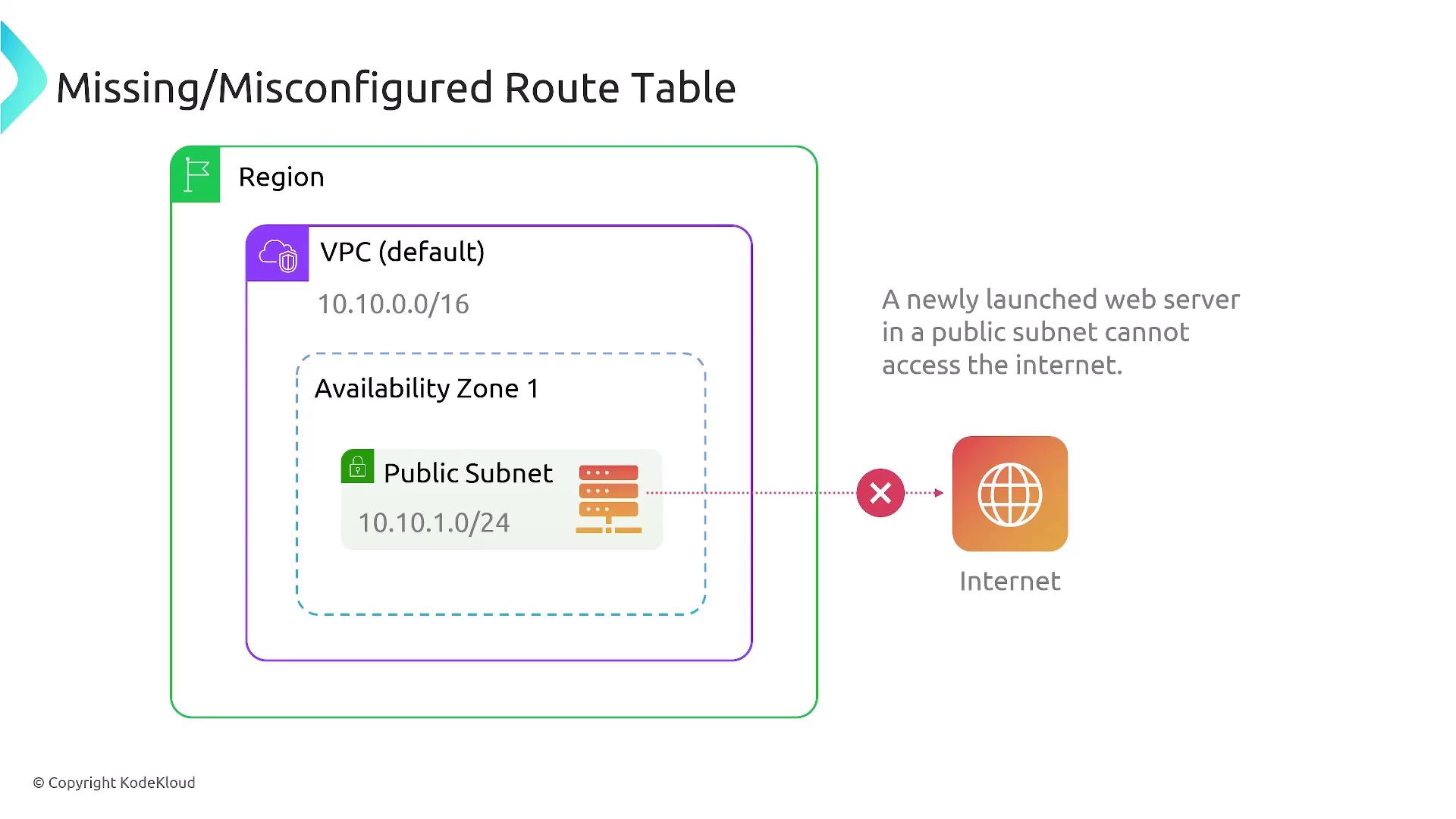

Routing misconfigurations are a frequent cause of connectivity problems. Consider a scenario where you launch a new web server in a public subnet, yet it cannot access the internet. Two key routing aspects must be reviewed:

• Public IP Address:
  Ensure your web server has a public IP address. This can be auto-assigned via the subnet's DHCP settings or manually attached as an Elastic IP. Without a public IP, the instance won’t be able to reach the internet.

• Route Table Configuration:
  The subnet’s route table must include appropriate entries. For local traffic, you might see a configuration like this:



  For internet-bound traffic, a default route pointing to the internet gateway is required:

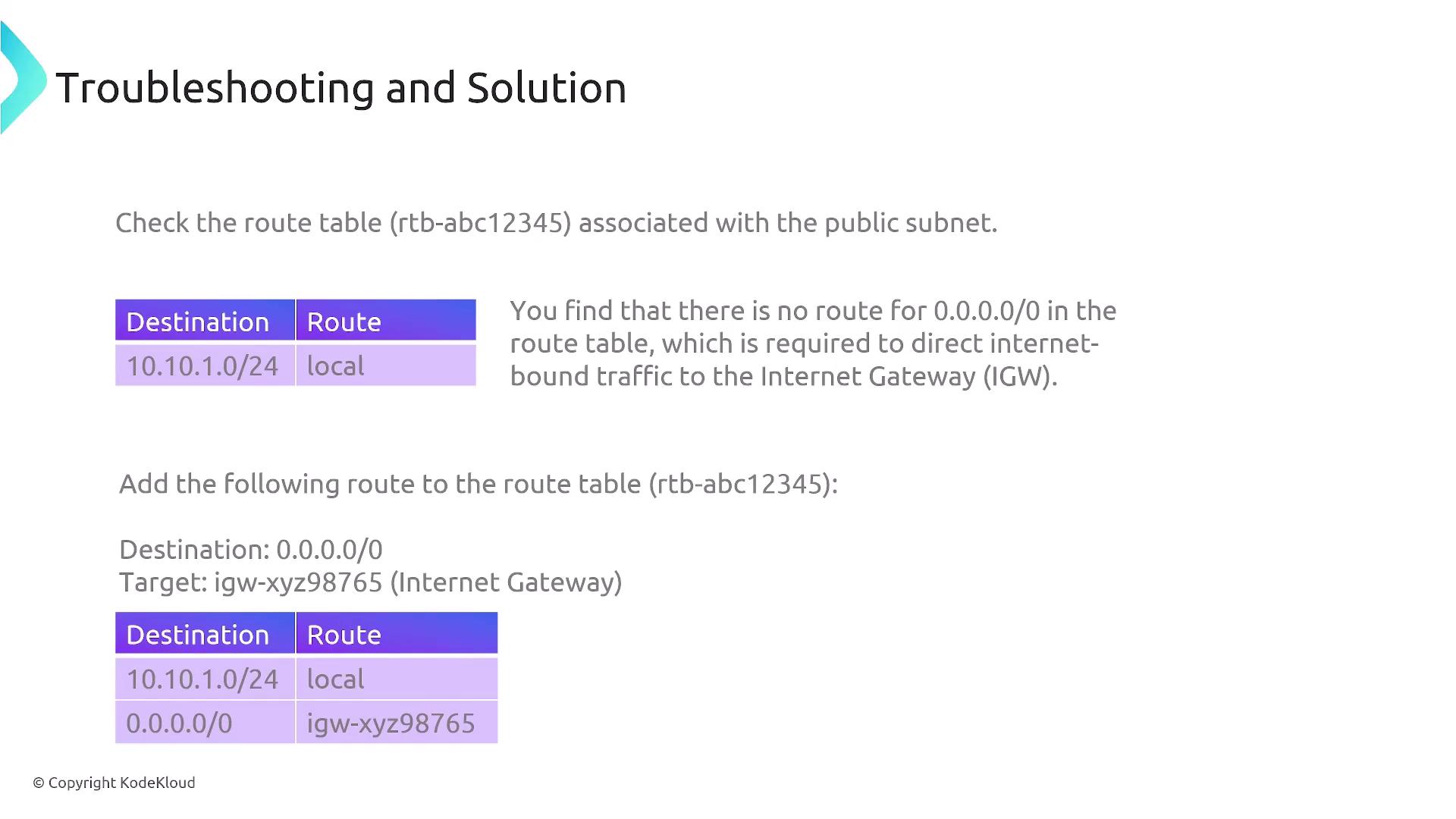

  Example route table configuration:

  Destination     Route
  10.10.1.0/24    local
  0.0.0.0/0       igw-xyz98765


  Note

  Verify both the public IP assignment and the default route configuration to ensure your instances can communicate externally.

2. Firewall Issues

Even with accurate routing, firewall rules can block necessary traffic. It's crucial to inspect two layers:

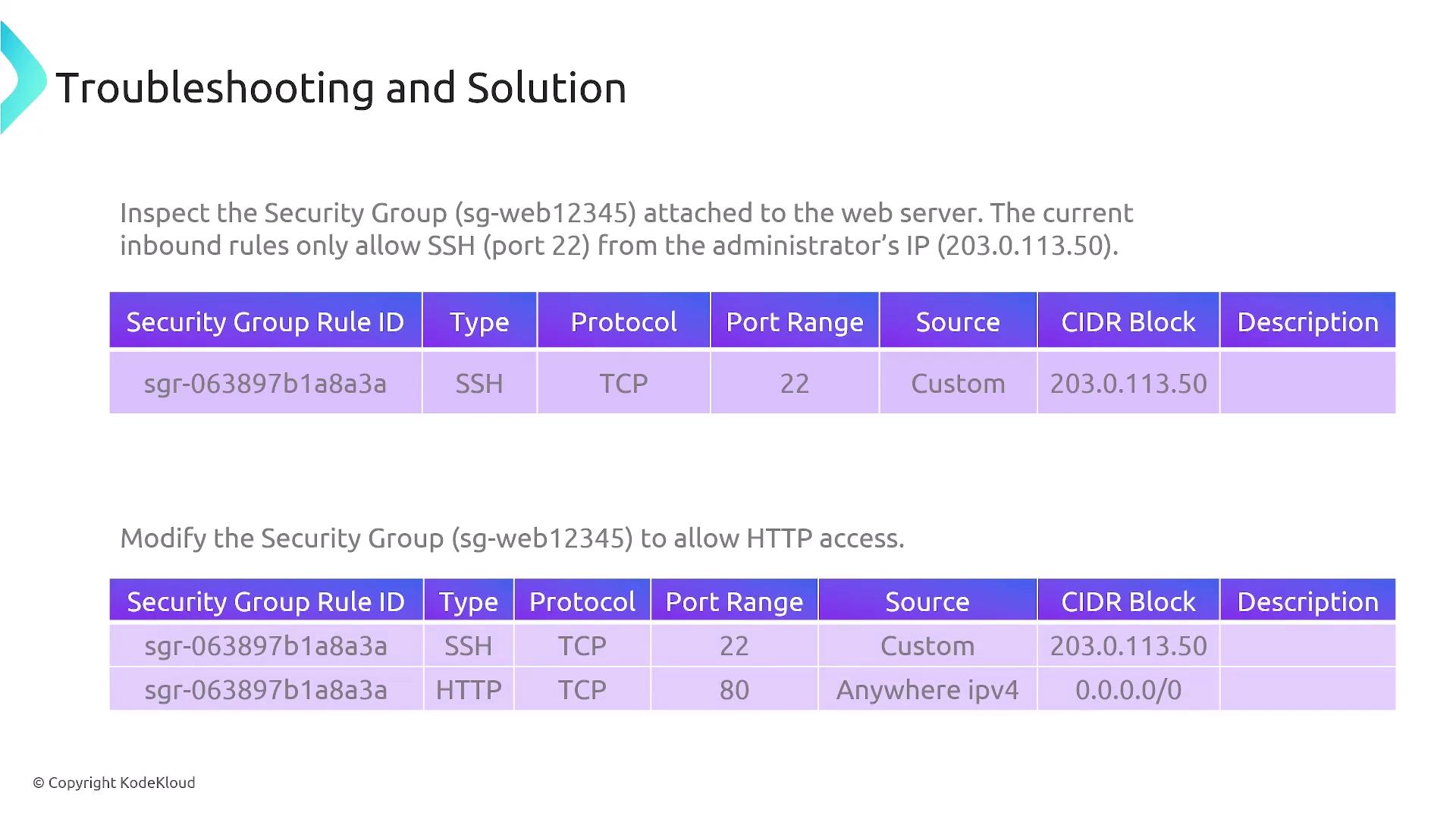

• Security Groups:
  Ensure that the security groups attached to your instances allow the required traffic. For instance, while SSH (port 22) might be permitted, you must also configure rules for HTTP (port 80) and HTTPS (port 443) if the server is handling web traffic.



• Network Access Control Lists (NACLs):
  Confirm that NACLs include the necessary inbound and outbound rules. Misconfigured NACLs can block communication even if security groups are set correctly.

  Warning

  Overly restrictive firewall settings in either security groups or NACLs can lead to unintended traffic blockages. Double-check these configurations during troubleshooting.

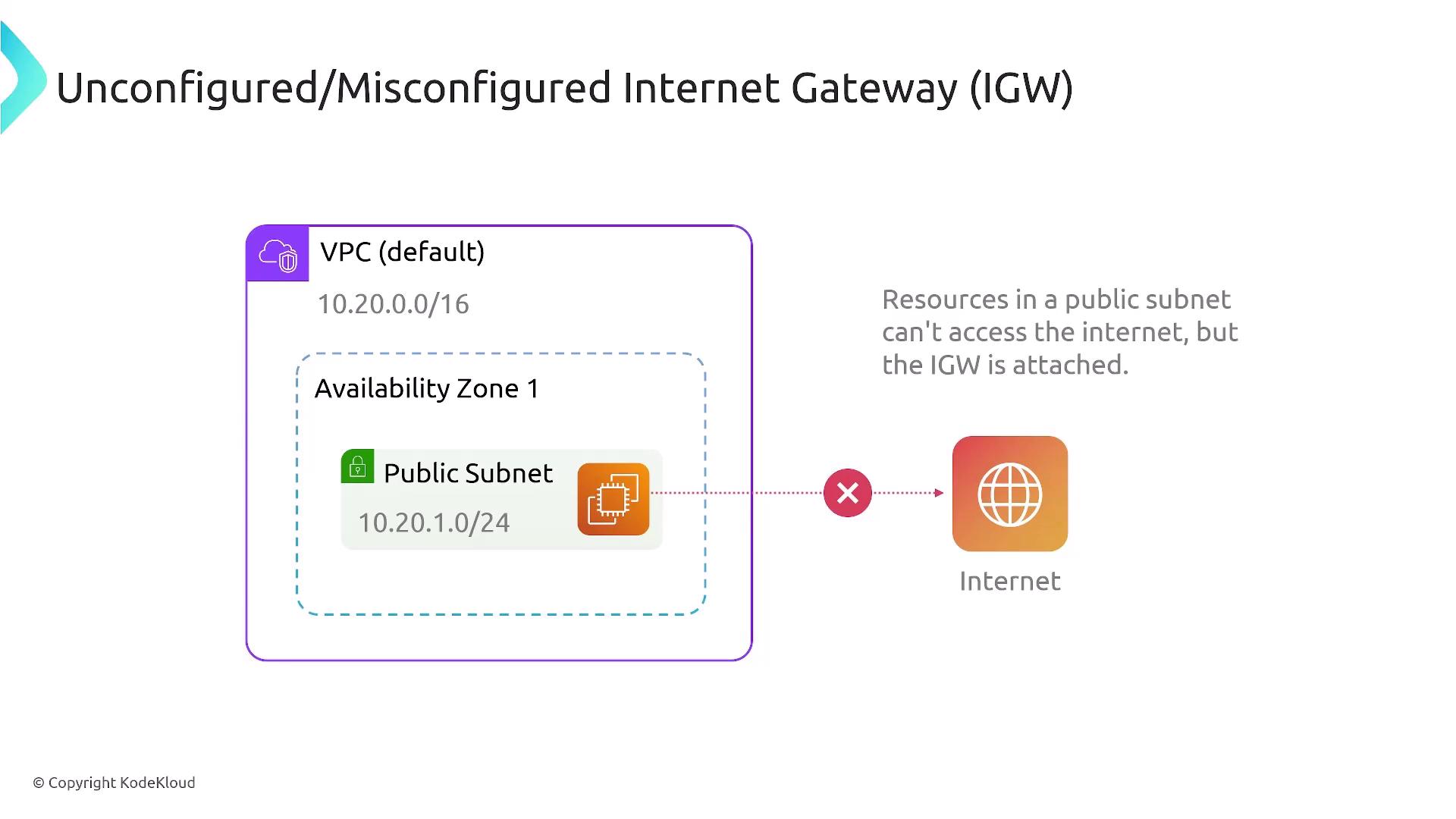

3. Internet Gateway Misconfigurations

The internet gateway (IGW) is essential for enabling internet connectivity in your VPC. Common misconfigurations include:

• Attachment:
  Every VPC must have one attached internet gateway to enable internet access. Without an attached IGW, no routing adjustments will resolve connectivity issues.

• Routing Conflicts:
  Even with an IGW, the route table must be properly configured. Incorrect routing entries that misdirect non-local traffic will result in connectivity failures.



Remember, private IP ranges (e.g., 10.x.x.x, 172.16.x.x) cannot be directly routed to the internet.

4. NAT Gateway Issues

If your VPC relies on NAT gateways for internet access from private subnets, ensure the following configurations are correct:

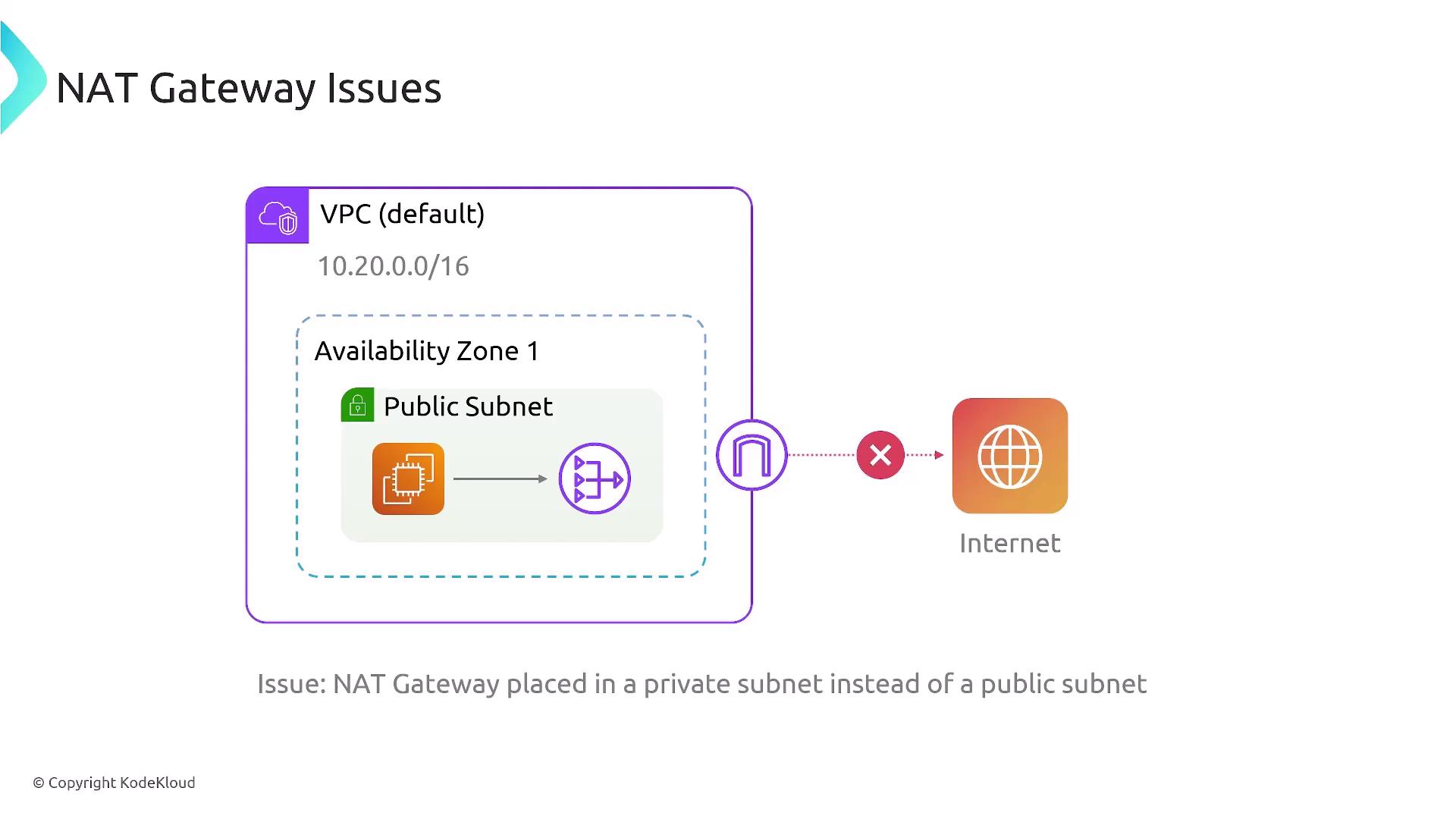

• Placement:
  A NAT gateway must reside in a public subnet to properly proxy traffic from private subnets to the internet. If it is launched in a private subnet, internet access will be disrupted.

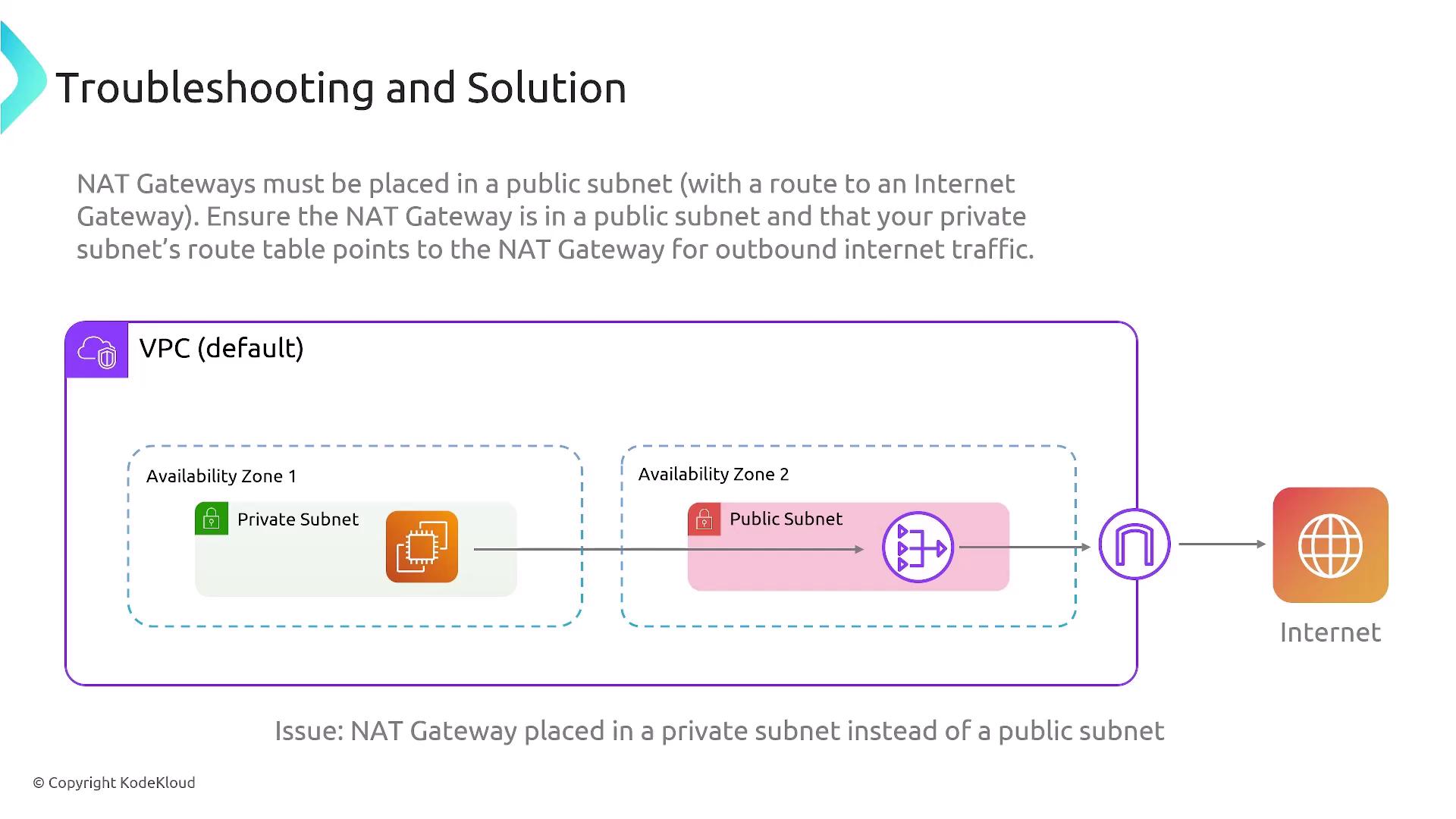

• Routing Configuration for Private Subnets:
  Private subnets must have a route that sends their internet-bound traffic to the NAT gateway in the public subnet. Without this route, instances in private subnets cannot access the internet.



Summary of Key Issues

Addressing these common misconfigurations will help enhance connectivity and security within your VPC environment. For further details on VPC configurations and best practices, consider exploring additional AWS documentation.

Thank you for reading this troubleshooting guide on VPC issues.
