Cloudwatch Insights X Ray and Service Map
Introduction to AWS X Ray and Service map
Welcome to our deep dive into AWS X-Ray and its powerful Service Map feature. Together, these tools provide distributed tracing, visualization, and performance diagnostics for microservices running on AWS.
The Challenge of Distributed Applications
As your application grows into multiple microservices, you might encounter intermittent slowdowns or hard-to-reproduce errors. Without end-to-end visibility, pinpointing the exact service or resource at fault becomes a time-consuming hunt. AWS X-Ray addresses this by tracing requests across services and resources, revealing latency hotspots and error origins in real time.
Key Features of AWS X-Ray

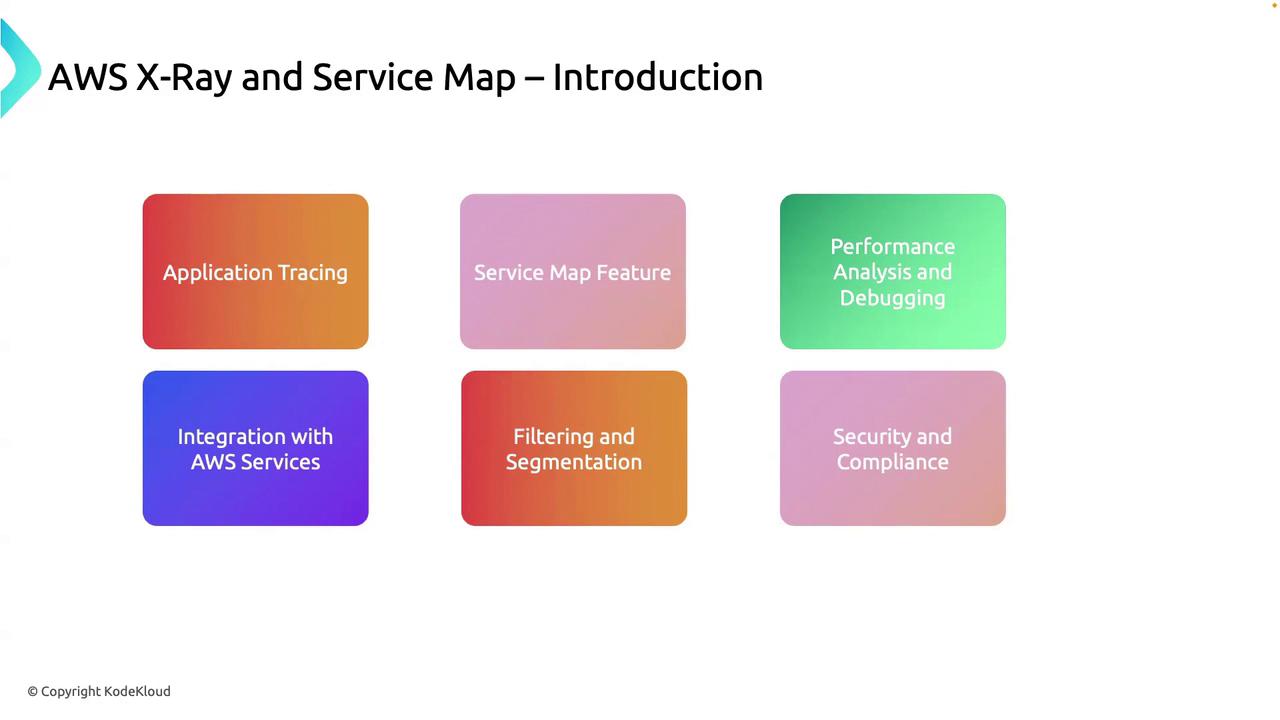

| Feature | Description |
|---|---|
| Application Tracing | Capture end-to-end request data across Lambda, EC2, Elastic Beanstalk, API Gateway, and more. |
| Service Map | Interactive topology graph showing service-to-service calls and resource dependencies. |
| Performance Analysis | Drill down into detailed timing, error rates, and annotations to identify bottlenecks. |
| Filtering & Segmentation | Apply filters by service name, HTTP status code, response time thresholds, or custom metadata to focus on specific traces. |
| Security & Compliance | Secure trace data with AWS Identity and Access Management (IAM) policies and encryption, meeting enterprise compliance standards. |
| AWS Service Integrations | Native support for AWS Lambda, Amazon EC2, Amazon API Gateway and others. |
Note
Before you begin, ensure X-Ray tracing is enabled in each AWS service by attaching the AWSXrayDaemonWriteAccess IAM policy or enabling tracing in the service console.
Warning
Using AWS X-Ray may incur additional costs based on the volume of traced requests and data retention. Review the AWS X-Ray Pricing page before enabling tracing in production.
Why AWS X-Ray and Service Map Matter
- Instant Visualization
See a dynamic service graph that highlights latency and error rates across your entire architecture. - Rapid Troubleshooting
Pinpoint the exact service or call causing slow responses or failures in seconds. - Enhanced Collaboration
Share trace insights with development and operations teams to resolve issues faster. - Scalable Observability
Seamlessly monitor small applications or large-scale microservices with consistent, unified tracing.
Next Steps
- Enable X-Ray tracing in your AWS account.
- Instrument your application with the AWS X-Ray SDK or enable tracing in the AWS console.
- Explore the Service Map to identify performance bottlenecks and error hotspots.
See our hands-on lab to get started with real-world examples and best practices.
