IAM Roles Anywhere enables external applications and resources to securely access AWS services using X.509 certificates managed by a centralized Public Key Infrastructure (PKI).

Overview

External servers, hybrid clouds, and non-AWS environments often require access to AWS resources without relying on long-lived credentials. IAM Roles Anywhere issues temporary AWS credentials by validating X.509 certificates against your PKI.

Prerequisites

An ACM Private CA or an existing on-premises CA
X.509 certificates issued for your external systems
Appropriate IAM roles configured in AWS

How IAM Roles Anywhere Works

Establish your PKI
Generate X.509 certificates for external workloads
Register your Certificate Authority (CA) with IAM Roles Anywhere
Request temporary AWS credentials by presenting a certificate

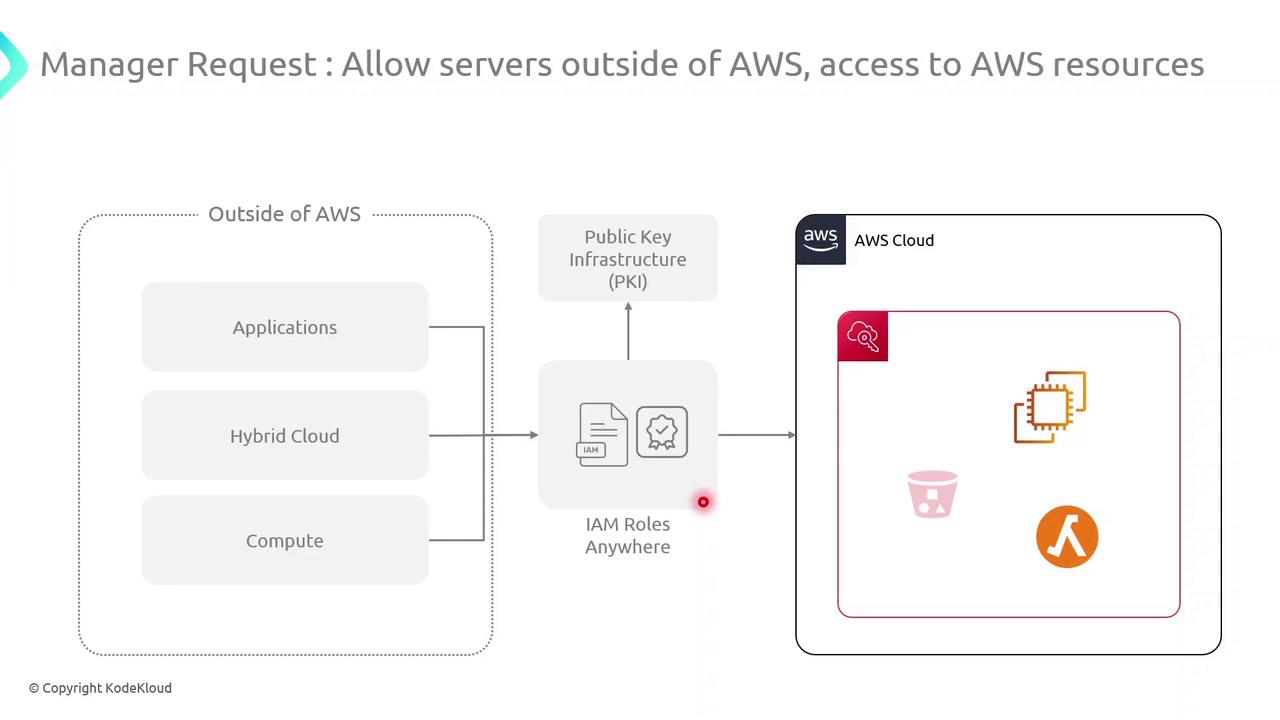

The image is a diagram illustrating how servers outside of AWS can access AWS resources using IAM Roles Anywhere and Public Key Infrastructure (PKI). It shows components like applications, hybrid cloud, and compute outside of AWS, connecting to AWS Cloud services.

When an external workload presents a valid certificate, IAM Roles Anywhere verifies it against your registered CA. Upon successful validation, it issues temporary AWS credentials scoped to an IAM role, granting secure and auditable access to AWS services.

Key Steps

Step	Action
1	Create or import a root/subordinate CA in ACM PCA or on-premises
2	Issue X.509 certificates to your servers and applications
3	Register your CA with IAM Roles Anywhere via AWS Console or CLI
4	Exchange a presented certificate for temporary AWS credentials

Security Best Practice

Always store private keys in a secure hardware module or key management system. Do not embed certificates or keys directly in application code.

Benefits of IAM Roles Anywhere

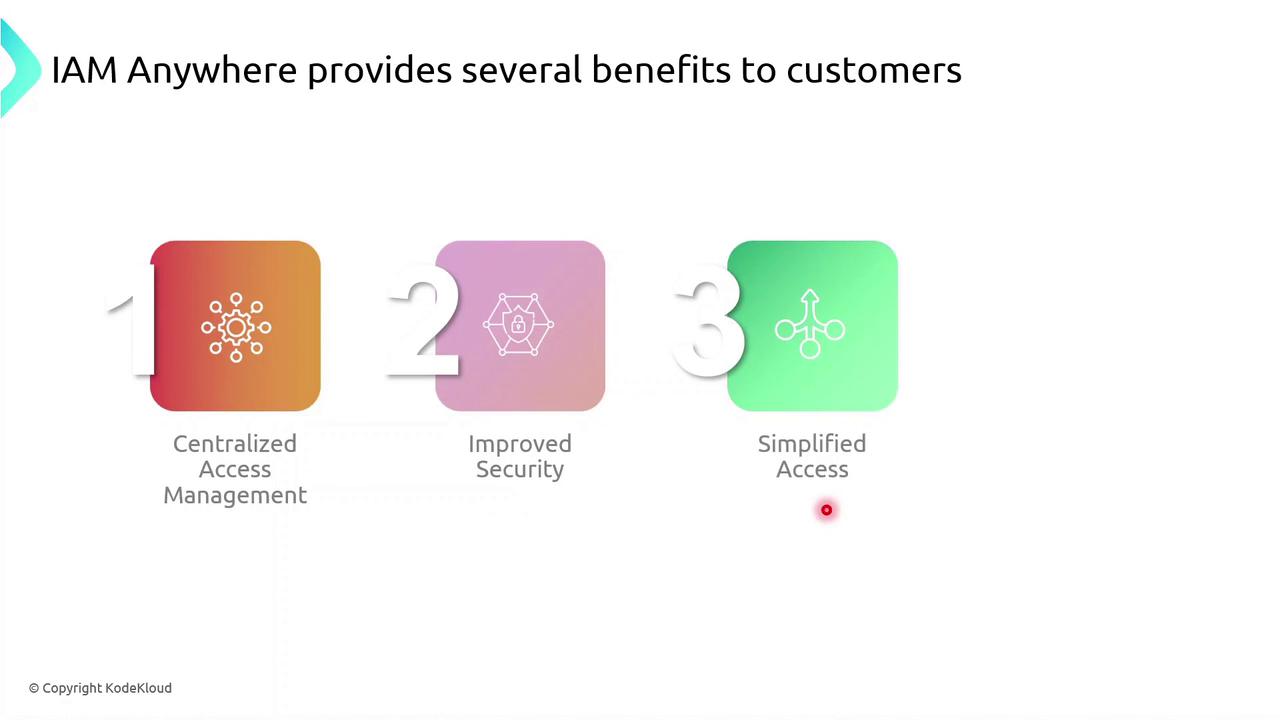

The image is an infographic highlighting the benefits of "IAM Anywhere" for customers, including centralized access management, improved security, and simplified access.

Benefit	Description
Centralized Access Management	Control AWS and external permissions from a unified console
Enhanced Security	Utilize short-lived X.509 certificates and temporary AWS credentials
Simplified Provisioning	Eliminate hard-coded secrets and automate certificate rotation
Integration Flexibility	Leverage existing PKI systems and customize authentication workflows

Get Started

Configure your PKI in AWS ACM PCA or on-premises.
Issue and distribute X.509 certificates.
Register the CA with IAM Roles Anywhere.
Implement AWS SDK or CLI calls to request credentials.

For complete setup instructions, see the AWS IAM Roles Anywhere User Guide.
