In this lesson, we’ll cover how firewalls work, then explore AWS implementations: Network ACLs (NACLs) and Security Groups. You’ll learn the differences between stateless and stateful filtering, how to configure rules, and best practices for securing your VPC.

Firewalls: Inbound and Outbound Traffic

A firewall monitors traffic flows and only allows connections matching predefined rules. Each rule controls:

  • Inbound: Connections to your resource
  • Outbound: Connections from your resource

Stateless Firewalls

Stateless firewalls treat inbound and outbound traffic independently. You must explicitly allow both directions for every connection.

For example, a web server listening on HTTPS (port 443) needs:

  1. Ingress: Allow TCP 443
  2. Egress: Allow TCP 1024–65535 (ephemeral ports)

If the server also fetches updates over HTTP (port 80):

  • Egress: Allow TCP 80
  • Ingress: Allow TCP 1024–65535

Warning

Stateless firewalls do not track connection state. If you forget to permit the reply path, your traffic will be dropped.

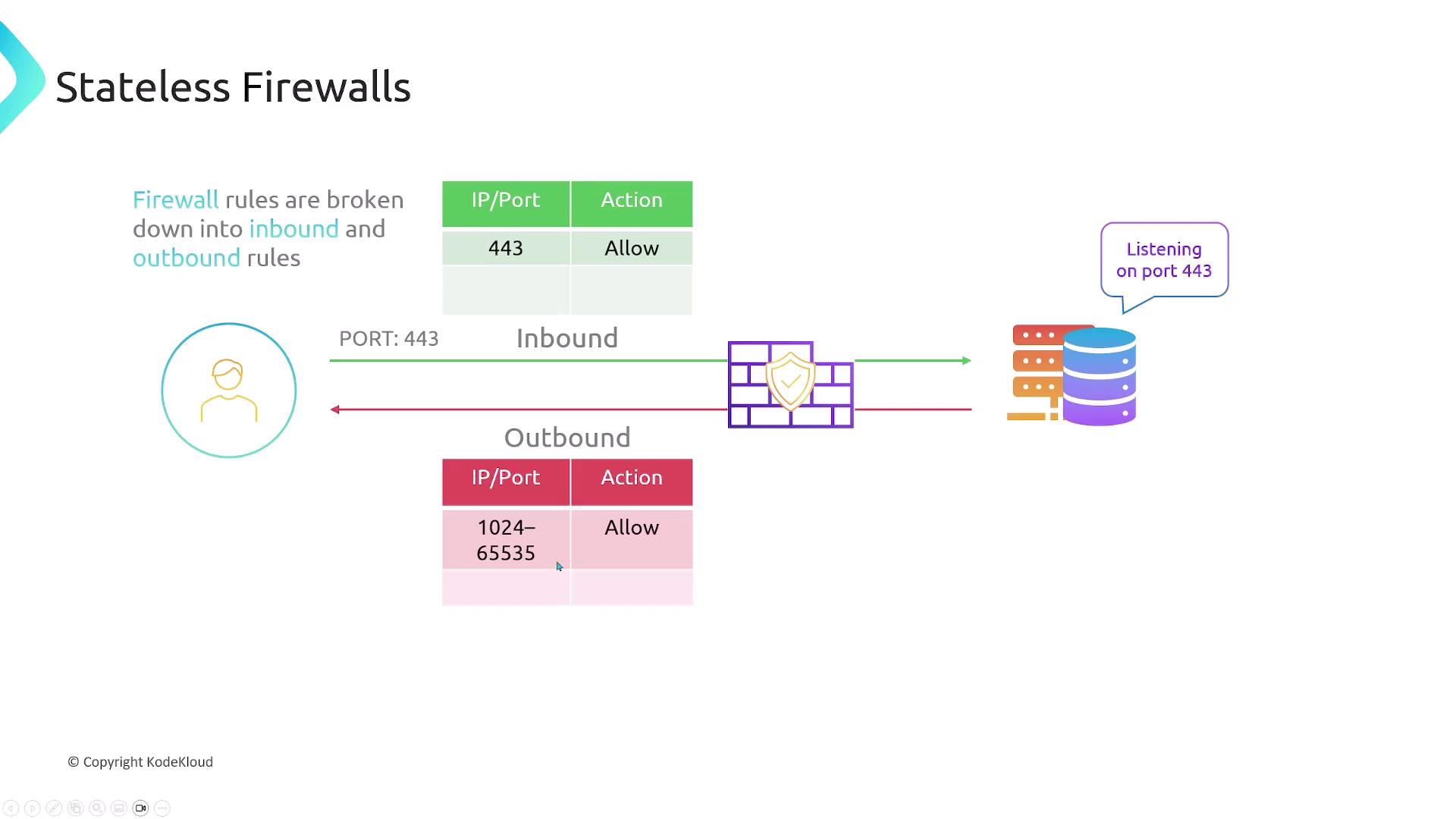

The image illustrates stateless firewalls, showing inbound and outbound rules with specific IP/Port actions, and a server listening on port 443.

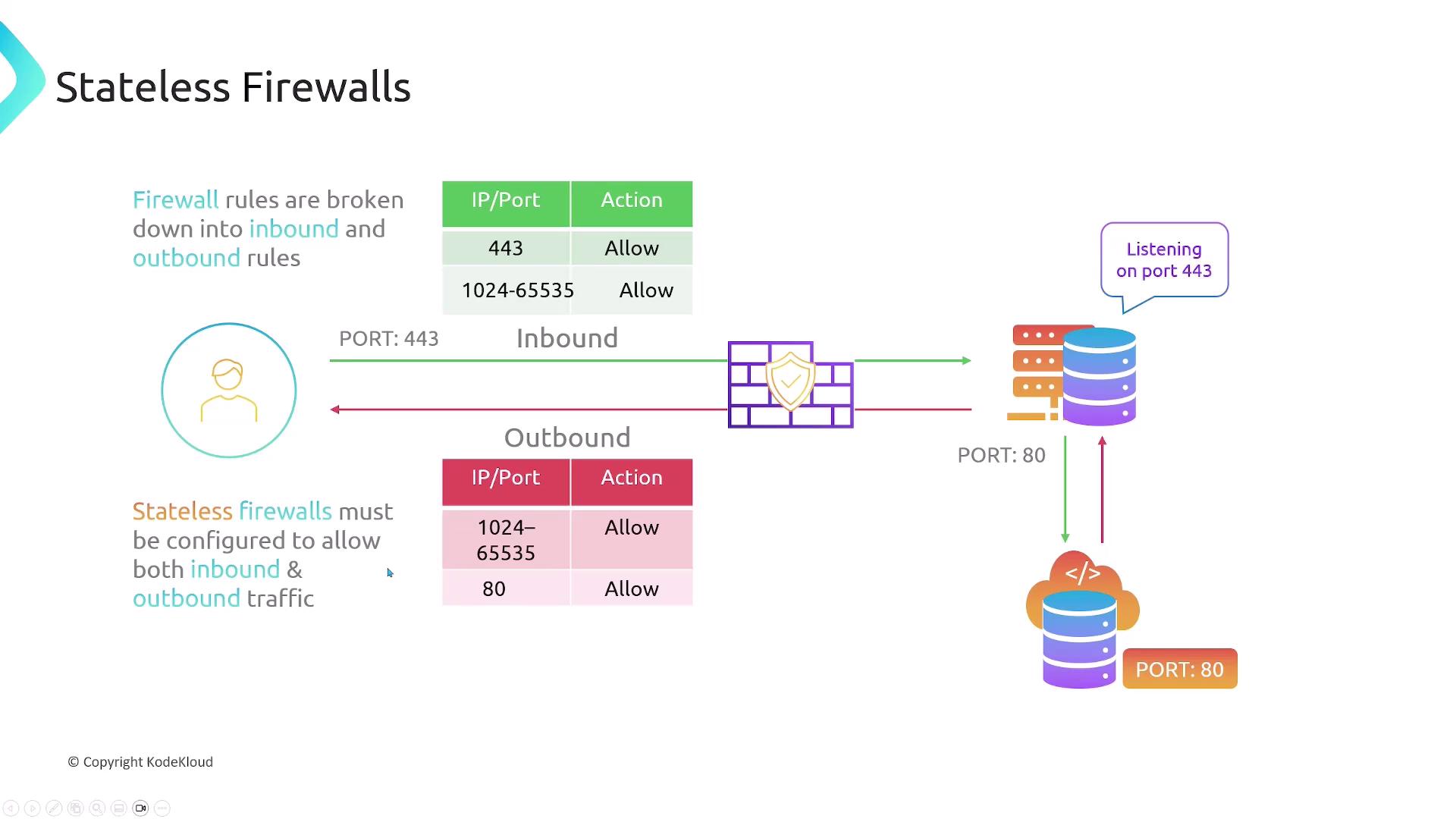

The image illustrates the concept of stateless firewalls, showing how firewall rules are divided into inbound and outbound rules, with specific ports and actions for each. It emphasizes the need for configuration to allow both inbound and outbound traffic.

Stateful Firewalls

Stateful firewalls track connection state. Once you allow an incoming request, the outbound response is automatically permitted (and vice versa).

Using the same web server example:

  • Ingress: Allow TCP 443
  • Egress: No rule needed for ephemeral ports
  • Egress: Allow TCP 80
  • Ingress: No rule needed for ephemeral ports

Note

Stateful filtering simplifies rules management by automatically permitting return traffic.

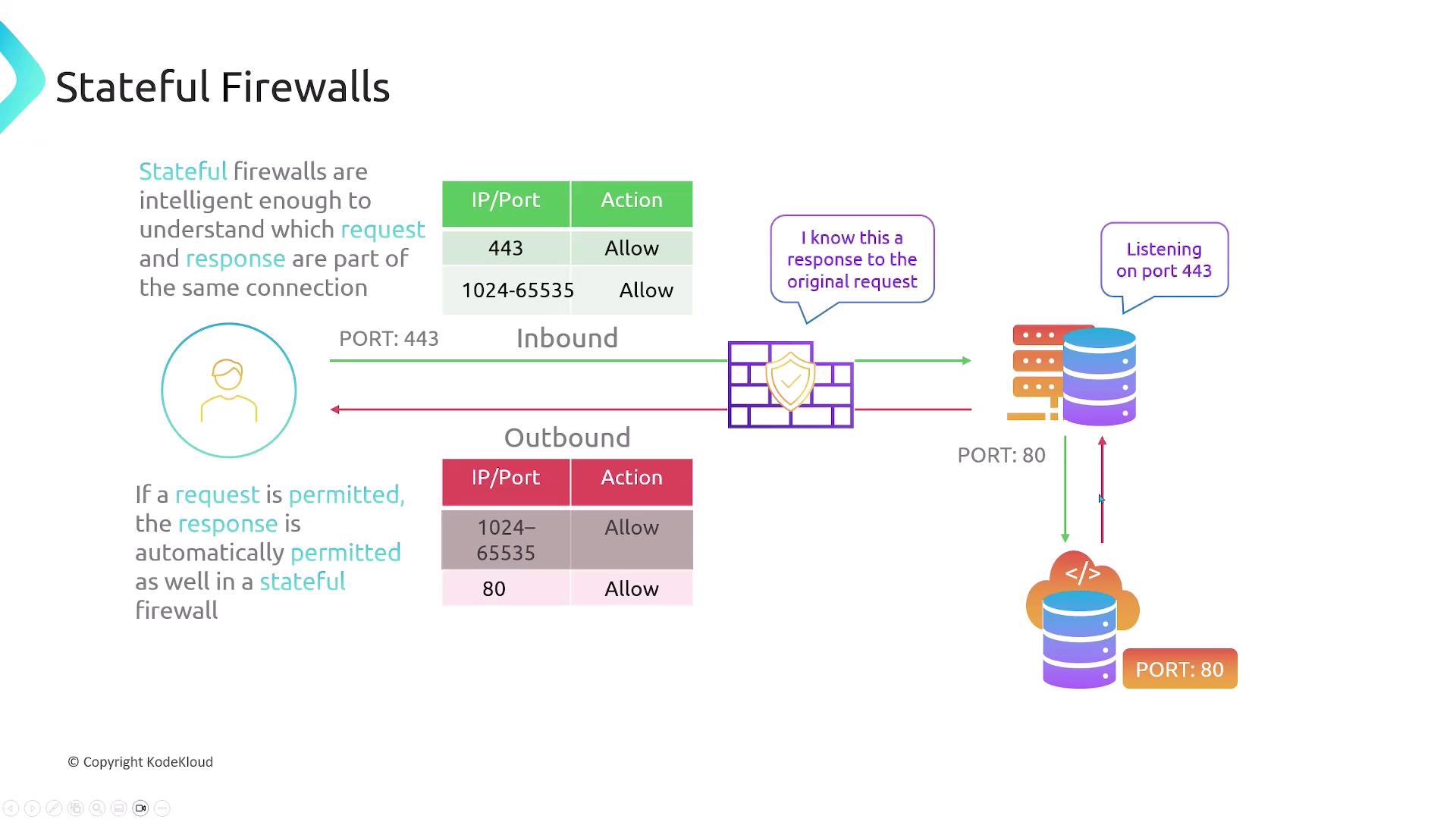

The image explains how stateful firewalls work, showing how they manage inbound and outbound requests and responses by allowing specific IP/port actions.

AWS Network ACLs (NACLs)

A Network ACL filters traffic entering and leaving subnets. Key points:

  • Every subnet must be associated with exactly one NACL.
  • A NACL can apply to multiple subnets.
  • NACLs are stateless: separate ingress/egress rules.
  • They do not filter intra-subnet traffic.

The image explains Network Access Control Lists (NACLs) in a Virtual Private Cloud (VPC), showing how they filter traffic entering and leaving subnets but not within them. It includes a diagram with public and private subnets.

Comparing NACLs vs. Security Groups

FeatureNetwork ACL (Stateless)Security Group (Stateful)
ScopeSubnet-levelInstance/ENI-level
DirectionIngress & Egress rules (explicit)Ingress rules only (egress auto for responses)
Default BehaviorDefault rule: Deny allDefault egress: Allow all; ingress: Deny all
Rule ActionsAllow or DenyAllow only (implicit deny)
Rule Evaluation OrderBy rule number (lowest first)All rules are evaluated; no priority
Stateful TrackingNoYes

AWS Security Groups

Security Groups act as stateful firewalls for individual resources (EC2, RDS, ENIs, etc.):

  • Only the initiating direction is needed; return traffic is auto-allowed.
  • Rules apply per resource, not per subnet.

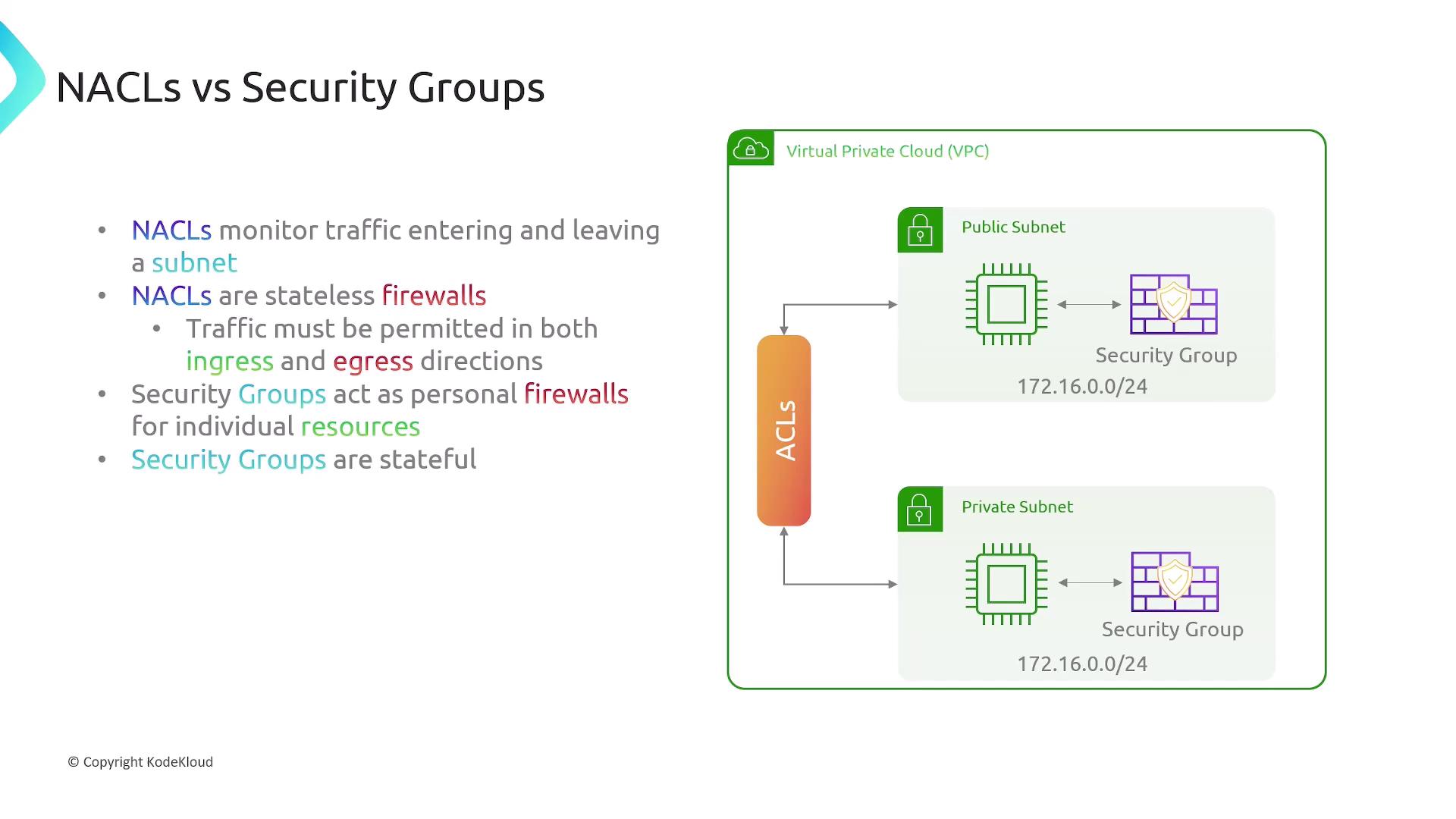

The image compares NACLs and Security Groups, explaining that NACLs are stateless firewalls monitoring traffic for subnets, while Security Groups are stateful and act as personal firewalls for individual resources. It includes a diagram of a Virtual Private Cloud (VPC) with public and private subnets.

Configuring Security Group Rules

In the AWS Console, you define Inbound and Outbound rules separately. The fields are identical but apply in opposite directions.

Inbound rules
┌─────────┬─────────┬───────────┬──────────────┬────────────┐
│ Type    │ Protocol│ Port Range│ Source       │ Description│
├─────────┼─────────┼───────────┼──────────────┼────────────┤
│ HTTP    │ TCP     │ 80        │ 0.0.0.0/0    │ (optional) │
└─────────┴─────────┴───────────┴──────────────┴────────────┘

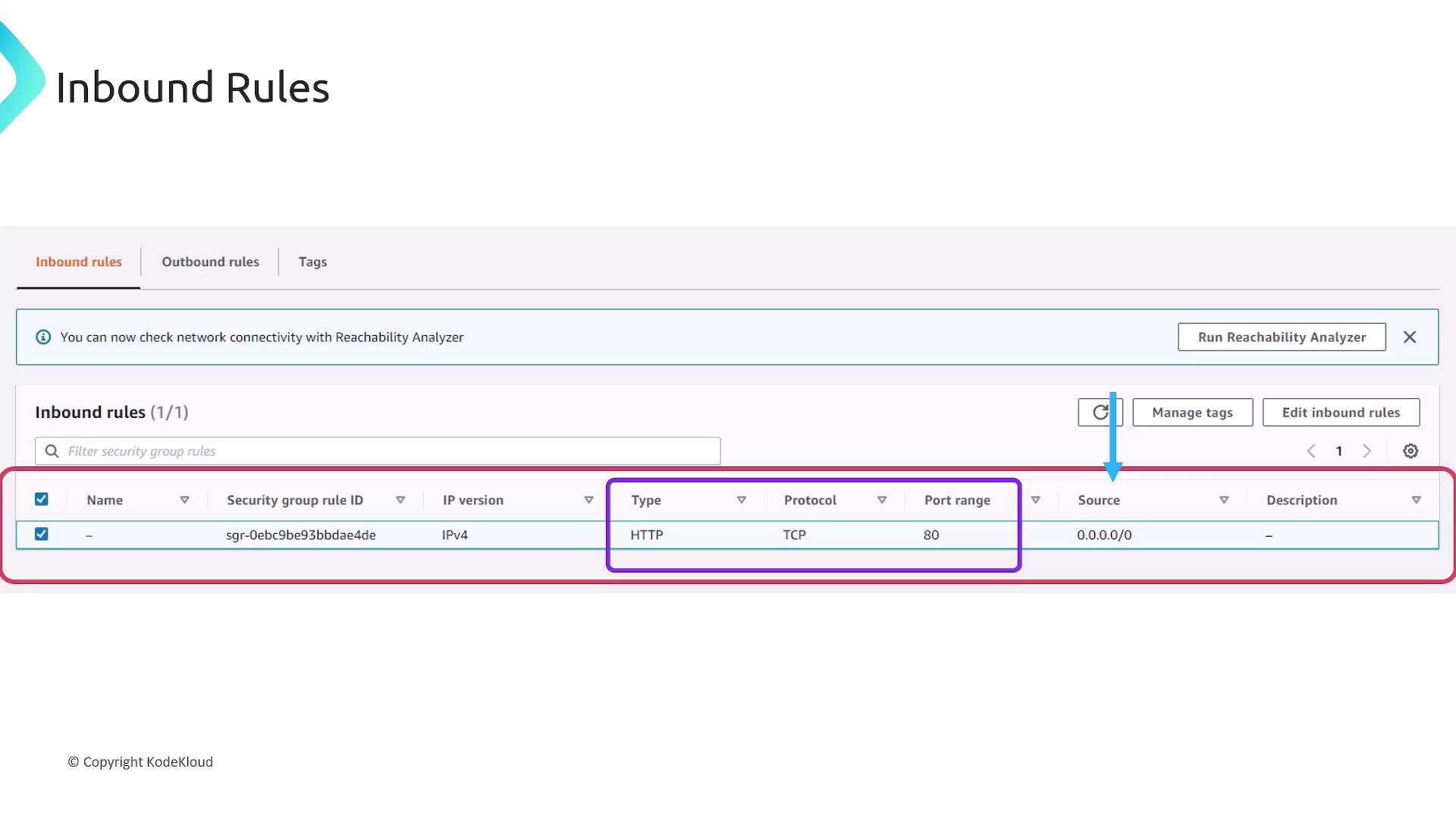

The image shows a screenshot of inbound rules for a security group, allowing HTTP traffic on port 80 from any source (0.0.0.0/0).

Fields you’ll configure:

  • Type: Predefined (HTTP, SSH) or Custom
  • Protocol: TCP, UDP, ICMP, or All
  • Port Range: Single port or port range
  • Source/Destination: CIDR block or security group ID
  • Description: Free-form text

Outbound rules follow the same format:

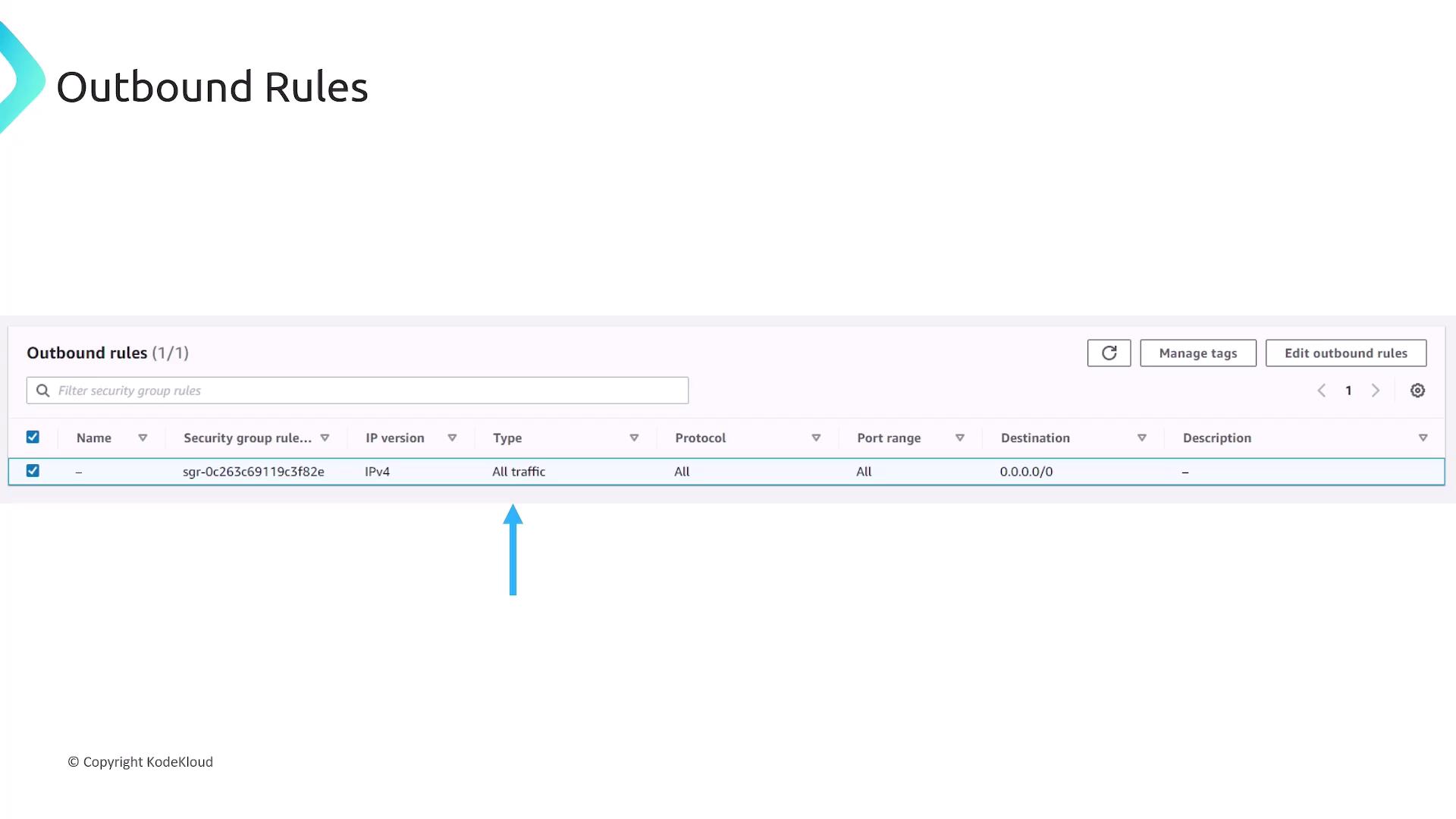

The image shows a table of outbound rules for a security group, allowing all traffic to all destinations (0.0.0.0/0) with IPv4.

Note

If no outbound rules exist, all traffic is blocked by default. Security Groups can only allow traffic; there’s no explicit deny.

The image contains text explaining that security groups block all traffic when no rules are set, and that rules only allow traffic without a deny option.

NACL Rules Example

Every NACL rule includes a rule number (priority), type, protocol, port range, CIDR, and an Allow/Deny action. Rules are processed in ascending order.

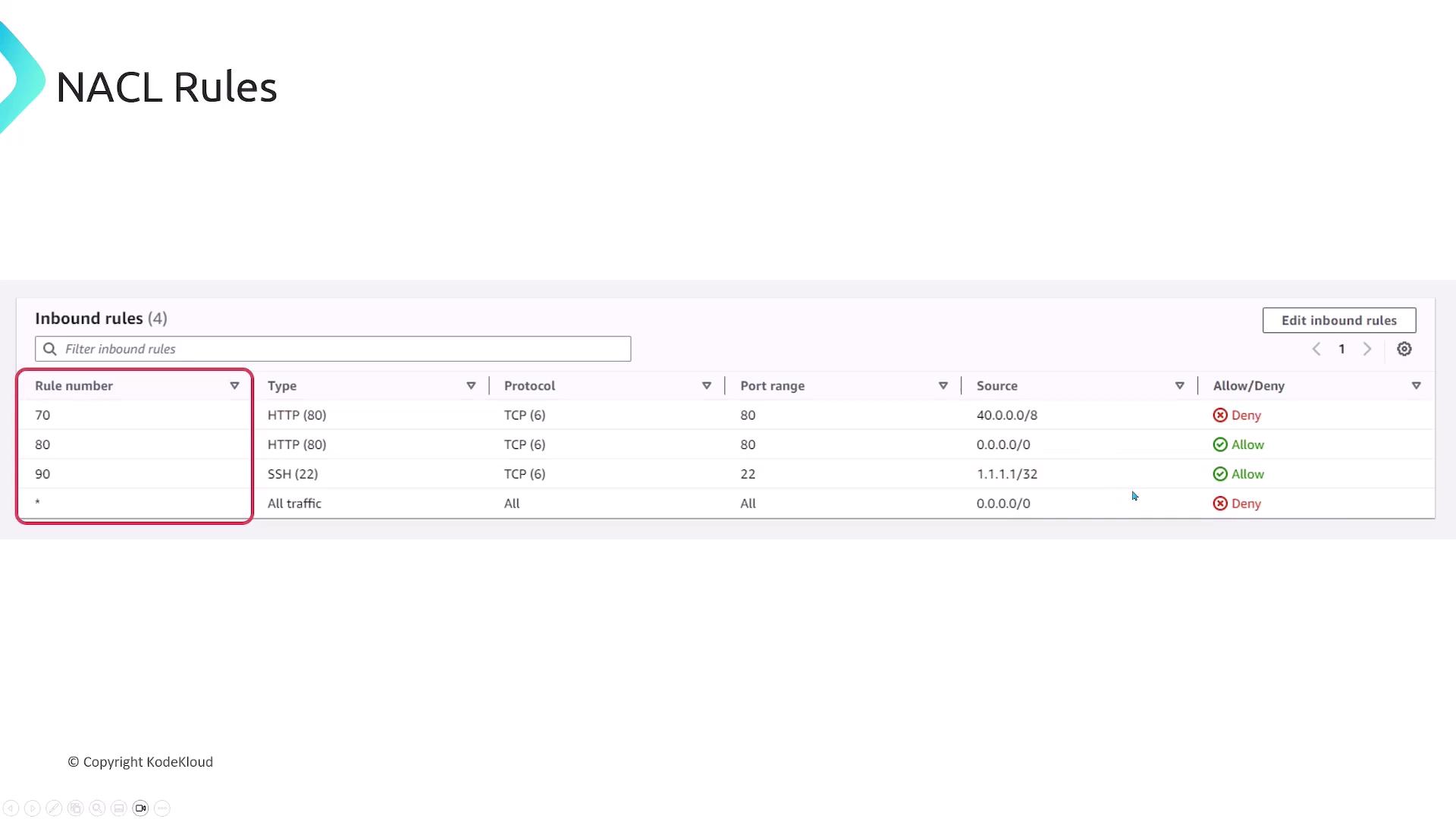

The image shows a table of network ACL (NACL) inbound rules, detailing rule numbers, types, protocols, port ranges, sources, and whether the traffic is allowed or denied.

Multiple Security Groups per Resource

You can attach multiple Security Groups to a single resource. AWS merges all allow rules into one effective policy.

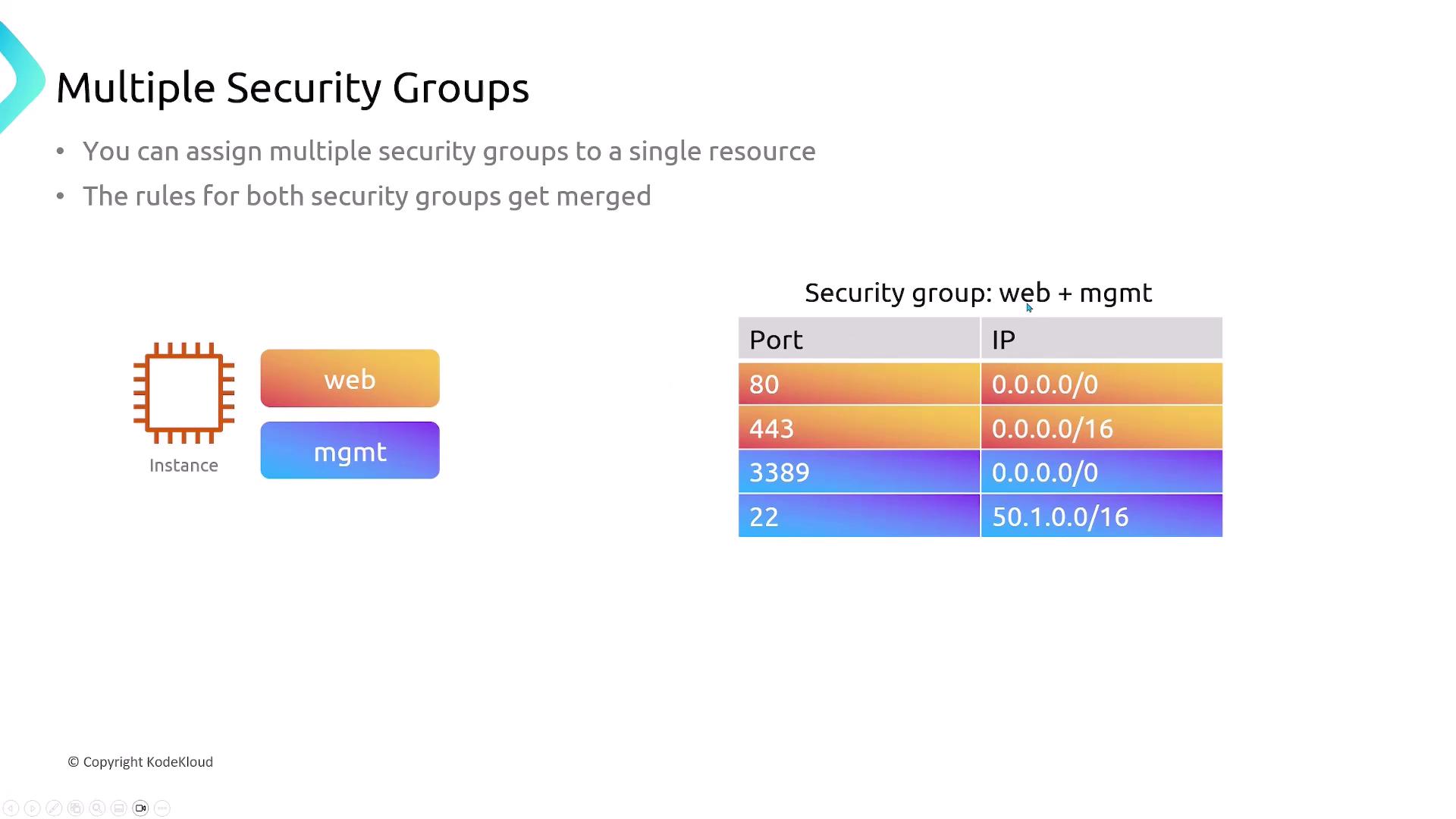

The image explains the concept of multiple security groups, showing how they can be assigned to a single resource with merged rules, and includes a table of ports and IP ranges for a combined "web + mgmt" security group.

Default Behaviors and Associations

The image contains three colored text boxes with information about security groups, subnets, and network ACLs in a VPC. Each box provides a specific detail about default outbound rules, subnet associations, and network ACL limitations.

  • Security Groups: Default egress allows all traffic.
  • NACLs: Each subnet needs one NACL; one-to-many relationship.
  • Associations: Subnet ↔ one NACL; NACL ↔ many subnets.

Traffic Exempt from NACL Filtering

Certain AWS control-plane and metadata endpoints bypass NACLs:

The image lists services and endpoints that are not filtered by Network ACLs, including Amazon DNS, DHCP, EC2 instance metadata, ECS task metadata, Windows license activation, Amazon Time Sync Service, and reserved IP addresses for the default VPC router.

  • Amazon DNS
  • DHCP
  • EC2 Instance Metadata
  • ECS Task Metadata
  • Windows License Activation
  • Amazon Time Sync Service
  • Reserved VPC Router IPs

Summary

The image is a summary slide describing different types of firewalls and network ACLs, highlighting their characteristics and functions. It includes four points about stateless and stateful firewalls and network ACLs.

  • Stateless Firewalls: Require explicit ingress and egress rules.
  • Stateful Firewalls: Automatically permit response traffic.
  • NACLs: Stateless, subnet-level, Allow/Deny capabilities.
  • Security Groups: Stateful, resource-level, Allow-only rules.

The image is a summary slide about security groups, highlighting their role as firewalls, their stateful nature, and how their rules are applied and merged.

  • Applied per ENI/instance; rules are merged across groups.
  • Outbound is wide-open by default.

The image is a summary slide discussing network ACLs in a VPC, highlighting that every subnet must be associated with a network ACL and that a subnet can only be associated with one network ACL at a time.

  • Each subnet requires exactly one NACL.
  • Rules evaluated in numeric order, ending with a catch-all rule.
