This lesson introduces the core building blocks of Kubernetes so you can follow along with hands-on labs and real-world scenarios. While it won’t make you a Kubernetes expert overnight, you’ll gain the foundational knowledge needed to deploy and manage containerized applications. For a deep dive, explore our KodeKloud Kubernetes courses.

​
Kubernetes Architecture

Kubernetes is composed of two primary component groups:
Component GroupKey ComponentsResponsibility
Control Plane- API Server (kube-apiserver)
- etcd
- Controller Manager (kube-controller-manager)
- Scheduler (kube-scheduler)		Orchestrates cluster state and schedules workloads.
Node (Agent) Plane- kubelet
- kube-proxy
- Container Runtime (e.g., containerd, Docker)
- Host Compute & Networking Services (Windows)		Runs Pods and manages networking on each worker node.

​
Control Plane Components

  • API Server (kube-apiserver)
    Exposes the Kubernetes REST API; processes kubectl and other client requests.
  • etcd
    A distributed key-value store holding all cluster state, configuration, and metadata.
  • Controller Manager (kube-controller-manager)
    Runs controllers for replication, node lifecycle, health checks, and more.
  • Scheduler (kube-scheduler)
    Assigns new Pods to nodes based on resource requirements, affinity, and taints/tolerations.

​
Node (Agent) Components

  • kubelet
    Watches the API server for PodSpecs and ensures containers described in those specs are running.
  • kube-proxy
    Implements Service abstraction by programming network rules and load-balancing traffic to Pods.
  • Container Runtime
    The software responsible for pulling images and running containers. On Windows, the CRI integrates with Host Compute Service (HCS) and Host Networking Service (HNS).
In Azure Kubernetes Service (AKS), Azure manages the entire control plane for you. You only need to provision and maintain the worker nodes (agents), streamlining cluster operations.

​
Component Interaction: Creating a Deployment

When you run a command like:
kubectl create deployment nginx --image=nginx
Kubernetes executes the following workflow:
  1. kubectl → API Server
    Sends the Deployment manifest via the Kubernetes API.
  2. API Server → etcd
    Validates and persists the Deployment object.
  3. Deployment Controller
    Detects the new Deployment and creates a ReplicaSet.
  4. ReplicaSet Controller
    Observes the ReplicaSet and launches the desired number of Pods.
  5. Scheduler
    Assigns each unscheduled Pod to an appropriate node.
  6. kubelet
    Retrieves PodSpecs, then invokes the Container Runtime Interface (CRI) to start containers and the Container Network Interface (CNI) to configure networking.
  7. Container Runtime → Host Services (Windows-specific)
    • Calls HCS to instantiate the container.
    • Calls HNS to establish network endpoints.
  8. kube-proxy
    Monitors new Services and Endpoints, programming load-balancing and network rules so traffic reaches the correct Pods.

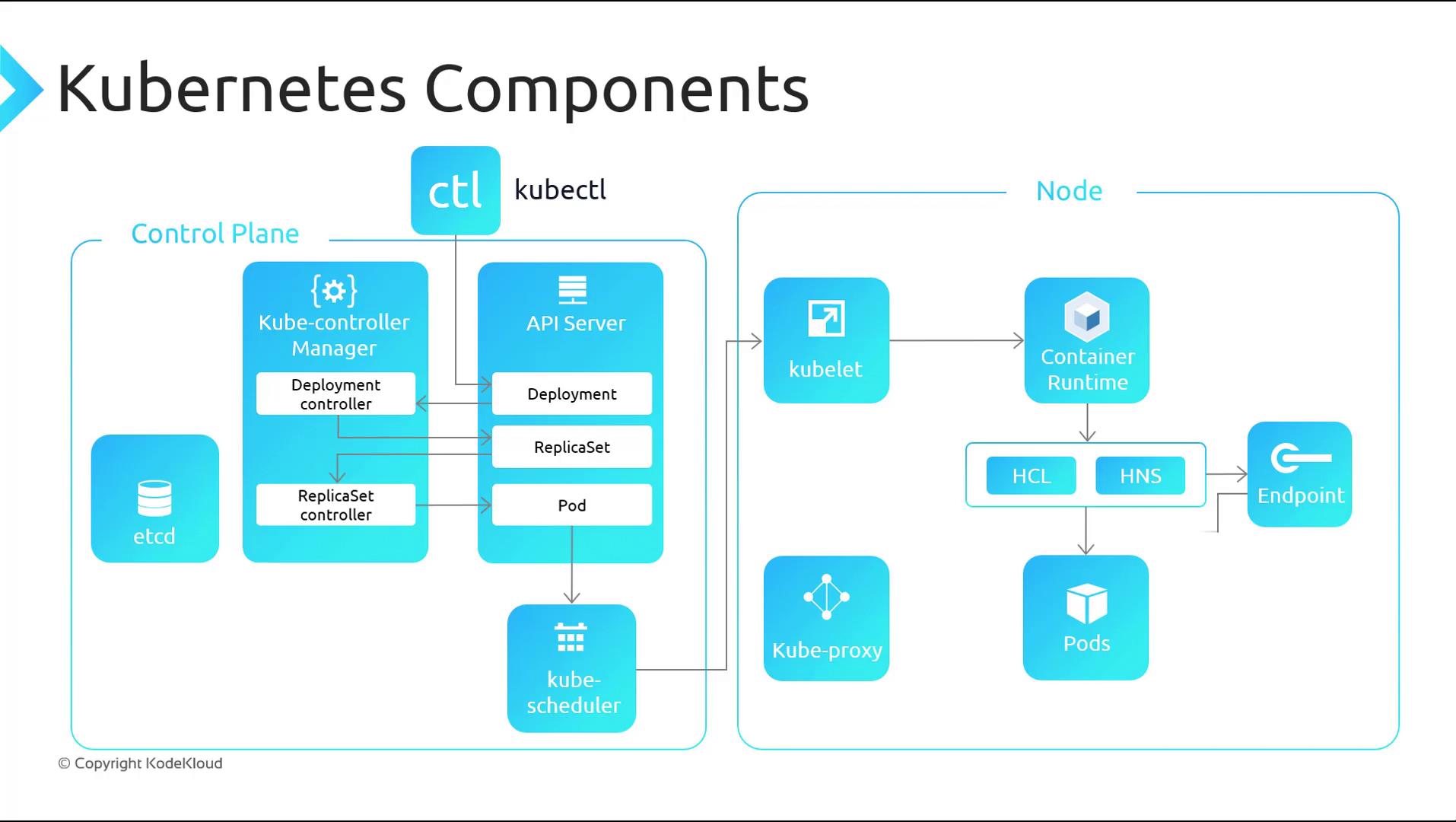

Below is a diagram illustrating how the control plane and node components collaborate during a Deployment:
The image is a diagram illustrating the components of Kubernetes, showing the control plane and node elements, including kube-controller manager, API server, kube-scheduler, kubelet, and container runtime.

​
Next Steps

With a solid grasp of Kubernetes core components and their interplay, you’re ready to:
  • Deploy a Kubernetes cluster in Azure using AKS
  • Explore workload objects (Deployments, StatefulSets, DaemonSets)
  • Configure Services, Ingress, and network policies
  • Implement scaling, self-healing, and rollouts
