Welcome to this comprehensive guide on securing your Kubernetes cluster using TLS certificates. In this lesson, we cover the fundamentals of public and private keys, the role of certificate authorities (CA), and how both server and client certificates are employed to safeguard connections within your cluster.

Naming Conventions

Certificate files follow specific naming conventions. Public key certificates typically have a .crt or .pem extension (e.g., server.crt, server.pem, client.crt, client.pem). In contrast, private keys usually include the word "key" in their file name or extension (e.g., server.key or server-key.pem). If a file name lacks "key," it is almost certainly a public key certificate.

TLS Certificates in the Kubernetes Cluster

A Kubernetes cluster consists of master and worker nodes that require secure, encrypted communication. Whether the connection is being made by an administrator using the kubectl utility or directly interacting with the Kubernetes API, a secure TLS connection is essential. Additionally, services within the cluster use server certificates to secure their communications, while client certificates authenticate users or other cluster components.

Kubernetes Components and Their Certificates

Below is an overview of the main Kubernetes components and the associated certificate configurations:

Kube API Server
The API server exposes an HTTPS service for managing the cluster. It acts as a server and requires its own certificate and key pair (e.g., api-server.crt and api-server.key).
Note: Certificate names may vary based on your cluster setup.
ETCD Server
Serving as the datastore for all cluster information, ETCD requires a unique pair of certificates and keys (e.g., etcd-server.crt and etcd-server.key).
Kubelet on Worker Nodes
On each worker node, the kubelet service exposes an HTTPS endpoint that communicates with the API server for monitoring and management. This service uses its own certificate and key pair (typically named kubelet.cert and kubelet.key).

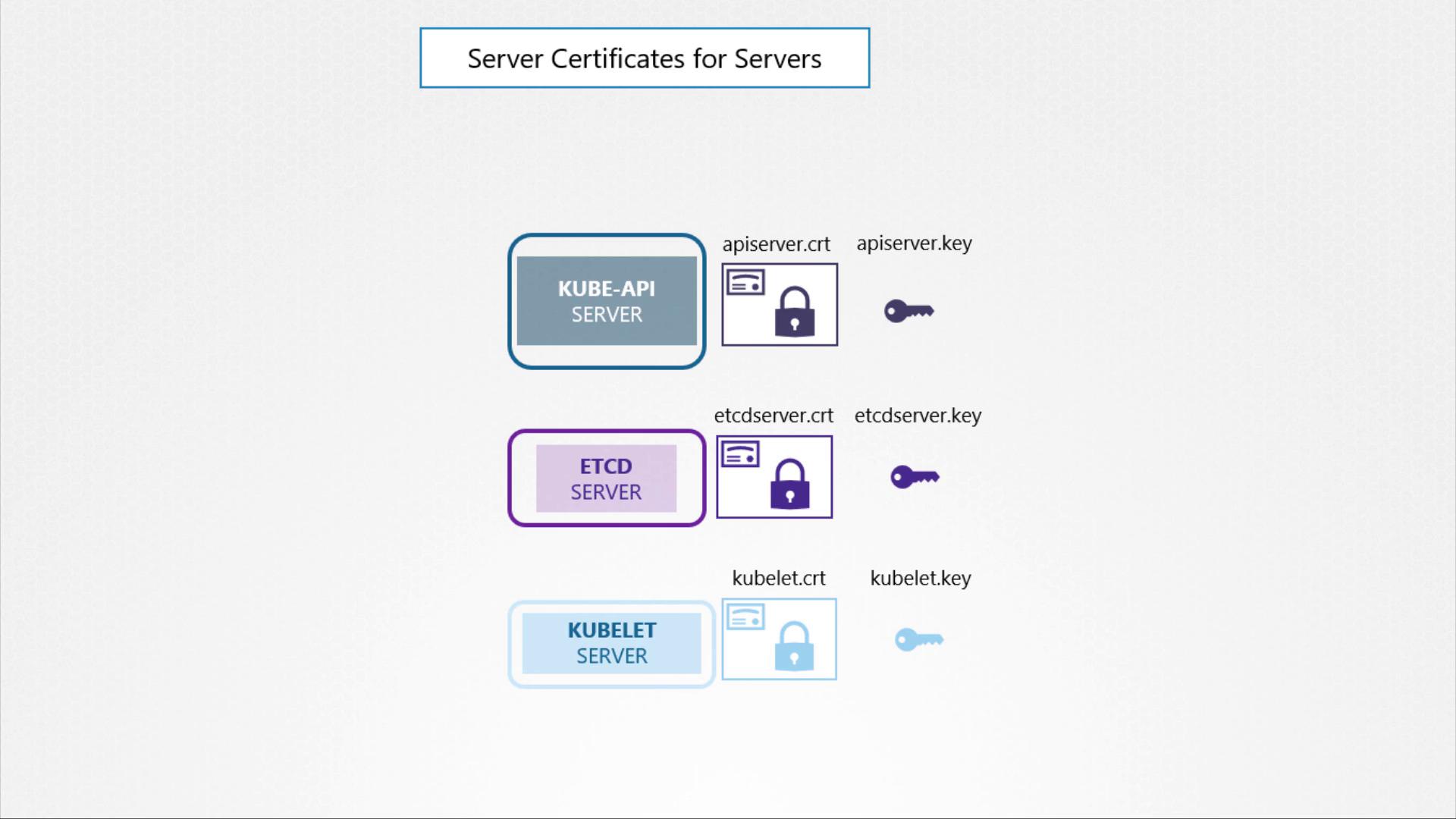

The image illustrates server certificates for Kube-API, ETCD, and Kubelet servers, showing their respective certificate and key files.

Client Components and Their Certificates

Several components operate as clients and require authentication when connecting to the Kube API Server:

Administrator (kubectl/REST API)
The admin user employs a client certificate and key pair (e.g., admin.crt and admin.key) to establish a secure connection to the API server.
Scheduler
Managing pod scheduling, the scheduler requires its own client certificate (e.g., scheduler.crt and scheduler.key) to interact with the API server.
Kube Controller Manager
This component also utilizes a dedicated certificate pair for authenticating its requests to the API server.
Kube Proxy
Handling network routing within the cluster, the kube proxy uses a client certificate (generally named kube-proxy.crt and kube-proxy.key) for secure communications with the API server.

The Kube API Server facilitates secure communications with both the ETCD server and the kubelets. For instance, when connecting to the ETCD server, the API server can either reuse its HTTPS service certificates or use a dedicated certificate pair. Likewise, interactions with kubelets can leverage either the API server’s default certificate pair or a separately generated set of certificates.

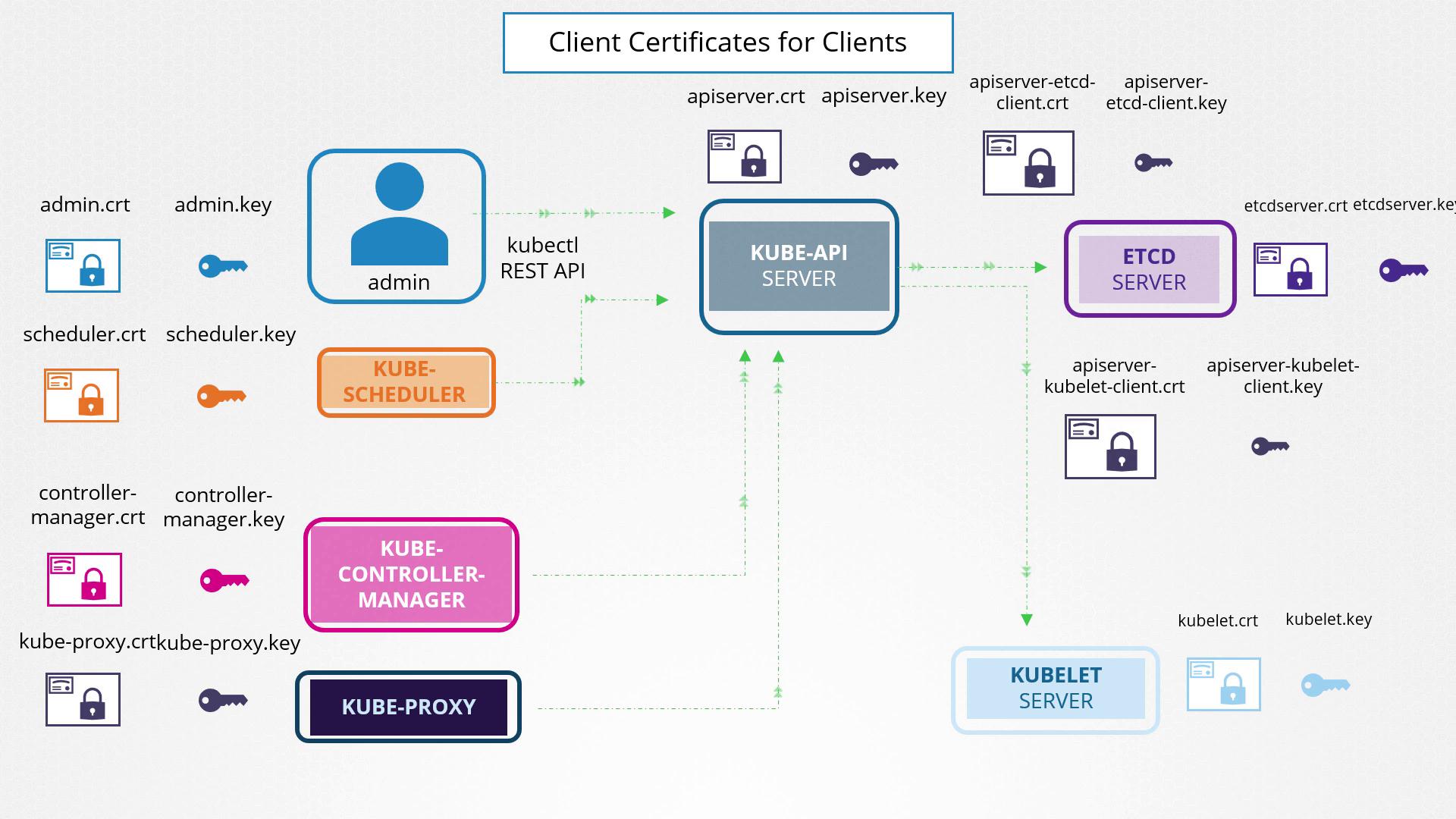

The image illustrates the client certificates and keys used for authentication between Kubernetes components like Kube-API Server, ETCD Server, Kube-Scheduler, and others.

Grouping Certificates for Enhanced Management

For easier certificate management, you can group TLS certificates into two main categories:

Category	Usage
Client Certificates	Used by components (e.g., admin, scheduler, controller manager, kube-proxy) to authenticate with the API server.
Server Certificates	Used by server components (e.g., Kube API Server, ETCD Server, kubelet) to secure their services.

Utilizing a Certificate Authority (CA)

All certificates must be signed by a Certificate Authority. Kubernetes clusters require at least one CA, though multiple CAs may be used for additional segregation (for example, one CA for general cluster services and another exclusively for ETCD). In this guide, we use a single CA for simplicity. The CA itself has a certificate and key pair, typically named CA.crt and CA.key.

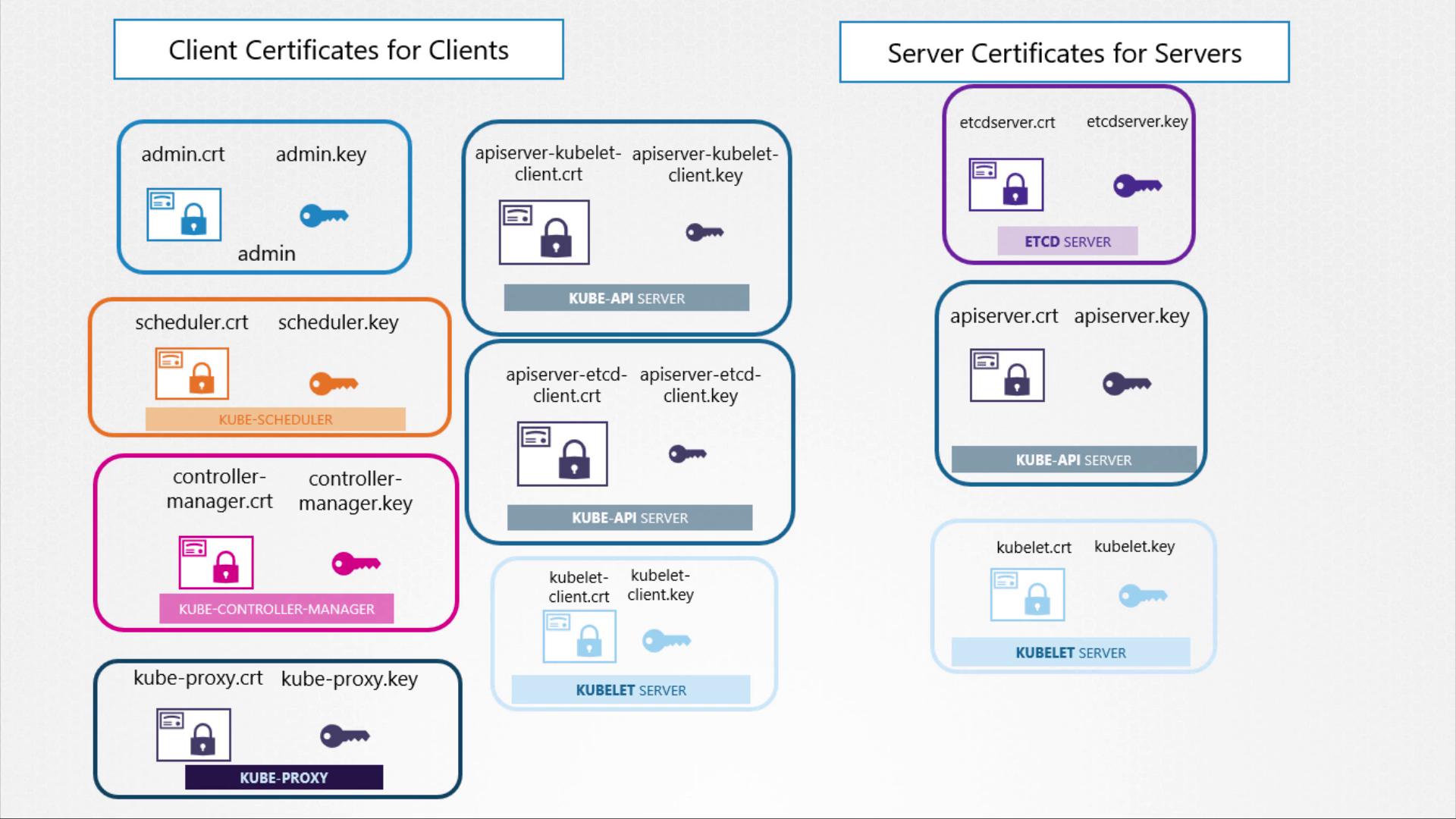

The image illustrates client and server certificates for Kubernetes components, including admin, scheduler, controller-manager, kube-proxy, etcd, kube-api, and kubelet servers.

This overview on TLS certificates in Kubernetes sets the foundation for generating and managing these certificates to secure your cluster communications effectively. Happy securing!
