Demo Customizing UI Theme

In this lesson, we'll walk through creating a custom UI theme for Backstage. By default, Backstage ships with a standard design, but you can easily tailor color palettes, typography, and other style options to match your organization's brand.

Theming Utilities from @backstage/theme

Backstage provides a powerful theming API via the @backstage/theme package. The key exports include:

import {
  createBaseThemeOptions,
  createUnifiedTheme,
  palettes,
} from '@backstage/theme';

1. Defining a Custom Theme

Follow these steps to create a new theme file:

1. Navigate to packages/app/src in your Backstage project.
2. Create a theme folder if it doesn't already exist.
3. Inside theme, add a file named my-theme.ts:

// packages/app/src/theme/my-theme.ts
import {
  createBaseThemeOptions,
  createUnifiedTheme,
  palettes,
} from '@backstage/theme';

export const myTheme = createUnifiedTheme({
  ...createBaseThemeOptions({
    palette: palettes.light,
  }),
  fontFamily: 'Comic Sans MS',
  defaultPageTheme: 'home',
});

This configuration:

• Spreads the light palette from palettes.light.
• Overrides the default fontFamily to 'Comic Sans MS'.
• Sets defaultPageTheme to 'home'.

2. Applying Your Custom Theme in App.tsx

To register and activate your new theme, update the createApp call in packages/app/src/App.tsx:

// packages/app/src/App.tsx
import React from 'react';
import { createApp } from '@backstage/app-defaults';
import { UnifiedThemeProvider } from '@backstage/theme';
import { LightIcon } from '@backstage/core-components';
import { myTheme } from './theme/my-theme';

const app = createApp({
  themes: [
    {
      id: 'my-theme',
      title: 'My Custom Theme',
      variant: 'light',
      icon: <LightIcon />,
      Provider: ({ children }) => (
        <UnifiedThemeProvider theme={myTheme}>
          {children}
        </UnifiedThemeProvider>
      ),
    },
  ],
  apis,
  bindRoutes({ bind }) {
    // your routes here
  },
});

Key properties in the theme config:

• id: A unique identifier (e.g., my-theme).
• title: Display name in the UI theme selector.
• variant: Choose 'light' or 'dark'.
• icon: React element shown next to the theme name.
• Provider: Wraps the application in <UnifiedThemeProvider theme={myTheme}>.

After saving, the UI should instantly reflect your new font and default page theme.

3. Creating a More Colorful “Fun” Theme

You can further customize palette attributes (primary, secondary, navigation) as shown:

// packages/app/src/theme/fun-theme.ts
import {
  createBaseThemeOptions,
  createUnifiedTheme,
  palettes,
} from '@backstage/theme';

export const funTheme = createUnifiedTheme({
  ...createBaseThemeOptions({
    palette: {
      ...palettes.light,
      mode: 'light',
      primary: { main: '#e03077' },
      secondary: { main: '#f50057' },
      navigation: {
        // Define custom navigation colors here
      },
    },
  }),
});

Then register funTheme in your App.tsx:

import { funTheme } from './theme/fun-theme';

const app = createApp({
  themes: [
    {
      id: 'fun-theme',
      title: 'Fun Theme',
      variant: 'light',
      icon: <LightIcon />,
      Provider: ({ children }) => (
        <UnifiedThemeProvider theme={funTheme}>
          {children}
        </UnifiedThemeProvider>
      ),
    },
  ],
  // ...
});

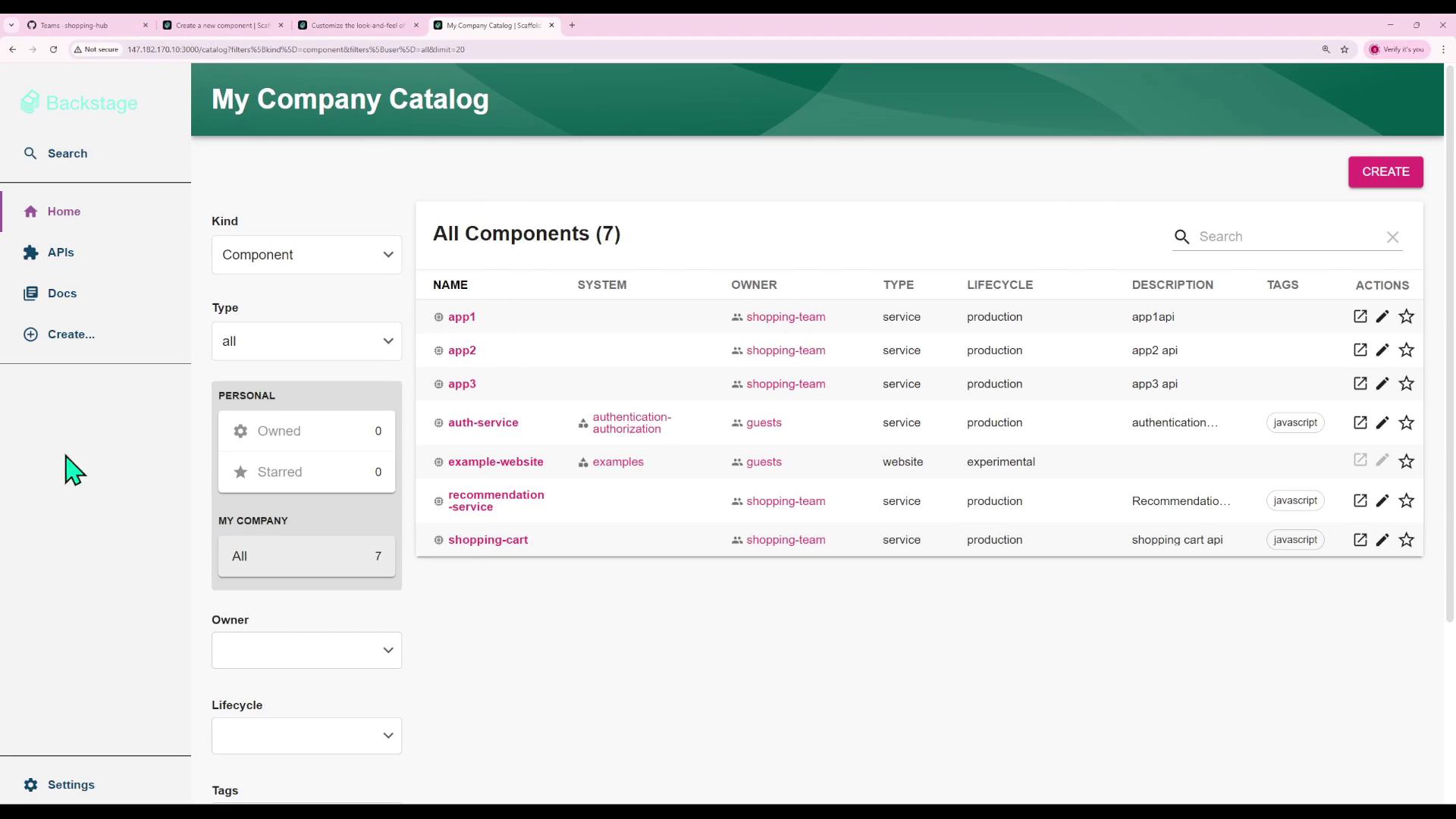

Preview of Custom Theme

Upon refreshing the UI, your custom colors are applied across Backstage:

References

• Backstage Theming Documentation
• @backstage/theme on npm
• Backstage App Defaults
