Certified Kubernetes Application Developer - CKAD

Core Concepts

Solution Imperative Commands optional

In this lesson, we walk you through a series of hands-on tasks using imperative commands in Kubernetes. These exercises reinforce concepts and help you prepare for your exam by showcasing how to create and manage Kubernetes objects on the fly using the kubectl command-line tool.


Deploying an Nginx Pod

Start by deploying a pod named "nginx-pod" using the nginx Alpine image with the following command:

kubectl run nginx-pod --image=nginx:alpine

If successful, your terminal will output something similar to:

pod/nginx-pod created

Deploying a Redis Pod with Labels

Next, create a Redis pod using the Redis Alpine image and assign it a label (tier=db) to facilitate later operations like service selection:

kubectl run redis --image=redis:alpine --labels=tier=db

This command creates the Redis pod with the specified label.

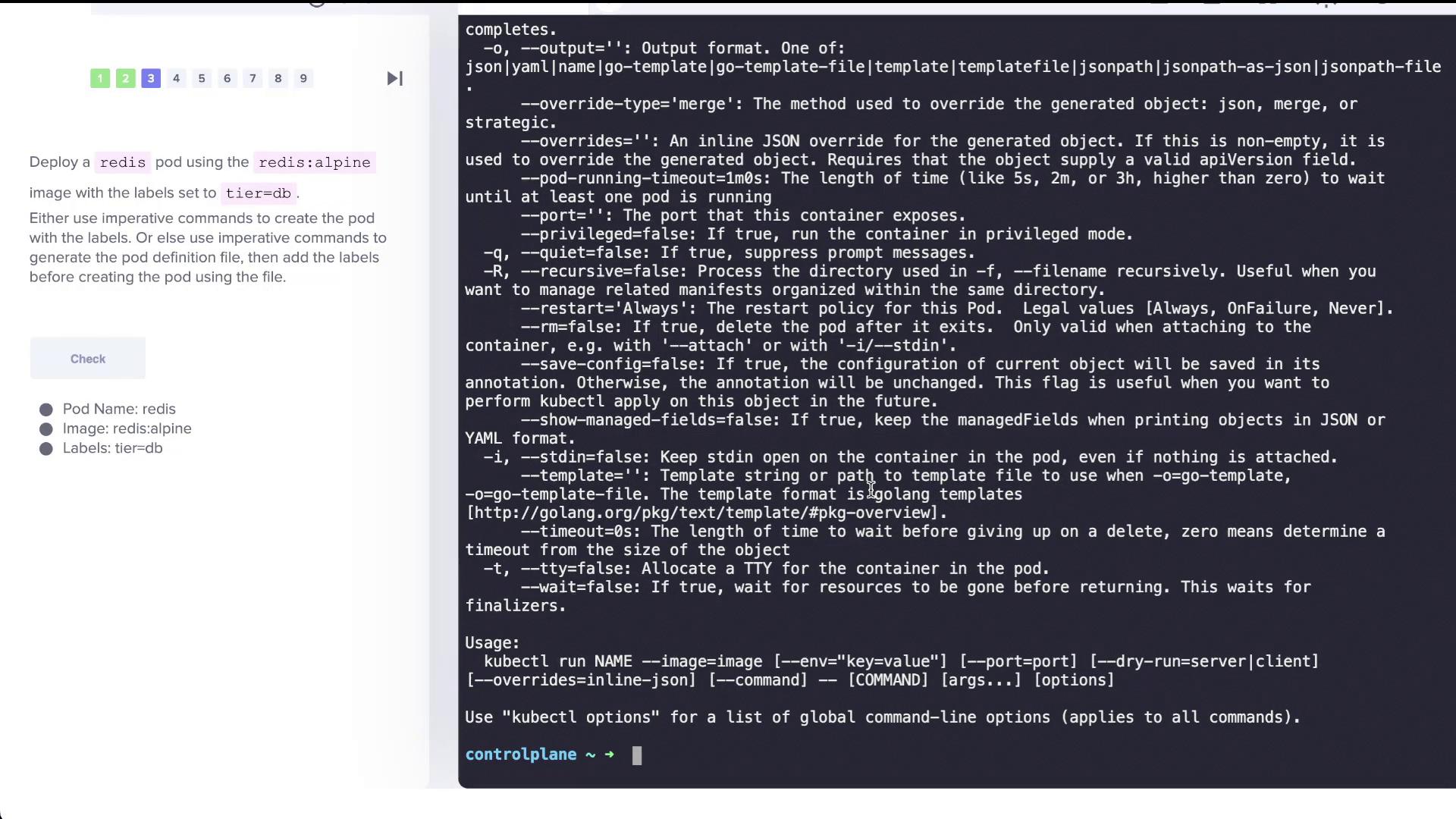

The image shows a Kubernetes task to deploy a Redis pod using the `redis:alpine` image with specific labels, alongside command-line options for `kubectl`.


Creating a Redis Service

Expose the Redis pod within the cluster by creating a service called "redis-service" on port 6379. We recommend using the kubectl expose command as it automatically detects pod labels to configure selectors.

Run the following command to expose the pod:

kubectl expose pod redis --port=6379 --name=redis-service

This command creates a ClusterIP service that routes traffic to your Redis pod. To verify the service, execute:

kubectl get svc

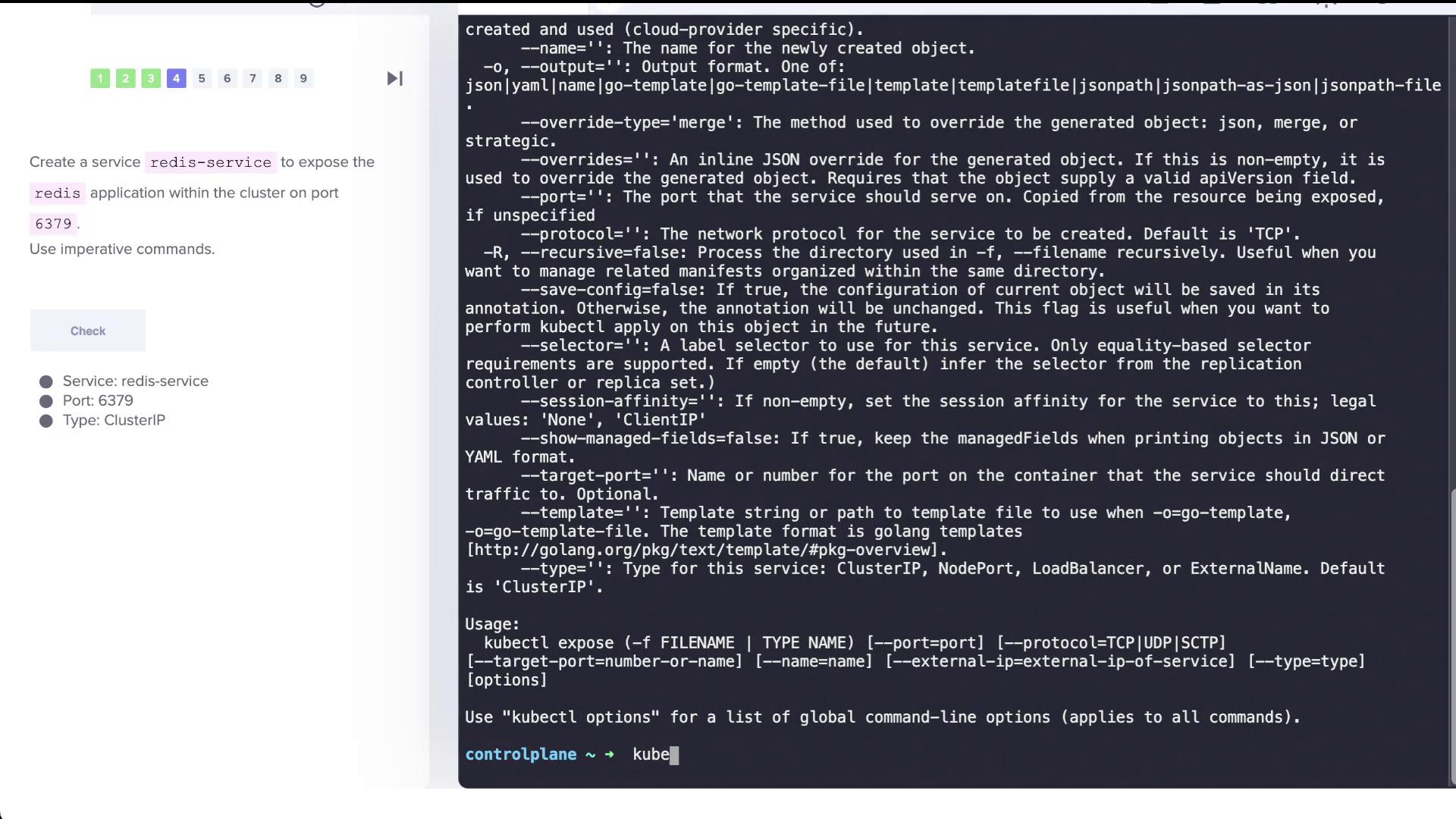

The image shows a Kubernetes command-line interface with instructions to create a Redis service using imperative commands, specifying service name, port, and type.


Creating a Deployment for a Web Application

Now, create a deployment named "webapp" with a specified image and scale it to three replicas using the following command:

kubectl create deployment webapp --image=<your-image> --replicas=3

After deploying, verify that all replicas are running correctly by checking the deployment status.

Note

Ensure you use the correct number of dashes when specifying replica count to avoid syntax errors.


Creating a Custom Nginx Pod with a Specific Port

Create a pod named "custom-nginx" with the nginx image and set up the container to listen on port 8080:

kubectl run custom-nginx --image=nginx --port=8080

This command configures the container’s port to 8080. Check the pod’s configuration to confirm it is running with the correct port settings.


Creating a New Namespace

To isolate your resources, create a new namespace called "dev-ns":

kubectl create namespace dev-ns

You should see a confirmation message similar to:

namespace/dev-ns created

Creating a Redis Deployment in the "dev-ns" Namespace

Within the "dev-ns" namespace, deploy a Redis application with two replicas by running:

kubectl create deployment redis-deploy --image=redis --replicas=2 -n dev-ns

Verify the deployment with:

kubectl get deployment -n dev-ns

Expected output:

NAME           READY   UP-TO-DATE   AVAILABLE   AGE
redis-deploy   2/2     2            2           12s

Creating a Pod and Exposing It as a Service in a Single Command

For the final task, create a pod named "httpd" using the httpd Alpine image and simultaneously expose it as a ClusterIP service on port 80. You can accomplish this in a single step:

kubectl run httpd --image=httpd:alpine --port=80 --expose

This command does the following:

  • Creates a pod named "httpd".
  • Exposes the pod by creating a corresponding ClusterIP service on port 80.

Verify both the pod and service with:

kubectl get pod
kubectl get svc

For a detailed view of the service configuration, run:

kubectl describe svc httpd

The output will include details such as the selector (e.g., "run=httpd") and the endpoint configurations, ensuring that the service is properly set up to expose the pod on port 80.


Verification Commands

After completing the above tasks, use the following commands to check the status of your pods and services:

  1. To list all pods:

    kubectl get pod


    An example output might look like:

    NAME                       READY   STATUS    RESTARTS   AGE
    nginx-pod                  1/1     Running   0          12m
    redis                      1/1     Running   0          10m
    webapp-7b59bf687d-n7xxp    1/1     Running   0          5m4s
    webapp-7b59bf687d-rds95    1/1     Running   0          5m4s
    webapp-7b59bf687d-4gqmt    1/1     Running   0          5m4s
    custom-nginx               1/1     Running   0          3m41s
    httpd                      1/1     Running   0          8s

  2. To list all services:

    kubectl get svc


    Sample output:

    NAME            TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)       AGE
    kubernetes      ClusterIP   10.43.0.1       <none>        443/TCP       20m
    redis-service   ClusterIP   10.43.56.187    <none>        6379/TCP      6m35s
    httpd           ClusterIP   10.43.112.233   <none>        80/TCP        15s

  3. To describe the httpd service in detail:

    kubectl describe svc httpd


    You should see output detailing the service configuration, such as:

    Name:              httpd
    Namespace:         default
    Labels:            <none>
    Annotations:       <none>
    Selector:          run=httpd
    Type:              ClusterIP
    IP Family Policy:  SingleStack
    IP Families:       IPv4
    IP:                10.43.112.233
    IPs:               10.43.112.233
    Port:              <unset>  80/TCP
    TargetPort:       80/TCP
    Endpoints:        10.0.2.17:80
    Session Affinity:  None
    Events:           <none>


This confirms that the "httpd" service is correctly exposing the corresponding pod on port 80.


This concludes the lab on imperative commands for deploying and exposing Kubernetes objects. Each command illustrates a practical approach to managing pods, deployments, and services, providing valuable hands-on experience for your journey toward becoming a certified Kubernetes professional. Happy practicing!
