Solution Admission Controllers

In this lesson, we will walk through the solutions for the admission controllers lab, explaining each step and providing the necessary commands and configuration snippets.

Understanding Admission Controller Functions

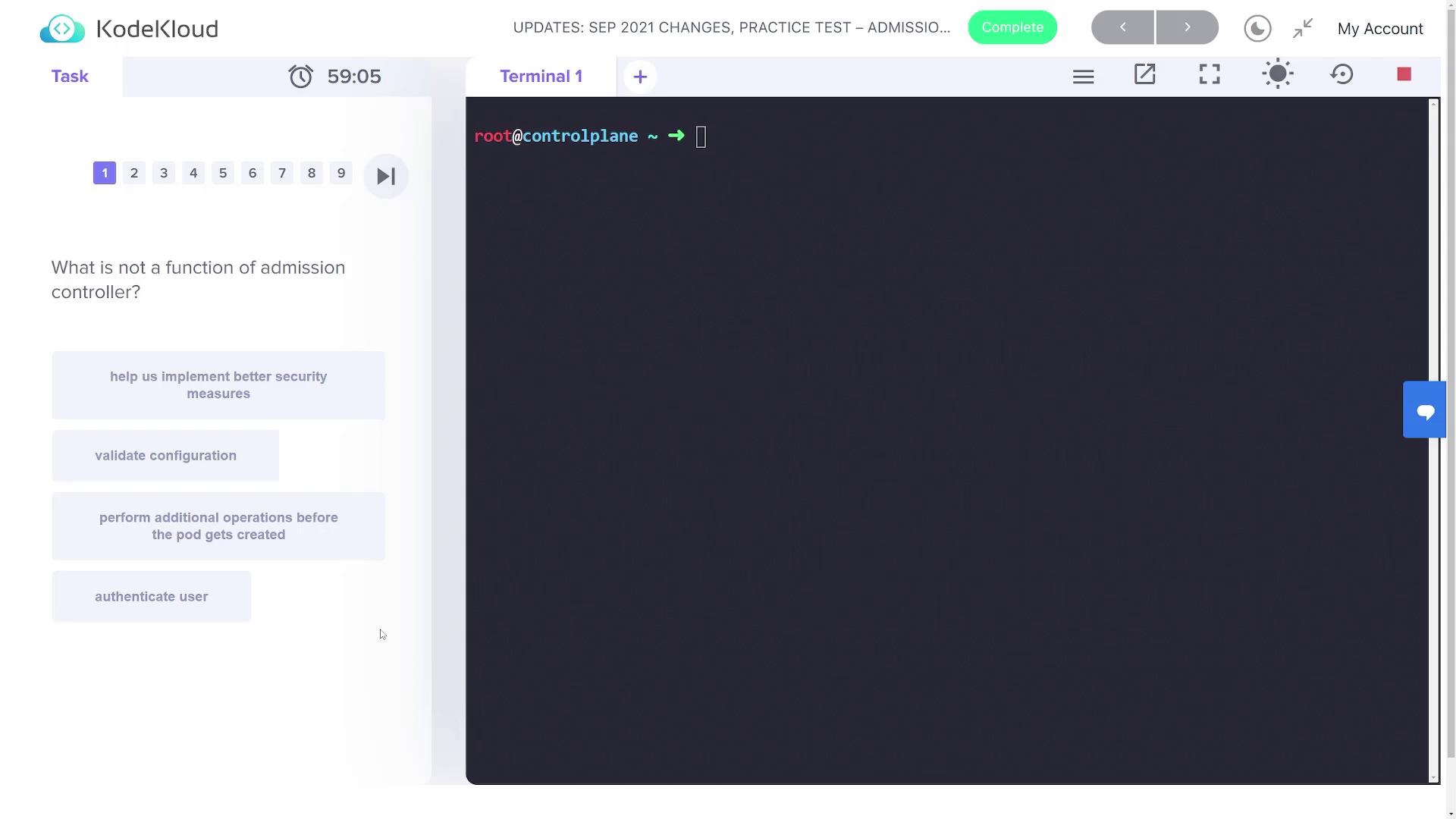

For the first question, you need to determine which option is NOT a function of admission controllers. The correct answer is "authenticate users" because admission controllers operate after authentication has already taken place; they do not handle user authentication.

root@controlplane ~  []

Verifying Enabled Admission Controllers

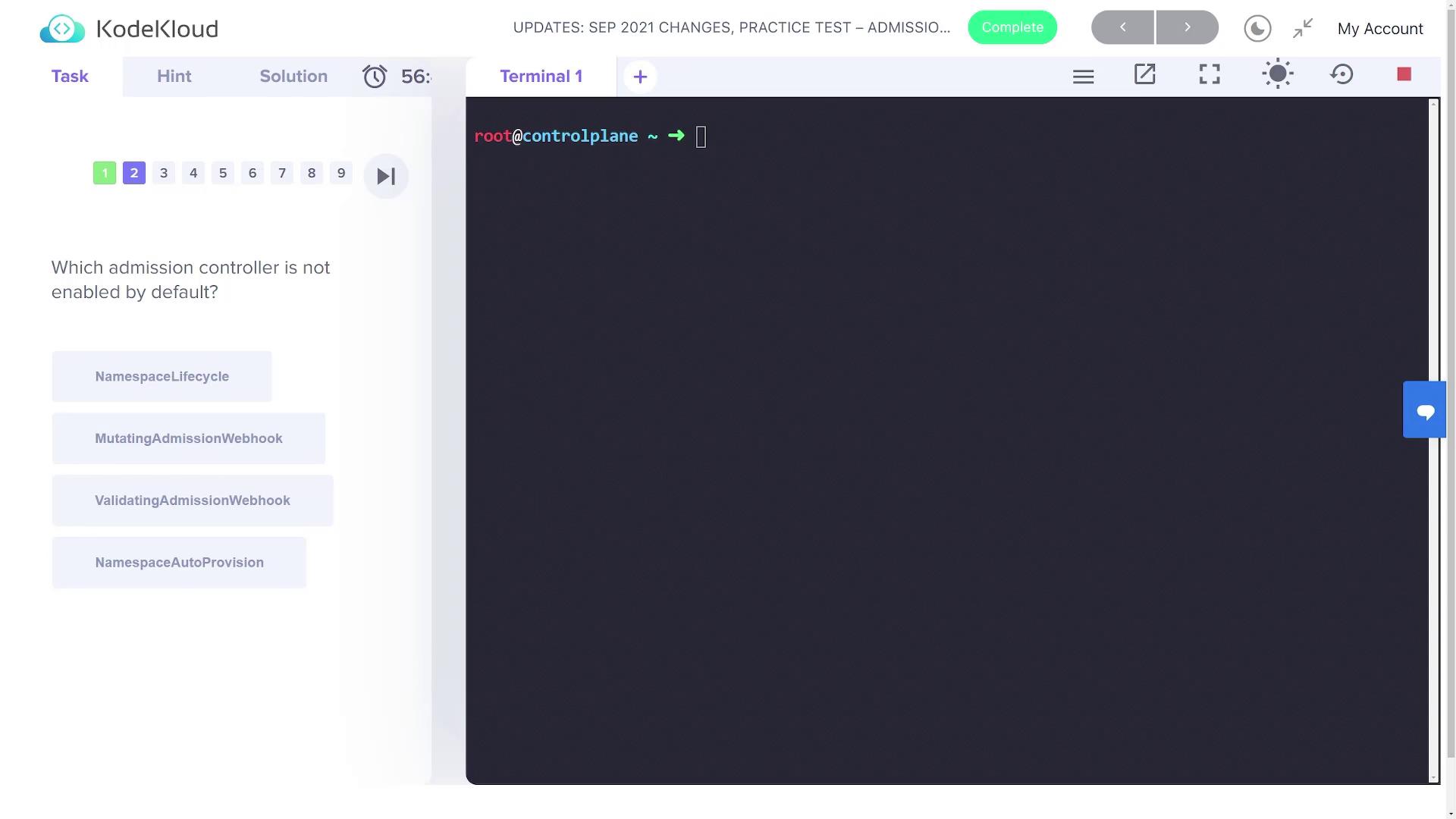

The next question asks which admission controller is not enabled by default. To find out, start by listing the pods in the kube-system namespace using the following command:

root@controlplane ~ ➜ kubectl get pods -n kube-system
NAME                                         READY   STATUS    RESTARTS   AGE
coredns-74ff55c5b-88v8r                       1/1     Running   0          38m
coredns-74ff55c5b-tng7p                       1/1     Running   0          38m
etcd-controlplane                            1/1     Running   0          38m
kube-apiserver-controlplane                  1/1     Running   0          38m
kube-controller-manager-controlplane         1/1     Running   0          38m
kube-flannel-ds-wzlpx                         1/1     Running   0          38m
kube-proxy-hccb9                             1/1     Running   0          38m
kube-scheduler-controlplane                  1/1     Running   0          38m

Next, run this command to check the enabled admission plugins:

root@controlplane ~ ➜ kubectl exec -it kube-apiserver-controlplane -n kube-system -- kube-apiserver -h | grep 'enable-admission-pl'

The output lists default enabled plugins like NamespaceLifecycle, LimitRanger, ServiceAccount, among others. Notice that "namespace auto-provision" is not listed. Also, verifying the enabled webhooks gives you the following output:

root@controlplane ~ ➜ kubectl exec -it kube-apiserver-controlplane -n kube-system -- kube-apiserver -h | grep 'enable-admission-plugins'
--enable-admission-plugins strings   admission plugins that should be enabled in addition to default enabled ones (NamespaceLifecycle, LimitRanger, ServiceAccount, TaintNodesByCondition, Priority, DefaultTolerationSeconds, DefaultStorageClass, StorageObjectInUseProtection, PersistentVolumeClaimResize, VolumeClasses, CertificateApproval, CertificateSigning, CertificateSubjectRestrictions, DefaultIngressClass, DefaultTolerations, CertificateExemption, DefaultIngressClass, MutatingAdmissionWebhook, ValidatingAdmissionWebhook, ResourceQuota).

Since "namespace auto-provision" is missing from the default list, it is the correct answer for the question.

Identifying Explicitly Enabled Admission Controllers

The following question asks which admission controller is enabled in the cluster but is generally disabled by default. You can inspect the kube-apiserver configuration file located at /etc/kubernetes/manifests/kube-apiserver.yaml to determine the enabled plugins. Use your preferred text editor or run the following search command:

root@controlplane ~ ➜ grep 'enable-admission-plugins' /etc/kubernetes/manifests/kube-apiserver.yaml

A snippet from the configuration file might appear as follows:

apiVersion: v1
kind: Pod
metadata:
  annotations:
    kubeadm.kubernetes.io/kube-apiserver.advertise-address.endpoint: 10.49.219.9:6443
  creationTimestamp: null
  labels:
    component: kube-apiserver
    tier: control-plane
  name: kube-apiserver
  namespace: kube-system
spec:
  containers:
  - command:
    - kube-apiserver
    - --advertise-address=10.49.219.9
    - --allow-privileged=true
    - --authorization-mode=Node,RBAC
    - --client-ca-file=/etc/kubernetes/pki/ca.crt
    - --enable-admission-plugins=NodeRestriction
    - --enable-bootstrap-token-auth=true
    - --etcd-cafile=/etc/kubernetes/pki/etcd/ca.crt
    - --etcd-certfile=/etc/kubernetes/pki/apiserver-etcd-client.crt
    - --etcd-keyfile=/etc/kubernetes/pki/apiserver-etcd-client.key
    - --etcd-servers=https://127.0.0.1:2379
    - --insecure-port=0
    - --kubelet-client-certificate=/etc/kubernetes/pki/apiserver-kubelet-client.crt
    - --kubelet-client-key=/etc/kubernetes/pki/apiserver-kubelet-client.key
    - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
    - --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.crt

In this configuration, the NodeRestriction admission controller is explicitly enabled, despite normally being disabled.

Enabling Namespace Auto Provision

The next task is to create an NGINX pod in the "blue" namespace. However, the lab specifies that the "blue" namespace has not been created yet. Attempting to run the following command:

root@controlplane ~ ➜ kubectl run nginx --image nginx --rm

results in an error because the exists admission controller rejects requests for non-existent namespaces.

To automatically create the namespace during pod creation, enable the NamespaceAutoProvision admission controller. Edit the /etc/kubernetes/manifests/kube-apiserver.yaml file and update the --enable-admission-plugins flag. Insert NamespaceAutoProvision after NodeRestriction (separated by a comma). The updated configuration should look similar to this:

apiVersion: v1
kind: Pod
metadata:
  annotations:
    kubeadm.kubernetes.io/kube-apiserver.advertise-address.endpoint: 10.49.219.9:6443
  creationTimestamp: null
  labels:
    component: kube-apiserver
    tier: control-plane
  name: kube-apiserver
  namespace: kube-system
spec:
  containers:
  - command:
      - kube-apiserver
      - --advertise-address=10.49.219.9
      - --allow-privileged=true
      - --authorization-mode=Node,RBAC
      - --client-ca-file=/etc/kubernetes/pki/ca.crt
      - --enable-admission-plugins=NodeRestriction,NamespaceAutoProvision
      - --enable-bootstrap-token-auth=true
      - --etcd-cafile=/etc/kubernetes/pki/etcd/ca.crt
      - --etcd-certfile=/etc/kubernetes/pki/apiserver-etcd-client.crt
      - --etcd-keyfile=/etc/kubernetes/pki/apiserver-etcd-client.key
      - --etcd-servers=https://127.0.0.1:2379
      - --insecure-port=0
      - --kubelet-client-certificate=/etc/kubernetes/pki/apiserver-kubelet-client.crt
      - --kubelet-client-key=/etc/kubernetes/pki/apiserver-kubelet-client.key
      - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
      - --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.crt

After saving and allowing the API server to restart, create the NGINX pod in the blue namespace:

root@controlplane ~ ➜ kubectl run nginx --image nginx -n blue
pod/nginx created

root@controlplane ~ ➜ kubectl get ns
NAME              STATUS   AGE
blue              Active   7s
default           Active   50m
kube-node-lease   Active   50m
kube-public       Active   50m
kube-system       Active   50m

As you can see, the blue namespace is automatically created due to the enabled NamespaceAutoProvision admission controller.

Disabling the Default Storage Class Controller

The final task is to disable the default storage class admission controller. To do this, update the /etc/kubernetes/manifests/kube-apiserver.yaml file by adding the --disable-admission-plugins flag on a new line immediately after the enabled plugins. For example:

apiVersion: v1
kind: Pod
metadata:
  annotations:
    kubeadm.kubernetes.io/kube-apiserver.advertise-address.endpoint: 10.49.219.9:6443
  labels:
    component: kube-apiserver
    tier: control-plane
  name: kube-apiserver
  namespace: kube-system
spec:
  containers:
  - command:
      - kube-apiserver
      - --advertise-address=10.49.219.9
      - --allow-privileged=true
      - --authorization-mode=Node,RBAC
      - --client-ca-file=/etc/kubernetes/pki/ca.crt
      - --enable-admission-plugins=NodeRestriction,NamespaceAutoProvision
      - --disable-admission-plugins=DefaultStorageClass
      - --enable-bootstrap-token-auth=true
      - --etcd-cafile=/etc/kubernetes/pki/etcd/ca.crt
      - --etcd-certfile=/etc/kubernetes/pki/apiserver-etcd-client.crt
      - --etcd-keyfile=/etc/kubernetes/pki/apiserver-etcd-client.key
      - --etcd-servers=https://127.0.0.1:2379
      - --insecure-port=0
      - --kubelet-client-certificate=/etc/kubernetes/pki/apiserver-kubelet-client.crt
      - --kubelet-client-key=/etc/kubernetes/pki/apiserver-kubelet-client.key
      - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
      - --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.crt

Once the API server restarts, validate the changes by inspecting the running process with a command like:

ps -ef | grep kube-apiserver

This command will list both the enabled and disabled admission plugins.
