Solution Validating and Mutating Admission Controllers

In this lesson, we walk through the lab on validating and mutating admission controllers. You'll gain hands-on experience with namespace creation, TLS secret management, deploying webhook servers, and testing pod security contexts.

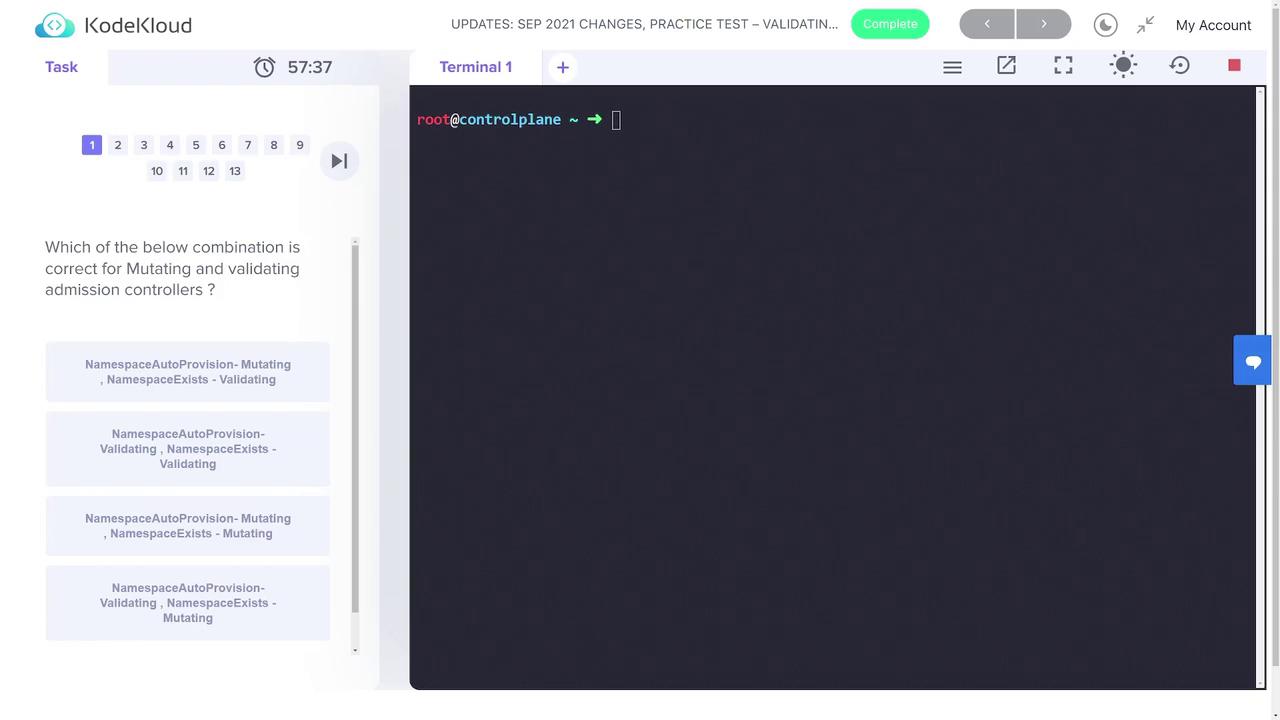

The lab begins with a multiple-choice question asking which combination is correct for mutating and validating admission controllers. The key observation is that the namespace auto-provision admission controller performs a mutation by automatically creating or altering a namespace. On the other hand, the namespace existence check is strictly a validation step. Therefore, the correct combination is to treat namespace auto-provisioning as mutating and namespace existence checking as validating.

Step 1: Create the Namespace

First, create a namespace named "webhook-demo" to serve as the environment for the webhook operations.

kubectl create ns webhook-demo

After executing the command, verify that the namespace is created by listing all namespaces:

kubectl get ns

You should see the "webhook-demo" namespace included in the output.

Step 2: Create a TLS Secret

For secure webhook communication, create a TLS secret named "webhook-server-tls" in the "webhook-demo" namespace. Ensure you substitute the correct file paths for the certificate and key:

kubectl -n webhook-demo create secret tls webhook-server-tls \
  --cert "/root/keys/webhook-server-tls.crt" \
  --key "/root/keys/webhook-server-tls.key"

A successful creation message will confirm that the TLS secret has been established.

Step 3: Deploy the Webhook Server

Review the webhook server deployment definition provided in the file webhook-deployment.yaml:

cat webhook-deployment.yaml

Deploy the webhook server with the following command:

kubectl apply -f webhook-deployment.yaml

Step 4: Create the Webhook Service

Create a service for the webhook server using the configuration in webhook-service.yaml:

kubectl apply -f webhook-service.yaml

Step 5: Apply the Mutating Webhook Configuration

Next, apply the mutating webhook configuration defined in webhook-configuration.yaml. This file includes rules under the "rules" section to intercept "CREATE" operations for pods.

kubectl apply -f webhook-configuration.yaml

In our lab, if no explicit value is given for "runAsNonRoot", a default value of true is applied, and the user ID is defaulted to 1234 unless overridden.

Step 6: Test the Webhook by Deploying Pods

Pod with Default Security Context

The next stage involves deploying a pod that does not specify any security context so that the webhook can mutate the configuration. The YAML file pod-with-defaults.yaml contains the following configuration:

# A pod with no securityContext specified.
# Without the webhook, it would run as user root (0). The webhook mutates it
# to run as the non-root user with uid 1234.
apiVersion: v1
kind: Pod
metadata:
  name: pod-with-defaults
  labels:
    app: pod-with-defaults
spec:
  restartPolicy: OnFailure
  containers:
    - name: busybox
      image: busybox
      command: ["sh", "-c", "echo I am running as user $(id -u)"]

Deploy the pod with:

kubectl apply -f pod-with-defaults.yaml

After deployment, confirm that the pod has been mutated by retrieving the pod details:

kubectl get pod pod-with-defaults -o yaml

The webhook should have added a mutated security context, setting runAsNonRoot: true and runAsUser: 1234.

Pod with Explicit Override

Next, deploy a pod that explicitly sets its security context to allow running as root. Check the pod-with-override.yaml file where the security context is defined with runAsNonRoot set to false:

kubectl apply -f pod-with-override.yaml

Review the file to confirm that the override is applied as intended.

Pod with Conflicting Security Context

Finally, deploy a pod with a conflicting security configuration in the pod-with-conflict.yaml file. This configuration attempts to set runAsNonRoot: true while also specifying runAsUser: 0, creating a conflict.

apiVersion: v1
kind: Pod
metadata:
  name: pod-with-conflict
  labels:
    app: pod-with-conflict
spec:
  restartPolicy: OnFailure
  securityContext:
    runAsNonRoot: true
  containers:
    - name: busybox
      image: busybox
      command: ["sh", "-c", "echo I am running as user $(id -u)"]

Deploy the conflicting pod with:

kubectl apply -f pod-with-conflict.yaml

This rejection confirms that the webhook validation is functioning as expected by preventing pods from running as root when it is not allowed.

This comprehensive walkthrough demonstrates how to validate and mutate admission controllers effectively. By following these steps, you ensure that your Kubernetes environment enforces the desired security configurations.
