Overview of Multi Tenancy in Kubernetes

In this article, we explore multi-tenancy in Kubernetes and demonstrate how the platform enables multiple users, tenants, or customers to share a single cluster while ensuring strong isolation, security, and efficient resource management. You will learn about various approaches such as namespace isolation, resource quotas, network policies, and storage isolation, which help maintain fairness and security among tenants sharing the same infrastructure. This concept is especially relevant in SaaS environments where multiple customers use a single cluster.

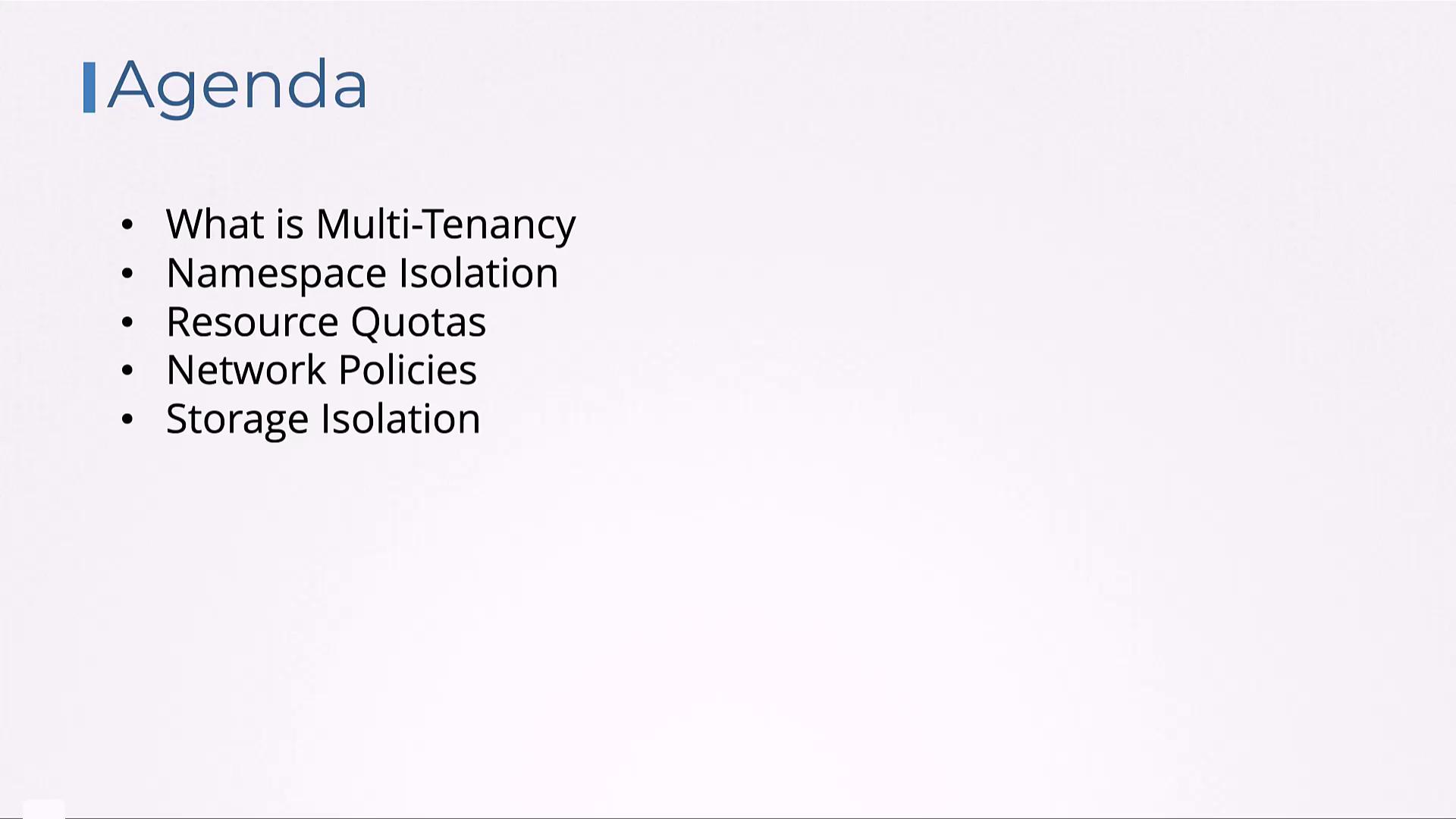

The image shows an agenda listing topics: Multi-Tenancy, Namespace Isolation, Resource Quotas, Network Policies, and Storage Isolation.

Key Concept

Think of a large office building representing your Kubernetes cluster. Each floor, analogous to a namespace, provides a distinct environment for different teams, companies, or customers. Shared common areas such as elevators and parking lots are like cluster-wide resources (networking, storage, and nodes) that require careful management to ensure balanced use.

One common anti-pattern in Kubernetes is provisioning a separate cluster for each tenant or application. Although this might seem like an effective way to isolate teams or applications, it quickly becomes unsustainable as the number of tenants increases. Managing multiple clusters—each with its individual resources, security policies, and configurations—introduces significant complexity and operational overhead.

To illustrate, imagine that each floor of a multi-story building (Kubernetes namespace) is used by a different tenant. Even though the building (cluster) is shared, strict controls such as access badges (Kubernetes RBAC) and designated facilities (network policies, storage limitations) ensure that no single tenant monopolizes resources or compromises security.

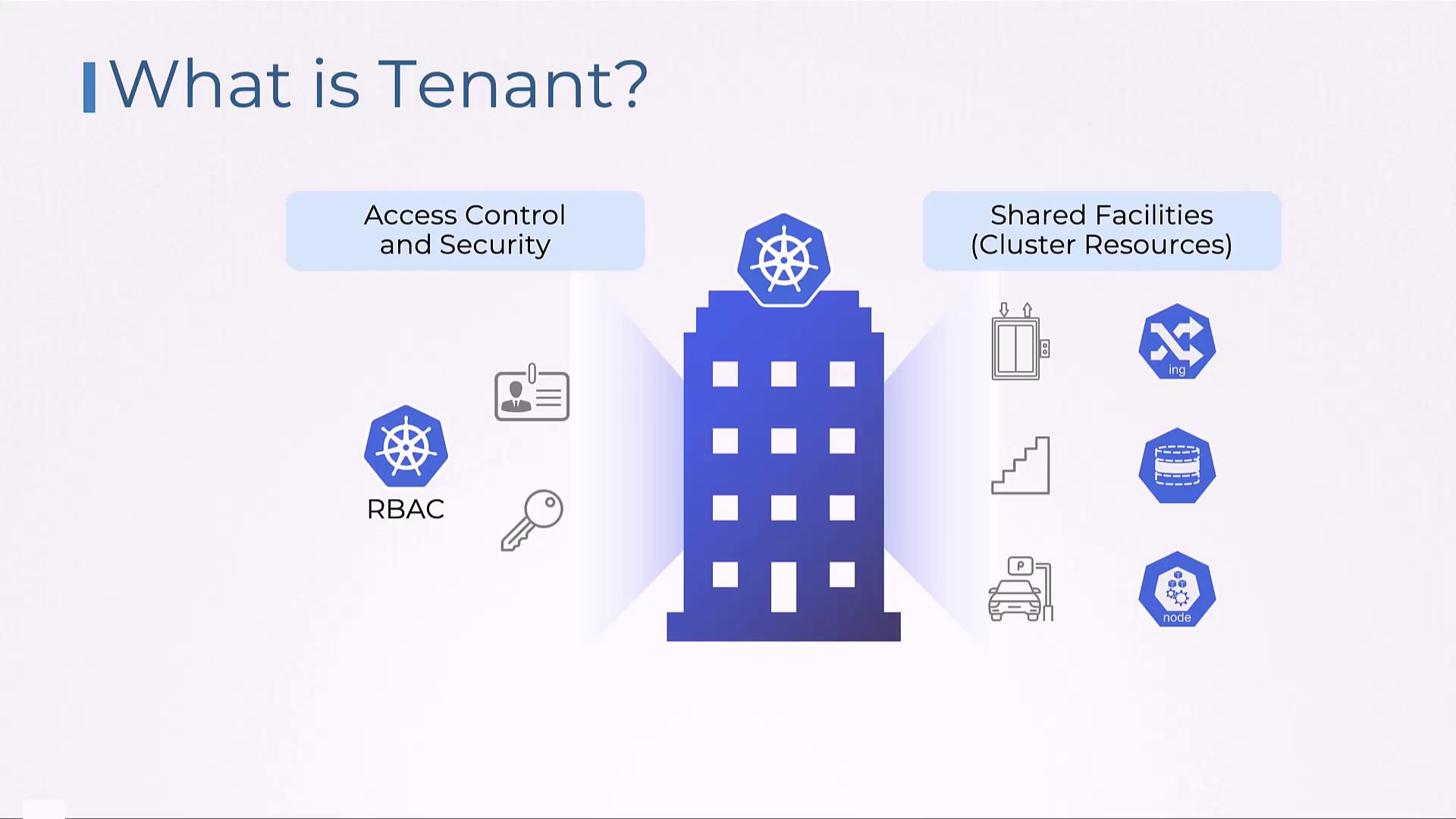

The image explains "What is Tenant?" in Kubernetes, highlighting access control, security, and shared facilities like cluster resources, using icons and a building metaphor.

Kubernetes multi-tenancy is all about providing isolated environments within a common infrastructure. This is particularly important for cloud-native applications, where compute, storage, and networking resources need to be shared efficiently and securely among various users and teams.

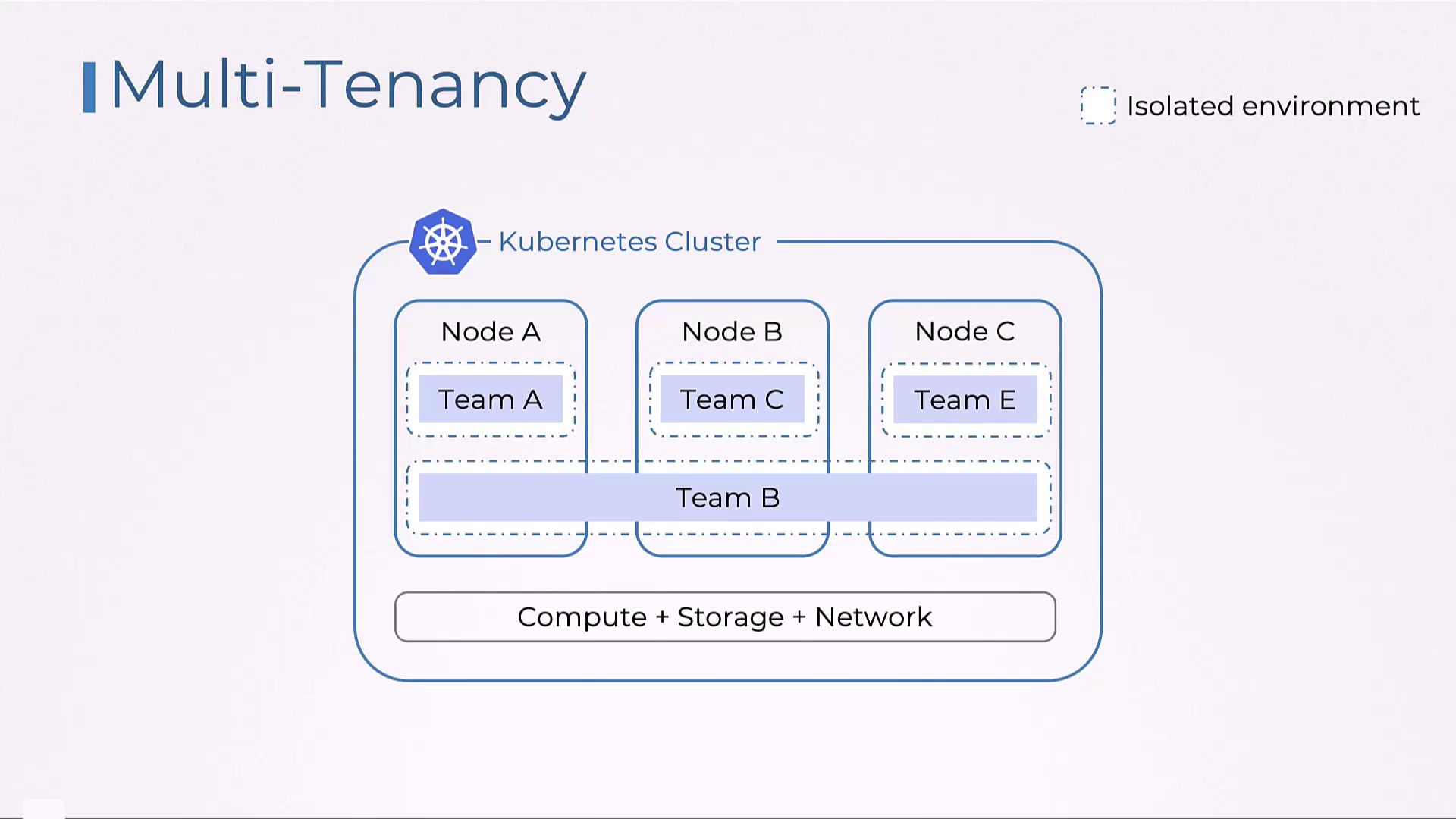

The image illustrates a Kubernetes cluster with multi-tenancy, showing isolated environments for different teams across nodes, utilizing shared compute, storage, and network resources.

Security Alert

Without robust isolation mechanisms, unauthorized data access or resource contention might occur. Overconsumption of resources by one tenant can impact the performance and stability of the overall system. Always enforce strict isolation and monitoring to avoid these pitfalls.

Implementing multi-tenancy comes with its challenges. It is essential to set up strong isolation mechanisms to prevent data leakage between tenants and ensure that one tenant’s workload does not adversely affect others. As the number of tenants increases, managing security policies, access controls, and resource allocations becomes more complex, all while adhering to regulatory requirements and safeguarding data privacy and sovereignty.

The advantages of a multi-tenant architecture in Kubernetes are substantial. By sharing a single cluster, organizations can maximize resource utilization and reduce both hardware and operational costs. Here’s a quick look at the benefits:

Benefit	Description
Cost Efficiency	Reduced hardware and operational expenses by eliminating the need for separate clusters.
Enhanced Resource Usage	Better utilization of compute, storage, and network resources across multiple tenants.
Simplified Management	Centralized control simplifies operational management, monitoring, and troubleshooting.
Robust Security	Isolation mechanisms like namespaces, RBAC, and network policies prevent interference and data breaches.

The image illustrates the advantages of multi-tenancy in Kubernetes, highlighting isolated environments, cost savings, and features like namespaces, RBAC, and network policies, while addressing complexity and compliance.

In summary, multi-tenancy in Kubernetes allows multiple teams or users to safely share the same underlying infrastructure while maintaining strong isolation and efficient resource management. In the upcoming lessons, we will dive deeper into the specifics of namespaces, RBAC, network policies, and other techniques that form the backbone of multi-tenant environments in Kubernetes.
