Demo Run Experiment Pod Delete on EKS

In this guide, you’ll learn how to execute a pod-deletion experiment on Amazon EKS using AWS FIS. We’ll walk through:

1. Selecting the built-in EKS pod-delete scenario
2. Creating and configuring an experiment template
3. Launching the experiment
4. Monitoring pod replacement and service continuity

This approach helps you validate your Kubernetes Deployment or ReplicaSet automatically replaces pods without user-facing disruption.

Prerequisites

Before you begin, ensure:

• You have an existing Amazon EKS cluster named pet-site.
• The IAM role you’ll assign to FIS (e.g., EKS-FIS-Role) has permissions to delete pods and write logs.
• CloudWatch Logs group (e.g., FISExperiments) is either created or will be created by FIS.

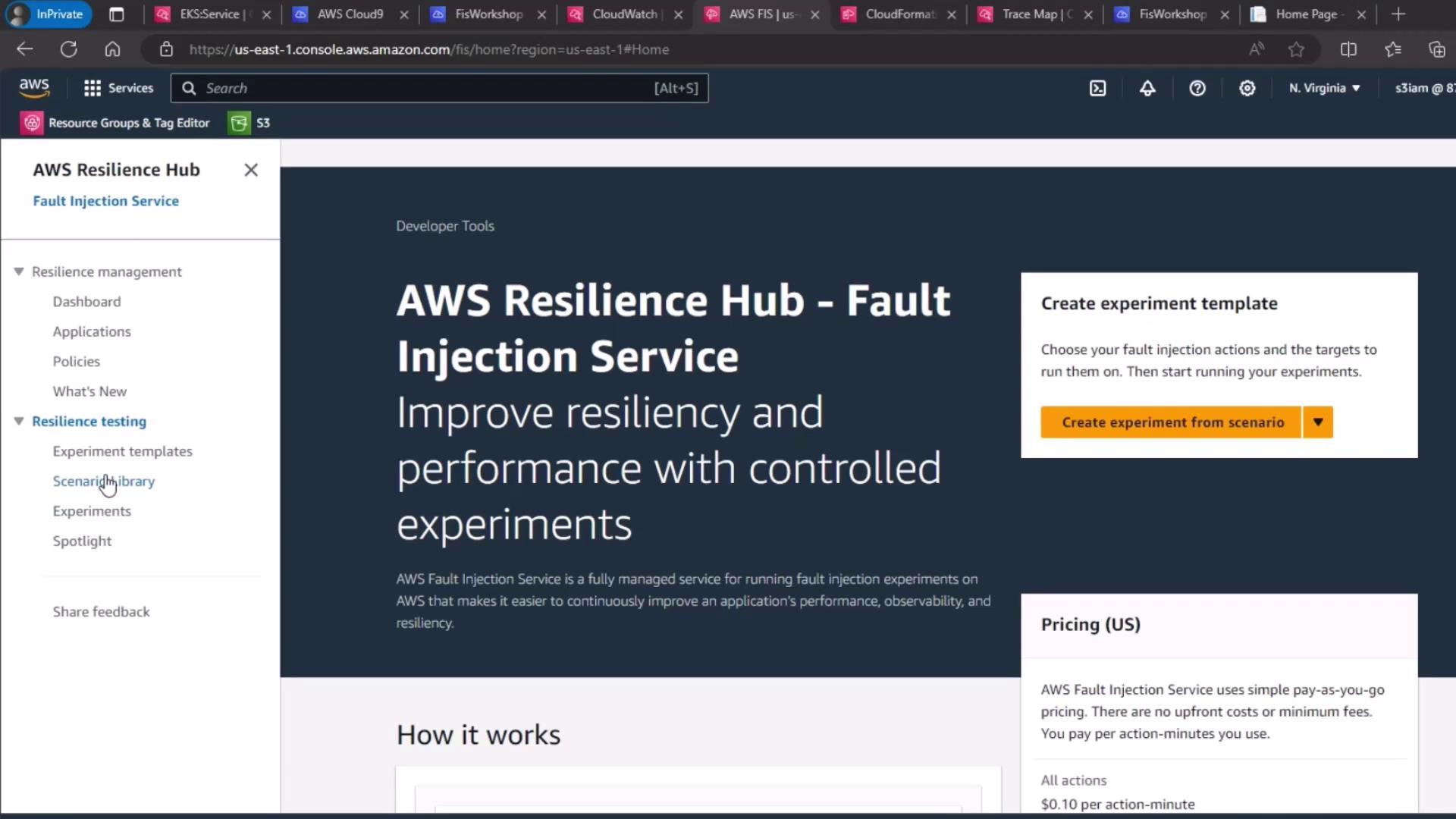

1. Navigate to Fault Injection Service

1. Open the AWS Management Console.
2. Go to AWS Resilience Hub → Fault Injection Service.
3. Click Experiment templates in the sidebar.

2. Select the EKS Pod Delete Scenario

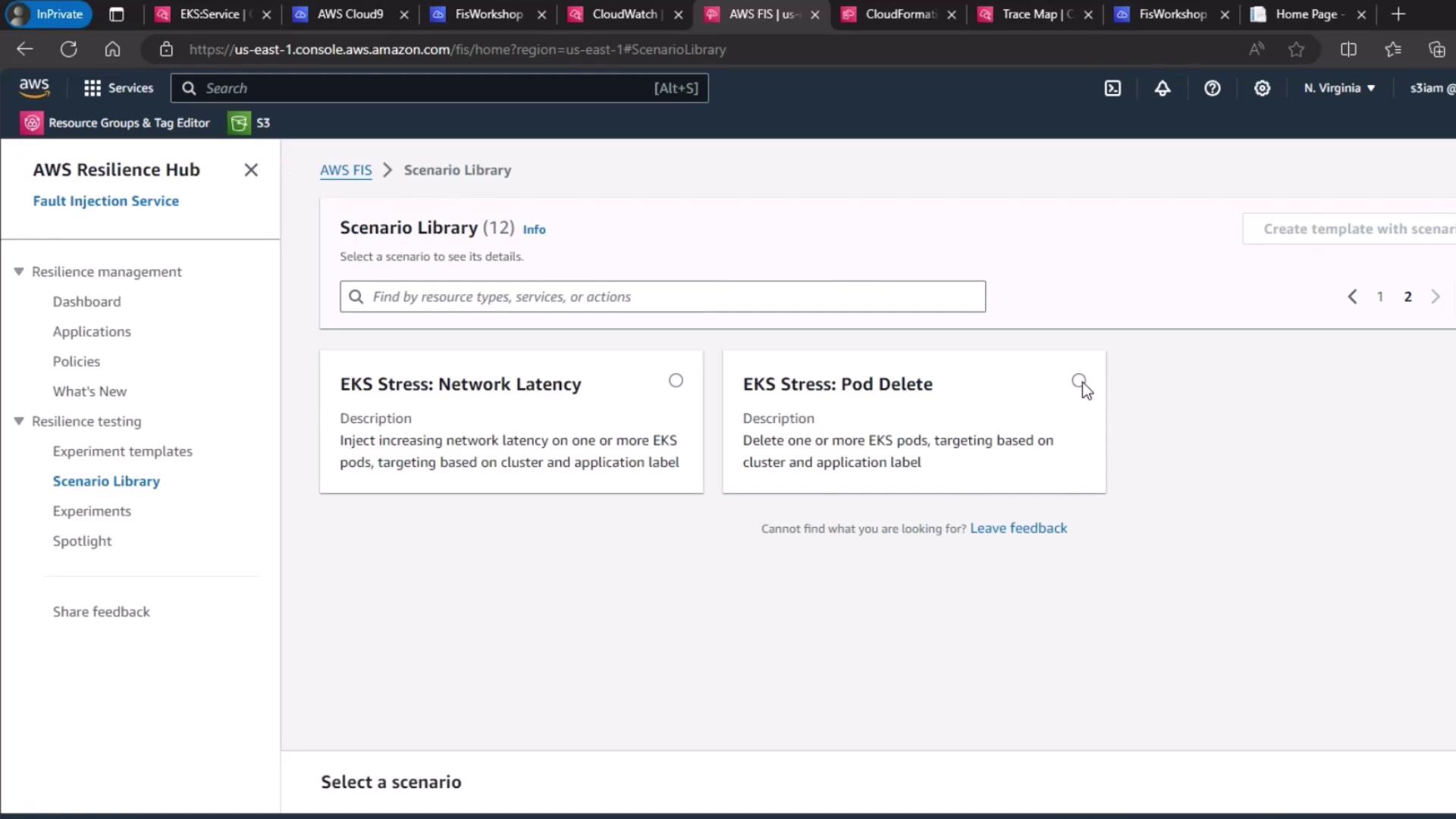

1. Under Scenario library, search for EKS Stress: Pod Delete.

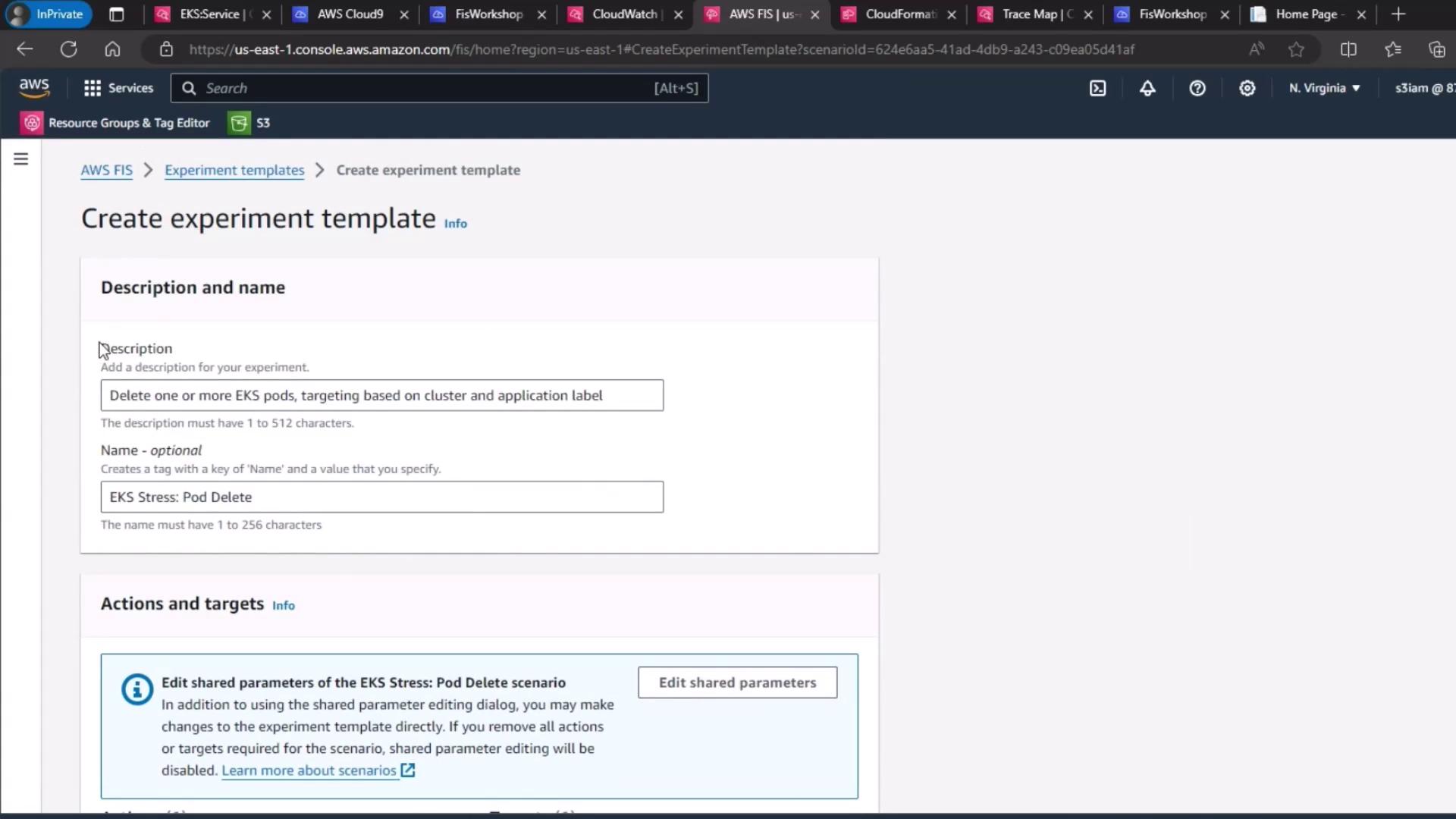

2. Click Create experiment template.

FIS immediately populates the template’s name, description, actions, and targets based on the built-in scenario.

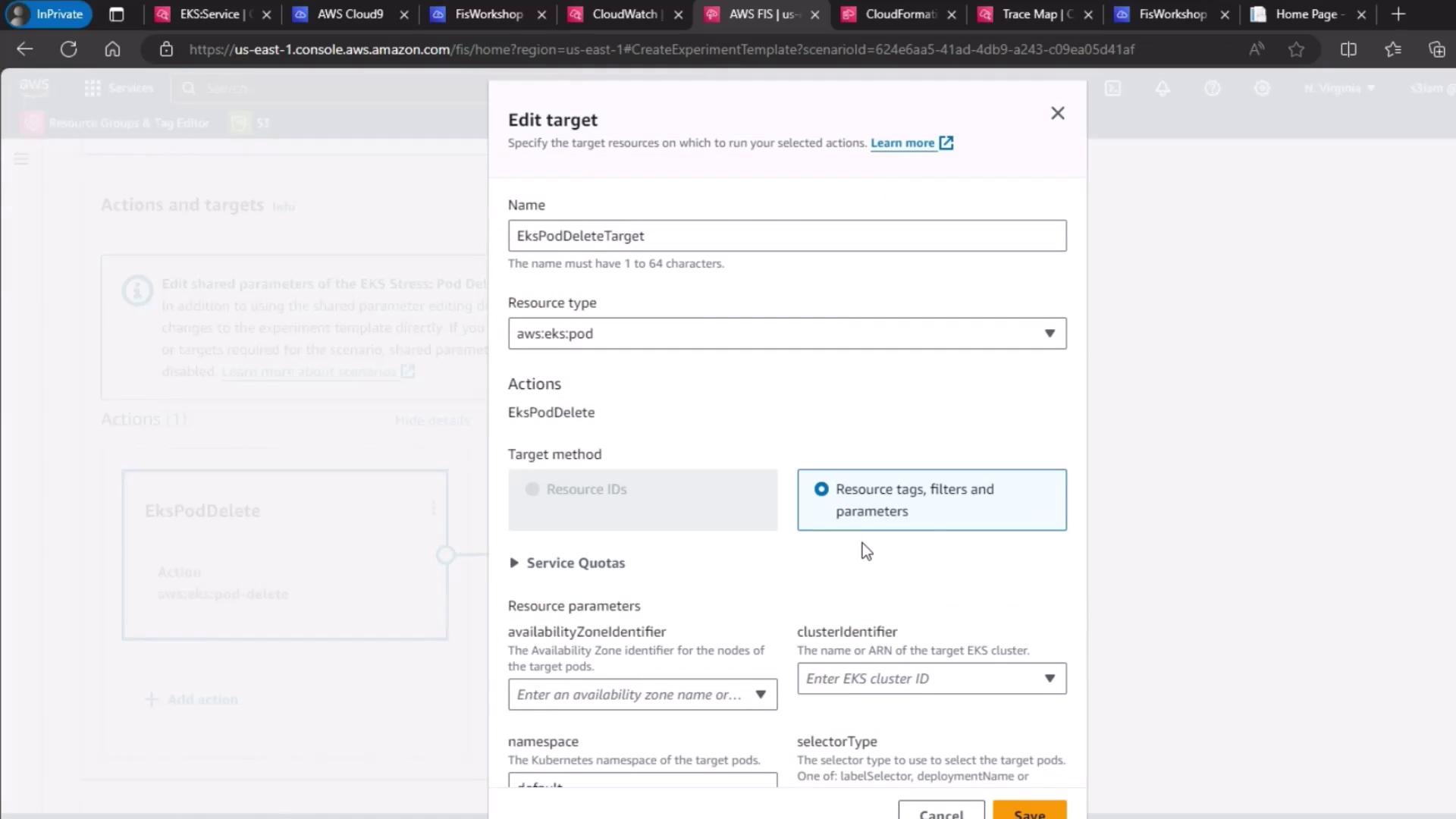

3. Configure the Target

By default, the scenario target is set to delete pods in your cluster. Verify or update:

• Resource type: eks:pod
• Cluster: pet-site
• Label selector: app=pet-site

Ensure these match your Deployment labels so FIS deletes only the intended pods.

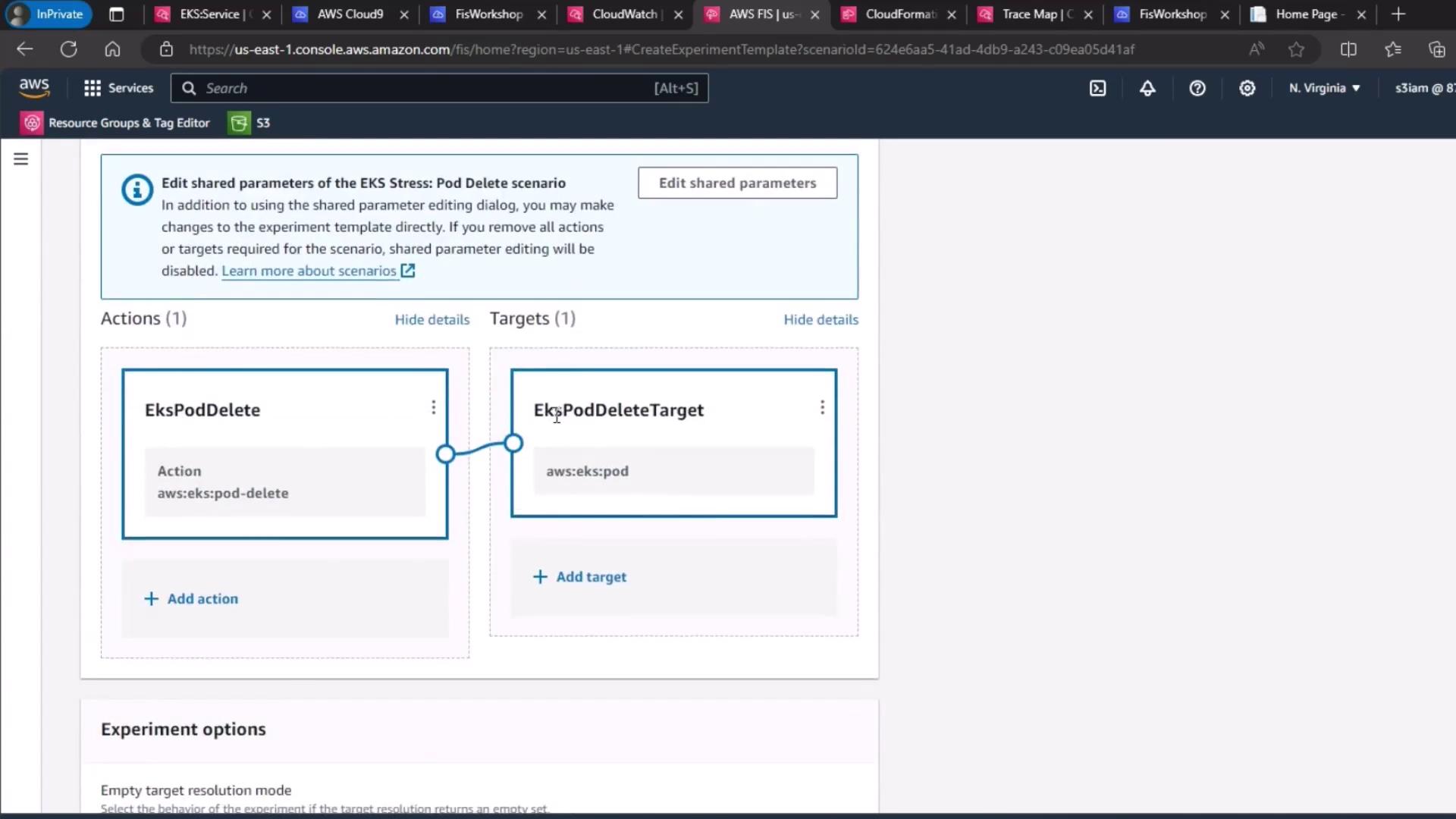

Review the auto-generated actions and targets:

4. Select IAM Role and Logging

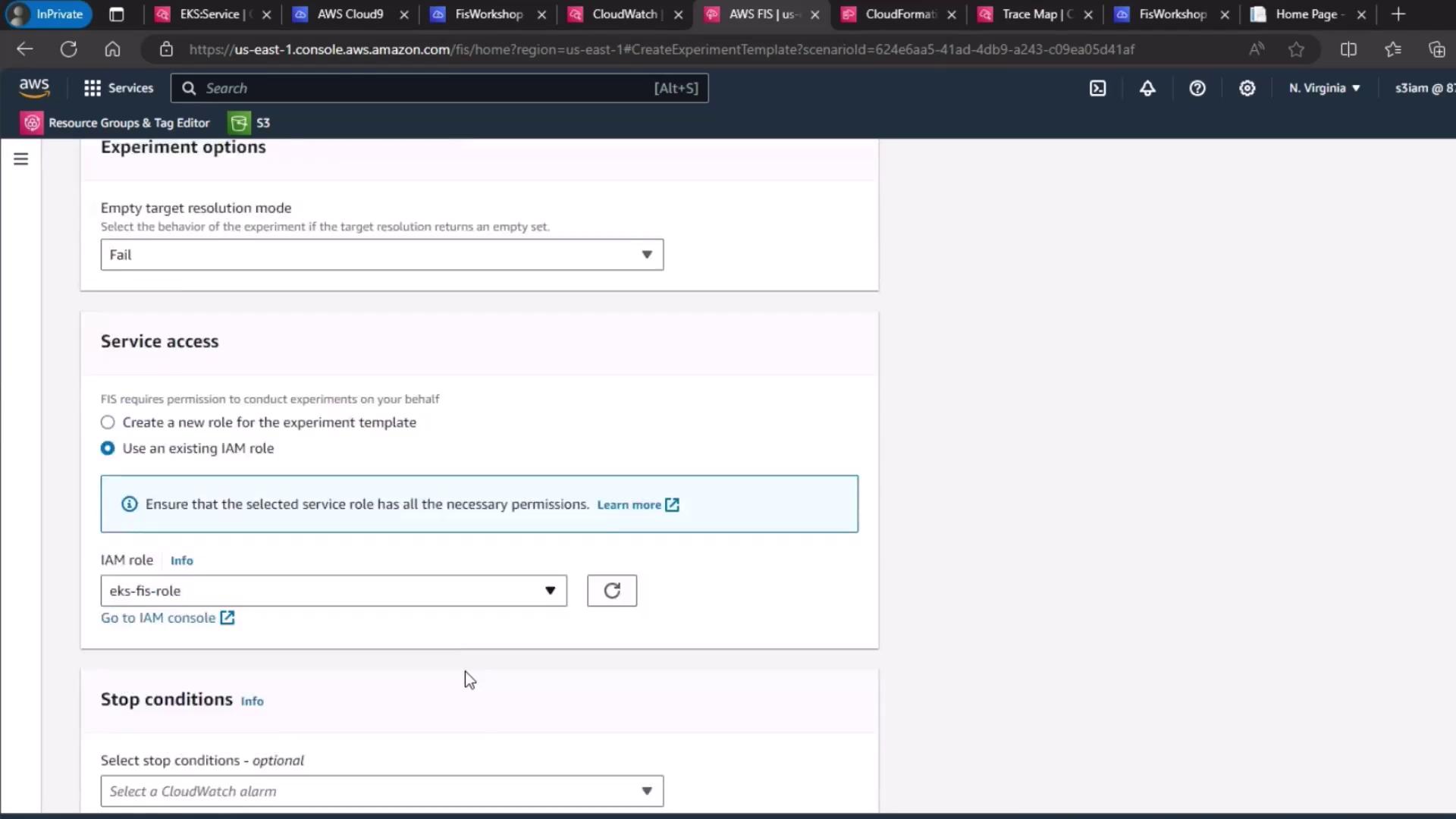

1. Under Service role, choose your FIS execution role (EKS-FIS-Role).

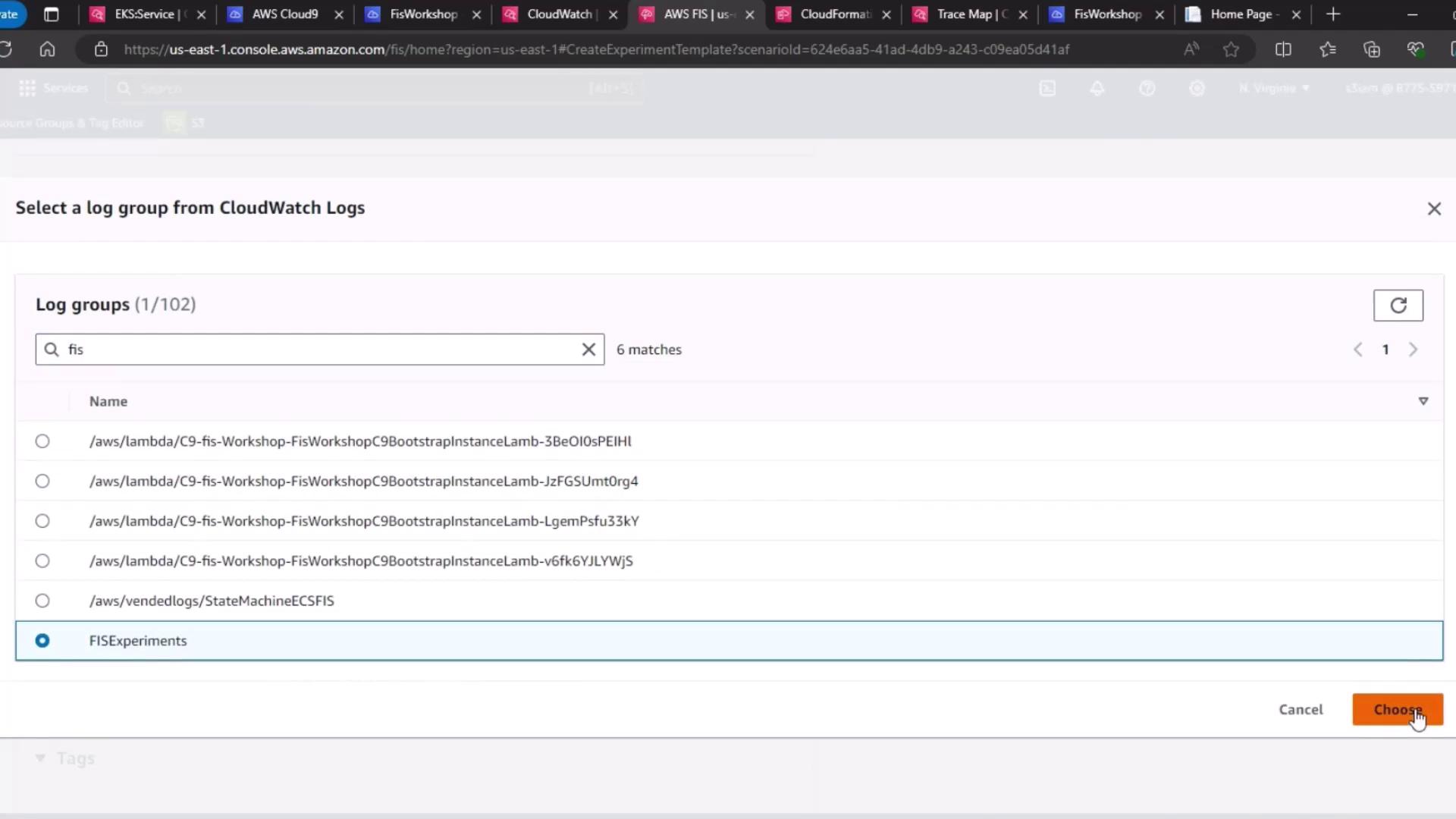

2. For Experiment logging, select the CloudWatch Logs group (FISExperiments) or create one on the fly.

5. Define the Hypothesis

Hypothesis: When FIS deletes a pet-site pod, the Kubernetes control plane immediately spins up a replacement pod. Service latency and availability remain within SLAs.

Validate this by monitoring your Deployment or ReplicaSet’s desired vs. actual pod counts.

6. Start and Monitor the Experiment

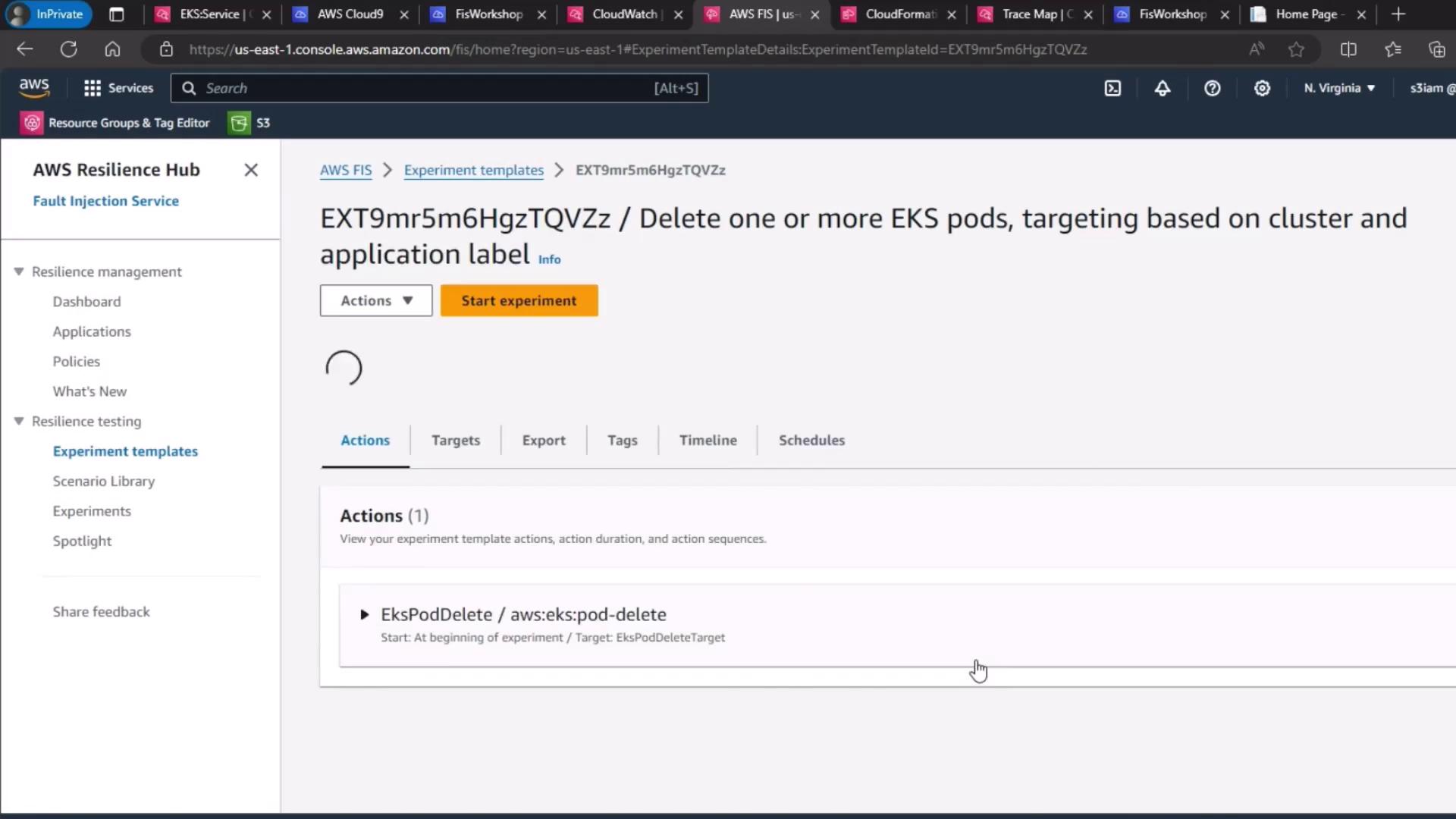

1. Click Start experiment.

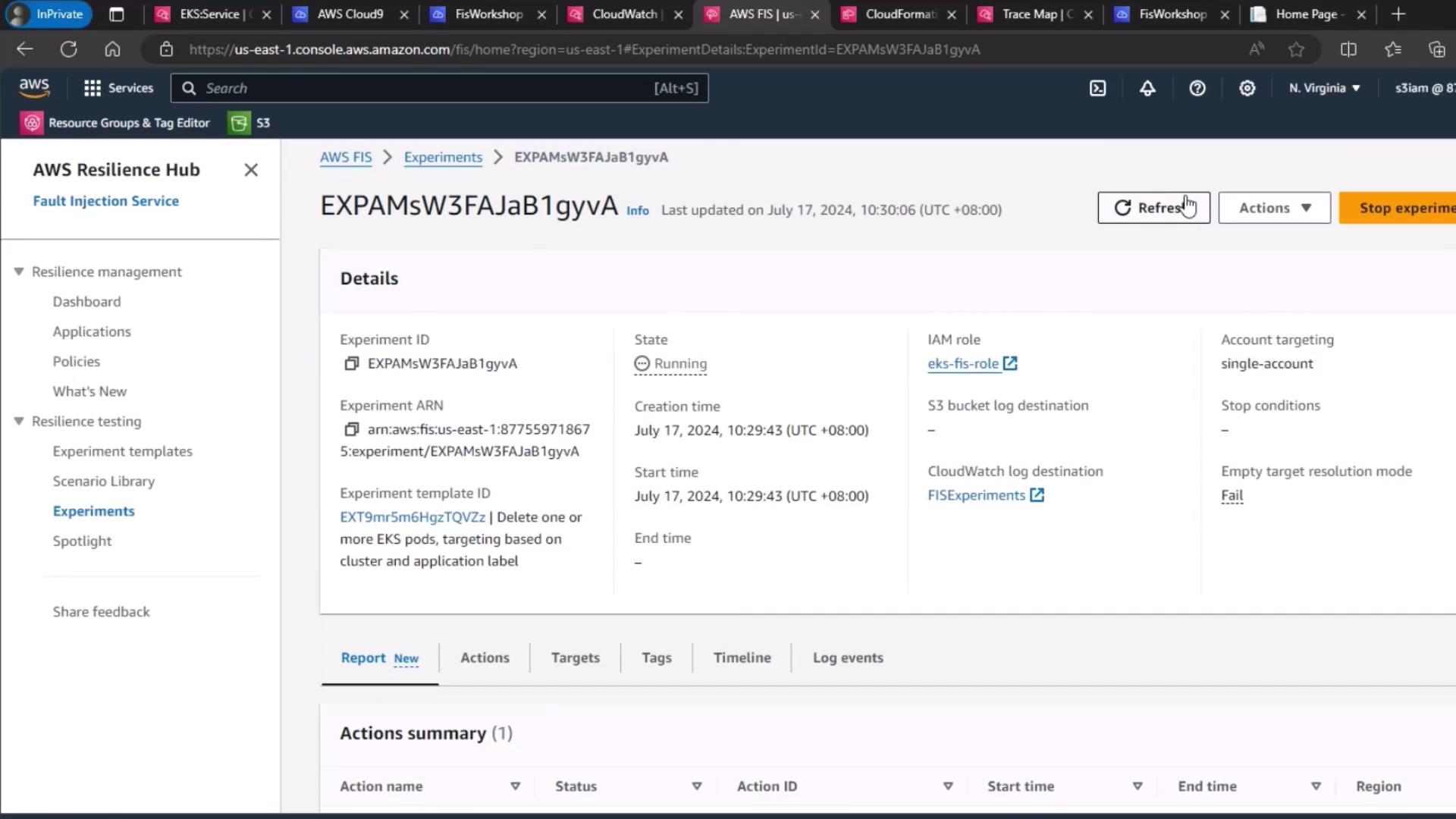

2. Watch the experiment lifecycle transition from Initiating → Running → Completed.
3. Use the FIS dashboard and CloudWatch metrics (e.g., kube_deployment_status_replicas_available) to confirm a new pod appears within seconds.

AWS CLI Shortcut

After creating the template, you can start the experiment via CLI:

aws fis start-experiment \
  --experiment-template-id <your-template-id>
