Kubernetes Architecture

In this guide, we’ll examine when and where to use Kubernetes, explore its core components, and take a deep dive into its cluster and control-plane architecture.

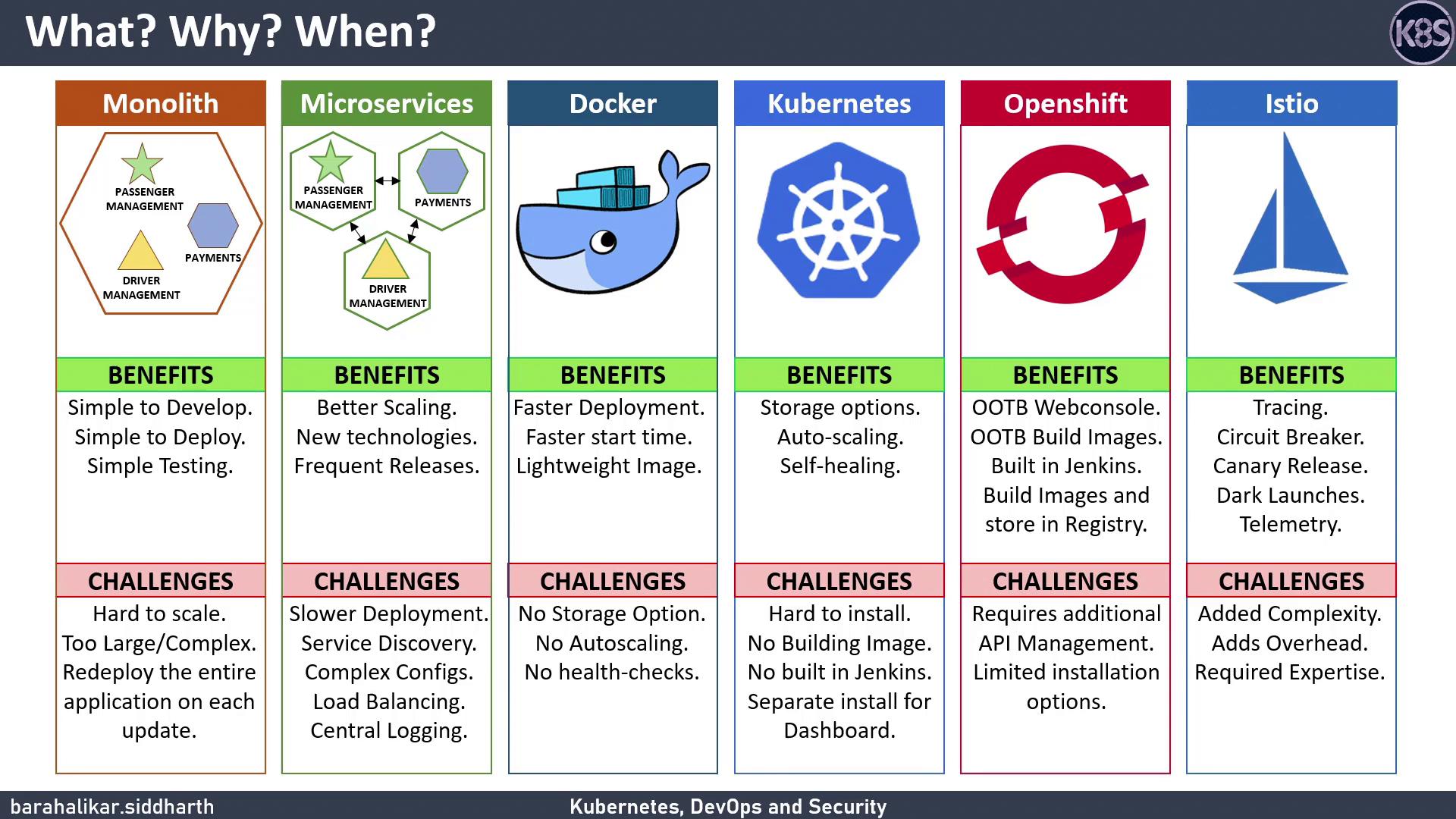

Evolution of Application Architectures

Monolithic Applications

Early applications bundled all functionality into a single deployable unit. For example, an Uber-like app might combine passenger management, payment processing, and driver routing in one binary.

Benefits:

• Simple development and testing with one codebase
• Single configuration file and PaaS deployment

Challenges:

• Inefficient scaling: you must replicate the whole app
• Large codebase hinders team onboarding
• Every change triggers a full redeploy

Microservices

Breaking a monolith into independent services allows each to be developed, deployed, and scaled separately.

Benefits:

• Fine-grained scaling for busy services
• Faster release cycles per team

Challenges:

• Service discovery requires a central registry
• Configuration sprawl calls for a unified config store
• Distributed tracing, logging, and load balancing add complexity

Docker and Containers

Docker packages applications with their dependencies into lightweight containers.

Benefits:

• Rapid startup vs. VMs
• Smaller images including only necessary libraries

Challenges:

• No built-in auto-scaling or self-healing without orchestration

Kubernetes: Container Orchestration

Kubernetes automates deployment, scaling, and management of containerized workloads.

Benefits:

• Auto-scaling, self-healing, rolling updates out of the box
• Portable storage abstractions and rich ecosystem

Challenges:

• Initial setup can be complex (binaries, certificates)
• Requires external build pipelines; it doesn’t build container images
• Dashboard is an add-on, not built in

Platform-as-a-Service (PaaS)

Platforms like OpenShift, Rancher, and Cloud Foundry bundle runtimes, orchestration, and CI/CD.

Example: OpenShift

• Web console, integrated Jenkins pipelines, built-in registry
• Supports Docker and Podman for image builds

Considerations:

• Extra API layers add overhead
• Customization and installation can be limiting

Service Mesh

A service mesh (e.g., Istio) overlays Kubernetes to secure and observe microservices.

Benefits:

• mTLS, circuit breakers, canary deployments, tracing
• Integrations with Prometheus, Grafana, Kiali, Jaeger

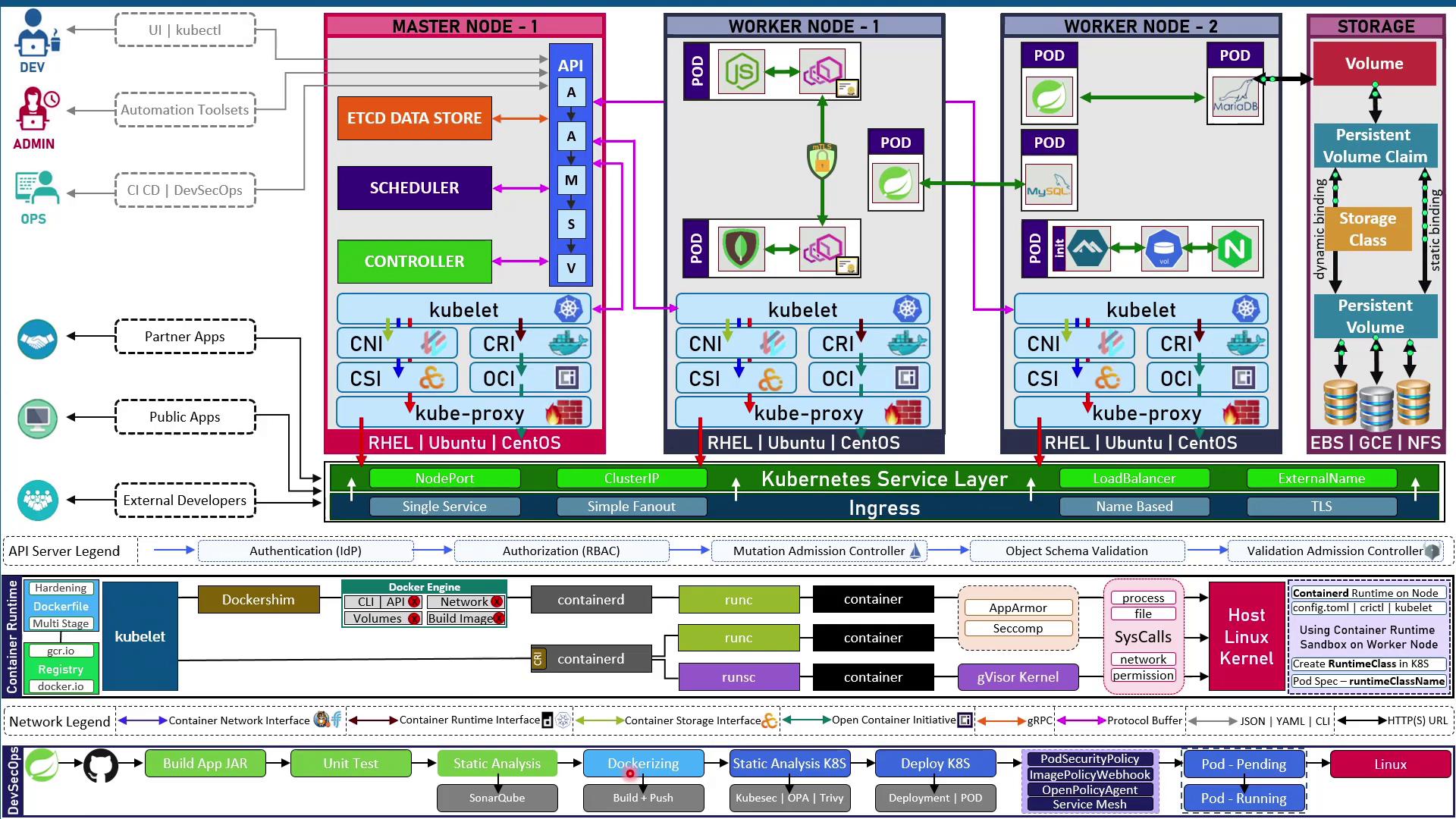

Kubernetes Cluster Architecture

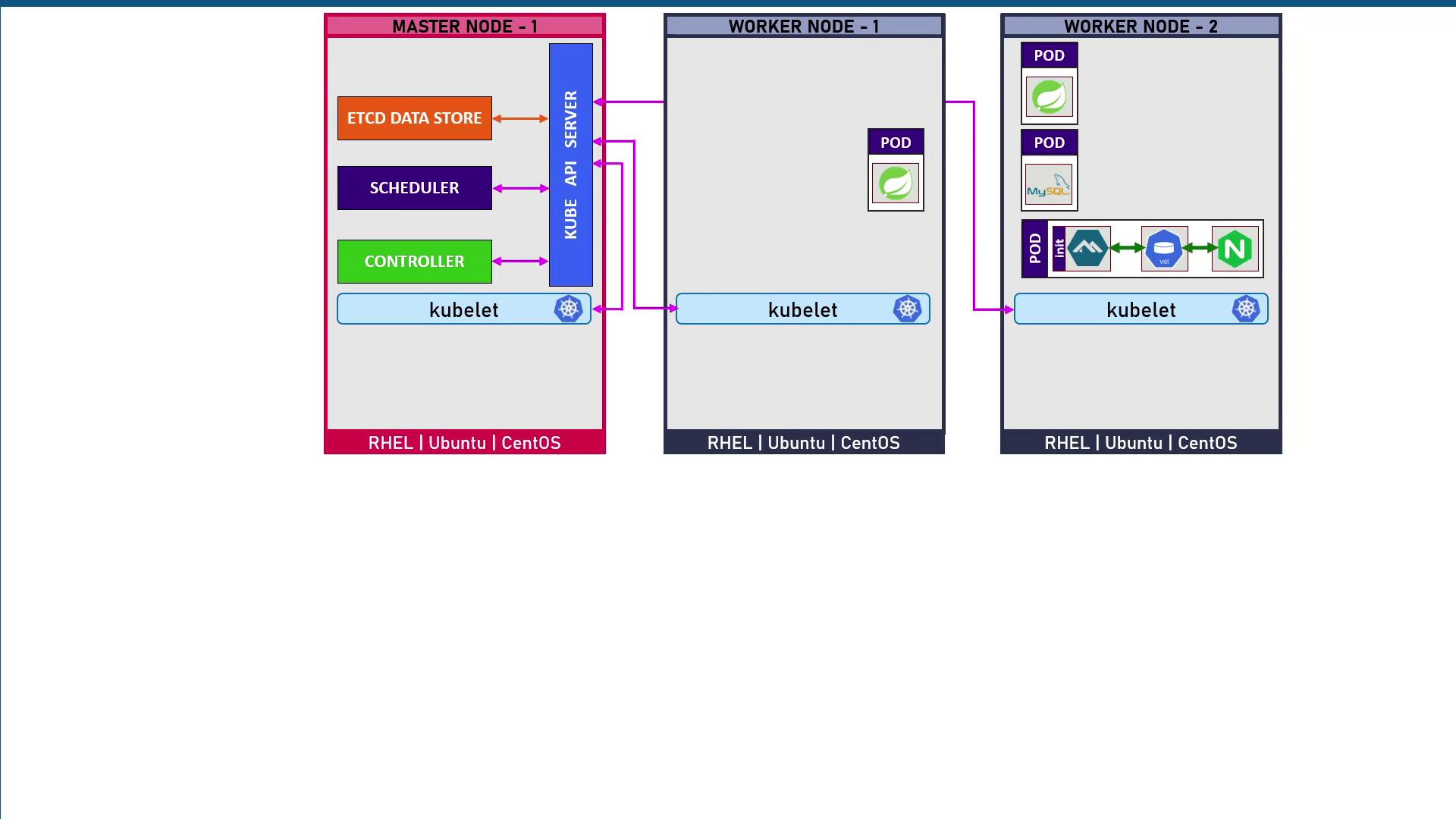

At the heart of Kubernetes are pods, the smallest deployable units that run one or more containers. Pods run on worker nodes (VMs or physical servers). For high availability, you deploy multiple workers so workloads shift if a node fails.

A separate control plane (master nodes) manages scheduling, state, and the API. Running multiple control-plane nodes ensures redundancy.

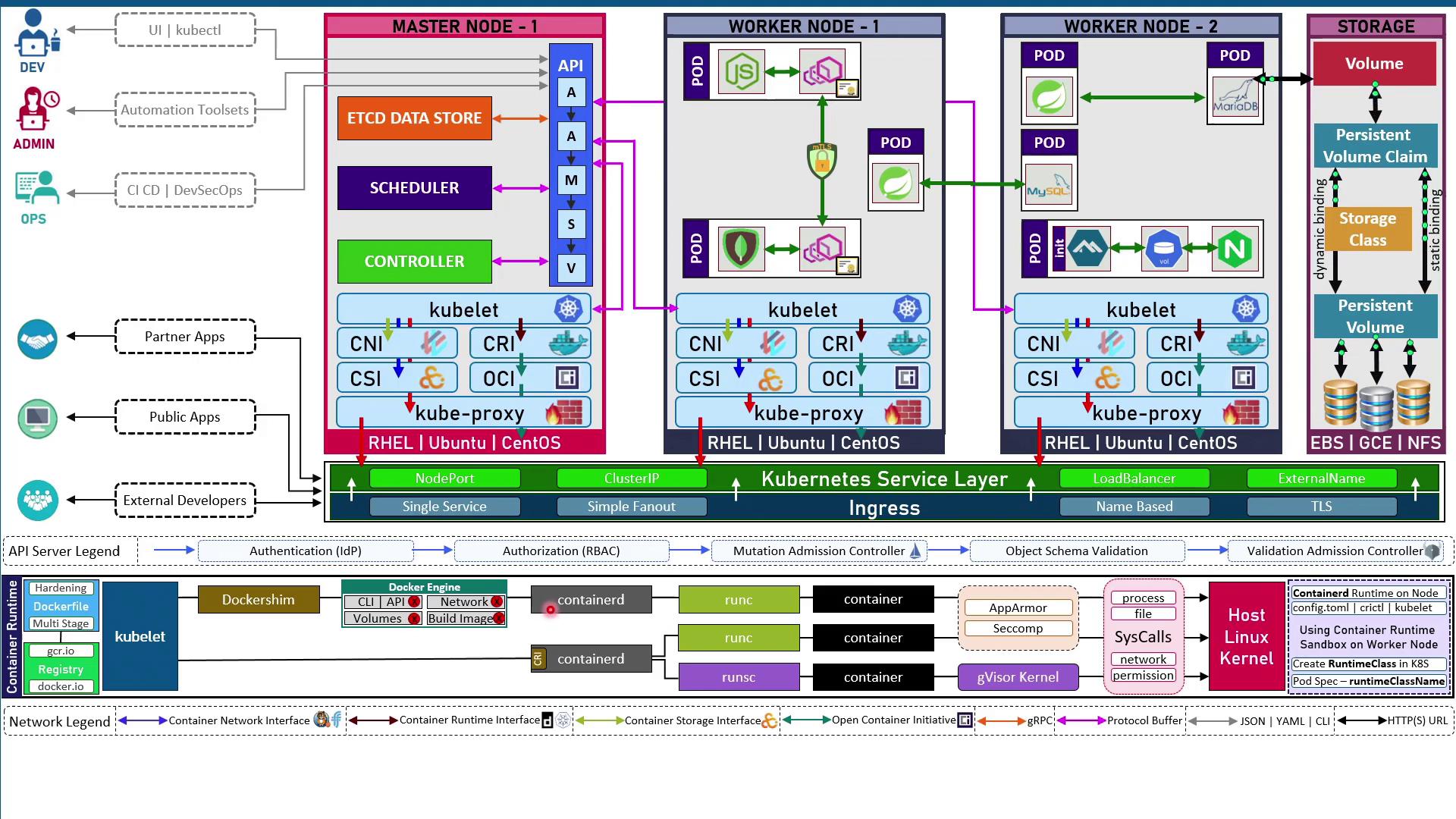

Control Plane Components

• etcd
  A highly-available key-value store that persists all cluster state.
• kube-apiserver
  The central API gateway; the only component that communicates directly with etcd.
• kube-scheduler
  Assigns pods to nodes based on resource requirements and constraints.
• kube-controller-manager
  Runs controllers (e.g., ReplicaSet, Endpoint) to enforce the desired state.

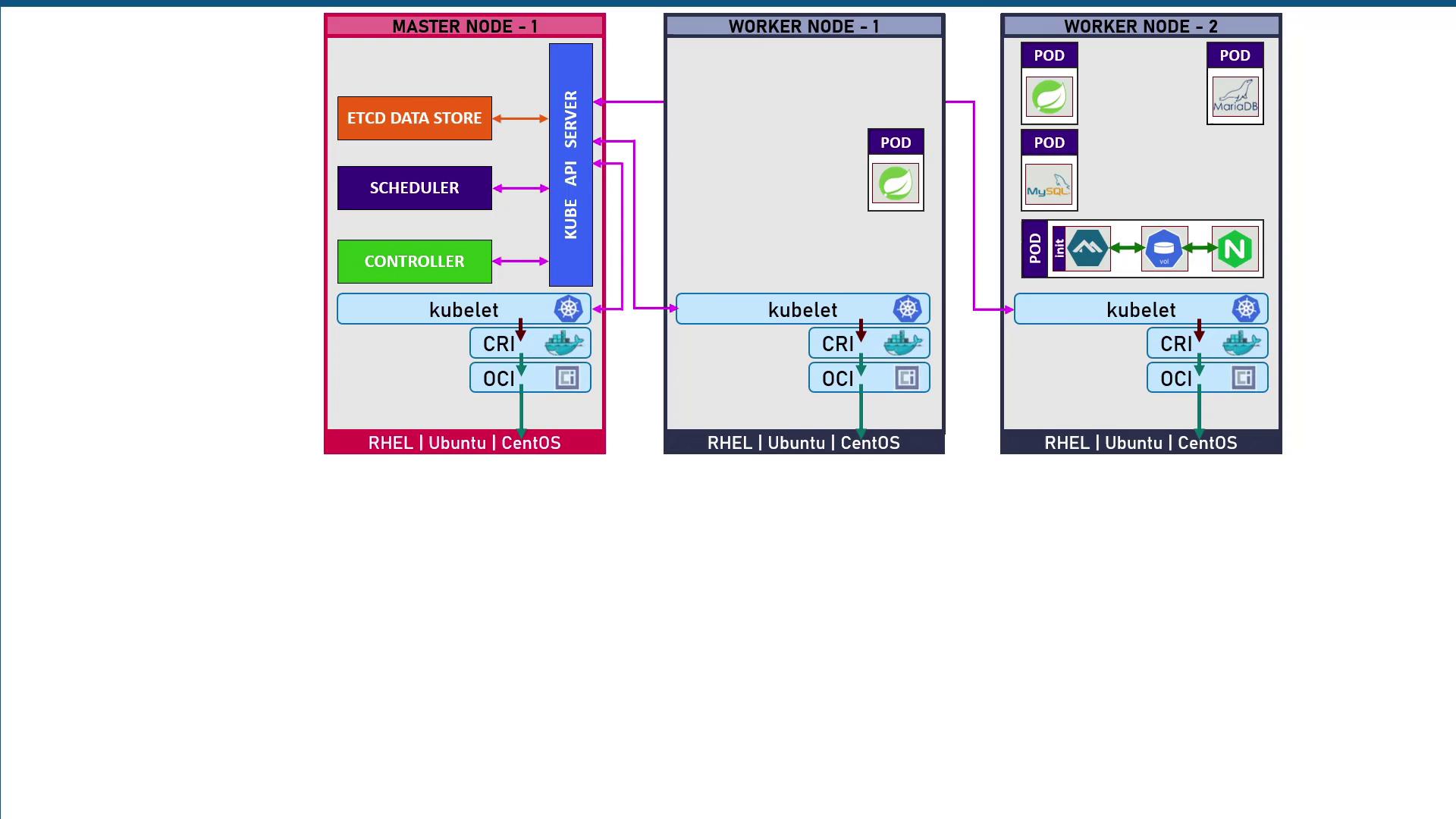

kubelet and the Container Runtime

Each node (control plane and worker) runs a kubelet agent that:

1. Watches the API server for PodSpecs.
2. Uses the Container Runtime Interface (CRI) to pull and launch containers.

Supported runtimes include Docker, containerd, and CRI-O, all conforming to the OCI (Open Container Initiative) specs:

• Image spec: Defines how container images are built.
• Runtime spec: Defines how containers are unpacked and executed.

Networking with CNI and kube-proxy

• CNI (Container Network Interface)
  Plugins like Calico, Flannel, and Weave Net assign each pod a unique IP.
• kube-proxy
  Programs iptables or IPVS rules to enable pod-to-pod networking and expose services externally.

Storage with CSI

Containers are ephemeral; local data is lost on restart. The Container Storage Interface (CSI) lets you:

• Provision PersistentVolumes (PV) from NFS, EBS, GCE PD, and more.
• Claim storage in pods via PersistentVolumeClaims (PVC).
• Use StorageClasses for dynamic volume provisioning.

Sandboxed Runtimes & RuntimeClass

Kubernetes supports minimal runtimes (e.g., containerd) and sandboxed environments:

1. Install containerd on each node.
2. Configure the kubelet with --container-runtime-endpoint.
3. Define a RuntimeClass that references the sandbox (e.g., gVisor’s RunSC).
4. In your PodSpec, set runtimeClassName to use the sandboxed runtime.

Admission and API Server Workflow

All cluster changes pass through the API server’s workflow:

1. Authentication (OIDC, LDAP, certificates)
2. Authorization (RBAC: Roles & RoleBindings)
3. Mutating Admission Controllers (e.g., sidecar injection)
4. Validating Admission Controllers (schema checks, OPA/Gatekeeper)
5. Final validation before persisting to etcd

Exposing Applications

Kubernetes uses Services and Ingress to make pods reachable:

• ClusterIP: Internal access only
• NodePort: Opens a port on each node
• LoadBalancer: Provisions a cloud load balancer
• ExternalName: Maps to an external DNS name

Ingress provides Layer-7 routing (host/path rules) and TLS termination.

DevSecOps Pipeline for Kubernetes

A robust CI/CD pipeline for a Spring Boot application on Kubernetes often includes:

1. Build & Test
   • Compile JAR, run unit and mutation tests, static code analysis.
2. Containerize
   • Build Docker image; scan with Trivy or Kubesec for vulnerabilities.
3. Policy Enforcement
   • Lint Kubernetes manifests (OPA/Gatekeeper), enforce PodSecurityPolicies.
4. Deploy
   • Apply Deployments, Services, Ingress via kubectl or GitOps.
5. Runtime Security & Monitoring
   • Detect threats in real time with Falco or KubeScan.
   • Monitor performance via Prometheus/Grafana; trace requests with Jaeger/Kiali.
