In this guide, we’ll walk through planning and executing a comprehensive disaster-recovery strategy for Docker Trusted Registry (DTR). You’ll learn how to design a fault-tolerant DTR architecture, back up critical metadata, and restore your registry in the event of failure.

Why You Need a Disaster-Recovery Plan for DTR

By default, a single-replica DTR using local filesystem storage provides no redundancy—if that node crashes, the registry goes offline. To avoid downtime and data loss, implement:

Multiple DTR replicas
A private overlay network (e.g., DTR-OL) connecting them
Quorum-based consensus (minimum three replicas)
An external object store (Amazon S3, Google Cloud Storage, or Azure Blob Storage) for image layers

Warning

Local filesystem storage on individual replicas is not fault-tolerant. Always use an external object store for image data at scale.

DTR High Availability Architecture

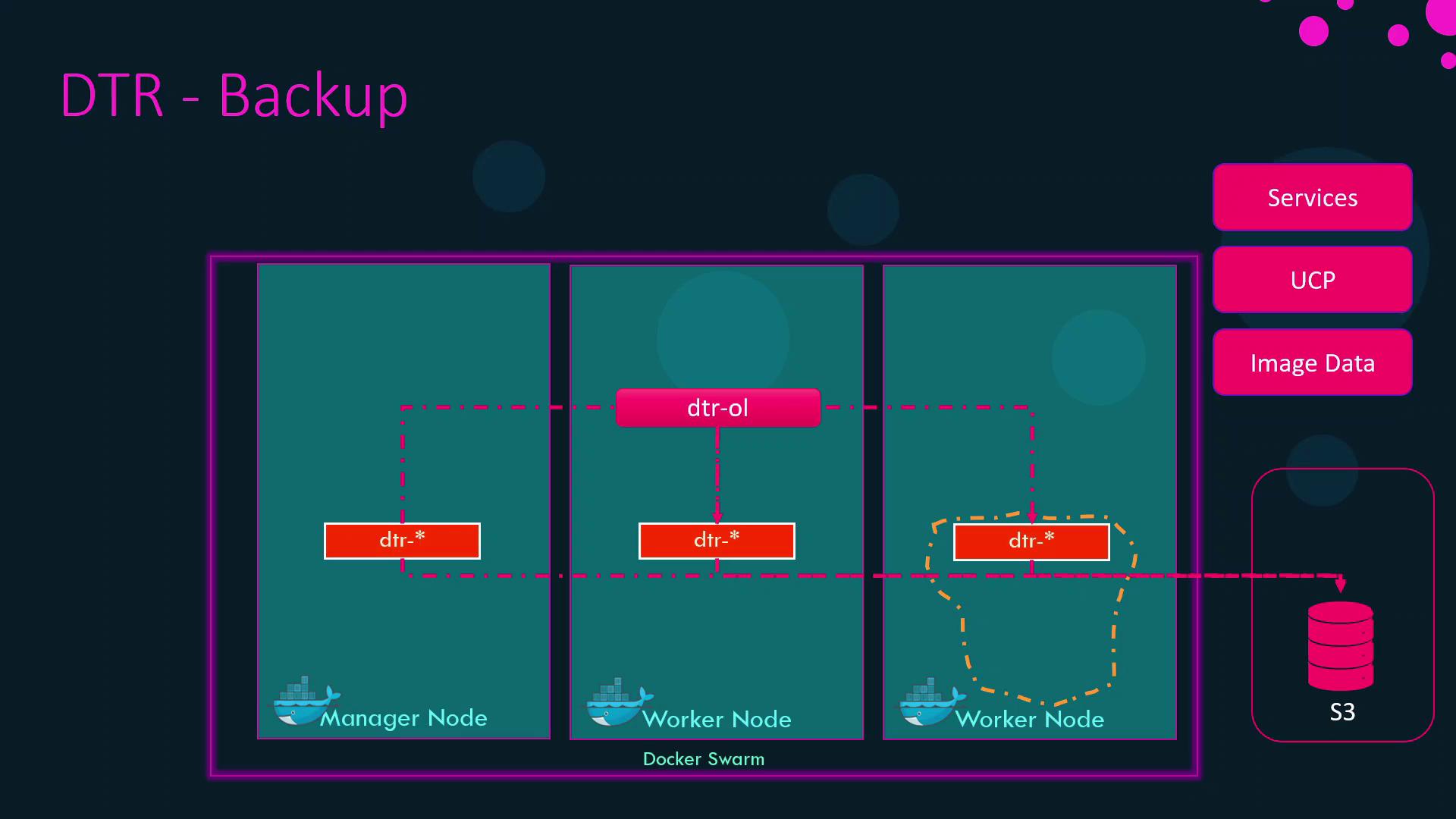

The image is a diagram illustrating a Docker Trusted Registry (DTR) backup setup, showing the interaction between manager and worker nodes within a Docker Swarm, and the storage of image data in S3.

What to Back Up in DTR

Even with image layers safely stored in S3 (or equivalent), you must preserve DTR’s metadata:

Metadata Category	Description
Configuration settings	Registry configuration, storage drivers, etc.
Repository definitions	Namespaces, repository tags
Access control policies	User and team permissions, LDAP/AD settings
Image signing data	Docker Content Trust keys
Vulnerability scan reports	Scan results and policy configurations
TLS certificates & keys	Registry TLS assets

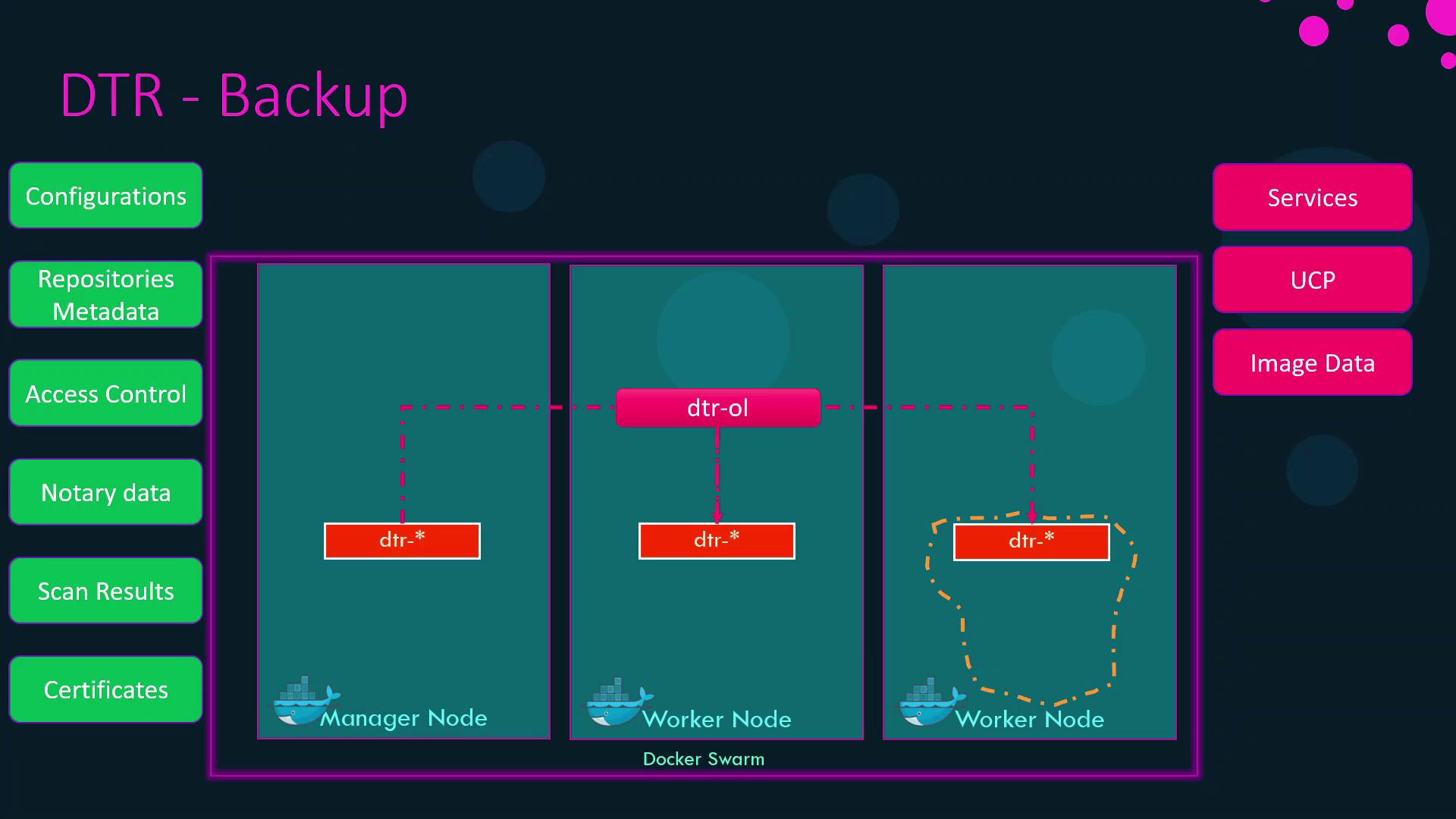

The image is a diagram illustrating a Docker Trusted Registry (DTR) backup setup, showing components like manager and worker nodes, and various data categories such as configurations, services, and image data.

Backing Up DTR Metadata

Run the DTR backup container against any existing replica to generate a tar archive of all metadata:

docker run --rm docker/dtr backup \
  --ucp-url $UCP_URL \
  --ucp-ca-cert-path $CA_PATH \
  --ucp-username $USERNAME \
  --ucp-password $PASSWORD \
  --existing-replica-id $REPLICA_ID \
  > dtr-metadata-backup.tar

Note

For a full list of backup flags and how to obtain credentials, see the DTR disaster recovery documentation.

Restoring DTR Metadata

Follow these steps to restore your registry metadata after a failure:

Destroy existing DTR containers to clean up state:

docker run --rm -it docker/dtr destroy \
  --ucp-url $UCP_URL \
  --ucp-insecure-tls

(If needed) Rehydrate image layers in your object store (e.g., re-upload to S3).

Import the metadata backup:

docker run --rm -i docker/dtr restore < dtr-metadata-backup.tar

Re-deploy additional replicas and confirm quorum membership.

Refer to the official restore guide for advanced options.

Summary Table

Disaster recovery for Docker Enterprise encompasses three layers. Below is a high-level overview:

Component	Backup Target	Tool / Storage Location
Swarm	Raft logs (nodes, services, overlay nets)	`docker swarm backup` or etcd snapshot
UCP	UCP config, access controls, Kubernetes	UCP CLI / API (docs)
DTR (images)	Container image layers	External Object Store (S3, GCS, Azure Blob)
DTR (metadata)	Config settings, repos, ACLs, scans, TLS	`docker run docker/dtr backup`

With these backups in place, you can restore your entire Docker Enterprise environment—Swarm, UCP, and DTR—to full operation after an outage.
