Example for Voting Application

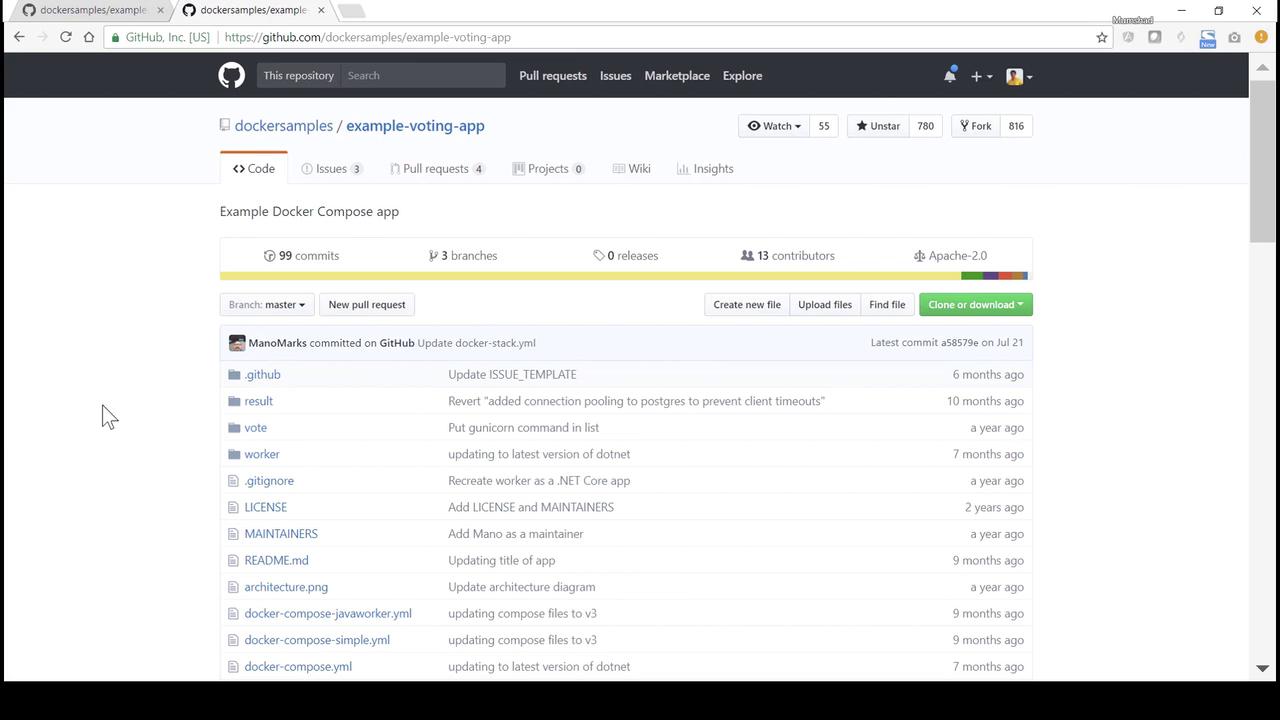

Welcome to this hands-on demo of the Example Voting App. This sample application demonstrates how to build and deploy a simple microservices-based voting system using Docker. The complete source code is available in the Docker samples repository on GitHub under example-voting-app:

In this guide, we will:

1. Review the overall architecture.
2. Dive into each component’s source code and Dockerfile.
3. Deploy all services step by step with docker run.

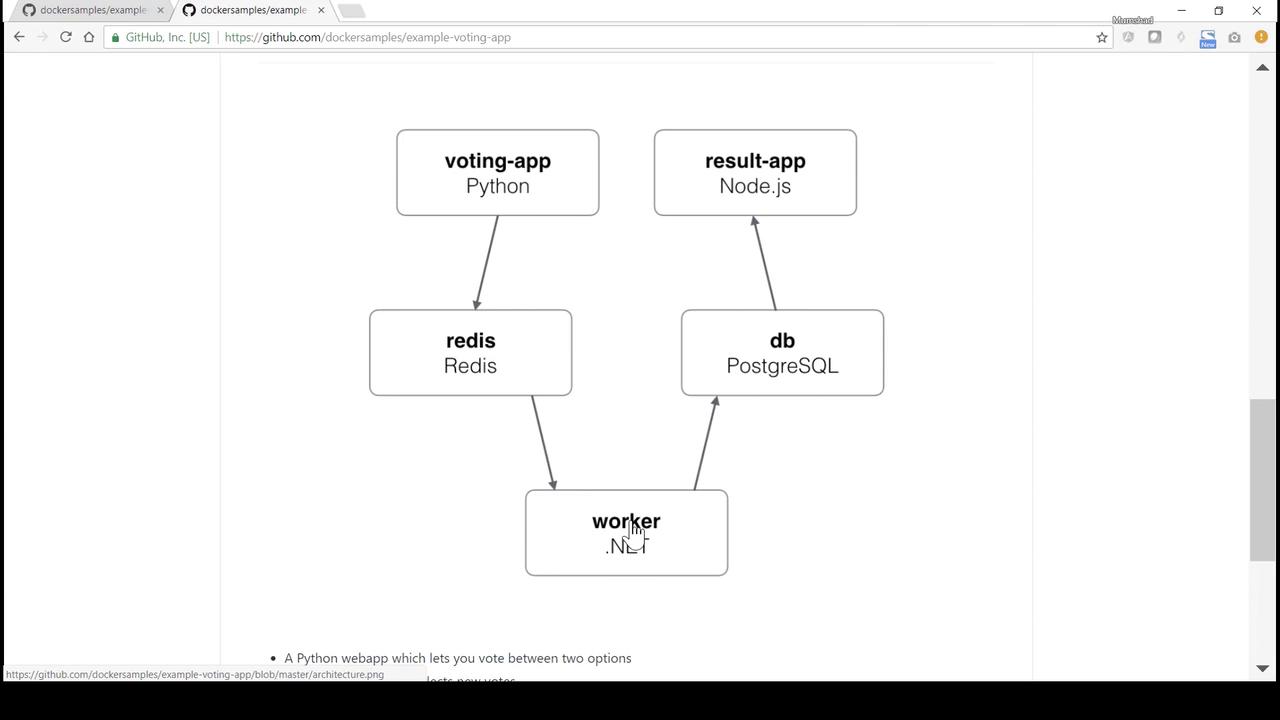

Architecture Overview

The voting system consists of five microservices:

1. vote (Python Flask)

The vote service provides a simple web page to cast votes and pushes each vote into Redis.

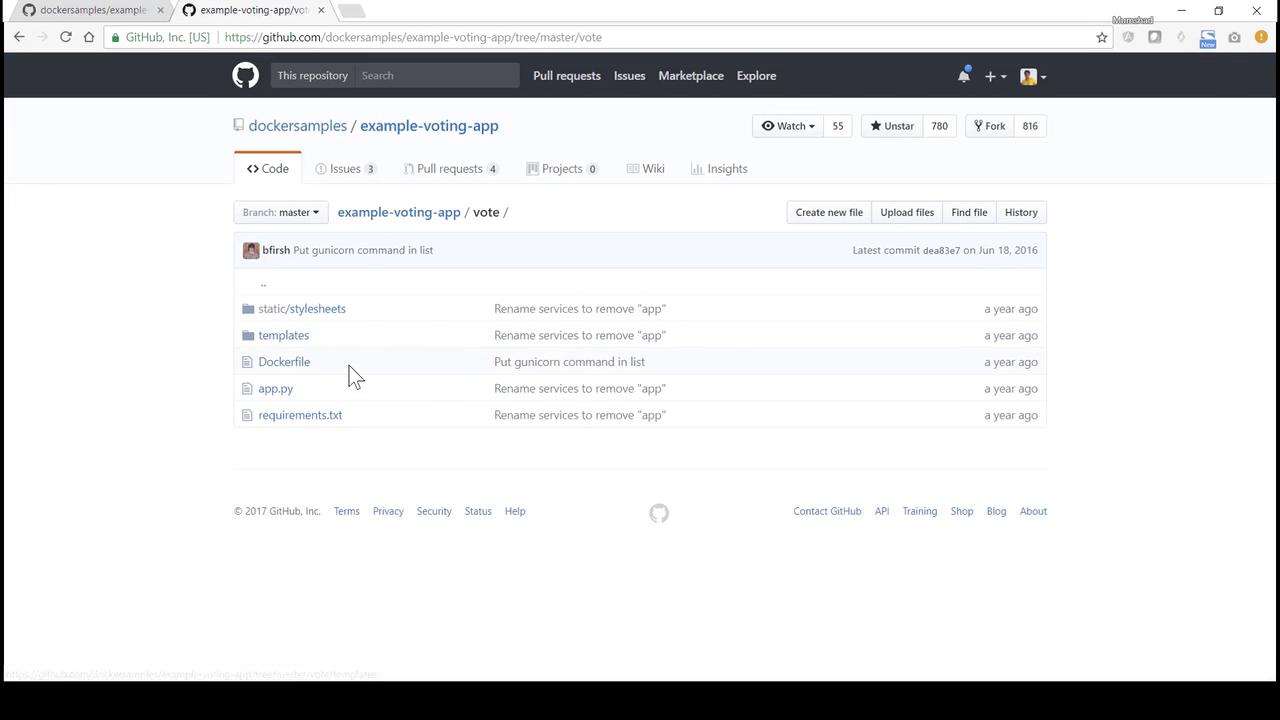

Navigate to the vote directory to explore its code and Dockerfile:

app.py

from flask import Flask, request, make_response, render_template, g
from redis import Redis
import os, random, json, socket

option_a = os.getenv("OPTION_A", "Cats")
option_b = os.getenv("OPTION_B", "Dogs")
hostname = socket.gethostname()

app = Flask(__name__)

def get_redis():
    if not hasattr(g, 'redis'):
        g.redis = Redis(host="redis", db=0, socket_timeout=5)
    return g.redis

@app.route("/", methods=["GET", "POST"])
def vote_page():
    voter_id = request.cookies.get('voter_id')
    if not voter_id:
        voter_id = hex(random.getrandbits(64))[2:-1]

    vote = None
    if request.method == 'POST':
        redis_conn = get_redis()
        vote = request.form['vote']
        data = json.dumps({'voter_id': voter_id, 'vote': vote})
        redis_conn.rpush('votes', data)

    resp = make_response(render_template(
        'index.html',
        option_a=option_a,
        option_b=option_b,
        hostname=hostname,
        vote=vote,
    ))
    resp.set_cookie('voter_id', voter_id)
    return resp

if __name__ == "__main__":
    app.run(host="0.0.0.0", port=80, debug=True, threaded=True)

Dockerfile

# Use official Python runtime
FROM python:2.7-alpine
WORKDIR /app

# Install dependencies
ADD requirements.txt /app/
RUN pip install -r requirements.txt

# Copy application code
ADD . /app
EXPOSE 80

# Launch with Gunicorn
CMD ["gunicorn", "app:app", "-b", "0.0.0.0:80", "--workers", "4", "--keep-alive", "0"]

2. worker (Java)

The worker service consumes vote messages from Redis and writes them into PostgreSQL.

Worker.java

import redis.clients.jedis.Jedis;
import org.json.JSONObject;
import java.sql.*;
import java.util.List;

class Worker {
    public static void main(String[] args) {
        try {
            Jedis redis = new Jedis("redis");
            Connection dbConn = DriverManager.getConnection(
                "jdbc:postgresql://db/postgres", "postgres", "password"
            );
            System.err.println("Watching vote queue");

            while (true) {
                List<String> item = redis.blpop(0, "votes");
                String voteJSON = item.get(1);
                JSONObject voteData = new JSONObject(voteJSON);
                String voterID = voteData.getString("voter_id");
                String vote = voteData.getString("vote");

                System.err.printf("Processing vote '%s' by '%s'%n", vote, voterID);
                updateVote(dbConn, voterID, vote);
            }
        } catch (SQLException e) {
            e.printStackTrace();
            System.exit(1);
        }
    }

    static void updateVote(Connection dbConn, String voterID, String vote) throws SQLException {
        PreparedStatement stmt = dbConn.prepareStatement(
            "INSERT INTO votes (id, vote) VALUES (?, ?)"
        );
        stmt.setString(1, voterID);
        stmt.setString(2, vote);
        stmt.executeUpdate();
    }
}

Dockerfile

# Use .NET SDK image
FROM microsoft/dotnet:1.1.1-sdk
WORKDIR /code

# Copy and restore/publish the worker
ADD src/Worker /code/src/Worker
RUN dotnet restore src/Worker && \
    dotnet publish -c Release -o out src/Worker

CMD ["dotnet", "out/Worker.dll"]

3. result (Node.js/Express)

The result service queries PostgreSQL for vote counts and renders a results page.

server.js

const express = require('express');
const { Client } = require('pg');
const app = express();
const port = process.env.PORT || 80;

const client = new Client({
  host: 'db',
  user: 'postgres',
  password: 'password',
  database: 'postgres'
});
client.connect();

app.set('view engine', 'pug');
app.use(express.static('public'));

app.get('/', async (req, res) => {
  const result = await client.query(
    'SELECT vote, COUNT(*) AS count FROM votes GROUP BY vote'
  );
  res.render('results', { votes: result.rows });
});

app.listen(port, () => console.log(`Result app listening on ${port}`));

Dockerfile

FROM node:5.11.0-slim
WORKDIR /app

# Global utilities
RUN npm install -g nodemon

ADD package.json /app/
RUN npm config set registry http://registry.npmjs.org && \
    npm install && npm ls

# Copy app code
ADD . /app
EXPOSE 80

CMD ["node", "server.js"]

4. Deploying with docker run

4.1 Clone & Build the Voting UI

git clone https://github.com/dockersamples/example-voting-app.git
cd example-voting-app/vote
docker build -t voting-app .

4.2 Start Redis & Voting UI

# Redis message queue
docker run -d --name redis redis:latest

# Voting UI linked to Redis on port 5000
docker run -d --name vote-ui \
  -p 5000:80 \
  --link redis:redis \
  voting-app

Open http://localhost:5000 to cast your vote.

4.3 Launch PostgreSQL Database

docker run -d --name db \
  -e POSTGRES_PASSWORD=password \
  postgres:9.4

4.4 Build & Run the Worker

cd ../worker
docker build -t worker-app .
docker run -d --name vote-worker \
  --link redis:redis \
  --link db:db \
  worker-app

4.5 Build & Run the Result App

cd ../result
docker build -t result-app .
docker run -d --name vote-result \
  -p 5001:80 \
  --link db:db \
  result-app

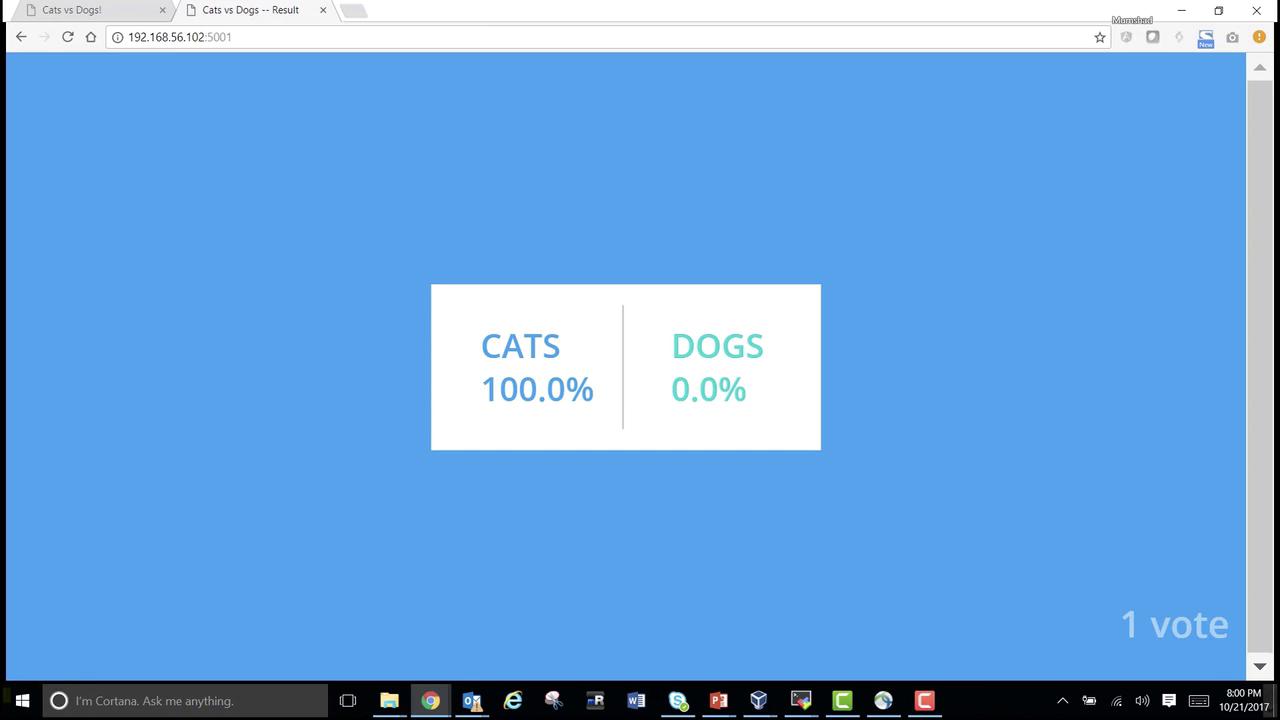

Visit http://localhost:5001 to see live voting results:

Congratulations! You’ve manually deployed all services using docker run, linked them together, and completed a full voting workflow. Next, we’ll automate this setup with Docker Compose.
