Demo DTR Setup

In this guide, we’ll install and configure Docker Trusted Registry (DTR) on a Universal Control Plane (UCP) cluster powered by Docker Enterprise Engine.

Table of Contents

1. Review Documentation and Prerequisites
2. Prepare the DTR Node
3. Add the DTR Node as a UCP Worker
4. Install Docker Trusted Registry
5. Verify DTR Access

1. Review Documentation and Prerequisites

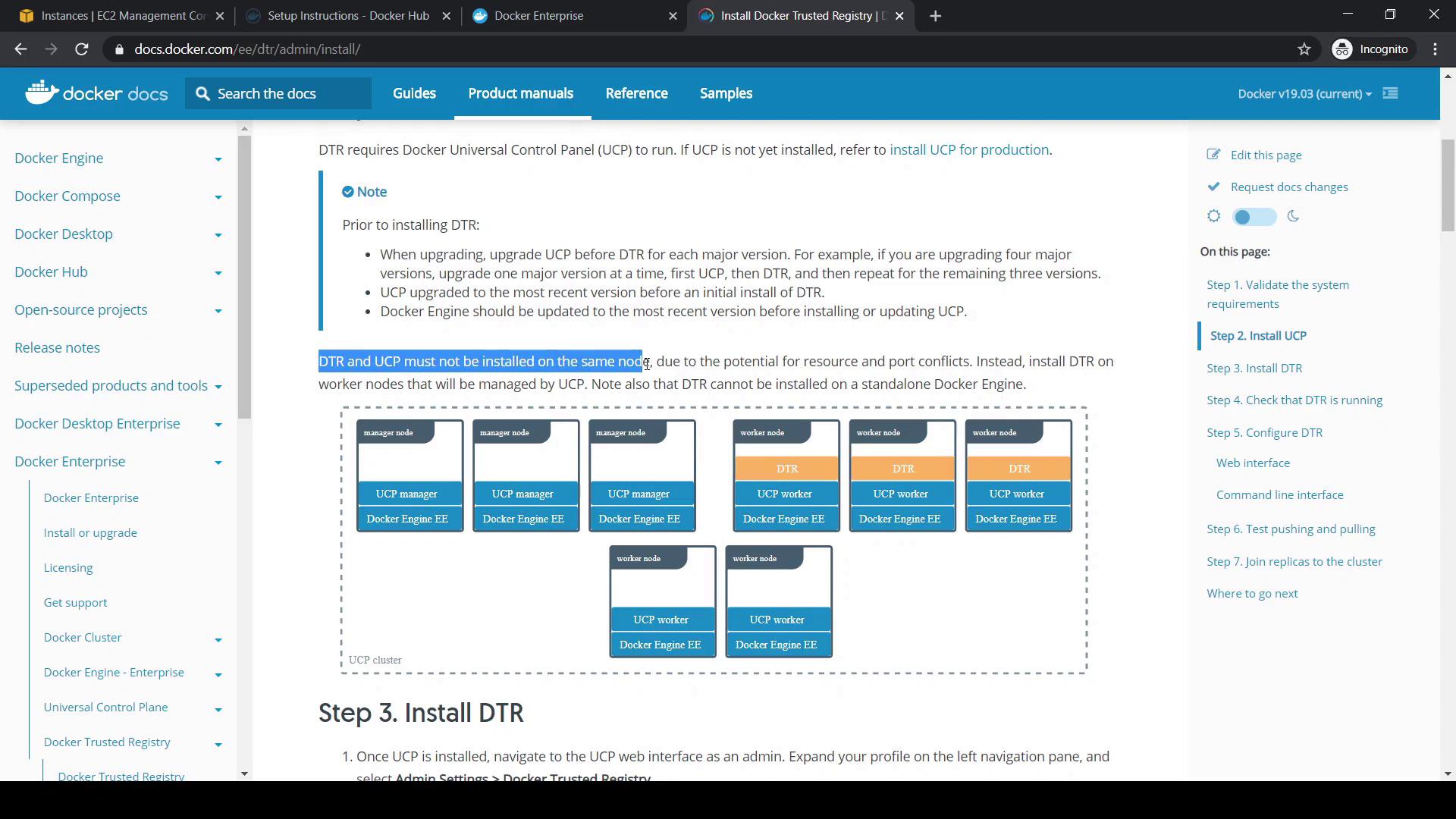

Before proceeding, review the official Docker Trusted Registry installation guide and confirm your environment meets the requirements:

2. Prepare the DTR Node

2.1 Remove Existing Docker Packages

Ensure no conflicting Docker packages remain:

sudo yum remove -y \
  docker \
  docker-client \
  docker-client-latest \
  docker-common \
  docker-latest \
  docker-latest-logrotate \
  docker-logrotate \
  docker-selinux \
  docker-engine-selinux \
  docker-engine

2.2 Install Docker Engine Enterprise

Follow the Docker Engine installation guide for your OS. After installation, verify the Docker version:

docker version

Expected output snippet:

Client: Docker Engine - Enterprise
 Version:          19.03.5
 API version:      1.40
Server: Docker Engine - Enterprise
 Engine:
  Version:          19.03.5
  API version:      1.40

3. Add the DTR Node as a UCP Worker

1. In UCP, navigate to Shared Resources > Nodes.

2. Click Add Node, select Linux, and choose Worker.

3. Copy the generated docker swarm join command:

   docker swarm join \
     --token SWMTKN-1-4liabct184f4xm0b3zr... \
     172.31.32.217:2377


4. On the DTR node, run the join command:

   docker swarm join \
     --token SWMTKN-1-4liabct184f4xm0b3zr... \
     172.31.32.217:2377

   This node joined a swarm as a worker.


5. Return to the UCP console and confirm the new worker status turns green.

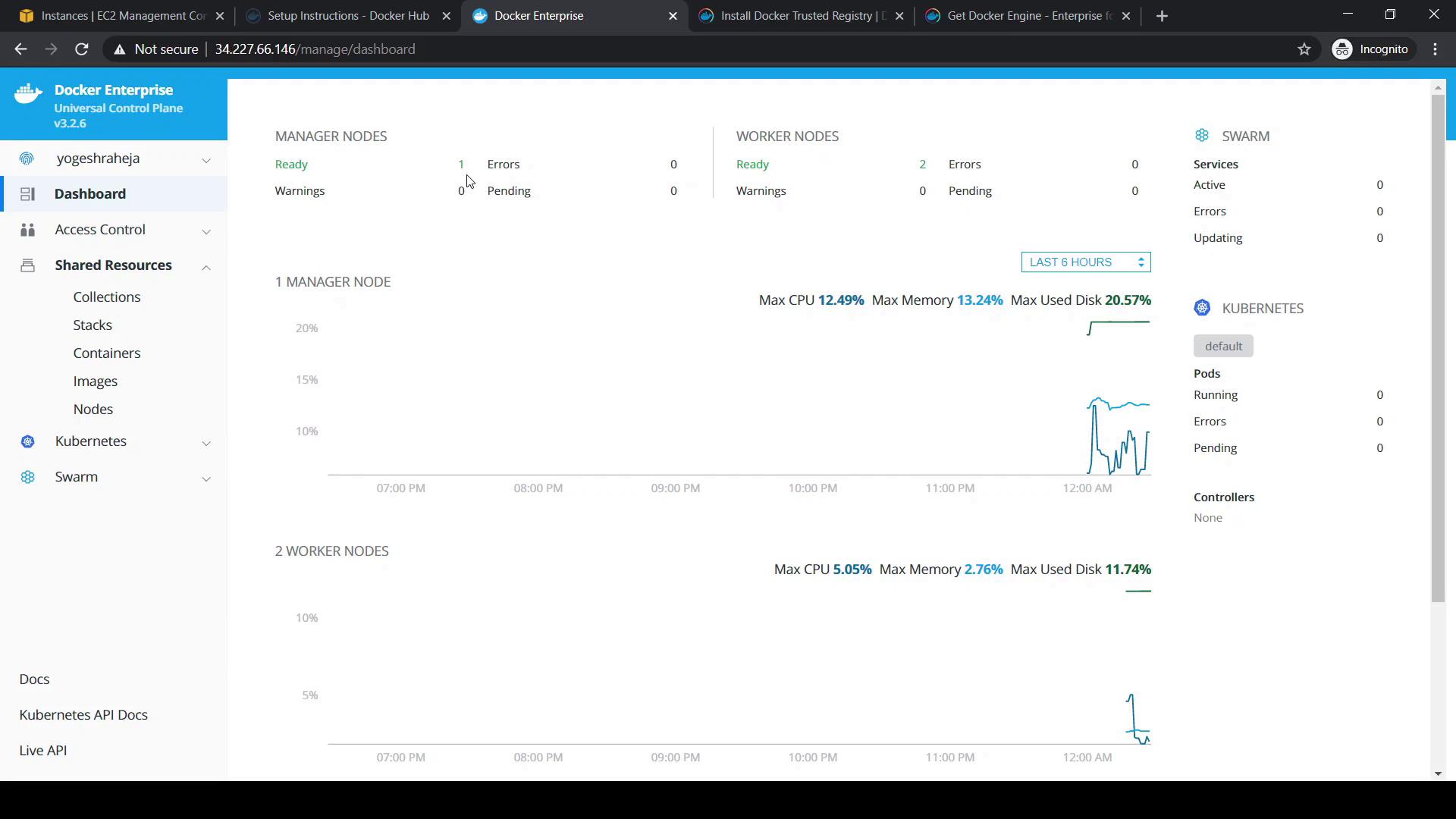

6. In Dashboard, verify you have one manager and two workers.

4. Install Docker Trusted Registry

1. In UCP, click your admin username, then navigate to Admin Settings > Docker Trusted Registry.

2. Select your DTR node and, if needed, set an external DTR URL. For demos, you can enable Disable TLS verification (not recommended for production).

3. Copy the installer command and replace --ucp-url with your manager’s private IP:

   # Discover the manager's private IP
   ip addr show eth0

   # Run the installer
   docker run -it --rm docker/dtr install \
     --ucp-node dtrnode \
     --ucp-username yogeshraheja \
     --ucp-url https://172.31.32.217 \
     --ucp-insecure-tls


4. Enter your UCP password when prompted. The installer will:

   • Pull the docker/dtr image
   • Perform prechecks on ports 80 and 443
   • Create the dtr-ol network
   • Provision certificates, volumes, and database containers

   Unable to find image 'docker/dtr:latest' locally
   latest: Pulling from docker/dtr
   ...
   INFO[0000] Beginning Docker Trusted Registry installation
   ucp-password:
   INFO[0008] Verifying [80 443] ports on dtrnode
   INFO[0015] Creating network: dtr-ol
   ...
   INFO[0028] Installation is complete
   INFO[0029] Replica ID is set to: f469e841601a


5. Verify DTR Access

1. Retrieve the public IP of your DTR node from your cloud provider.
2. Open https://<DTR_IP> in a browser.
3. Log in with your UCP credentials. On first access, no repositories appear.
4. Explore the DTR sidebar for Users, Organizations, Repositories, and Settings.

Congratulations! You now have Docker Enterprise Engine, Universal Control Plane, and Docker Trusted Registry fully operational.
