Networking Deep Dive Docker

In this lesson, we explore Docker networking, covering built-in modes and Linux network namespaces. You’ll learn how Docker uses a bridge network, veth pairs, and iptables NAT to connect containers and expose services.

Docker Networking Modes

Docker offers several network modes on a single host (e.g., host IP 192.168.1.10 on eth0):

Mode	Behavior	Example
none	No network interfaces except loopback	`docker run --network none nginx`
host	Shares the host’s network stack directly	`docker run --network host nginx`
bridge	Default: containers attach to the `docker0` bridge	`docker run nginx`

none
The container only has a loopback interface and cannot send or receive external traffic.

host
Containers share the host network namespace directly.

Warning

Using --network host removes network isolation. Ports in the container map directly to the host and may conflict with other services.

bridge
The default mode creates a docker0 bridge with a 172.17.0.0/16 subnet. Containers receive an IP on this network.

List Docker networks and host interfaces:

docker network ls
ip link show

You’ll see an interface named docker0:

3: docker0: <NO-CARRIER,BROADCAST,MULTICAST> mtu 1500 qdisc noqueue state DOWN
    link/ether 02:42:88:56:50:83 brd ff:ff:ff:ff:ff:ff

Inspect its IP address:

ip addr show docker0

Docker and Network Namespaces

Each container runs in its own Linux network namespace. To view Docker namespaces on the host:

sudo ip netns
# Example output:
b3165c10a92b

Inspect a container’s sandbox and namespace path:

docker inspect 942d70e585b2 \
  --format '{{json .NetworkSettings}}'

{
  "Bridge": "",
  "SandboxID": "b3165c10a92b50edc4c8aa5f37273e180907ded31",
  "SandboxKey": "/var/run/docker/netns/b3165c10a92b"
}

When a container starts, Docker creates a veth pair:

One end attaches to the host bridge (docker0).
The other end goes inside the container namespace as eth0.

Host side:

ip link show
# Example:
8: vethbb1c343@i7f: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0
    link/ether 9e:71:37:83:9f:50 brd ff:ff:ff:ff:ff:ff link-netnsid 1

Container side:

ip -n b3165c10a92b addr
# Example:
7: eth0@if8: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue
    link/ether 02:42:ac:11:00:03 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.3/16 brd 172.17.255.255 scope global eth0

Each new container repeats this process, assigning a unique IP in 172.17.0.0/16.

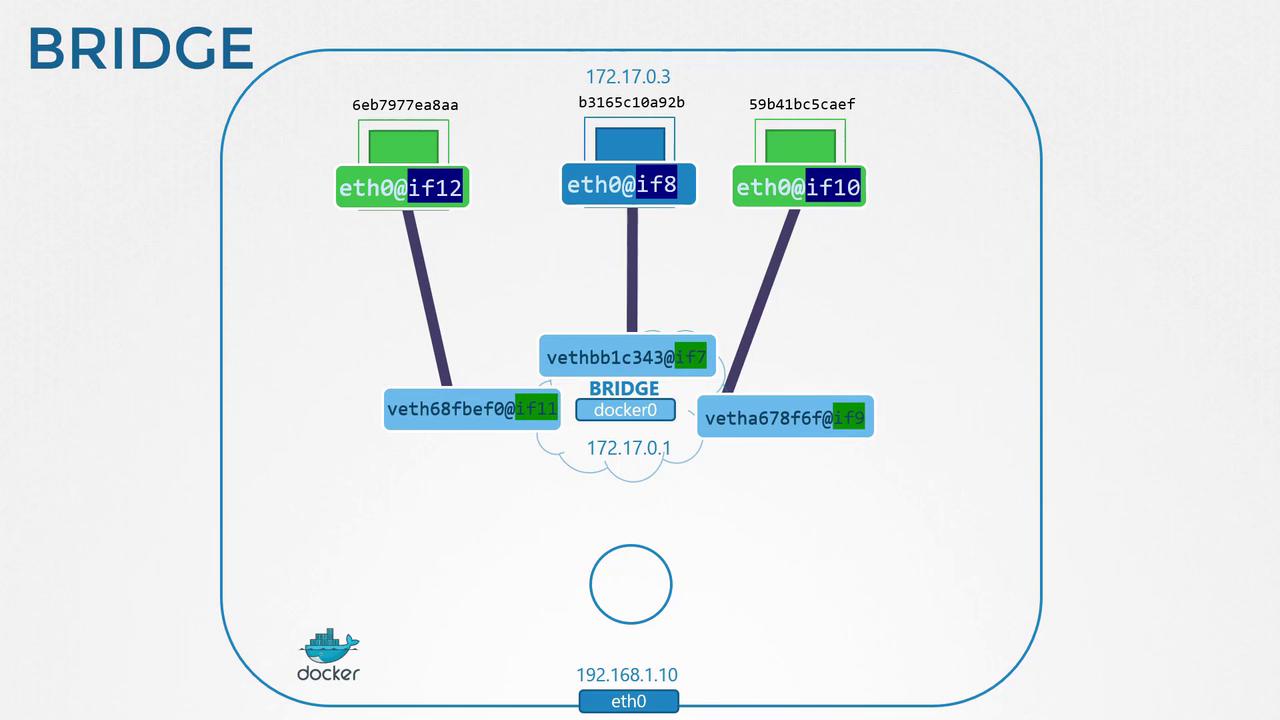

The image is a network diagram illustrating a Docker bridge network setup, showing connections between containers and the bridge interface `docker0`.

Container-to-Container and Host Communication

Containers on the same bridge can communicate by IP. The host also reaches them directly:

curl http://172.17.0.3:80
# => Welcome to nginx!

Note

External clients cannot access container IPs on the bridge network without port publishing.

Publishing Ports (Port Mapping)

Expose container ports to external clients with -p hostPort:containerPort:

docker run -p 8080:80 nginx

Access via http://192.168.1.10:8080:

curl http://192.168.1.10:8080
# => Welcome to nginx!

Behind the Scenes: iptables NAT

Docker adds iptables NAT rules to forward traffic:

iptables -t nat -A DOCKER -p tcp --dport 8080 \
  -j DNAT --to-destination 172.17.0.3:80

This ensures incoming connections on host port 8080 are redirected to the container’s port 80.
