Networking Deep Dive Namespaces

In this tutorial, we take a deep dive into Linux network namespaces—the building blocks of container network isolation (e.g., in Docker). Think of your host as a house and each network namespace as a private room: containers inside one room cannot see interfaces or processes in another. The host, however, has a global view of all “rooms.”

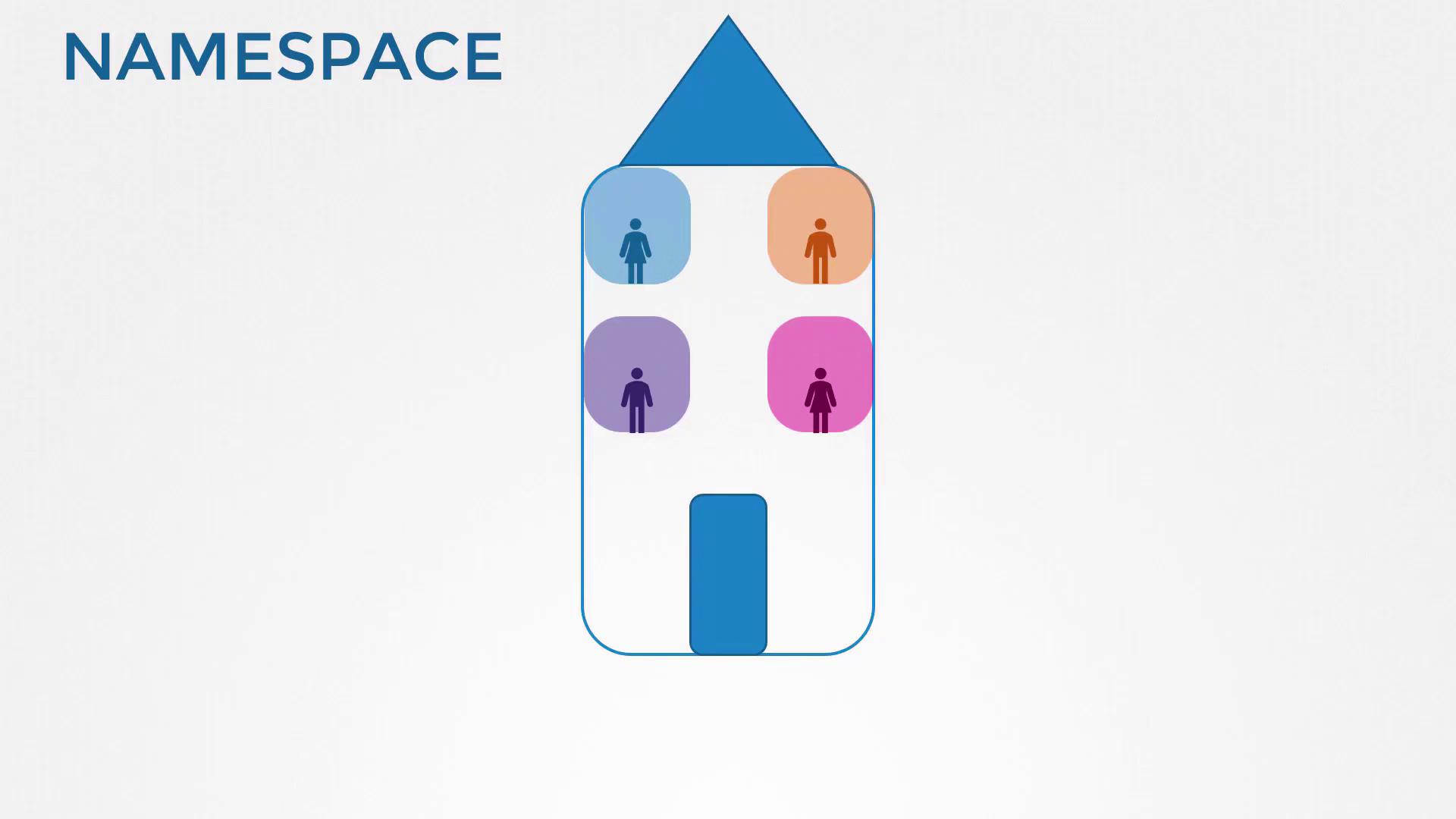

The image depicts a house-like structure with four colored sections, each containing a silhouette of a person, and the word "NAMESPACE" at the top.

Note

Most of these commands require root privileges or sudo. Ensure you have the appropriate permissions before proceeding.


1. Process Isolation

Inside a container’s PID namespace, a process always appears as PID 1. From the host’s root namespace, the same process has a distinct PID among all host processes:

# Inside the container (PID namespace)
ps aux
# ...
root     1   0.0  0.0   4528   828 ?   Ss   03:06  0:00 nginx

# On the host
ps aux
# ...
root   3816  1.0  0.0   4528   828 ?   Ss   06:06  0:00 nginx

2. Creating Network Namespaces

By default, the host’s network stack is isolated to its own namespace. To spin up isolated network domains:

# Create two namespaces
ip netns add red
ip netns add blue

# Verify namespaces
ip netns list
# red
# blue
CommandDescription
ip netns add NAMECreate a network namespace
ip netns delete NAMERemove a namespace
ip netns listList existing namespaces
ip netns exec NAME <cmd>Run <cmd> inside namespace NAME

3. Inspecting Interfaces Inside a Namespace

On the host, you’ll see all physical and virtual interfaces:

ip link show
# 1: lo: <LOOPBACK,UP,LOWER_UP> ...
# 2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> ...

Within red, only the loopback interface exists:

# Method 1: ip netns exec
ip netns exec red ip link show

# Method 2: shorthand
ip -n red link show

# Output:
# 1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 ...

No host interfaces (like eth0) appear in red. ARP and routing tables start empty:

ip netns exec red arp           # no entries
ip netns exec red ip route      # default only loopback

4. Connecting Two Namespaces with veth Pairs

To create a virtual “cable” between red and blue, use a veth pair:

# Create veth pair
ip link add veth-red type veth peer name veth-blue

# Move each end into its namespace
ip link set veth-red  netns red
ip link set veth-blue netns blue

# Assign IPs and bring up interfaces
ip -n red  addr add 192.168.15.1/24 dev veth-red
ip -n red  link set veth-red up

ip -n blue addr add 192.168.15.2/24 dev veth-blue
ip -n blue link set veth-blue up

Test connectivity:

ip -n red ping -c1 192.168.15.2
# 64 bytes from 192.168.15.2: icmp_seq=1 ttl=64 time=0.xxx ms

ARP tables populate automatically:

ip -n red  arp
ip -n blue arp
# 192.168.15.1 ether 7a:9d:9b:c8:3b:7f C veth-blue

5. Building a Virtual Switch with a Bridge

Connecting many namespaces via direct veth pairs is impractical. Instead, create a Linux bridge on the host:

# Create and enable bridge
ip link add v-net-0 type bridge
ip link set v-net-0 up

Remove the direct link in red:

ip -n red link del veth-red

Recreate veth pairs for each namespace and attach them to the bridge:

# red ↔ bridge
ip link add veth-red     type veth peer name veth-red-br
ip link set veth-red netns red
ip link set veth-red-br master v-net-0

# blue ↔ bridge
ip link add veth-blue    type veth peer name veth-blue-br
ip link set veth-blue netns blue
ip link set veth-blue-br master v-net-0

Assign IPs and bring them up:

ip -n red  addr add 192.168.15.1/24 dev veth-red
ip -n red  link set veth-red up

ip -n blue addr add 192.168.15.2/24 dev veth-blue
ip -n blue link set veth-blue up

All namespaces on v-net-0 can now communicate via the bridge.


6. Host–Namespace Connectivity

To let the host join this virtual network, assign v-net-0 an IP in the same subnet:

ip addr add 192.168.15.5/24 dev v-net-0

Now the host can ping into any namespace:

ping -c1 192.168.15.1
# 64 bytes from 192.168.15.1: icmp_seq=1 ttl=64 time=0.xxx ms

7. Namespace → LAN Connectivity via Host

By default, namespaces cannot reach external LANs:

ip -n blue ping 192.168.1.3
# Connect: Network is unreachable

Check blue’s routes:

ip -n blue ip route
# 192.168.15.0/24 dev veth-blue proto kernel scope link

Add a route via the host (gateway 192.168.15.5):

ip -n blue ip route add 192.168.1.0/24 via 192.168.15.5

Enabling NAT on the Host

Warning

Be careful when modifying iptables rules on production systems. Always test in a safe environment first.

# Masquerade outbound traffic from your virtual subnet
iptables -t nat -A POSTROUTING -s 192.168.15.0/24 -j MASQUERADE

# Set default route in the namespace
ip -n blue ip route add default via 192.168.15.5

Now blue can reach the internet (e.g., 8.8.8.8):

ip -n blue ping -c1 8.8.8.8
# 64 bytes from 8.8.8.8: icmp_seq=1 ttl=115 time=XX ms

8. Port Forwarding into a Namespace

To expose a service (e.g., HTTP on port 80) running in blue, use iptables DNAT on the host:

iptables -t nat -A PREROUTING --dport 80 \
  -j DNAT --to-destination 192.168.15.2:80

Now requests to the host’s port 80 are transparently forwarded into blue.


9. Summary of Key Commands

TaskCommand Example
Create namespaceip netns add NAME
Execute in namespaceip netns exec NAME <cmd>
Create veth pairip link add veth-A type veth peer name veth-B
Create bridgeip link add BRIDGE type bridge
Attach interface to bridgeip link set IFACE master BRIDGE
Assign IPip -n NS addr add IP/MASK dev IFACE
Enable masquerading (NAT)iptables -t nat -A POSTROUTING -s SUBNET -j MASQUERADE
DNAT for port forwardingiptables -t nat -A PREROUTING --dport PORT -j DNAT --to-destination IP:PORT
