Persistent storage is a critical aspect of running stateful applications on Kubernetes. In this guide, you’ll learn how Kubernetes volumes work, explore storage backends, and see examples using both hostPath and AWS EBS volumes.

Volumes in Docker

Containers created by Docker are ephemeral by design: all data written inside a container is lost when it stops or is removed. To persist data across container restarts or recreations, you attach a volume at creation time.

Note

Docker volumes decouple container lifecycles from data lifecycles.
Learn more: Docker Volumes.

Volumes in Kubernetes

Kubernetes Pods inherit the same ephemeral behavior: when a Pod is deleted, its filesystem is wiped clean. To preserve data beyond a Pod’s lifecycle, define one or more volumes in the Pod spec and mount them into containers.

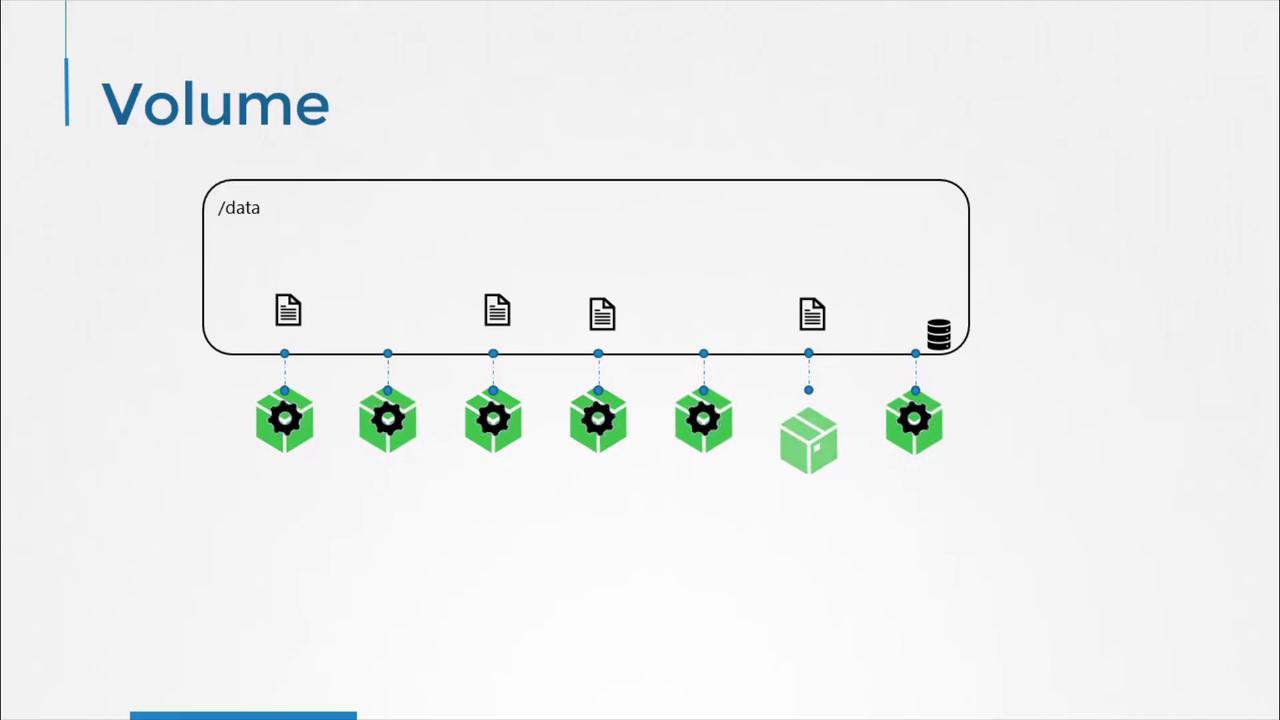

The image illustrates a data volume concept with a directory labeled "/data" containing files, connected to several green hexagonal icons with gear symbols, likely representing containers or services.

Example: Generating a Random Number with a hostPath Volume

The following Pod manifest demonstrates how to use a hostPath volume. Each time the Pod runs, it appends a random number to /opt/number.out. The underlying directory on the node (/data) retains all generated numbers, even after the Pod is deleted.

apiVersion: v1
kind: Pod
metadata:
  name: random-number-generator
spec:
  containers:
    - name: alpine
      image: alpine
      command: ["/bin/sh", "-c"]
      args: ["shuf -i 0-100 -n 1 >> /opt/number.out"]
      volumeMounts:
        - name: data-volume
          mountPath: /opt
  volumes:
    - name: data-volume
      hostPath:
        path: /data
        type: Directory

How it works:

hostPath.path points to /data on the Kubernetes node.
The Pod’s container mounts this directory at /opt.
Random numbers accumulate in /data/number.out on the host.

Warning

hostPath volumes are bound to a single node’s filesystem and do not provide data sharing or high availability. Avoid using them in multi-node clusters.

Storage Options for Kubernetes Volumes

Kubernetes supports a variety of volume types and storage backends. Below is a summary of common volume plugins:

Storage Type	Description	Example Volume Spec
NFS	Network File System for sharing	`nfs.server:port,path`
AWS Elastic Block Store (EBS)	Block storage in AWS	`awsElasticBlockStore: { volumeID, fsType: ext4 }`
Azure Disk	Managed disks in Azure	`azureDisk: { diskName, diskURI, fsType }`
Google Compute Engine Persistent Disk	Block storage in GCP	`gcePersistentDisk: { pdName, fsType }`
CephFS	Distributed file system	`cephfs: { monitors, path, user }`

Learn more: Kubernetes Volumes

Example: AWS EBS Volume

To switch from a hostPath volume to AWS EBS, replace the hostPath section with an awsElasticBlockStore definition in your Pod spec:

volumes:
  - name: data-volume
    awsElasticBlockStore:
      volumeID: <your-volume-id>
      fsType: ext4

This configuration mounts an existing EBS volume into your Pod, providing durable, block-level storage managed by AWS.

Next Steps: PersistentVolumeClaims

While static volumes require manual provisioning, PersistentVolumeClaims (PVCs) enable dynamic provisioning and binding of storage resources. In the next lesson, you’ll see how to request storage with PVCs and bind them to Pods automatically.
