Continuous Integration with GitHub Actions

Workflow Docker Build and Test

In this guide, you'll learn how to build a Docker image and run container tests in a GitHub Actions workflow before publishing it to Docker Hub. This end-to-end CI setup ensures your application image is validated automatically on each commit.

Prerequisites

Ensure you have the following jobs configured in your workflow:

  • unit-testing
  • code-coverage

You’ll also need a step to authenticate with Docker Hub:

jobs:
  docker:
    name: Containerization
    needs: [unit-testing, code-coverage]
    runs-on: ubuntu-latest
    steps:
      - name: Checkout Repository
        uses: actions/checkout@v4

      - name: Log in to Docker Hub
        uses: docker/[email protected]
        with:
          username: ${{ vars.DOCKERHUB_USERNAME }}
          password: ${{ secrets.DOCKERHUB_PASSWORD }}

Using docker/build-push-action for Build & Test

We’ll leverage Docker’s official build-push-action to compile and test the image locally (push: false). This action supports multiple platforms and advanced build features via Buildx.

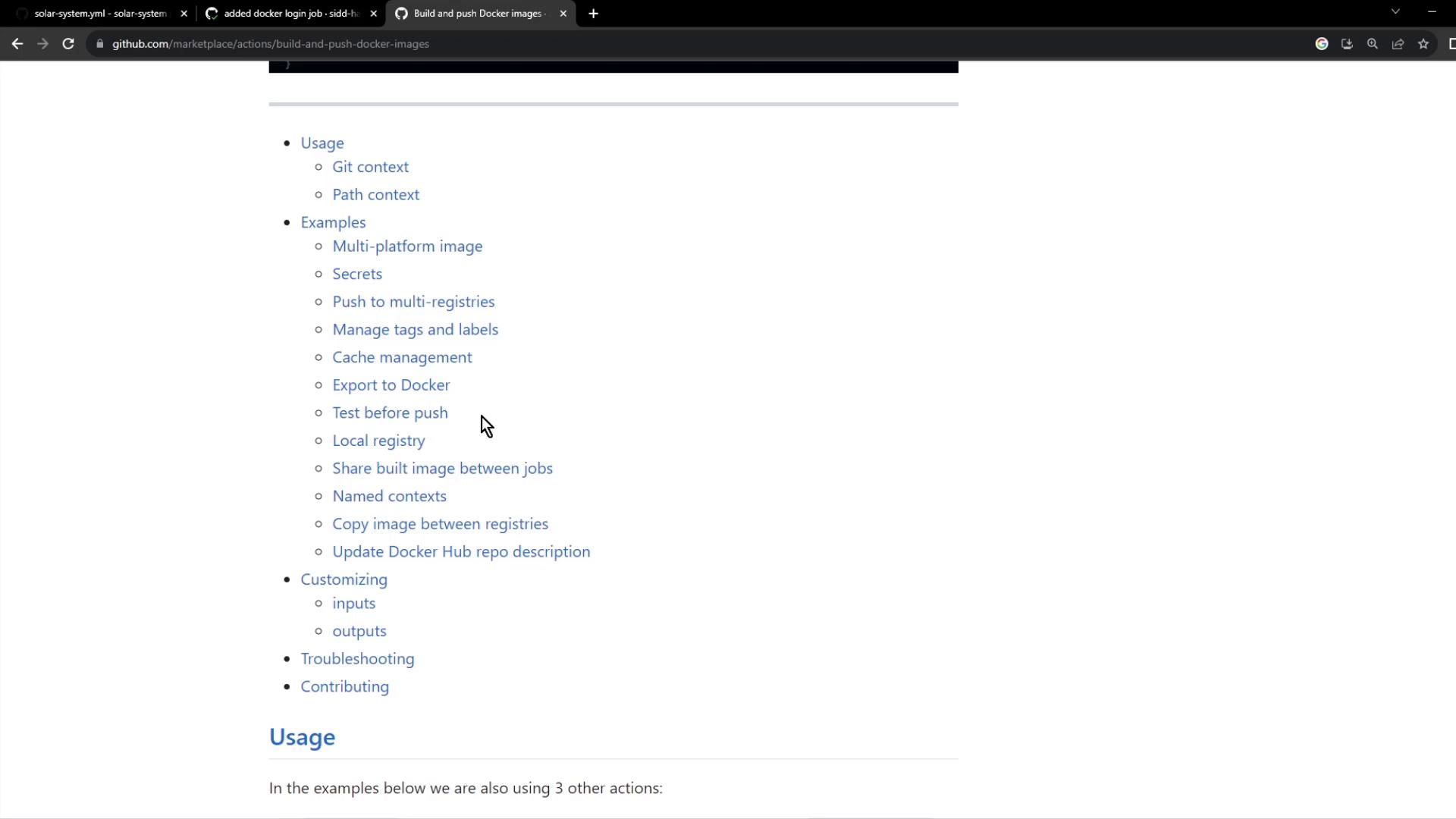

GitHub Marketplace page for docker/build-push-action showing usage, examples, customizing, troubleshooting, and contributing sections.

Note

By setting push: false you prevent the image from being sent to a registry, enabling quick feedback on build and tests.

Workflow Snippet

jobs:
  docker:
    name: Containerization
    needs: [unit-testing, code-coverage]
    runs-on: ubuntu-latest
    steps:
      - name: Checkout Repository
        uses: actions/checkout@v4

      - name: Log in to Docker Hub
        uses: docker/[email protected]
        with:
          username: ${{ vars.DOCKERHUB_USERNAME }}
          password: ${{ secrets.DOCKERHUB_PASSWORD }}

      - name: Set up QEMU emulator
        uses: docker/setup-qemu-action@v3

      - name: Set up Docker Buildx
        uses: docker/setup-buildx-action@v3

      - name: Build Docker Image for Testing
        uses: docker/build-push-action@v5
        with:
          context: .
          load: true
          push: false
          tags: ${{ vars.DOCKERHUB_USERNAME }}/solar-system:${{ github.sha }}

      - name: Run Container and Test `/live` Endpoint
        run: |
          docker run --rm --name solar-system-app -d \
            -p 3000:3000 \
            -e MONGO_URI=$MONGO_URI \
            -e MONGO_USERNAME=$MONGO_USERNAME \
            -e MONGO_PASSWORD=$MONGO_PASSWORD \
            ${{ vars.DOCKERHUB_USERNAME }}/solar-system:${{ github.sha }}

          echo "Verifying /live endpoint"
          wget -q -O - http://127.0.0.1:3000/live | grep live

Build & Test Action Summary

StepActionKey Inputs
Authenticate to Docker Hubdocker/[email protected]username, password
Prepare QEMU for multi-arch buildsdocker/setup-qemu-action@v3(none)
Enable Buildxdocker/setup-buildx-action@v3(none)
Build & Load Imagedocker/build-push-action@v5context, load, push, tags
Container Sanity Testshell commanddocker run, wget, grep

Dockerfile

Place this Dockerfile in your repository root to define the container:

FROM node:18-alpine3.17

WORKDIR /usr/app
COPY package*.json ./
RUN npm install

COPY . .

# Placeholder environment variables for local tests
ENV MONGO_URI=uriPlaceholder
ENV MONGO_USERNAME=usernamePlaceholder
ENV MONGO_PASSWORD=passwordPlaceholder

EXPOSE 3000
CMD ["npm", "start"]

This configuration:

  • Starts from the lightweight Node.js 18 Alpine image
  • Sets /usr/app as the working directory
  • Installs dependencies from package.json
  • Copies the rest of your application code
  • Defines default environment variables for MongoDB
  • Exposes port 3000 and launches the app using npm start

Application Health Endpoints

Ensure your Express app exposes a simple /live endpoint for the workflow test. Example in app.js:

const express = require('express');
const path = require('path');
const os = require('os');
const app = express();

app.get('/live', (req, res) => {
  res.json({ status: "live" });
});

app.get('/', (req, res) => {
  res.sendFile(path.join(__dirname, 'index.html'));
});

app.get('/os', (req, res) => {
  res.json({
    os: os.hostname(),
    env: process.env.NODE_ENV
  });
});

app.get('/ready', (req, res) => {
  res.json({ status: "ready" });
});

app.listen(3000, () => {
  console.log("Server running on port 3000");
});

module.exports = app;

Warning

Be sure your placeholder environment variables in the Dockerfile match those used in your test commands to avoid runtime errors.

Workflow Run Results

Once the workflow is committed, GitHub Actions will execute the build-and-test job. You’ll see output like this:

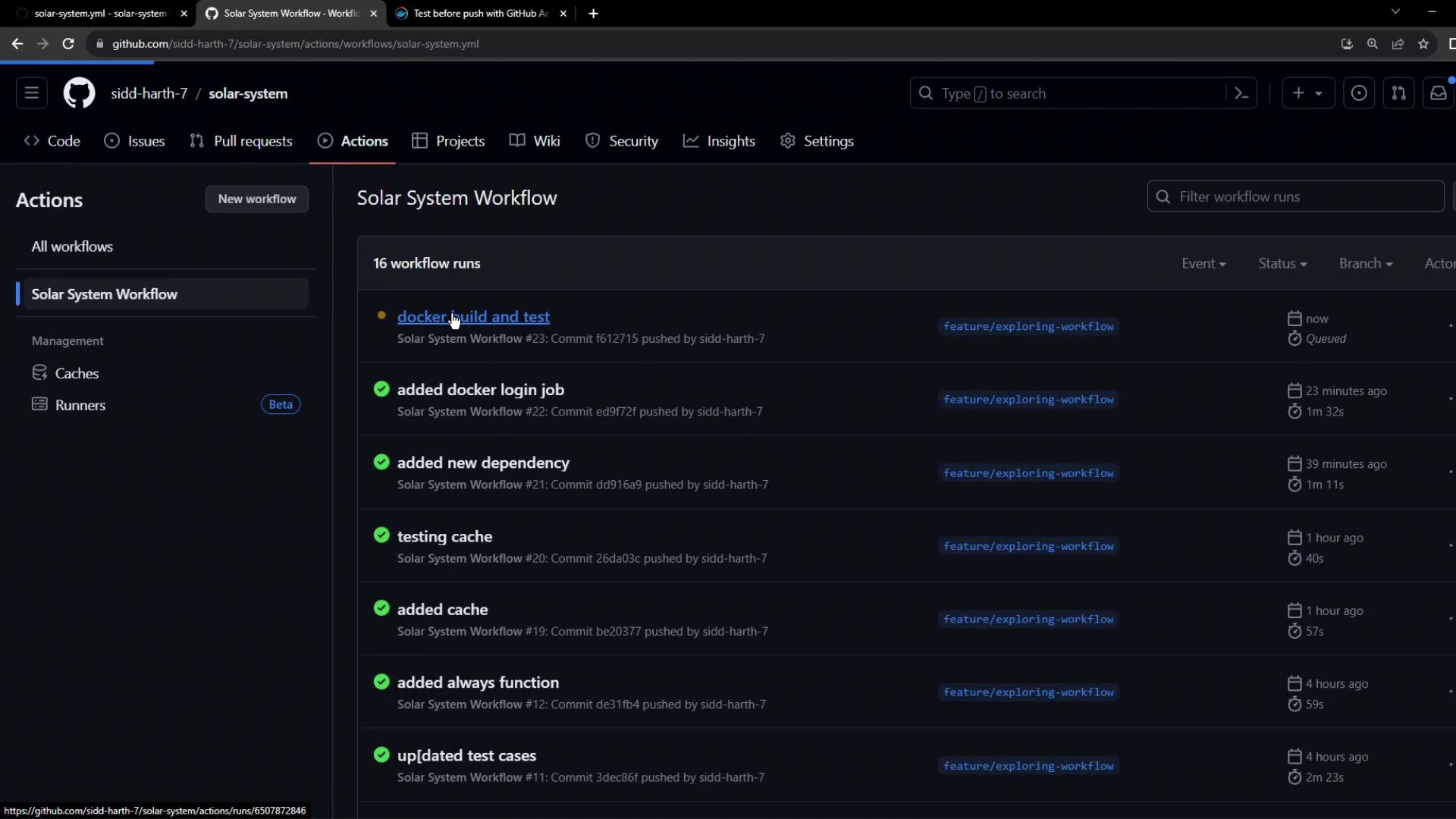

GitHub Actions page showing the "Solar System Workflow" runs with statuses and timestamps.

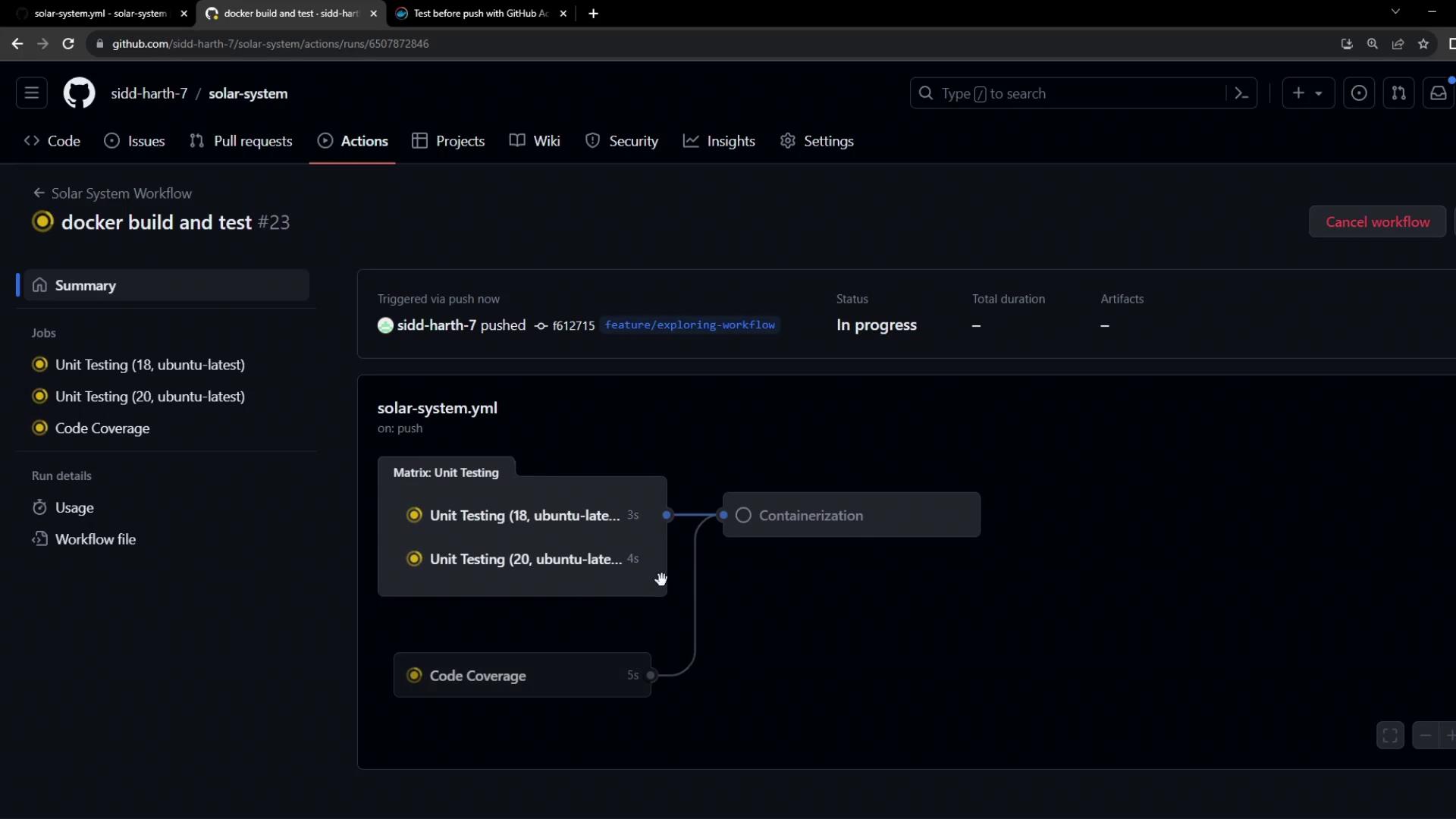

GitHub Actions interface for the "docker build and test" job running under the "solar-system" workflow, showing progress and success of each step.

Example build logs:

/usr/bin/docker buildx build \
  --iidfile /tmp/docker-actions-toolkit/iidfile \
  --tag youruser/solar-system:abcdef \
  --metadata-file /tmp/docker-actions-toolkit/metadata-file .

#1 [auth] library/node:pull token for registry-1.docker.io
#6 [1/5] FROM docker.io/library/node:18-alpine3.17
...
#11 DONE 1.6s

And container test output:

$ docker images
REPOSITORY                   TAG      IMAGE ID       SIZE
youruser/solar-system        abcdef   e7789ef9a9...  110MB

$ docker run --name solar-system-app -d -p 3000:3000 \
    -e MONGO_URI=uriPlaceholder \
    -e MONGO_USERNAME=usernamePlaceholder \
    -e MONGO_PASSWORD=usernamePlaceholder \
    youruser/solar-system:abcdef

$ echo "Testing /live endpoint"
$ wget -q -O - http://127.0.0.1:3000/live | grep live
live

Since all steps pass, your Docker image is successfully built and tested locally. Next up: pushing it to Docker Hub and deploying!
