Additional Matrix Configuration

In this guide, you’ll learn how to leverage advanced matrix features in GitHub Actions to:

• Exclude specific job combinations
• Include custom job combinations
• Control failure propagation (fail-fast)
• Limit concurrent executions (max-parallel)

These techniques help you optimize CI/CD workflows for Docker images, operating systems, and more. For full details, see the GitHub Actions workflow syntax for strategy.matrix.

1. Base Matrix Example

The simplest matrix runs two Docker images (hello-world, alpine) across three operating systems (ubuntu-latest, ubuntu-20.04, windows-latest):

on:
  workflow_dispatch:
jobs:
  deploy:
    strategy:
      matrix:
        os: [ubuntu-latest, ubuntu-20.04, windows-latest]
        images: [hello-world, alpine]
    runs-on: ${{ matrix.os }}
    steps:
      - name: Show Docker Info
        run: docker info

      - name: Run ${{ matrix.images }} on ${{ matrix.os }}
        run: docker run ${{ matrix.images }}

This configuration produces 3 × 2 = 6 jobs, all running in parallel. By default, if one job fails, the remaining jobs are canceled (the fail-fast behavior).

2. Excluding Specific Combinations

If a particular image isn’t compatible with an OS, you can remove that pair using exclude:

on:
  workflow_dispatch:
jobs:
  deploy:
    strategy:
      matrix:
        os: [ubuntu-latest, ubuntu-20.04, windows-latest]
        images: [hello-world, alpine]
        exclude:
          - os: windows-latest
            images: alpine
    runs-on: ${{ matrix.os }}
    steps:
      - name: Show Docker Info
        run: docker info

      - name: Run ${{ matrix.images }} on ${{ matrix.os }}
        run: docker run ${{ matrix.images }}

Now you’ll get only 5 jobs—omitting the windows-latest + alpine combination.

3. Including Custom Combinations

To add specialized pairings not covered by the default lists, use include. For example, run the amd64/alpine image on Ubuntu 20.04:

on:
  workflow_dispatch:
jobs:
  deploy:
    strategy:
      matrix:
        os: [ubuntu-latest, ubuntu-20.04, windows-latest]
        images: [hello-world, alpine]
        exclude:
          - os: windows-latest
            images: alpine
        include:
          - os: ubuntu-20.04
            images: amd64/alpine
    runs-on: ${{ matrix.os }}
    steps:
      - name: Show Docker Info
        run: docker info

      - name: Run ${{ matrix.images }} on ${{ matrix.os }}
        run: docker run ${{ matrix.images }}

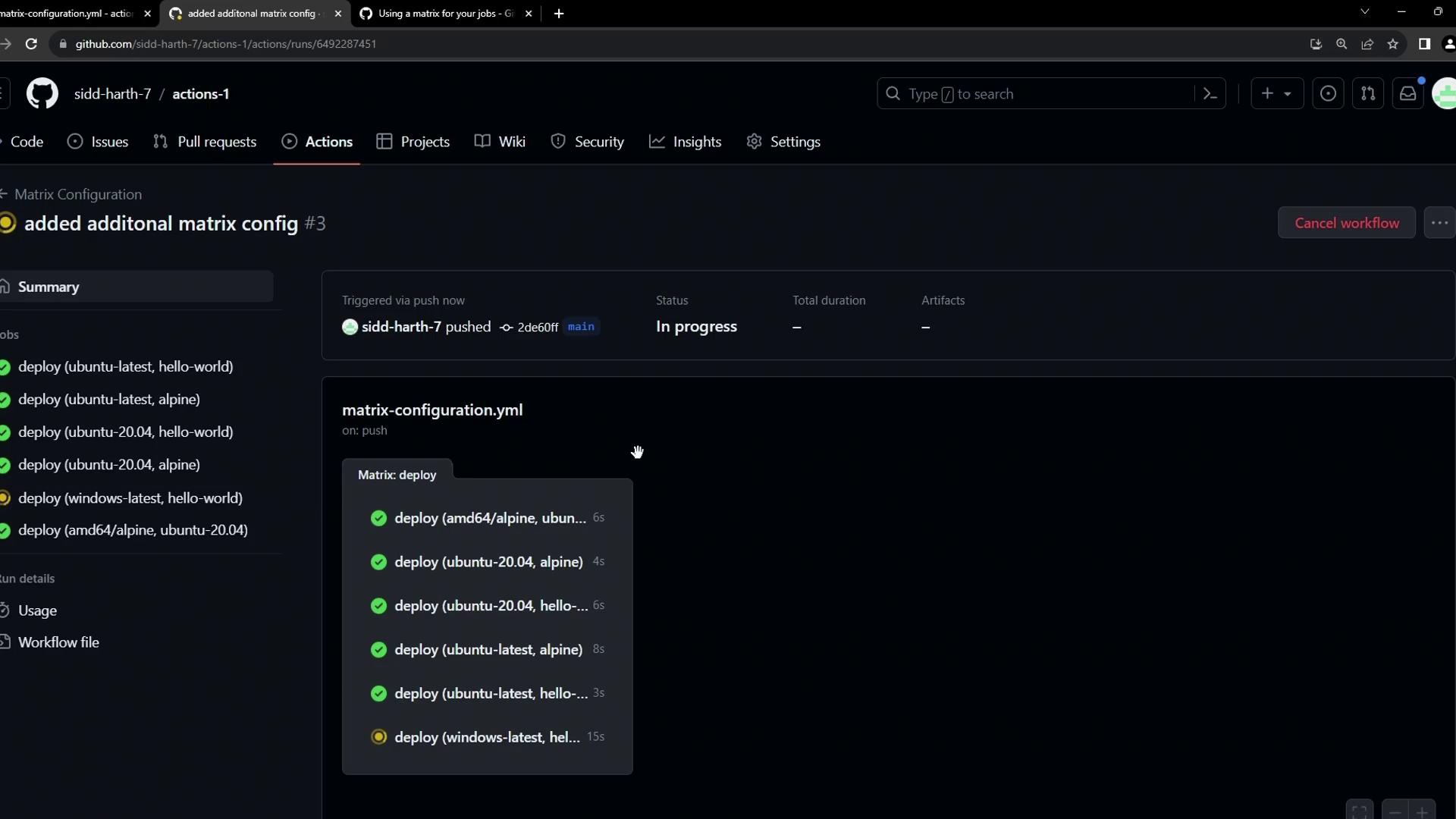

This adds one more job—Ubuntu 20.04 + amd64/alpine—for a total of 6 jobs.

4. Controlling Failure and Concurrency

Fine-tune your workflow execution with these two settings:

Example—the same matrix as before, with explicit failure and concurrency control:

on:
  workflow_dispatch:
jobs:
  deploy:
    strategy:
      fail-fast: false
      max-parallel: 2
      matrix:
        os: [ubuntu-latest, ubuntu-20.04, windows-latest]
        images: [hello-world, alpine]
        exclude:
          - os: windows-latest
            images: alpine
        include:
          - os: ubuntu-20.04
            images: amd64/alpine
    runs-on: ${{ matrix.os }}
    steps:
      - name: Show Docker Info
        run: docker info

      - name: Run ${{ matrix.images }} on ${{ matrix.os }}
        run: docker run ${{ matrix.images }}

• With fail-fast: false, failures don’t cancel other jobs.
• With max-parallel: 2, only two jobs run concurrently; queued jobs start as others finish.

By mastering exclude, include, fail-fast, and max-parallel, you gain precise control over matrix workflows in GitHub Actions.
