Using Job concurrency

In this guide, you’ll learn how to prevent overlapping deployments by using the concurrency key in GitHub Actions. We’ll start with a simple Docker build-and-publish workflow, simulate a long-running deployment, and then introduce concurrency controls to ensure only one deployment runs at a time.

1. Base Workflow

This workflow builds, logs in, and publishes a Docker image when manually triggered:

on:
  workflow_dispatch:

env:
  CONTAINER_REGISTRY: docker.io
  IMAGE_NAME: github-actions-nginx

jobs:
  docker:
    runs-on: ubuntu-latest
    steps:
      - name: Docker Build
        run: echo docker build -t ${{ env.CONTAINER_REGISTRY }}/${{ vars.DOCKER_USERNAME }}/${{ IMAGE_NAME }}:latest

      - name: Docker Login
        run: echo docker login --username=${{ vars.DOCKER_USERNAME }} --password=${{ secrets.DOCKER_PASSWORD }}

      - name: Docker Publish
        run: echo docker push ${{ env.CONTAINER_REGISTRY }}/${{ vars.DOCKER_USERNAME }}/${{ IMAGE_NAME }}:latest

2. Adding a Long-Running Deploy Job

To demonstrate overlapping runs, let’s add a deploy job that runs the container and then sleeps for 10 minutes:

jobs:
  docker:
    runs-on: ubuntu-latest
    steps:
      - name: Docker Build
        run: echo docker build -t ${{ env.CONTAINER_REGISTRY }}/${{ vars.DOCKER_USERNAME }}/${{ IMAGE_NAME }}:latest
      - name: Docker Login
        run: echo docker login --username=${{ vars.DOCKER_USERNAME }} --password=${{ secrets.DOCKER_PASSWORD }}
      - name: Docker Publish
        run: echo docker push ${{ env.CONTAINER_REGISTRY }}/${{ vars.DOCKER_USERNAME }}/${{ IMAGE_NAME }}:latest

  deploy:
    needs: docker
    runs-on: ubuntu-latest
    steps:
      - name: Docker Run
        run: |
          echo docker run -d -p 8080:80 ${{ env.CONTAINER_REGISTRY }}/${{ vars.DOCKER_USERNAME }}/${{ IMAGE_NAME }}:latest
          sleep 600s

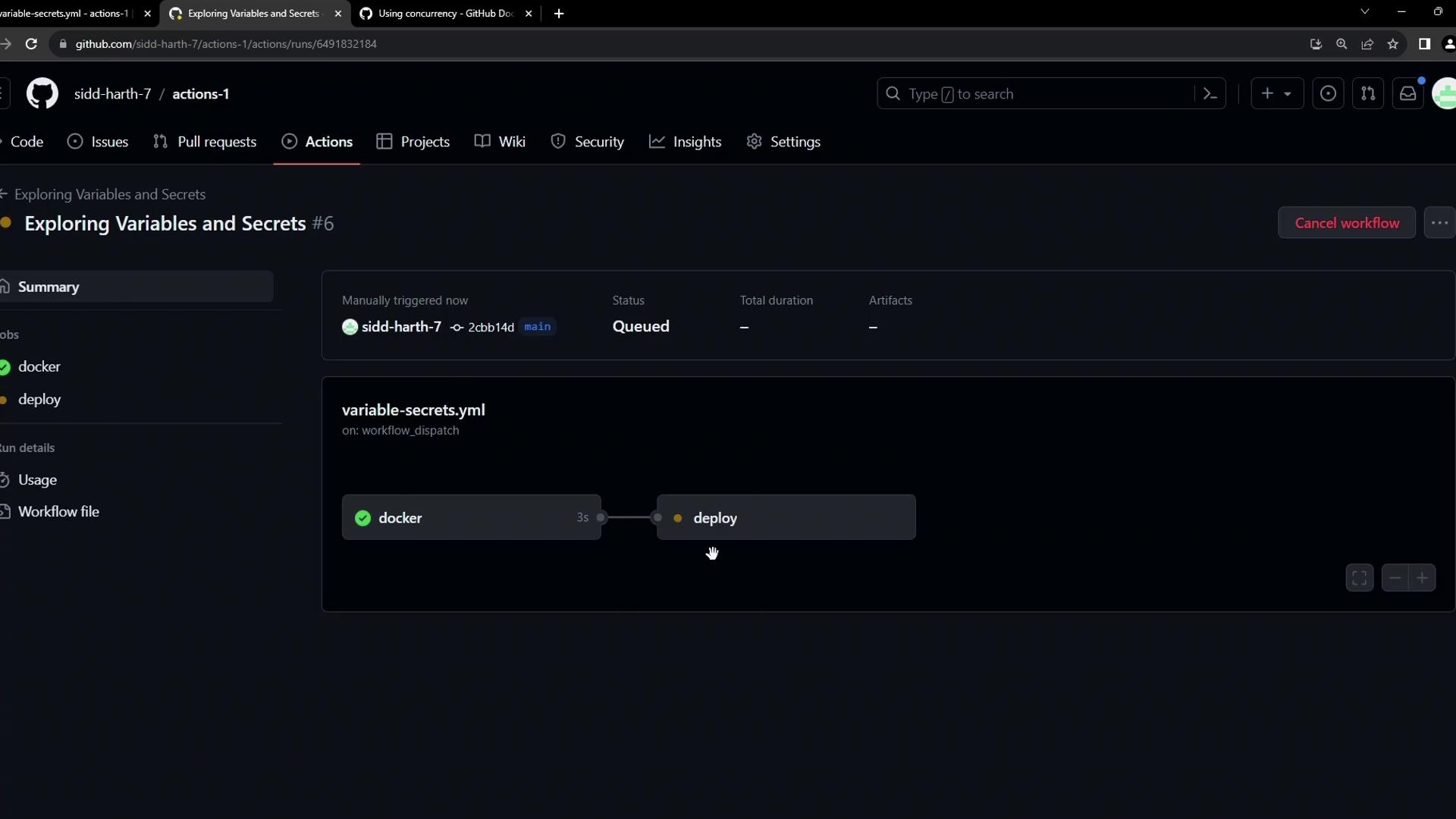

Once pushed, manually trigger the workflow:

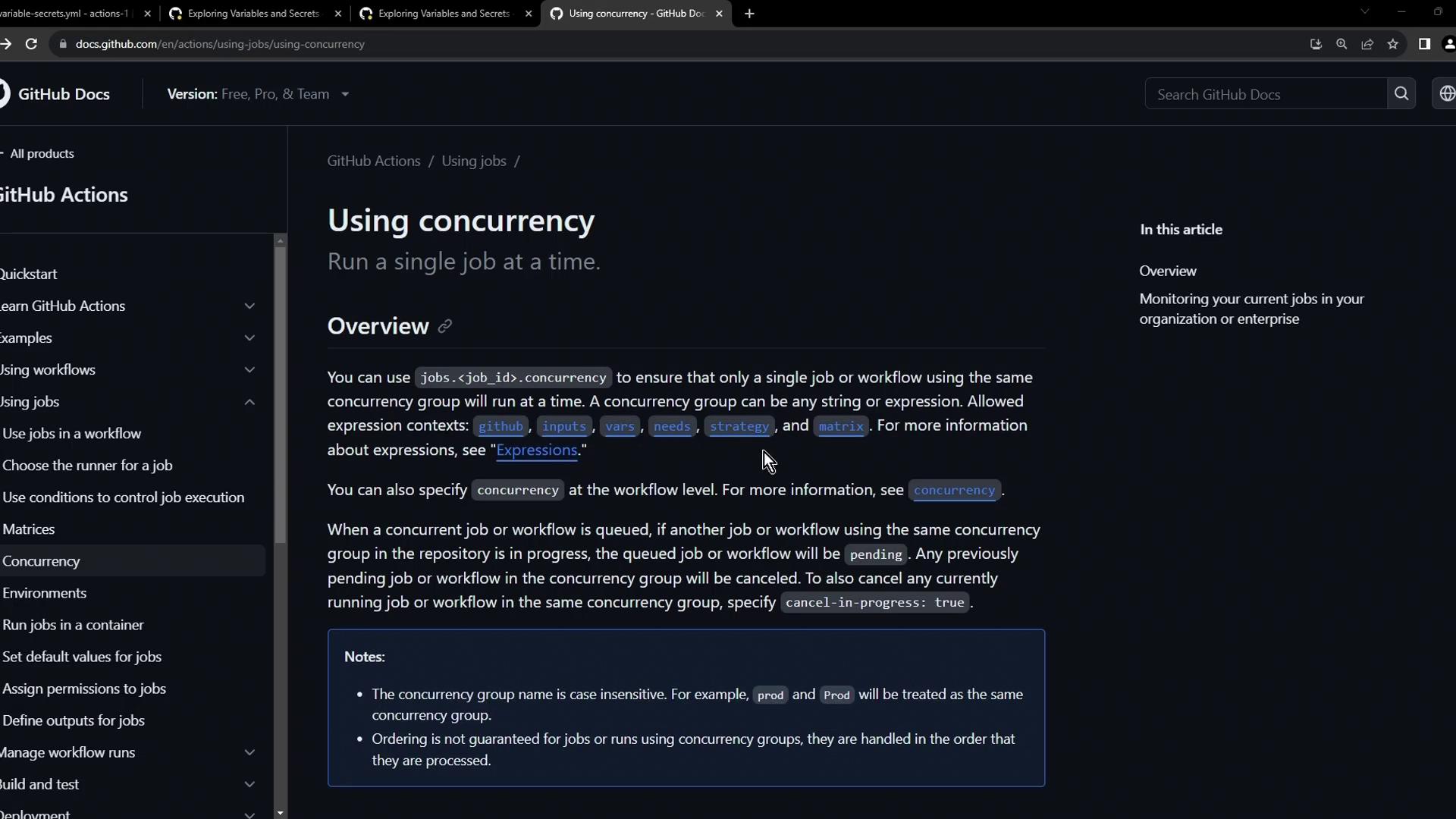

3. Understanding Concurrency in GitHub Actions

GitHub Actions offers a concurrency key to group runs and control whether new runs cancel or queue behind in-progress ones:

4. Enabling Concurrency on the Deploy Job

Add concurrency to the deploy job so that any new deployment run cancels the one in progress:

env:
  CONTAINER_REGISTRY: docker.io
  IMAGE_NAME: github-actions-nginx

jobs:
  docker:
    runs-on: ubuntu-latest
    steps:
      - name: Docker Build
        run: echo docker build -t ${{ env.CONTAINER_REGISTRY }}/${{ vars.DOCKER_USERNAME }}/${{ IMAGE_NAME }}:latest
      - name: Docker Login
        run: echo docker login --username=${{ vars.DOCKER_USERNAME }} --password=${{ secrets.DOCKER_PASSWORD }}
      - name: Docker Publish
        run: echo docker push ${{ env.CONTAINER_REGISTRY }}/${{ vars.DOCKER_USERNAME }}/${{ IMAGE_NAME }}:latest

  deploy:
    needs: docker
    concurrency:
      group: production-deployment
      cancel-in-progress: true
    runs-on: ubuntu-latest
    steps:
      - name: Docker Run
        run: |
          echo docker run -d -p 8080:80 ${{ env.CONTAINER_REGISTRY }}/${{ vars.DOCKER_USERNAME }}/${{ IMAGE_NAME }}:latest
          sleep 600s

After committing the change, triggering another run will immediately cancel the previous deploy:

docker run -d -p 8080:80 $CONTAINER_REGISTRY/siddharth67/$IMAGE_NAME:latest
Error: The operation was canceled.

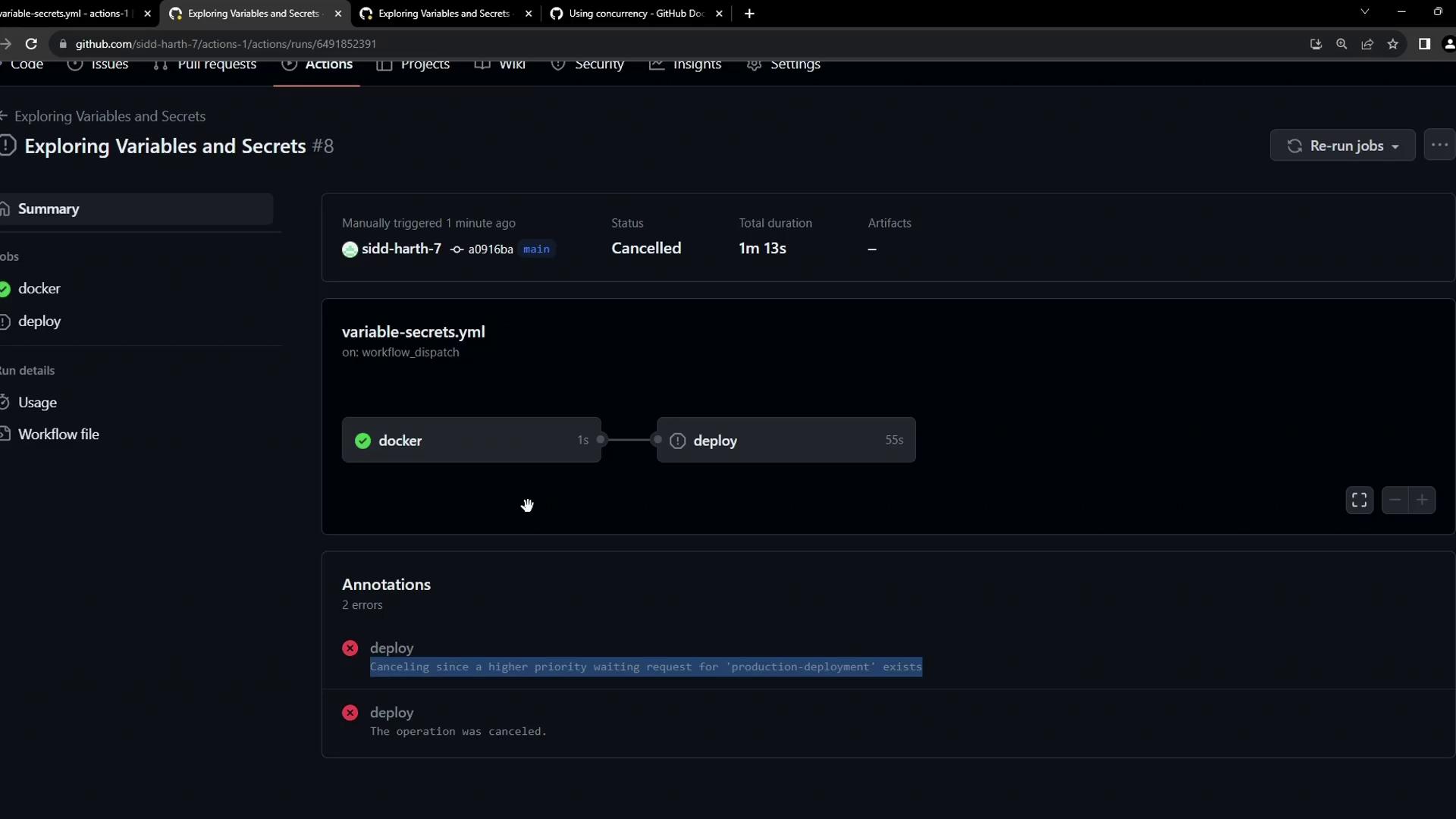

5. Demonstration: Cancel in Progress = true

1. Trigger Workflow A → deploy starts and sleeps.
2. Trigger Workflow B → cancels A’s deploy job and starts B’s.

You’ll see:

“The deploy job was canceled because a higher priority waiting request for the production deployment exists.”

6. Demonstration: Cancel in Progress = false

If you prefer to queue new runs behind in-progress ones, set cancel-in-progress: false:

deploy:
  needs: docker
  concurrency:
    group: production-deployment
    cancel-in-progress: false
  runs-on: ubuntu-latest
  steps:
    - name: Docker Run
      run: |
        echo docker run -d -p 8080:80 ${{ env.CONTAINER_REGISTRY }}/${{ vars.DOCKER_USERNAME }}/${{ IMAGE_NAME }}:latest
        sleep 600s

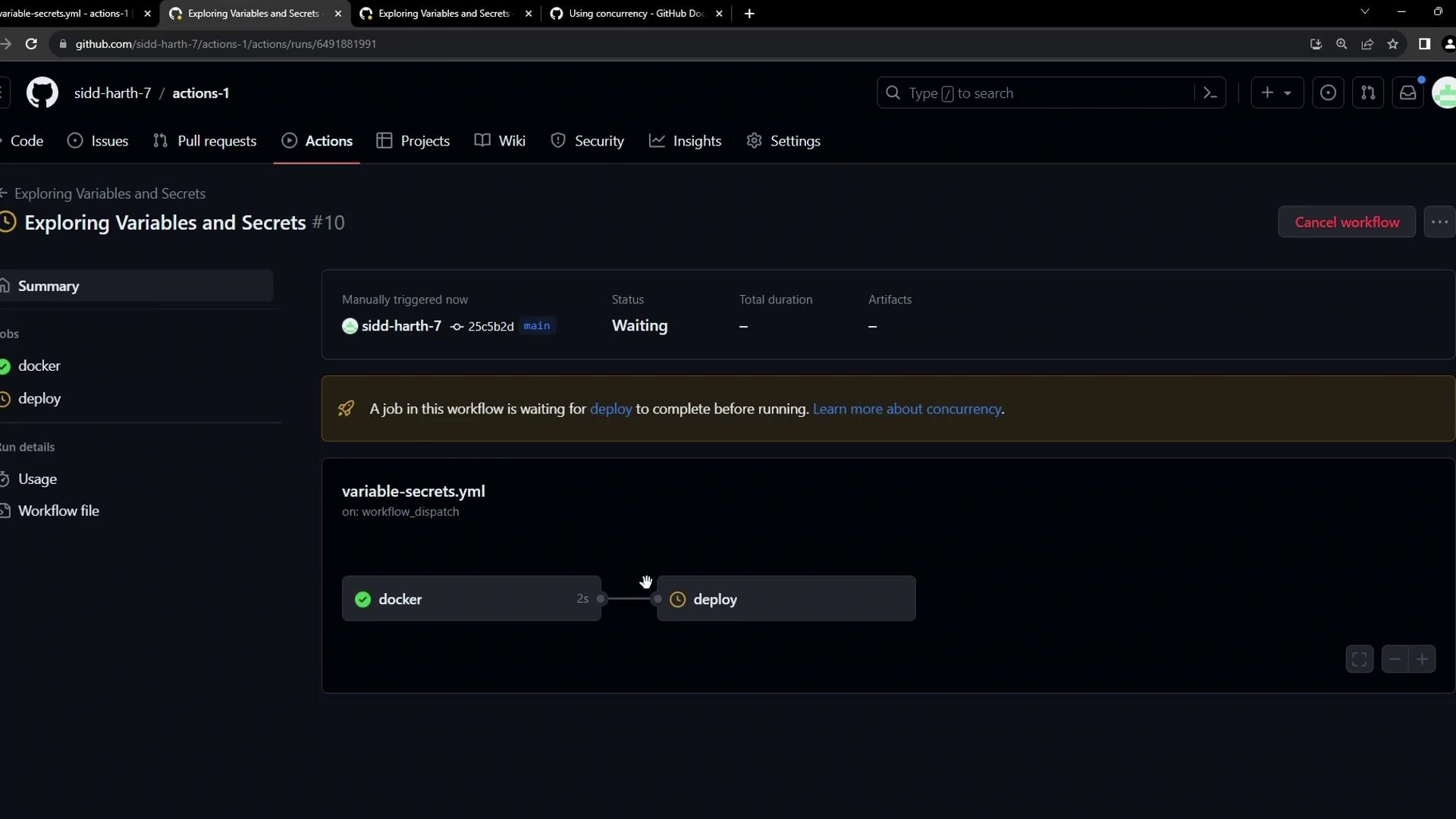

1. Trigger Workflow A → sleeps in deploy.
2. Trigger Workflow B → its docker job runs immediately, but its deploy job waits.

Hovering over the pending job reveals it’s waiting for the prior deployment to finish.

Conclusion

By defining concurrency.group and choosing whether to cancel-in-progress, you can enforce single-instance deployments or queue them, protecting your production environment from conflicts and ensuring predictable rollouts.
