Demo Build an HA Cluster Using Auto Join

In this guide, we’ll walk through configuring a Vault high-availability (HA) cluster using the auto-join feature. With auto-join, Vault nodes automatically discover and join each other by querying cloud metadata—tags in AWS, labels in GCP, or VM properties in VMware. By the end, you’ll have a fault-tolerant Raft cluster without manual peer configuration.

Environment Overview

We’re using three Amazon Linux EC2 instances in AWS, all tagged to enable discovery:

  • Tag Key: cluster
  • Tag Value: us-east-1

These tags ensure Vault nodes in the us-east-1 region locate each other and form a cluster.

Note

Make sure each EC2 instance has the cluster=us-east-1 tag applied before starting Vault.

Vault Configuration

On each node, update /etc/vault.d/vault.hcl to use Raft storage with auto-join in AWS:

storage "raft" {
  path             = "/opt/vault"
  node_id          = "vault-1"                    # Change per node: vault-1, vault-2, vault-3
  retry_join       = ["provider=aws region=us-east-1 tag_key=cluster tag_value=us-east-1"]
  auto_join_scheme = "http"                       # default is https; http is for non-production labs
}

listener "tcp" {
  address         = "0.0.0.0:8200"
  cluster_address = "0.0.0.0:8201"
  tls_disable     = true
}

seal "awskms" {
  region     = "us-east-1"
  kms_key_id = "arn:aws:kms:us-east-1:003674902126:key/8bc6b2ba-840a-4eef-8f2d-5616a3e67900"
}

api_addr     = "http://<NODE_PRIVATE_IP>:8200"
cluster_addr = "http://<NODE_PRIVATE_IP>:8201"
cluster_name = "vault"
ui           = true
log_level    = "INFO"
  • retry_join tells Vault to query AWS EC2 instances with the cluster=us-east-1 tag.
  • auto_join_scheme defaults to https; we use http here since TLS is disabled.

Warning

Never disable TLS in production. This example uses tls_disable = true for simplicity in a lab environment.

IAM Role for Auto-Join

Attach an IAM role to each EC2 instance with permissions to describe instances and access KMS:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "kms:Encrypt",
        "kms:Decrypt",
        "kms:DescribeKey"
      ],
      "Resource": "arn:aws:kms:us-east-1:003674902126:key/8bc6b2ba-840a-4eef-8f2d-5616a3e67900"
    },
    {
      "Sid": "PermitEC2ApiAccessForCloudAutoJoin",
      "Effect": "Allow",
      "Action": [
        "ec2:DescribeInstances"
      ],
      "Resource": "*",
      "Condition": {
        "StringEquals": {
          "aws:RequestedRegion": "us-east-1"
        }
      }
    }
  ]
}

In the AWS console, confirm that each instance has this IAM role attached:

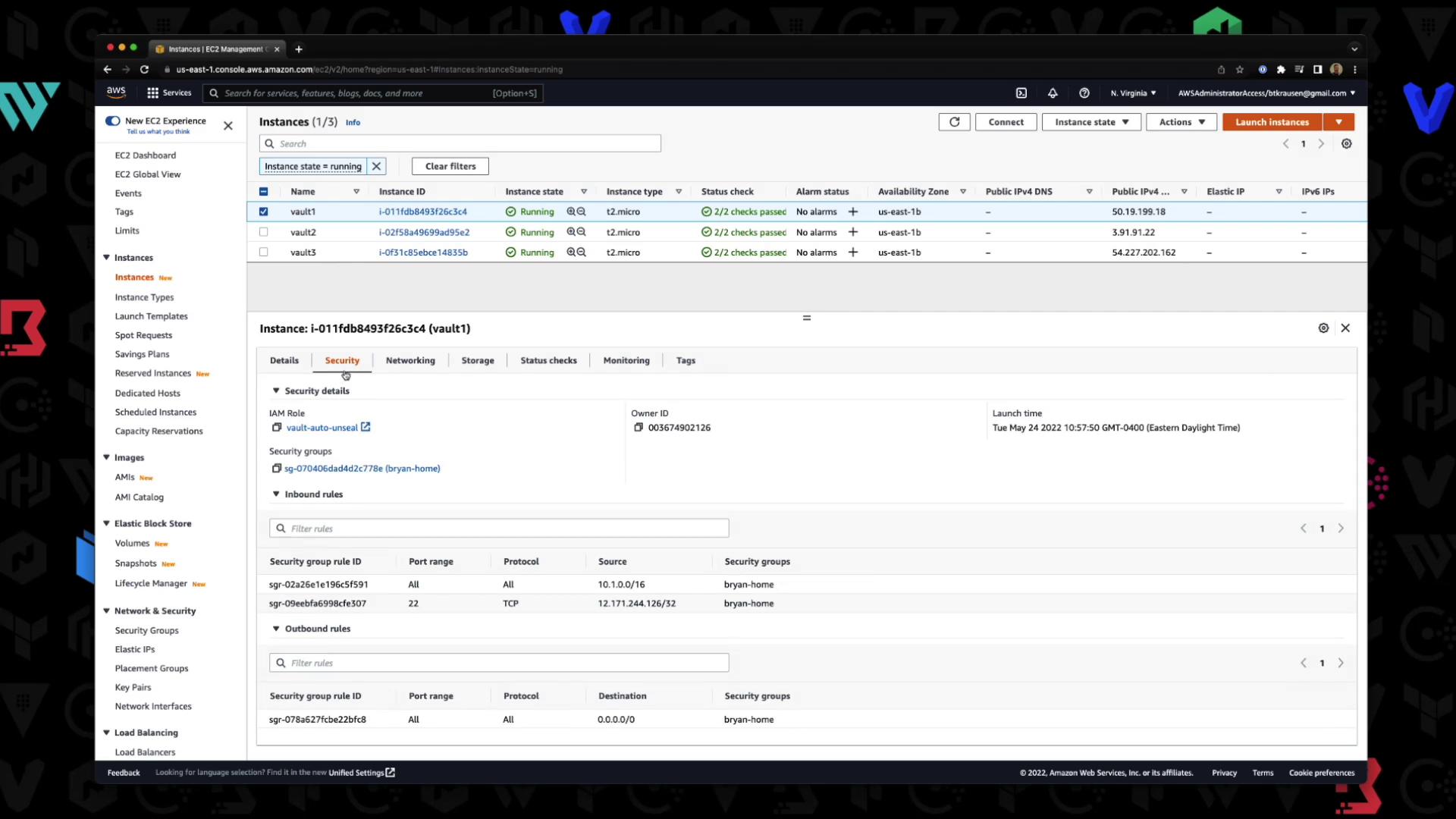

The image shows an AWS EC2 management console displaying a list of running instances with details about one specific instance, including its security settings and network information.

Initializing the Cluster

On the first node:

  1. Start Vault:
    sudo systemctl start vault

  2. Verify service status:
    vault status

  3. Initialize Vault to generate recovery keys and a root token:
    vault operator init

    Sample output:
    Recovery Key 1: AvXqLmtQ3JjHrMkboSx8+d1xlUuilntB9WeqWUrSk
    …
    Initial Root Token: hvs.S9xE9tx4Ydk8p2mVfjid2d

    Success! Vault is initialized


Cluster Auto-Join Logs

Watch Vault logs to confirm auto-join behavior:

journalctl -u vault -f

Key excerpts:

2022-05-24T15:47:28.772Z [DEBUG] discover-aws: Using provider "aws"
2022-05-24T15:47:28.772Z [DEBUG] discover-aws: Using region=us-east-1 tag_key=cluster tag_value=us-east-1
2022-05-24T15:47:28.894Z [INFO]  discover-aws: Found 1 reservation=024e0889d9df9a73 with 3 instances
2022-05-24T15:47:28.897Z [DEBUG] discover-aws: Instance i-011dfb843f26c3c4 has private ip 10.1.101.199
2022-05-24T15:47:28.898Z [DEBUG] discover-aws: attempting to join leader at http://10.1.101.199:8200

Verify Cluster Status

Run vault status on each node. You should see one active leader and two standbys:

Node IPHA ModeActive Node Address
10.1.101.199activehttp://10.1.101.199:8201
10.1.101.25standbyhttp://10.1.101.199:8201
10.1.101.108standbyhttp://10.1.101.199:8201

Summary

You’ve successfully built a Vault HA cluster that automatically joins via AWS metadata tags. This pattern works on AWS, Azure, GCP, and VMware (where supported). To scale out, launch new nodes with the same tags and Vault will auto-join the Raft cluster.

For more details, see:

Watch Video

Watch video content

Practice Lab

Practice lab
